GABRYLLY Black Shower Holder 1750(D) Instruction Manual

1. Introduction

Thank you for choosing the GABRYLLY Black Shower Holder 1750(D). This manual provides essential information for the proper installation, operation, and maintenance of your new shower accessory. Please read these instructions carefully before installation and retain them for future reference. This shower holder is designed for durability and functionality, crafted from stainless steel with an elegant black finish.

2. Safety Information

• Always ensure the water supply is turned off before attempting any installation or maintenance.
• Use appropriate tools and wear protective gear during installation to prevent injury.
• If you are unsure about any step, consult a qualified plumber.
• Do not overtighten connections, as this may damage the product or plumbing.
• Keep small parts away from children to prevent choking hazards.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• GABRYLLY Black Shower Holder 1750(D) Unit

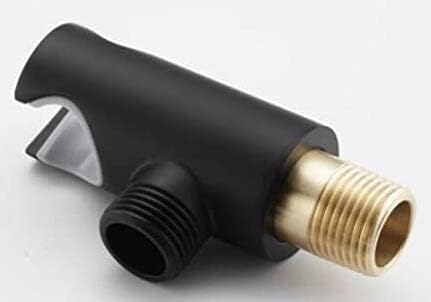

Figure 3.1: The GABRYLLY Black Shower Holder 1750(D) unit, featuring its black finish and brass threaded connections.

Figure 3.2: A closer view of the shower holder's connection point, highlighting the internal threading and design.

4. Setup and Installation

This section guides you through the installation process for the GABRYLLY Black Shower Holder 1750(D).

Tools You May Need:

• Adjustable wrench or pliers
• Plumber's tape (Teflon tape)

Installation Steps:

1. Prepare the Connection Point: Ensure the existing shower arm or water outlet is clean and free of debris. If replacing an old holder, remove it carefully.
2. Apply Plumber's Tape: Wrap plumber's tape clockwise around the threads of the shower arm or water outlet where the new holder will connect. Apply 3-5 layers for a watertight seal.
3. Attach the Shower Holder: Carefully thread the GABRYLLY Black Shower Holder onto the prepared connection point. Hand-tighten first to ensure it's not cross-threaded.
4. Tighten with Wrench: Use an adjustable wrench or pliers to gently tighten the holder. Do not overtighten. A snug fit is sufficient to prevent leaks.
5. Check for Leaks: Turn on the water supply and check for any leaks around the connection point. If leaks occur, turn off the water, re-apply plumber's tape, and re-tighten.
6. Install Shower Head: Once the holder is securely installed and leak-free, attach your shower head to the holder's outlet.

5. Operating Instructions

The GABRYLLY Black Shower Holder 1750(D) is designed for straightforward use.

• Placing the Shower Head: Simply insert the handle of your handheld shower head into the opening of the holder. The design allows for easy placement and removal.
• Adjusting Angle: The holder is fixed and provides a stable position for your shower head. If angle adjustment is desired, it must be done via the shower head's own swivel mechanism, if applicable.

6. Maintenance

Proper maintenance will ensure the longevity and appearance of your GABRYLLY Black Shower Holder.

• Cleaning: Clean the holder regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Drying: After cleaning, wipe the holder dry with a soft cloth to prevent water spots and maintain its luster.
• Inspection: Periodically check the connection for any signs of loosening or wear. Tighten if necessary.

7. Troubleshooting

If you encounter issues with your shower holder, refer to the following common problems and solutions.

• Leakage at Connection:
  • Ensure plumber's tape was applied correctly and sufficiently (3-5 layers).
  • Tighten the connection slightly with a wrench, being careful not to overtighten.
• Shower Head Does Not Sit Securely:
  • Verify that your shower head's handle diameter is compatible with the holder's opening.
  • Ensure the shower head is fully inserted into the holder.
• Discoloration or Stains:
  • Clean with a mild, non-abrasive cleaner and a soft cloth.
  • Avoid leaving water spots by drying the holder after each use or cleaning.

8. Specifications

9. Warranty and Support

GABRYLLY products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For technical support, troubleshooting assistance, or inquiries regarding your GABRYLLY Black Shower Holder 1750(D), please contact the retailer or manufacturer directly through their official support channels. Provide your product model number and purchase date when contacting support to expedite assistance.
