PTHTECHUS Waterproof Kids Smart Watch User Manual

Introduction

Thank you for choosing the PTHTECHUS Waterproof Kids Smart Watch. This device is designed to provide communication, safety, and entertainment for children, while offering peace of mind for parents through features like GPS tracking, two-way calling, and SOS alerts. Please read this manual carefully to ensure proper use and maintenance of the watch.

Image: The PTHTECHUS Kids Smart Watch in blue and green, showcasing its design and vibrant colors.

Key Features

Image: An infographic illustrating the main functionalities of the smart watch, such as camera, two-way calling, GPS, and SOS.

• Two-Way Calling: Make and receive calls from pre-set contacts.
• SOS Emergency Call: Press and hold the SOS button for three seconds to dial emergency numbers in a loop until answered.
• GPS Tracking: Real-time location tracking and historical route playback.
• IP67 Waterproof: Designed to withstand splashes, hand washing, and light rain.
• Camera: Built-in camera for capturing photos.
• Alarm Clock: Set alarms for daily routines.
• Class Mode: Disable certain functions during school hours to prevent distractions.
• Math Games: Simple educational games.
• Flashlight: Integrated light for convenience.
• Remote Monitoring: Listen to the watch's surroundings (requires app setup).

Setup Guide

1. Charging the Watch

Before first use, fully charge the watch. Connect the magnetic charging cable to the charging port on the back of the watch and plug the USB end into a standard USB power adapter (not included). A full charge typically takes about 2 hours.

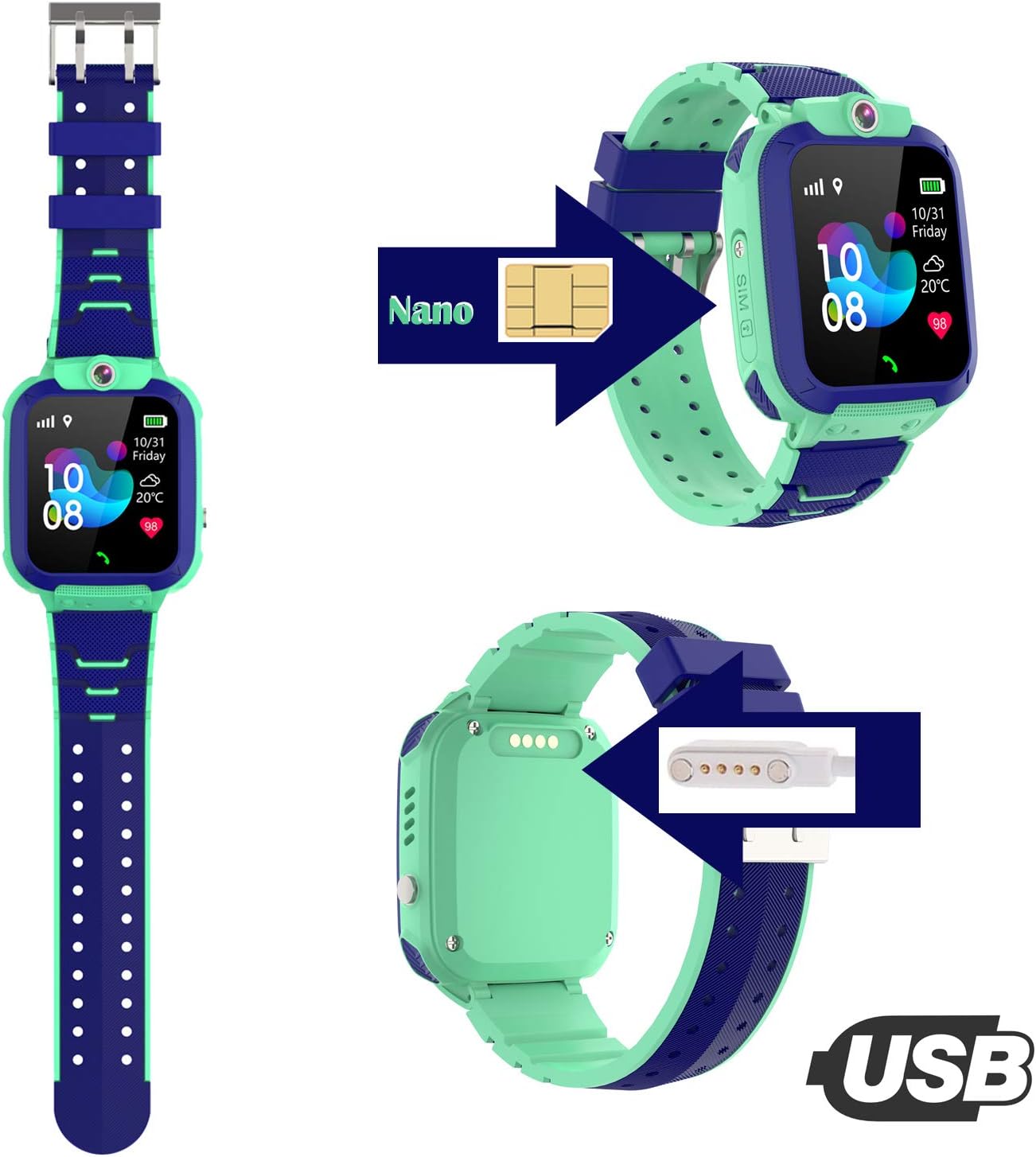

Image: Illustration of the SIM card insertion point and the magnetic USB charging connection on the watch.

2. SIM Card Installation

The watch requires a Nano SIM card (not included) with 2G network support for calling and GPS functions. Ensure the SIM card has call, SMS, and data plans enabled.

1. Power off the watch completely.
2. Locate the SIM card slot on the side of the watch.
3. Carefully insert the Nano SIM card into the slot with the chip facing up and the cut corner oriented correctly. Push it in until it clicks into place.
4. Power on the watch. The network signal icon should appear on the screen once the SIM card is recognized.

3. App Setup (SeTracker2 Recommended)

To manage the watch's features, such as contacts, GPS tracking, and SOS numbers, download the "SeTracker2" app on your smartphone (available for iOS and Android).

1. Scan the QR code provided in the watch's packaging or search for "SeTracker2" in your app store.
2. Register a new account using your email address and set a password.
3. Bind the watch to your account by scanning the QR code on the watch's back or entering the 15-digit REG code found in the watch's settings menu.
4. Configure family numbers, SOS numbers, safety zones, and other settings within the app.

Operating Instructions

1. Two-Way Calling

Once contacts are set up in the app, your child can make and receive calls from these numbers.

• Making a Call: Swipe on the watch screen to find the "Contacts" or "Phone" icon. Tap to select a contact and initiate a call.
• Receiving a Call: When a call comes in, tap the green answer button on the screen.

Image: Visual representation of the two-way calling feature, showing parents and children communicating.

2. SOS Emergency Function

In an emergency, the child can press and hold the SOS button (usually a dedicated button on the side) for 3 seconds. The watch will automatically dial the pre-set SOS numbers in a loop until one is answered.

• Ensure SOS numbers are correctly configured in the SeTracker2 app.

3. GPS Tracking

The watch uses GPS and LBS (Location Based Service) for positioning. You can view the real-time location of the watch and its historical movement tracks through the SeTracker2 app.

Image: Depiction of the GPS positioning tracker, showing the watch's location on a map via a smartphone app.

4. Camera and Photo Album

The watch has a built-in camera. Swipe to find the "Camera" icon, tap to open, and tap again to take a photo. Photos are saved in the "Album" and can be viewed on the watch or uploaded to the app.

5. Alarm Clock and Class Mode

• Alarm Clock: Set multiple alarms via the SeTracker2 app for reminders like waking up, homework, or bedtime.
• Class Mode (Do Not Disturb): Configure specific time periods in the app during which the watch will block incoming calls and disable games to prevent distractions during school hours. Only SOS calls will function.

Image: A collage demonstrating various uses of the watch, including alarm clock function, class mode, and taking photos.

Maintenance and Care

Waterproofing (IP67)

The watch is IP67 waterproof, meaning it is resistant to splashes, hand washing, and light rain. It is not suitable for swimming, bathing, or prolonged submersion in water deeper than 1 meter.

• Do NOT press any buttons underwater. This can compromise the waterproof seal and damage the watch.
• Avoid exposing the watch to hot water, steam, or high-pressure water jets.
• If the watch gets wet, wipe it dry with a soft cloth.

Image: Visual examples of the watch's IP67 waterproof rating, showing it can withstand hand washing, water games, and rain.

General Care

• Clean the watch regularly with a soft, dry cloth.
• Avoid dropping the watch or subjecting it to strong impacts.
• Keep the watch away from extreme temperatures and direct sunlight for prolonged periods.
• Do not attempt to disassemble or repair the watch yourself.

Troubleshooting

Specifications

Image: A detailed overview of the watch's functional parameters and technical specifications.

Warranty and Support

Information regarding specific warranty terms and conditions is not provided in this manual. Please refer to the product packaging or the retailer's website for warranty details.

For technical support or further assistance, please contact PTHTECHUS customer service through the contact information provided with your purchase or on the official brand website.
