Introduction
The Motorola Solutions T260 two-way radio is designed to provide reliable communication for various outdoor activities and professional uses. This manual provides detailed instructions for setting up, operating, and maintaining your T260 radios.
The communication range is influenced by terrain and conditions. Optimal range is achieved in unobstructed line-of-sight conditions. Actual range may vary due to factors such as terrain, weather, electromagnetic interference, and obstructions.
What's in the Box
Your Motorola Solutions T260 6-pack includes the following items:
- 6 x Motorola Solutions T260 Two-Way Radios
- 6 x (AA) NiMH Rechargeable Battery Packs
- 6 x Belt Clips
- 2 x Y Cables (for charging multiple units)
- 2 x Single Cable Adaptors
Image: Six Motorola Solutions T260 two-way radios, white with gray accents, displayed together. This image shows the complete 6-pack contents.
Product Overview
The T260 radio features a compact and durable design, optimized for ease of use and clear communication.
Image: Front view of a single T260 radio, highlighting the display, control buttons, and speaker grille.
Image: Side view of a single T260 radio, showing the textured grip and the Push-to-Talk (PTT) button.
Image: Back view of a single T260 radio, showing the battery compartment cover and the Motorola logo.

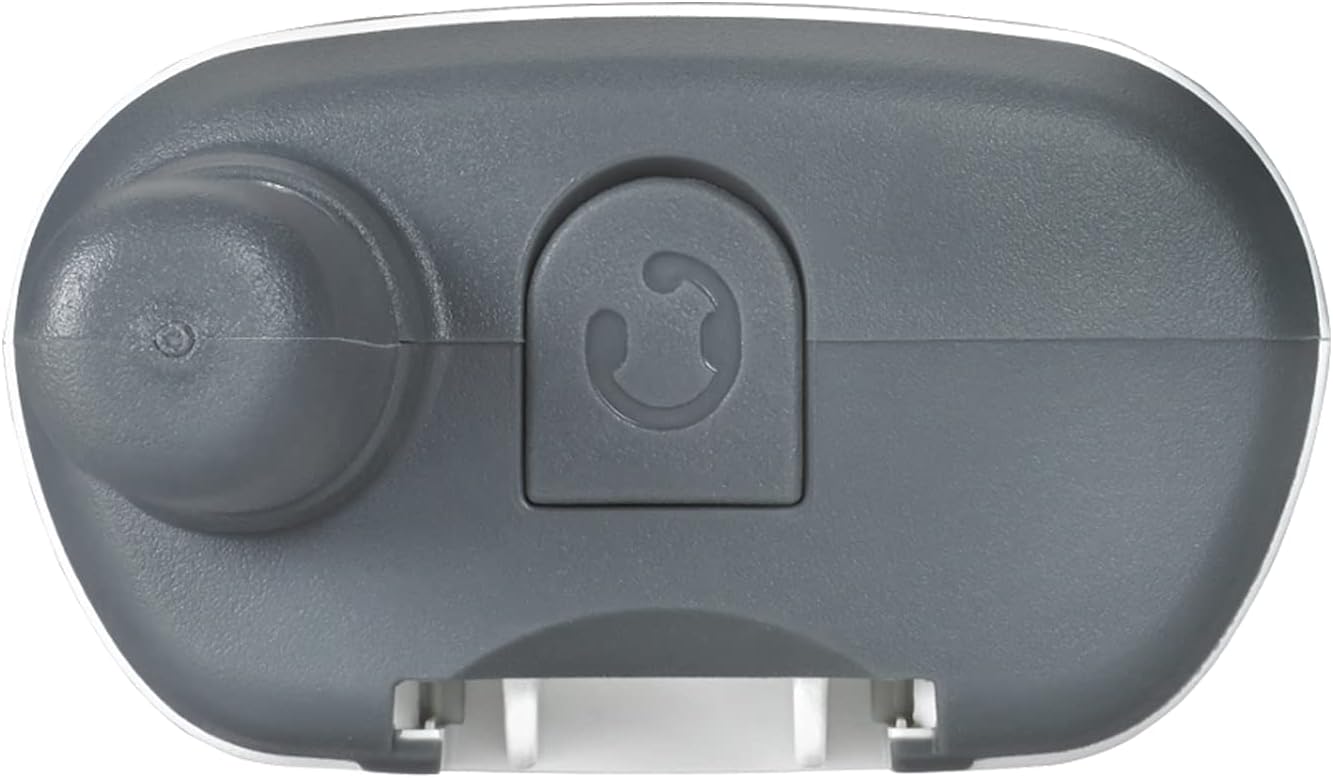

Image: Top view of a single T260 radio, showing the antenna, power/volume knob, and accessory port cover.
Setup
1. Battery Installation
The T260 radios can be powered by either the included NiMH rechargeable battery packs or 3 standard AA alkaline batteries (not included).
- Ensure the radio is turned off.
- Remove the battery compartment cover on the back of the radio.
- Insert the NiMH battery pack or 3 AA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
- Replace the battery compartment cover, ensuring it clicks securely into place.
2. Charging the Batteries
Use the provided Y-cables and single cable adaptors to charge the NiMH battery packs. The radios consume less power during idle conditions due to their Eco Smart feature.
- Connect the Y-cable or single cable adaptor to a compatible USB power source.
- Plug the charging connector(s) into the charging port(s) on the radio(s).
- The battery indicator on the radio display will show charging status.
- A full charge for NiMH batteries typically takes up to 10 hours.
Operating Instructions
1. Power On/Off and Volume
- To turn the radio on or off, rotate the Power/Volume knob clockwise or counter-clockwise until you hear a click.
- Adjust the volume by rotating the same knob.
2. Channel Selection and Privacy Codes
The T260 offers 22 channels and 121 privacy codes, providing 2,662 combinations for clear communication.
- Press the Menu button to enter channel selection mode. The channel number will blink.
- Use the + or - buttons to select your desired channel (1-22).
- Press Menu again to select a privacy code. The privacy code will blink.
- Use the + or - buttons to select your desired privacy code (1-121).
- Press Menu to confirm your selection or wait a few seconds for the setting to save automatically.
- To communicate with other FRS radios, ensure both radios are set to the same channel and privacy code.
3. Transmitting and Receiving
- To transmit, press and hold the Push-to-Talk (PTT) button on the side of the radio. Speak clearly into the microphone.
- Release the PTT button to receive.
4. iVOX/VOX Hands-Free Communication
The iVOX/VOX feature allows for hands-free operation. When activated, the radio transmits automatically when it detects your voice.
- Consult the full user manual for detailed instructions on activating and adjusting iVOX/VOX sensitivity levels.
5. NOAA Weather Channels and Alerts
Stay informed about real-time weather conditions with 11 NOAA weather channels and alerts. NOAA radio service availability may vary by area.
- Access weather channels through the Mode or Menu button, depending on the specific radio interface.
- Activate weather alerts to receive notifications of severe weather.
6. Scanning Feature
Use the scanning feature to quickly find active channels.
- Press the Scan button (often labeled 'Z' or 'MON') to initiate channel scanning.
- The radio will cycle through channels and stop on any active transmission.
7. Keypad Lock
Prevent accidental changes to your personalized settings by activating the keypad lock.
- Typically, press and hold the Menu button until a lock icon appears on the display. Repeat to unlock.
8. Customize Call Tones
Choose from 20 call tones to personalize what callers hear before you begin speaking.
- Access call tone settings through the Menu button and navigate to the tone options.
Video: A user demonstrates the basic functions of a Motorola Talkabout radio, including power, volume, and channel selection. This video provides a visual guide to operating the device.
Range Information
The Motorola T260 radios are advertised with a range of up to 25 miles. This maximum range is calculated under optimal conditions with an unobstructed line of sight. Actual range will vary significantly based on several factors:
- Terrain: Obstructions like buildings, hills, and dense foliage can reduce range.
- Weather Conditions: Heavy rain, fog, or snow can impact signal quality.
- Electromagnetic Interference: Other electronic devices or radio signals can cause interference.
- Line of Sight: The clearest communication is achieved when there are no physical barriers between radios.
For best results, operate in open areas with minimal obstructions.
Maintenance
- Cleaning: Use a soft, damp cloth to clean the radio's exterior. Do not use harsh chemicals or abrasive cleaners.
- Battery Care: Fully charge NiMH batteries before first use. Store radios with batteries removed if not used for extended periods.
- Storage: Store radios in a cool, dry place away from extreme temperatures and direct sunlight.
Troubleshooting
| Problem | Solution |
|---|---|
| No power | Check battery installation. Ensure batteries are charged or replace AA batteries. |
| Cannot communicate with other radios | Verify both radios are on the same channel and privacy code. Check range and obstructions. |
| Poor audio quality | Adjust volume. Ensure radios are within effective range. Check for interference. |
| Keypad locked | Press and hold the Menu button until the lock icon disappears. |
| Low battery alert | Recharge NiMH batteries or replace AA batteries. |
Specifications
- Model Number: T260-6PK
- Product Dimensions: 1.24"D x 2.13"W x 6.42"H
- Item Weight: 6.4 ounces (per radio)
- Color: White
- Number of Channels: 22 FRS/GMRS channels
- Privacy Codes: 121
- Frequency Range: FRS/GMRS 462 - 467 MHz
- Talking Range Maximum: Up to 25 miles (optimal conditions)
- Power Source: 3 AA batteries (NiMH rechargeable included)
- Voltage: 4.5 Volts
- Water Resistance Level: Not Water Resistant
- Special Features: Keypad Lock, NOAA Weather Channels/Alerts, iVOX/VOX, Call Tones, Eco Smart
Warranty and Support
Specific warranty information for the Motorola Solutions T260 radios is typically provided with the product packaging or available on the manufacturer's official website. For detailed warranty terms, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the Motorola Solutions support portal.
Please note that protection plans may be available for purchase separately, offering extended coverage beyond the standard manufacturer's warranty.
