N\B Electric Heated Full Throw Blanket User Manual

Important Safety Instructions

Please read all instructions carefully before using this electric heated blanket. Failure to follow these instructions may result in fire, electric shock, or injury.

• Do not use this blanket with an infant, child, incapacitated person, or anyone insensitive to heat.
• Ensure the power cord and controller are not pinched or damaged.
• Do not dry clean this product. Dry cleaning solvents may damage the insulation of the heating element.
• Do not use pins or other metallic objects with this blanket as they may damage the wiring.
• Always unplug the blanket when not in use or before cleaning.
• This product features an Overheat Protection System and ETL Certification for enhanced safety.

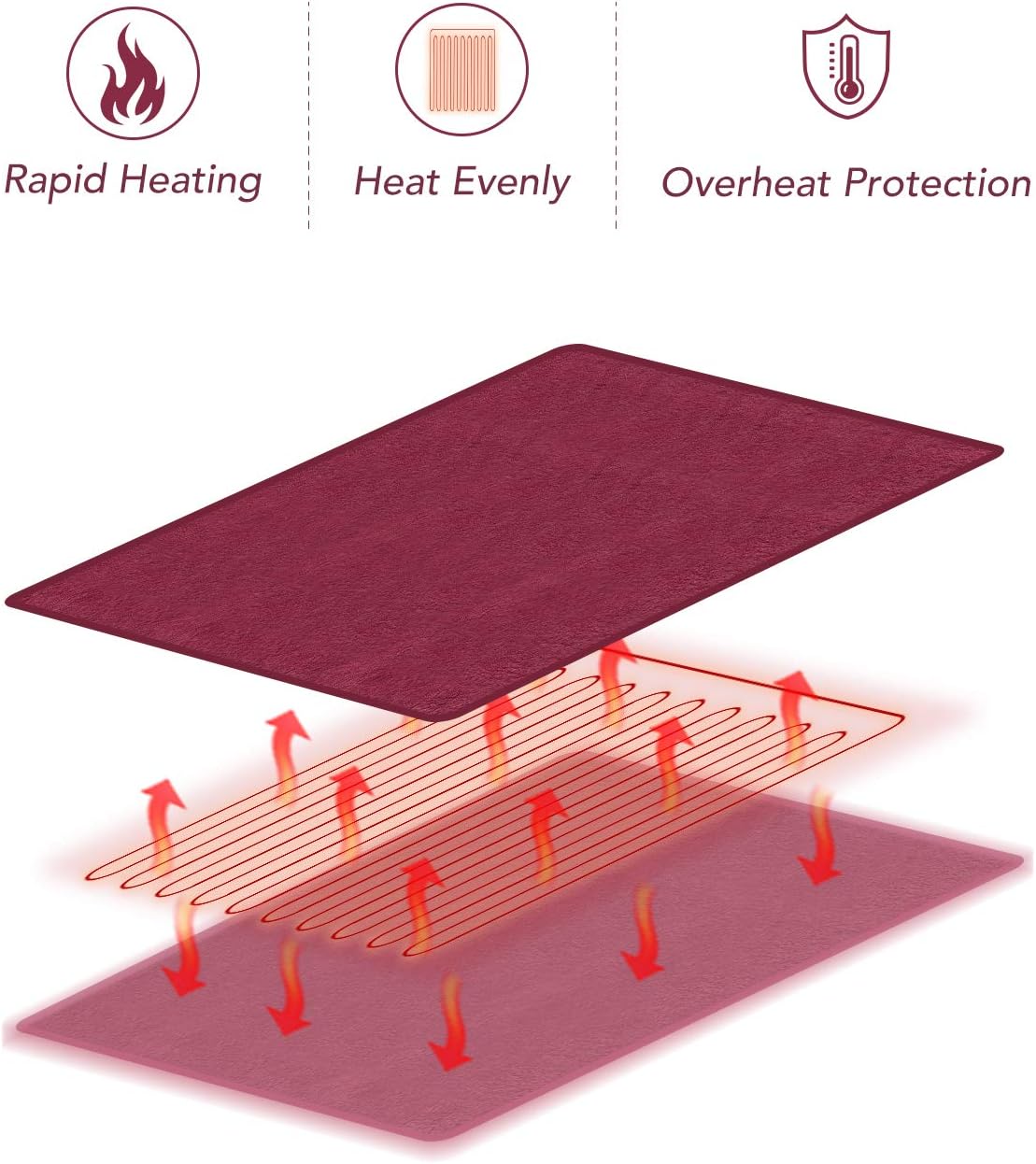

Figure 1: Diagram showing rapid heating, even heat distribution, and overheat protection.

Product Overview

The N\B Electric Heated Full Throw Blanket provides warmth and comfort with its soft flannel material and efficient heating system. It is designed for full body coverage and features multiple heat settings and an automatic shut-off for safety and convenience.

Figure 2: The N\B Electric Heated Full Throw Blanket in red wine color.

The blanket is constructed from deluxe, soft flannel, ensuring optimal comfort and efficient heat preservation. Its generous size of 72 x 84 inches provides ample coverage. The internal wiring is designed for uniform heat distribution, ensuring consistent warmth across the entire blanket surface.

Figure 3: Close-up of the soft flannel material.

Setup

Unpacking

1. Carefully remove the electric blanket from its packaging.
2. Unroll the blanket and lay it flat to inspect for any damage.
3. Locate the detachable controller and power cord.

Connecting the Controller

1. Ensure the blanket is completely dry before connecting the controller.
2. Connect the controller cable securely to the port on the blanket.
3. Plug the power cord into a standard 120V AC electrical outlet. Ensure the outlet is easily accessible.

Figure 4: Detachable controller and power cord connection.

Operating Instructions

Power On/Off

• To turn on the blanket, press the power button on the controller. The LED indicator will light up.
• To turn off the blanket, press the power button again until the LED indicator turns off, or unplug the power cord from the wall outlet.

Adjusting Heat Levels

• The blanket features 4 heating levels.
• Press the heat level button on the controller to cycle through the available heat settings (1-4).
• Select the desired heat level for personalized comfort.

Auto-Off Timer

• The blanket is equipped with a 10-hour auto-off function for energy saving and safety.
• After approximately 10 hours of continuous use, the blanket will automatically turn off.
• To restart heating, turn the blanket off and then on again using the controller.

Figure 5: Enjoying the heated blanket.

Maintenance

Washing Instructions

The electric blanket is machine washable, making maintenance easy and convenient.

1. Before washing, always disconnect the controller from the blanket and unplug the power cord from the wall outlet.
2. Machine wash on a gentle cycle with cold water (maximum 30°C / 86°F).
3. Use a mild detergent. Do not use bleach.
4. Tumble dry on low heat or line dry. Ensure the blanket is completely dry before reconnecting the controller or plugging it in.
5. Do not iron the blanket.

Figure 6: Machine washing the blanket.

Troubleshooting

If you encounter any issues with your electric heated blanket, please refer to the following common solutions:

• Blanket not heating: Ensure the power cord is securely connected to both the blanket and a functional wall outlet. Verify that the controller is properly attached and set to an active heat level (not 'off').
• Uneven heating: Check that the blanket is laid flat and not bunched up, which can affect heat distribution.
• Controller not responding: Unplug the blanket from the wall outlet for a few minutes, then plug it back in and try again.

If problems persist after attempting these steps, please contact customer support for further assistance.

Specifications

Figure 7: Blanket dimensions.

Warranty and Support

For detailed warranty information, product registration, or customer support, please refer to the documentation included with your purchase or visit the official N\B website. Keep your purchase receipt for warranty claims.
