1. Introduction
Thank you for choosing the VONROC Ash Vacuum Cleaner 1600W (Model VC505AC). This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your ash vacuum cleaner. Please read these instructions carefully before first use and keep them for future reference.
This ash vacuum cleaner is designed for cleaning cold ashes from fireplaces, wood stoves, pellet stoves, barbecues, and for vacuuming fine sawdust in workshops. It features a washable HEPA filter, making it highly resistant to fine dust particles found in ashes, ensuring a clean and healthy working environment.
Important Safety Warning: Always allow ashes to cool to a maximum temperature of 40°C (104°F) before vacuuming. Vacuuming hot ashes can cause fire or damage to the appliance.
2. Product Overview and Components
The VONROC Ash Vacuum Cleaner (Model VC505AC) includes the following main components:
- Ash Vacuum Unit with Motor Head
- 20-Liter Collection Tank
- 1.2-Meter Flexible Suction Hose
- Aluminum Nozzle
- Washable HEPA Filter
- 3-Meter Power Cable
Image 1: Fully assembled VONROC Ash Vacuum Cleaner 1600W, showing the main unit, hose, and nozzle.
Image 2: VONROC Ash Vacuum Cleaner 1600W with the motor head and HEPA filter separated from the 20-liter collection tank, alongside the suction hose and nozzle.
3. Setup
- Unpack: Carefully remove all components from the packaging. Ensure all parts listed in Section 2 are present and undamaged.
- Filter Installation: Ensure the washable HEPA filter is securely installed on the motor head. Refer to Image 3 for correct filter placement.
- Assemble Tank and Motor Head: Place the motor head with the installed filter onto the 20-liter collection tank. Secure the clamps on the sides of the tank to firmly attach the motor head.
- Attach Hose: Insert the flexible suction hose into the inlet port on the side of the collection tank. Twist to secure if applicable.
- Attach Nozzle: Connect the aluminum nozzle to the free end of the suction hose.

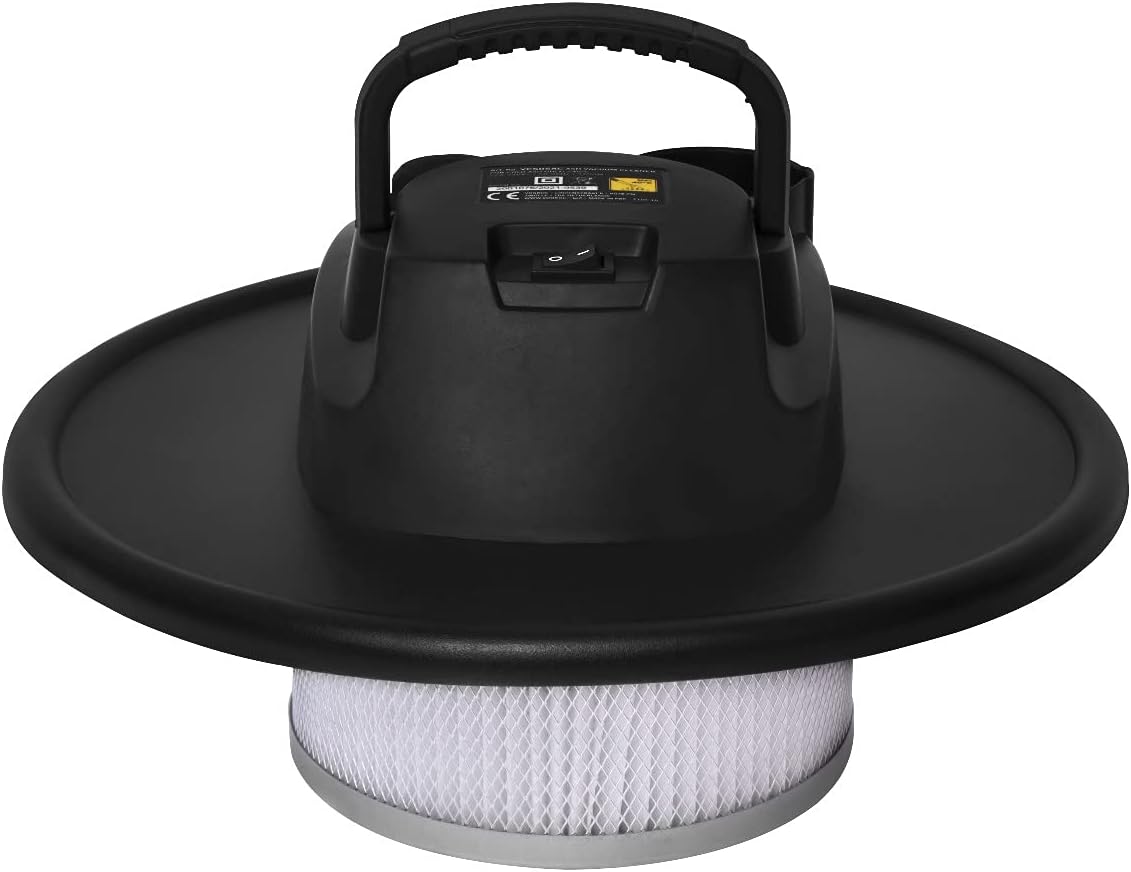

Image 3: Close-up view of the VONROC Ash Vacuum Cleaner's motor head with the washable HEPA filter correctly attached underneath.
4. Operating Instructions
- Safety Check: Before each use, ensure the ashes to be vacuumed have cooled down to a maximum of 40°C (104°F). Inspect the hose and nozzle for any blockages or damage.
- Power Connection: Plug the 3-meter power cable into a suitable electrical outlet.
- Start Vacuuming: Turn on the ash vacuum cleaner using the power switch located on the motor head.
- Technique: Guide the aluminum nozzle over the cold ashes. The powerful 1600W motor will efficiently collect the ashes into the 20-liter tank.
- Stop Operation: Once cleaning is complete or the tank is full, turn off the appliance using the power switch and unplug it from the electrical outlet.
- Emptying the Tank: Unclamp the motor head from the tank and carefully lift it off. Dispose of the collected ashes responsibly.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your ash vacuum cleaner.
- Emptying the Tank: Empty the 20-liter collection tank regularly, especially after each use, to prevent buildup and maintain suction power.
- Cleaning the HEPA Filter: The HEPA filter is washable. After several uses or when suction power decreases, remove the filter and clean it. You can gently tap it to dislodge dust or wash it with cold water. Ensure the filter is completely dry before re-installing it.
- Cleaning the Unit: Wipe down the exterior of the vacuum cleaner with a damp cloth. Do not use abrasive cleaners or solvents.
- Storage: The power cord and accessories can be stored compactly in the accessory holder or inside the 20-liter tank, saving storage space. Store the appliance in a dry, safe place away from direct sunlight and extreme temperatures.
6. Troubleshooting
If you encounter issues with your ash vacuum cleaner, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced suction power | Full tank, clogged filter, blocked hose/nozzle | Empty the tank. Clean or replace the HEPA filter. Check and clear any blockages in the hose or nozzle. |
| Vacuum cleaner does not turn on | No power supply, faulty power switch | Check if the power cable is securely plugged in. Test the outlet with another appliance. If the issue persists, contact customer support. |
| Hose blockage | Large debris or ash clumps | Turn off the unit and unplug it. Carefully remove the hose and shake it to dislodge the blockage. Reattach and restart. |
If problems persist after attempting these solutions, please contact VONROC customer support.
7. Specifications
Technical specifications for the VONROC Ash Vacuum Cleaner 1600W (Model VC505AC):
| Specification | Value |
|---|---|
| Brand | VONROC |
| Model Number | VC505AC |
| Power | 1600 Watts |
| Voltage | 1600 Volts (Note: This value is as provided in product specifications, typically operating voltage is lower, e.g., 230V) |
| Capacity | 20 Liters |
| Product Dimensions (L x W x H) | 31 x 31 x 39 cm |
| Item Weight | 4.05 Kilograms |
| Special Feature | HEPA Filter |
| Filter Type | Cartridge |
| Power Source | Corded Electric |
| Included Components | Brushes (as per specifications, though main accessories are hose and nozzle) |
8. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or visit the official VONROC website. If you require technical assistance, spare parts, or have any questions regarding your VONROC Ash Vacuum Cleaner, please contact VONROC customer support through their official channels.
Always provide your product model number (VC505AC) and purchase details when contacting support to ensure efficient service.
