Introduction
This manual provides essential information for the safe and efficient use of your POCREATION E14 LED Bulb. Please read these instructions carefully before installation and operation, and retain them for future reference.
Product Overview
Key Features
- Standard E14 Base: Designed for compatibility with E14 lamp holders.
- Energy Efficient: 3W LED consumes significantly less power than traditional 20W halogen bulbs.
- Long Lifespan: Provides up to 30,000 hours of illumination.
- Stable Illumination: Engineered for flicker-free and glare-free light output, promoting eye comfort.
- Versatile Application: Suitable for various lighting fixtures including ceiling lamps, wall lamps, and refrigerators.
- Durable Construction: Made from glass and aluminum for enhanced longevity.
Technical Specifications
| Item Type | E14 LED Bulb |
| Material | Glass, Aluminum |
| Voltage | AC 220-240V |
| Power | 3W |
| Luminous Flux | 350 LM |
| Beam Angle | 360° |
| Color Rendering Index (RA) | 80 |
| Service Life | 30,000 hours |
| Length | 5.5 cm (2.2 in) |
| Maximum Diameter | 2.7 cm (1.1 in) |
| Weight | Approx. 15g (0.5 oz) |
Product Dimensions
Image: The POCREATION E14 LED Bulb, blue in color, with its length (5.5 cm / 2.2 inches) and maximum diameter (2.7 cm / 1.1 inches) clearly indicated.
Setup and Installation
- Safety First: Before attempting any installation, ensure the power supply to the light fixture is turned off at the circuit breaker or fuse box.
- Verify Compatibility: Confirm that your light fixture uses an E14 base. This bulb is designed for AC 220-240V systems.
- Remove Old Bulb (if applicable): Carefully unscrew the existing bulb from the fixture. Allow it to cool if it was recently in use.
- Install New Bulb: Gently screw the POCREATION E14 LED Bulb into the E14 lamp holder until it is snug. Do not overtighten.
- Restore Power: Turn the power supply back on at the circuit breaker or fuse box.
- Test: Turn on the light switch to confirm the bulb is functioning correctly.

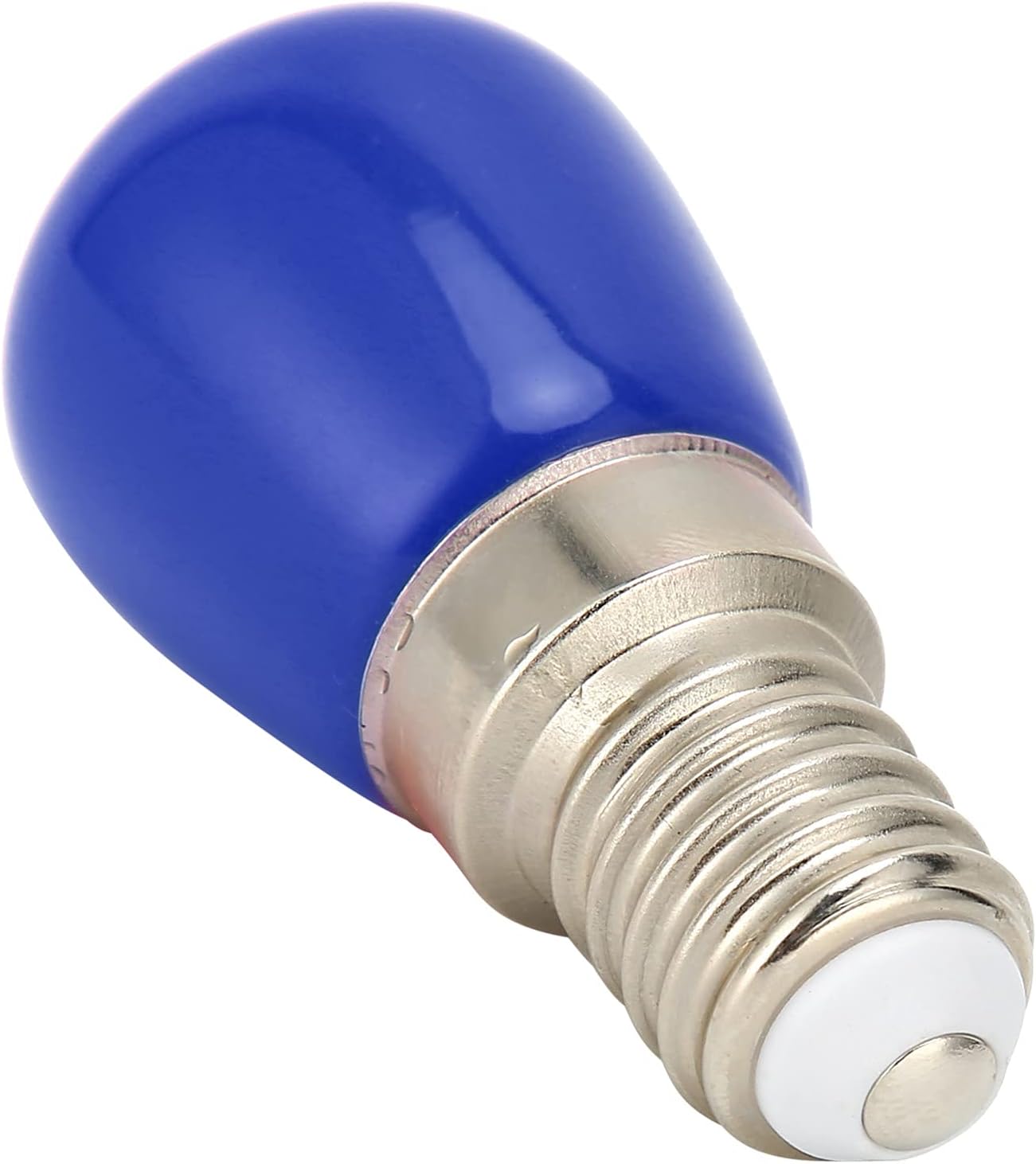

Image: An angled view of the blue POCREATION E14 LED Bulb, illustrating its compact size and E14 screw-in base for easy installation.
Operating Instructions
Once installed, the POCREATION E14 LED Bulb operates like any standard light bulb. Simply use the existing wall switch or fixture switch to turn the light on or off.
- This bulb is designed for immediate full brightness upon switching on.
- It is not designed for dimmable circuits unless explicitly stated on the product packaging (not applicable for this model).
Maintenance
The POCREATION E14 LED Bulb requires minimal maintenance due to its long lifespan and durable construction.
- Cleaning: Ensure the power is off before cleaning. Use a soft, dry cloth to gently wipe the bulb if dust accumulates. Do not use liquid cleaners or abrasive materials.
- Replacement: Due to the extended lifespan, frequent replacement is not anticipated. When replacement is necessary, follow the "Setup and Installation" steps in reverse.
Image: A side view of the blue POCREATION E14 LED Bulb, showcasing its smooth glass exterior, which is easy to clean.
Troubleshooting
| Problem | Possible Cause / Solution |
|---|---|
| Bulb does not light up. |
|
| Bulb flickers. |
|
| Bulb is too dim or too bright. |
|
Warranty and Support
POCREATION products are manufactured under strict quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship.
For technical support, warranty claims, or further assistance, please contact your retailer or visit the official POCREATION website. Please have your product model (E14 LED Bulb) and purchase information ready.
Note: Please refer to the specific warranty terms provided at the time of purchase for full details.
