1. Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your DIGITUS 2D Barcode Scanner (Model: DA-81002). This device is designed for efficient and accurate scanning of 1D and 2D barcodes, including QR codes, supporting bi-directional scanning at 200 scans/sec. Please read this manual thoroughly before using the scanner to ensure proper functionality and longevity.
2. What's in the Box
Upon opening the package, please verify that all components are present and undamaged:
- 1 x 2D barcode hand scanner, QR code compatible
- 1 x scanner holder
- 1 x cable, USB - RJ45, 2 m
- 1 x Quick Installation Guide (QIG)

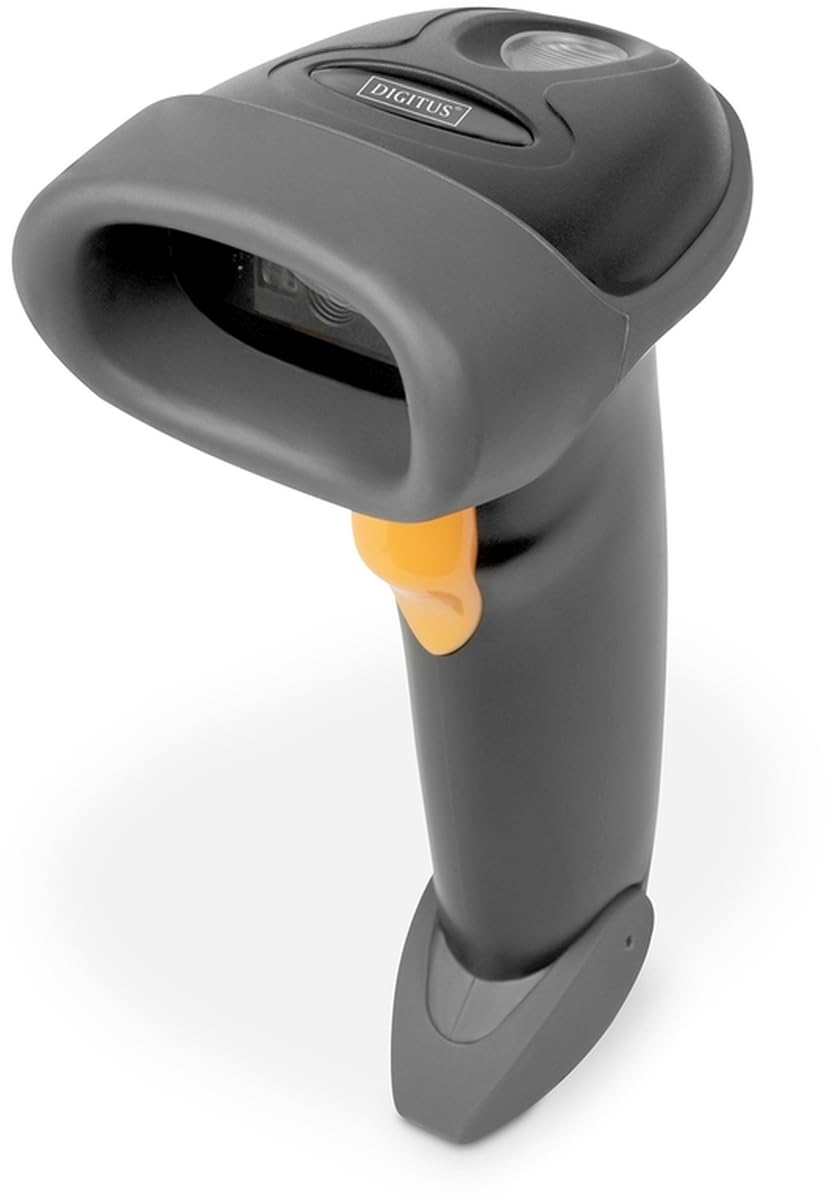

Image: The DIGITUS 2D Barcode Scanner, shown with its included stand and USB-RJ45 cable. The scanner is dark grey with an orange trigger button.
3. Setup
- Connect the Cable: Insert the RJ45 end of the provided cable into the port at the base of the barcode scanner. Ensure it clicks securely into place.
- Connect to Host Device: Plug the USB end of the cable into an available USB port on your computer or point-of-sale (POS) system.
- Driver Installation (Plug & Play): The scanner is typically plug-and-play and should be recognized automatically by most operating systems (Windows, macOS, Linux). No specific driver installation is usually required. If prompted, allow the system to install necessary drivers.
- Position the Scanner: Place the scanner in its holder for hands-free operation, or hold it comfortably for handheld scanning.
- Test Scan: Open a text editor (e.g., Notepad, Word) or a compatible application. Scan a known barcode. The data should appear in the open application.
4. Operating Instructions
The DIGITUS 2D Barcode Scanner is designed for ease of use. Follow these steps for effective scanning:
- Power On: The scanner powers on automatically when connected to a powered USB port. A successful power-on is usually indicated by a short beep and/or a light indicator.
- Aiming: Point the scanning window towards the barcode you wish to scan. Ensure the entire barcode is within the scanner's field of view.
- Scanning: Press and hold the trigger button (orange button on the handle). A red aiming beam or illumination light will appear. Position the scanner so the aiming beam crosses the center of the barcode.
- Successful Scan: Upon a successful scan, the scanner will emit a short beep and/or the indicator light will flash. The scanned data will be transmitted to your connected device as if typed via a keyboard.
- Bi-Directional Scanning: The scanner supports bi-directional scanning, meaning it can read barcodes regardless of their orientation, improving scanning efficiency.
- QR Code Compatibility: This scanner is fully compatible with QR codes, allowing for versatile data capture.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your barcode scanner:
- Cleaning the Scanning Window: Regularly clean the scanning window with a soft, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could scratch the window.
- General Cleaning: Wipe the exterior of the scanner with a soft, dry cloth to remove dust and dirt.
- Cable Care: Avoid bending or twisting the USB cable excessively, as this can damage the internal wires.
- Storage: When not in use, store the scanner in a clean, dry environment, away from extreme temperatures and direct sunlight.
- Avoid Drops: While designed for durability, avoid dropping the scanner, as impact can damage internal components.
6. Troubleshooting
If you encounter issues with your DIGITUS 2D Barcode Scanner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scanner does not power on. | No power from USB port; loose cable connection. | Ensure USB cable is securely connected to both scanner and host device. Try a different USB port or host device. |
| Scanner does not read barcodes. | Barcode damaged/unreadable; incorrect aiming; scanner not configured for barcode type. | Ensure barcode is clear and undamaged. Aim the scanner correctly. Refer to the QIG for advanced configuration options if specific barcode types are not recognized. |
| Scanned data is incorrect or incomplete. | Partial scan; software/application issue. | Ensure the entire barcode is within the scanning area. Test with a simple text editor to rule out application-specific issues. |
| Scanner beeps but no data appears. | Host device not receiving data; application not in focus. | Ensure the cursor is active in the target input field. Restart the application or host device. |
7. Specifications
Key technical specifications for the DIGITUS 2D Barcode Scanner (Model: DA-81002):
- Product Dimensions: 1.1 x 9.7 x 6.5 inches
- Item Weight: 3.88 ounces
- Item Model Number: DA-81002
- Manufacturer: DIGITUS
- Compatible Devices: Scanner (general purpose)
- Power Source: Corded Electric (via USB)
- Connectivity Technology: USB Cable
- Scan Rate: 200 fps (frames per second)
- Barcode Compatibility: 1D and 2D barcodes, including QR Code
- Cable Length: 2 meters (USB - RJ45)
8. Warranty and Support
For warranty information and technical support, please refer to the Quick Installation Guide (QIG) included in your product package or visit the official Digitus website. Keep your purchase receipt as proof of purchase for warranty claims.
For further assistance, you may contact Digitus customer support through their official channels. Details are typically provided in the product documentation or on the manufacturer's website.
