Zokop GDZ60-98E Household Dryer User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Zokop GDZ60-98E Household Dryer. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Zokop GDZ60-98E is a 6kg drum dryer designed for household use. It features an LED display, a visual window to monitor drying, and a compact design suitable for various living spaces including apartments, dormitories, and RVs. Constructed from high-quality stainless steel and ABS, it offers durability and ease of maintenance.

2. Safety Information

Always adhere to the following safety precautions to prevent electric shock, fire, or injury.

• Ensure the dryer is connected to a properly grounded electrical outlet.
• Do not install or store the dryer where it will be exposed to the weather or temperatures below freezing.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances.
• Clean the lint filter before or after each load. Failure to do so can increase drying time and fire risk.
• Do not allow children to play on or in the appliance. Close supervision is necessary when the appliance is used near children.
• The dryer is equipped with a dual temperature control switch and a 78°C over-temperature alarm for safety.

Figure 2.1: Rear view of the dryer with safety warning regarding lint filter cleaning.

3. Product Overview

Familiarize yourself with the components of your Zokop GDZ60-98E dryer.

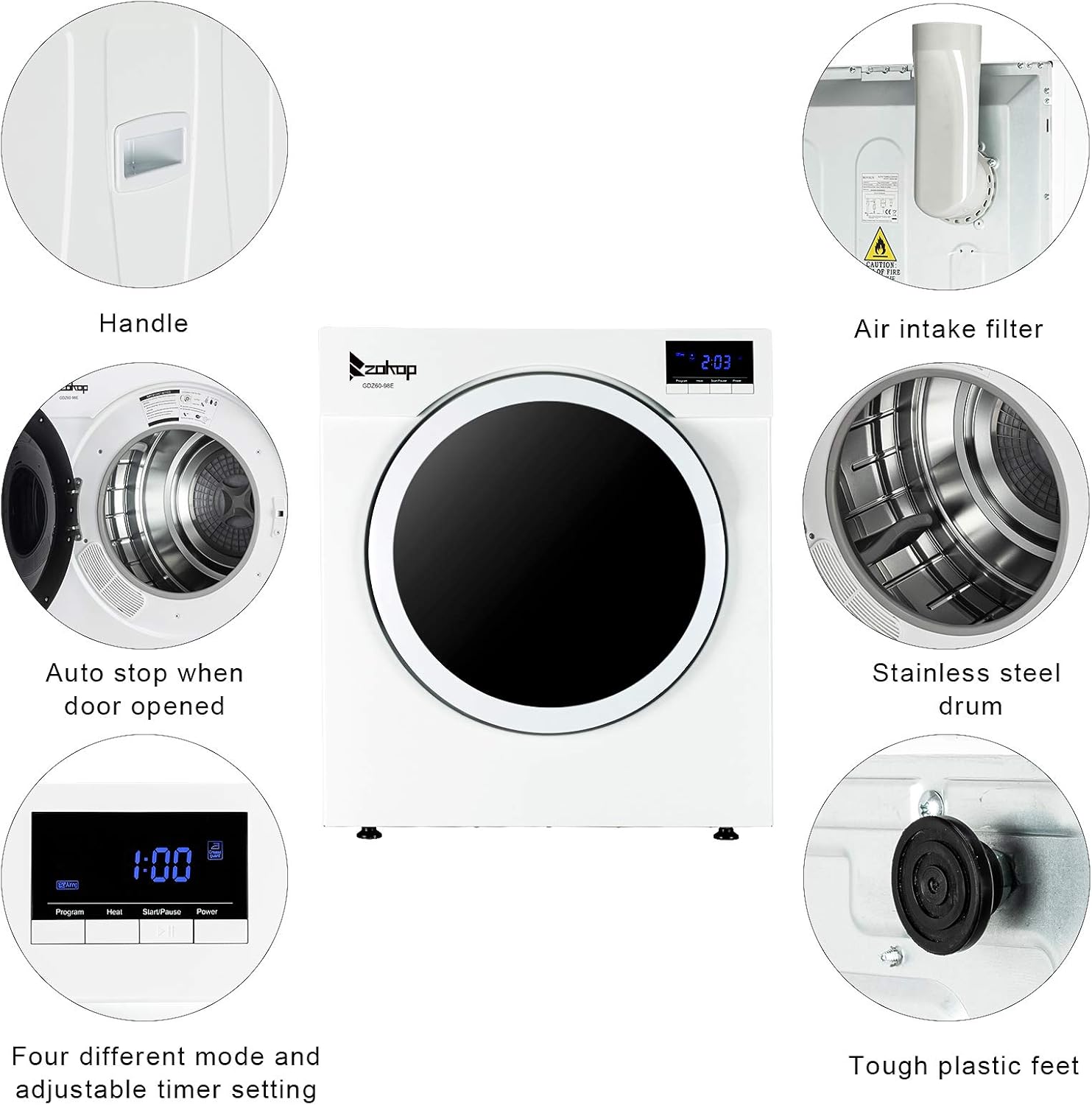

Figure 3.1: Key components of the Zokop GDZ60-98E Dryer.

• Handle: For opening and closing the dryer door.
• Air Intake Filter: Located at the rear, ensures clean air circulation.
• Auto Stop when Door Opened: Safety feature that pauses operation when the door is opened.
• Stainless Steel Drum: Durable interior for drying clothes.
• LED Control Screen: Displays program, heat settings, start/pause, and power.
• Tough Plastic Feet: Provide stability and can be adjusted for leveling.

Figure 3.2: Front view of the Zokop GDZ60-98E Dryer.

4. Setup and Installation

Proper installation is crucial for the dryer's performance and safety.

4.1 Unpacking

• Carefully remove the dryer from its packaging.
• Check for any shipping damage. If damaged, do not install and contact customer support.
• Ensure all accessories are present: 1 x Dryer, 1 x Instruction Manual, 1 x Filter Cotton.

4.2 Placement

• Place the dryer on a solid, level floor or a sturdy rack.
• Ensure adequate clearance around the dryer for ventilation.
• The compact design allows for placement in apartments, dormitories, or RVs.
• The dryer can also be wall-mounted (mounting hardware not included, professional installation recommended for wall mounting).

Figure 4.1: Dryer dimensions for placement planning.

4.3 Leveling

• Use the adjustable feet at the bottom of the dryer to ensure it is level and stable.
• A level dryer reduces vibration and noise during operation.

Figure 4.2: Adjustable foot for leveling.

4.4 Electrical Connection

• Connect the dryer to a dedicated, grounded electrical outlet that meets the specifications listed in Section 8.
• Do not use extension cords or adapter plugs.

5. Operating Instructions

Follow these steps for effective and safe drying.

5.1 Loading the Dryer

• Open the dryer door. The dryer features an auto-stop function when the door is opened.
• Load clothes loosely into the stainless steel drum. Do not overload the dryer; this can reduce drying efficiency and cause wrinkles. The dryer has a 6kg capacity.
• Close the door firmly.

Figure 5.1: Dryer with door open, ready for loading.

5.2 Control Panel Operation

The high-end LED control screen allows for easy program selection and timer settings.

Figure 5.2: LED Control Panel.

• Power Button: Press to turn the dryer on or off.
• Program Button: Select from four different drying modes. Refer to the display for current selection.
• Heat Button: Adjust heat settings according to fabric type.
• Start/Pause Button: Press to start or pause the drying cycle.
• Timer Setting: Adjust the drying time from 30 to 170 minutes as needed.

5.3 Drying Cycles and Features

• Superior Drying Performance: Designed for efficient and thorough drying.
• Built-in Anti-Wrinkle Function: Helps reduce wrinkles in clothes after drying.
• Reverse Tumble Action: Prevents tangling of clothes during the drying cycle.
• High Temperature Cycle: The dryer can reach temperatures that kill up to 99% of certain household germs and bacteria without the need for harsh chemicals.

Figure 5.3: Compact size and reverse tumble action.

Figure 5.4: High temperature cycle for sanitization.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your dryer.

6.1 Cleaning the Lint Filter

• The lint filter should be cleaned before or after every load.
• Open the dryer door and locate the lint filter inside the drum.
• Remove the filter and gently pull off any accumulated lint.
• Reinsert the clean filter firmly into its position.

Figure 6.1: Location of the lint filter inside the drum.

6.2 Cleaning the Dryer Exterior

• Wipe the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.

6.3 Air Intake Filter

• Periodically check and clean the air intake filter located at the back of the unit to ensure proper airflow.

7. Troubleshooting

Before contacting customer service, refer to the following table for common issues and solutions.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Zokop website.

Package Includes:

• 1 x Dryer
• 1 x Instruction Manual (this document)
• 1 x Filter Cotton
