Introduction
This manual provides essential information for the safe and effective use of your Vive 4-Wheel Mobility Scooter. Designed for comfort and ease of use, this electric-powered device assists with mobility over various surfaces. Please read this manual thoroughly before operating the scooter to ensure proper assembly, operation, and maintenance.

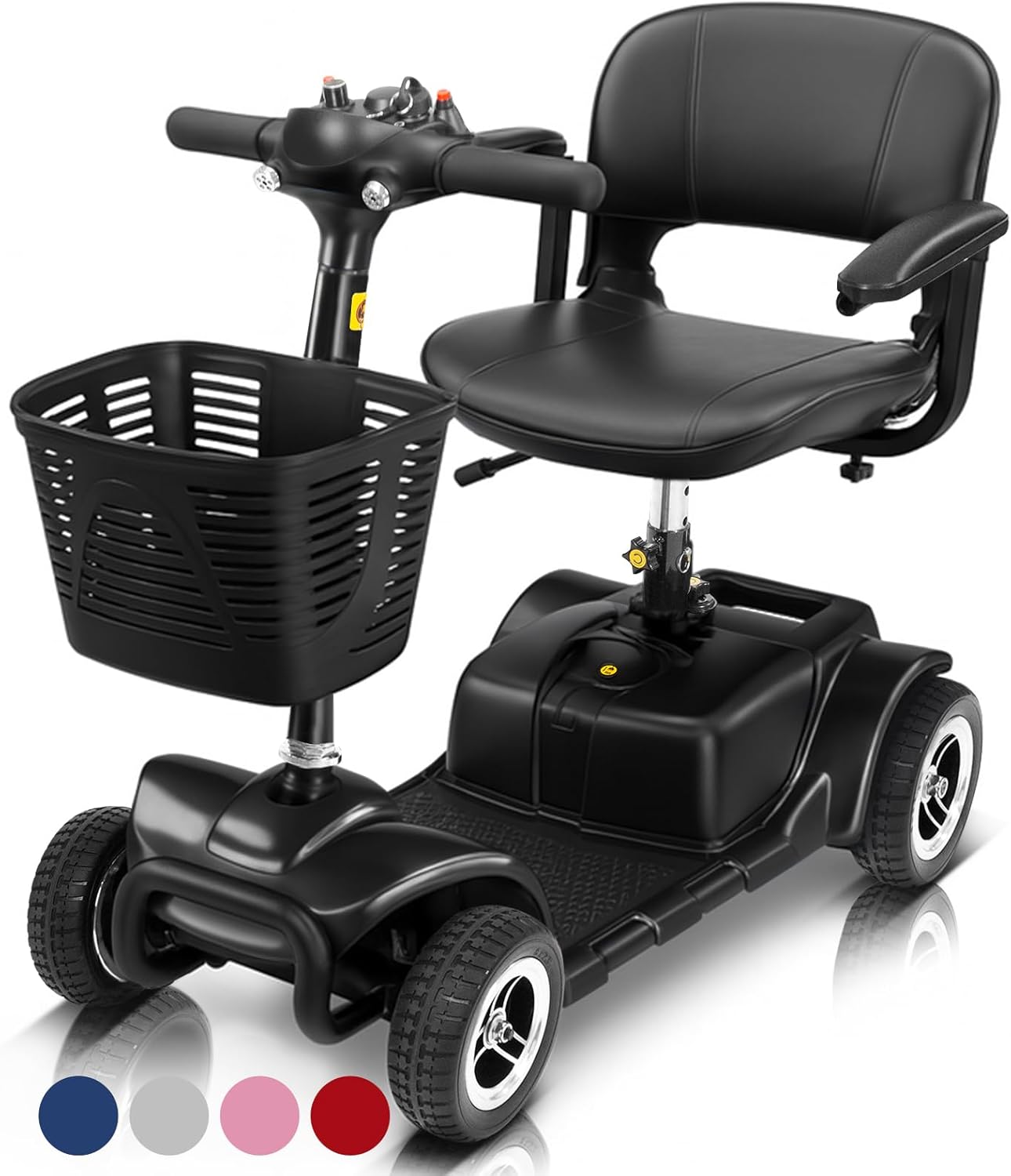

Image: The Vive 4-Wheel Mobility Scooter in Midnight Black, featuring a front basket, padded seat, and four wheels.
Safety Information
- Always ensure the scooter is fully charged before extended use to avoid unexpected power loss.
- Operate the scooter at a safe speed, especially in crowded areas or on uneven terrain. The maximum speed is 3.7 mph.
- Be aware of your surroundings and potential obstacles.
- Do not exceed the maximum weight capacity of 265 pounds.
- Ensure the axle lock lever is in the locked position before operating the scooter. An unlocked lever can cause unexpected movement and loud beeping.
- Use the headlight in low-light conditions for visibility.
- The scooter is designed for smooth indoor and rough outdoor surfaces. Exercise caution on steep inclines (up to 9 degrees).
Package Contents
Upon unpacking, verify that all components are present:
- Scooter Base (rear section with motor and wheels)
- Front Section (with tiller and front wheels)
- Padded Seat with Armrests
- Front Basket
- Battery Pack
- Quick-Connect Charger
- Keys (2 included)
- Extra Knob (for seat attachment)
- Instruction Manual
Setup
The Vive 4-Wheel Mobility Scooter is designed for easy assembly and disassembly into four separate pieces for portability.
- Assemble the Scooter: Connect the four separate pieces (rear section, front section, seat, and basket). Ensure all connections are secure.
- Adjust Seat and Armrests: Adjust the seat height and armrests for a comfortable and ergonomic fit. The armrests can flip upward for easier boarding.
- Charge Battery: Fully charge the battery before the first use. Refer to the "Maintenance" section for charging instructions.
Image: The Vive Mobility Scooter disassembled into its portable components, fitting easily into a car trunk. The heaviest piece weighs 29 pounds.

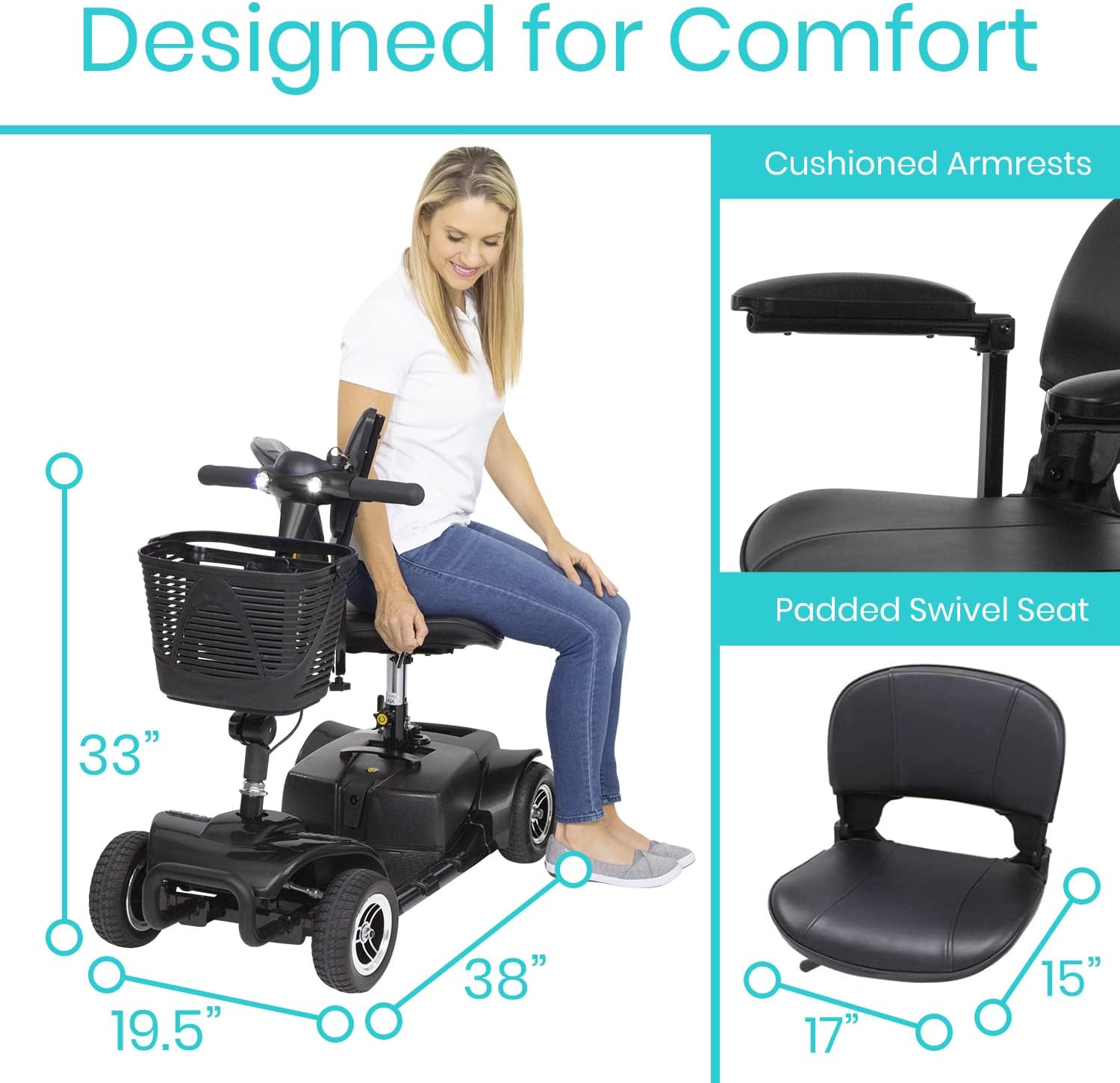

Image: A woman seated on the Vive Mobility Scooter, illustrating its dimensions (38"D x 19.5"W x 33"H) and comfort features like padded armrests and a swivel seat.
Operating Instructions
The control panel on the tiller console provides intuitive access to all operational functions.
- Power On: Insert the key and turn it to the "ON" position. The scooter will emit a series of beeps.
- Check Battery: Observe the color-coded battery life indicator on the display to check the battery status.
- Set Speed: Use the variable speed dial to set your desired maximum speed. The top speed is 3.7 mph.
- Direction Control: Use the forward/reverse switch to select your direction of travel.
- Start Moving: Gently press the variable speed dial (throttle lever) to begin moving. Release the lever to slow down and stop.
- Steering: Steer the scooter using the tiller.
- Headlight: Turn on the headlight as needed for improved visibility.
- Warning Tone: Use the horn button to produce a warning tone when necessary.
- Swivel Seat: The seat can swivel to allow for easier entry and exit from the scooter.
Image: A close-up view of the Vive Mobility Scooter's control panel, highlighting the easy on-off switch, battery life indicator, adjustable speed dial (max 3.7 mph), safety horn, and high-beam headlights.
Image: A man comfortably riding the Vive Mobility Scooter on a paved path, demonstrating its ability to navigate various terrains with its powerful motor and flat-free tires.
Maintenance
- Battery Charging:
Always charge the battery fully after each use, especially before storing for extended periods. The scooter has a driving distance of up to 12.4 miles per charge.
- Connect the quick-connect charger to the scooter's charging port and a standard wall outlet.
- The battery can also be removed and charged separately.
- A full charge typically takes several hours. Refer to the charger's indicator lights for charging status.
- Cleaning: Wipe down the scooter with a damp cloth. Avoid using abrasive cleaners or excessive water.
- Tire Care: The scooter features flat-free, non-marking 8" tires, requiring minimal maintenance. Regularly inspect them for debris.
- Storage: Store the scooter in a dry, cool place. If storing for a long time, ensure the battery is fully charged and periodically recharge it.

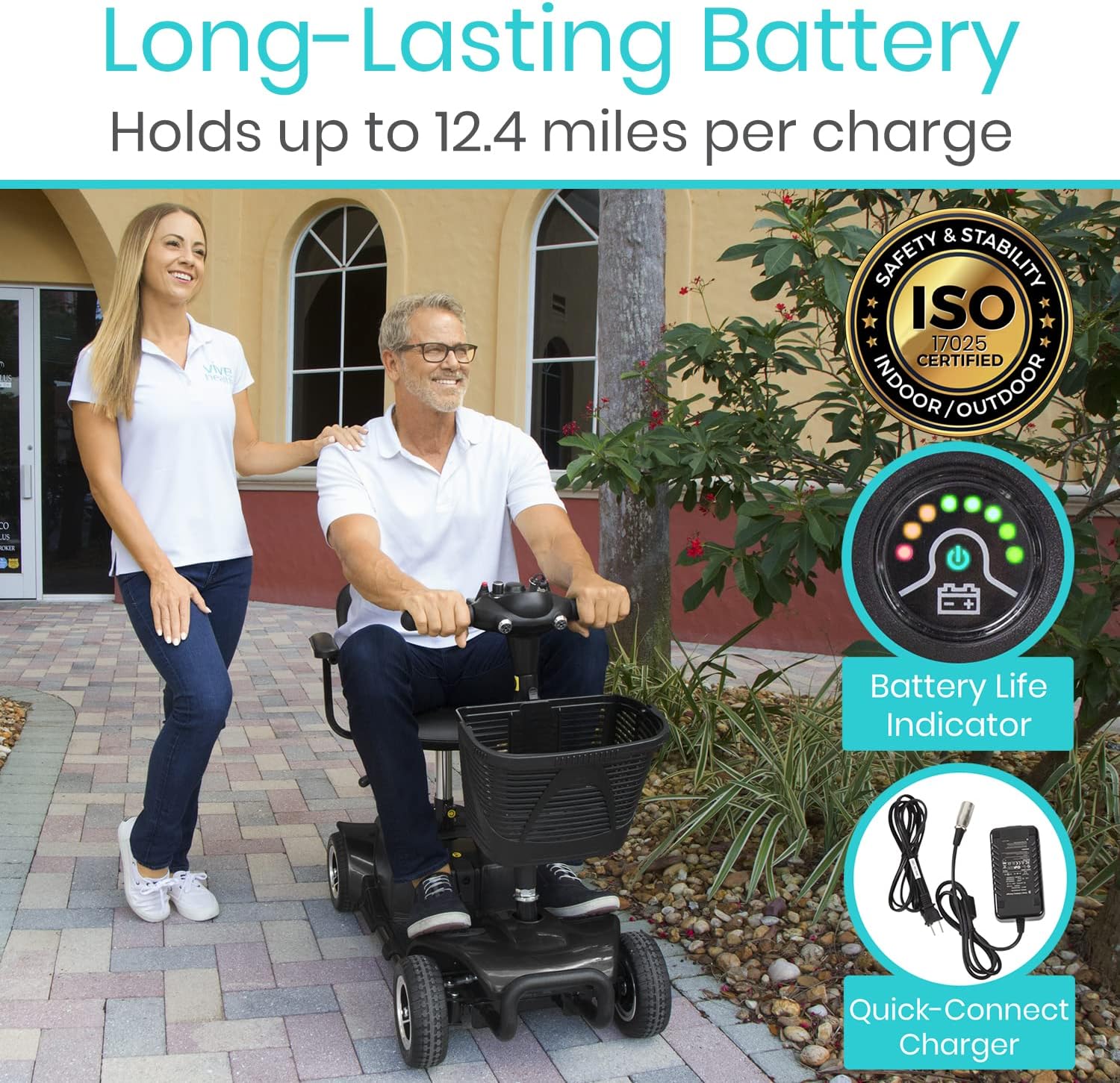

Image: Details of the Vive Mobility Scooter's long-lasting battery, showing the battery life indicator and the quick-connect charger. The battery provides up to 12.4 miles per charge.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Battery is depleted or not connected. | Ensure battery is fully charged and properly connected. Check the power switch and key. |
| Loud, continuous beeping sound. | Axle lock lever is in the "unlock" position (neutral). | Ensure the axle lock lever is fully engaged in the "lock" position before operation. This is a safety feature. |
| Scooter moves slowly or loses power quickly. | Low battery charge or battery degradation. | Recharge the battery fully. If the issue persists after full charge, the battery may need replacement. |
| Scooter is unresponsive. | Safety reset button tripped. | Locate and press the reset button (often near the battery or under the seat) to restore power. |
Specifications
- Product Dimensions: 38"D x 19.5"W x 33"H
- Item Weight: 88 Pounds
- Maximum Weight Capacity: 265 Pounds
- Maximum Speed: 3.7 mph
- Driving Distance per Charge: Up to 12.4 miles
- Tire Size: 8" (flat-free, non-marking)
- Motor: Powerful 24 Volt Motor
- Incline Capability: Navigates inclines of up to 9 degrees
- Frame Material: Sturdy Aluminum
- Battery: 1 Product Specific battery (included)
Image: A detailed diagram illustrating the powerful 24 Volt motor, capable of navigating inclines up to 9 degrees.

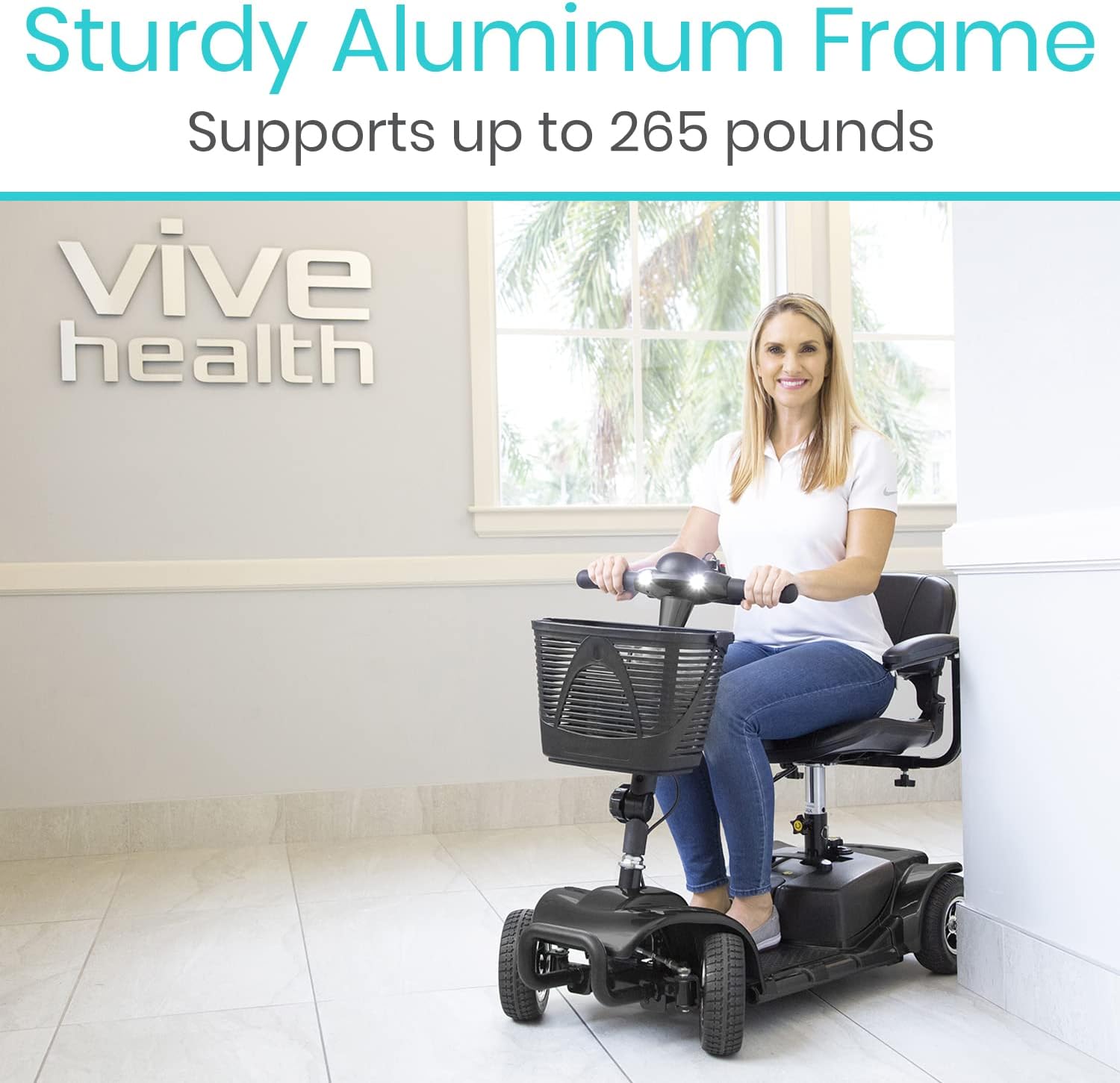

Image: A woman riding the Vive Mobility Scooter indoors, highlighting its sturdy aluminum frame designed to support up to 265 pounds.
Warranty and Support
The Vive 4-Wheel Mobility Scooter comes with a 5-Year Guarantee, reflecting the manufacturer's commitment to quality and customer satisfaction.
- Warranty Coverage: For details regarding the 5-year guarantee, please refer to the warranty card included with your product or contact Vive Health customer service.
- Customer Support: For any questions, assistance, or troubleshooting not covered in this manual, please contact Vive Health customer service.
You can often find contact information on the manufacturer's website or through the retailer where the product was purchased.
