CX Craftsman 4-Tier Storage Rack Instruction Manual

1. Product Overview

The CX Craftsman 4-Tier Storage Rack is a highly durable and versatile shelving unit designed to help organize various spaces, including garages, basements, laundry rooms, and workshops. Constructed from weather-resistant polypropylene, this rack is built to withstand elements and offers a robust storage solution with a capacity of 200 lbs per shelf.

Image 1.1: The CX Craftsman 4-Tier Storage Rack, showcasing its black shelves and red connectors.

Its interlocking design allows for customization and expansion, enabling multiple units to be connected side-to-side, front-to-back, or around corners. The unit features adjustable feet for stability on uneven surfaces and includes wall mounting brackets for enhanced security.

2. Safety Information

Important Safety Notice:

• Exceeding the 200 lbs weight capacity per shelf may result in personal injury or property damage. Ensure weight is evenly distributed on each shelf.
• Always use the included wall mounting brackets for a more secure and stable structure, especially when storing heavy items or in areas where the unit could be bumped.
• Do not climb on the shelving unit.
• Keep small children and pets away from the unit during assembly and when in use to prevent accidents.

3. Package Contents

Before beginning assembly, ensure all components are present and undamaged. The package should include:

• Shelves (4 units)
• Poles (vertical supports)
• Adjustable Feet
• Wall Mounts (brackets and hardware)

4. Setup and Assembly

The Craftsman 4-Tier Storage Rack is designed for simple assembly, typically taking around 10 minutes. No tools are required for basic assembly.

Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Attach Poles to Base Shelf: Take one shelf and insert the bottom ends of the four poles into the designated slots on the shelf corners. Ensure they are firmly seated.
3. Add Subsequent Shelves: Slide the next shelf down onto the top ends of the poles, aligning the slots with the poles. Press down firmly until the shelf locks into place. Repeat for all remaining shelves.
4. Install Adjustable Feet: Screw the adjustable feet into the bottom of the poles on the lowest shelf. These can be adjusted later to level the unit on uneven surfaces.
5. Secure with Wall Mounts (Recommended): For added stability and safety, especially with heavy loads, attach the provided wall mounting brackets to the top rear poles of the unit and secure them to a wall stud using appropriate hardware (not included).

Image 4.1: Close-up view of a hand inserting a pole into a shelf, demonstrating the easy assembly process.

Image 4.2: A hand securing a wall mounting bracket to the shelving unit's pole using a screwdriver, highlighting the added safety feature.

5. Operation and Usage

The Craftsman 4-Tier Storage Rack is designed for versatile use in various indoor and outdoor environments.

Key Features:

• Weight Capacity: Each shelf can hold up to 200 lbs when contents are evenly distributed. Do not exceed this limit.
• Adjustable Feet: Use the adjustable feet to ensure the unit is level and stable on uneven floor surfaces. Rotate the feet clockwise or counter-clockwise to raise or lower corners as needed.
• Interlocking Design: Multiple units can be easily linked together using the innovative interlocking connectors. This allows for flexible configurations, expanding the depth or width of your storage system.

Image 5.1: A person organizing various items on multiple interconnected storage racks, demonstrating the unit's capacity and versatility in a garage setting.

Image 5.2: An arrangement of several Craftsman storage units connected, illustrating how they can be linked to create a larger, customized storage system.

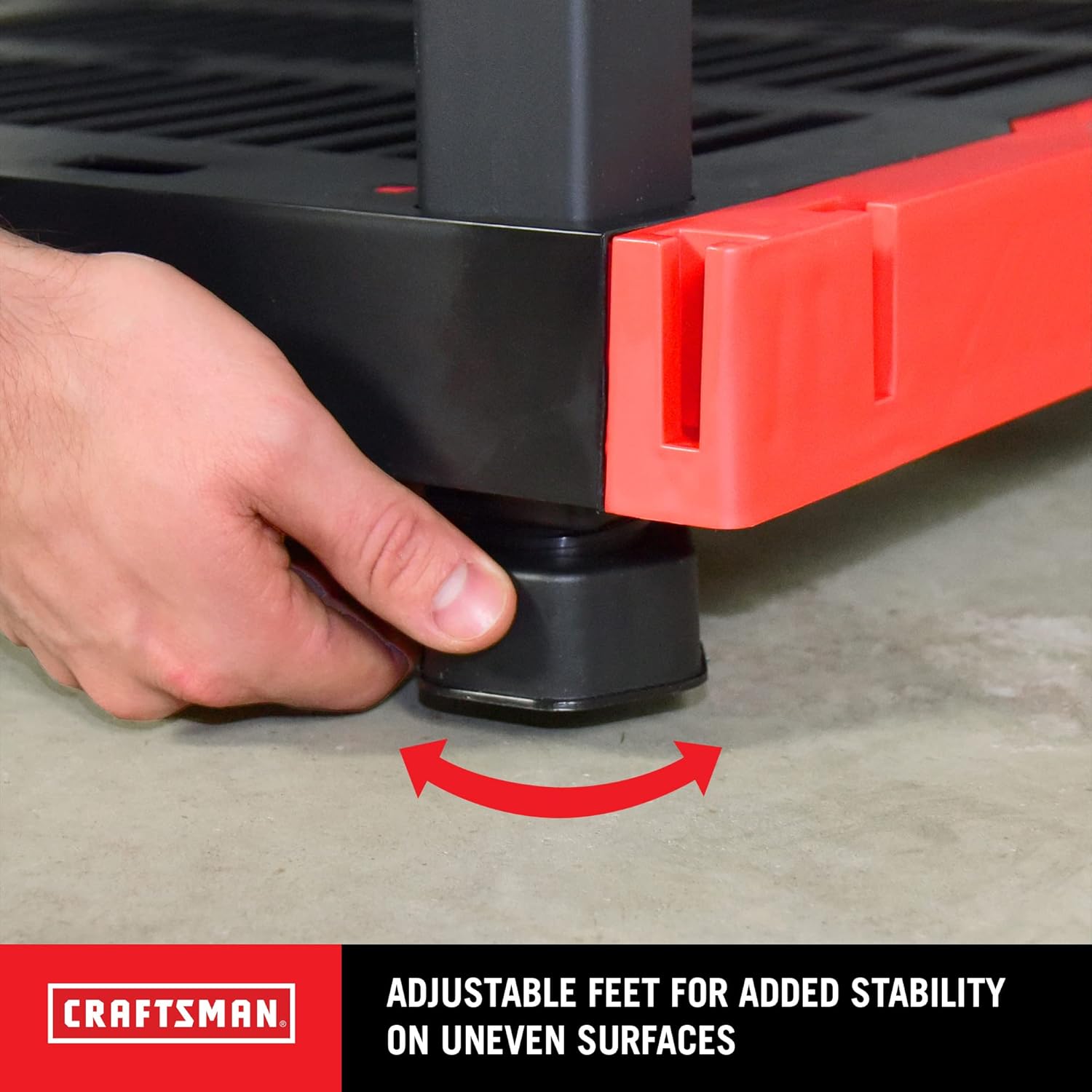

Image 5.3: A close-up of a hand adjusting one of the adjustable feet on the storage rack, showing the mechanism for leveling the unit.

Image 5.4: A detailed view of a shelf, with text clearly stating the strong 200lb (90.7kg) per shelf capacity when contents are evenly distributed.

6. Maintenance and Care

To ensure the longevity and appearance of your Craftsman Storage Rack, follow these simple maintenance guidelines:

• Cleaning: Wipe the unit with a dry cloth to remove dust and debris. For more stubborn dirt, a damp cloth with mild soap can be used, followed by drying.
• Material Properties: The rack is made from durable injection-molded polypropylene, which is weather-resistant and designed not to rust, stain, or peel. The ventilated reinforced plastic is also mold and mildew resistant.
• Inspection: Periodically check all connections and ensure the adjustable feet are properly set for stability.

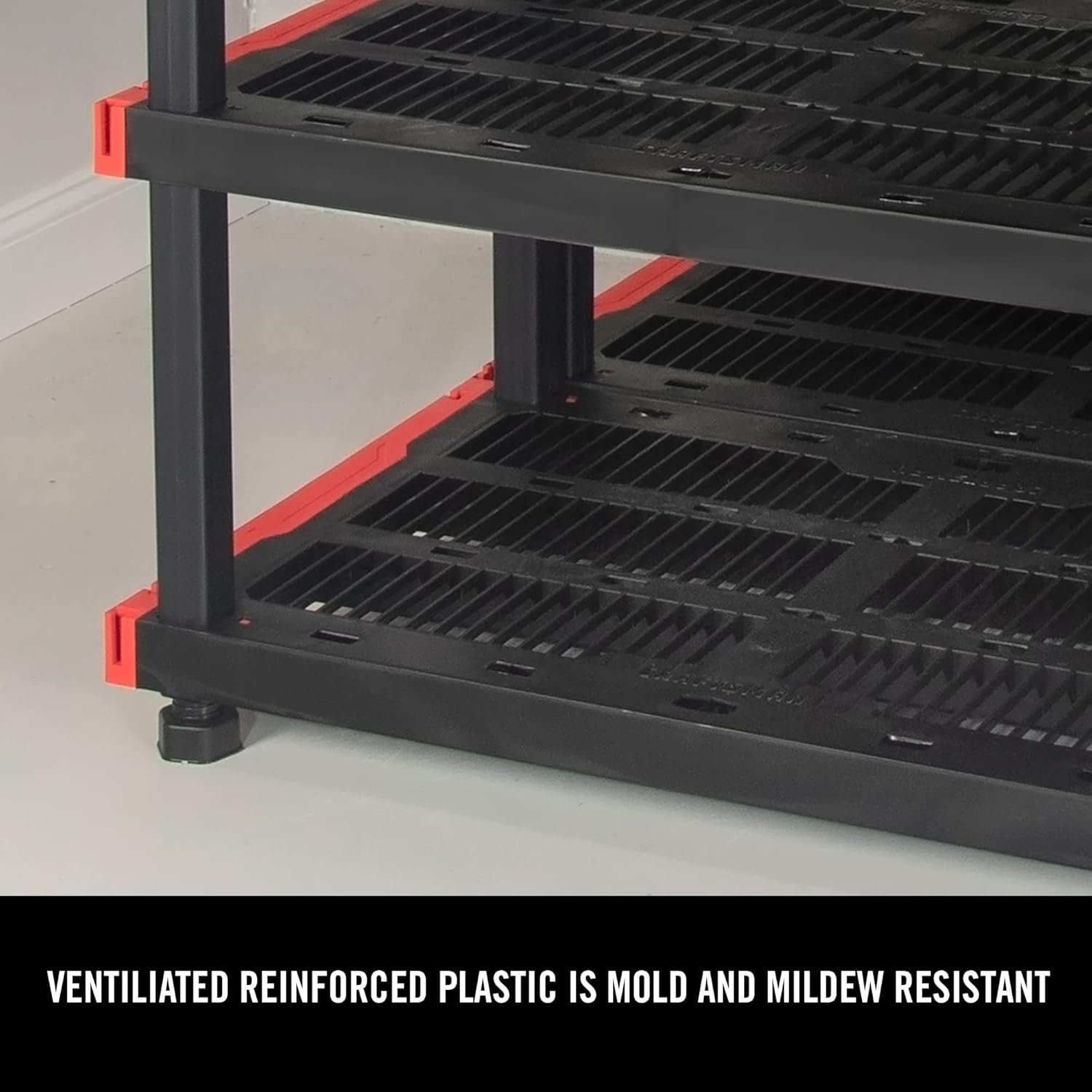

Image 6.1: A close-up view of the ventilated reinforced plastic shelf, highlighting its design which is resistant to mold and mildew.

7. Troubleshooting

This section addresses common concerns. For issues not listed, please refer to the contact information in the Support section.

Unit is Unstable/Wobbly:

• Ensure the adjustable feet are properly set and leveled on the floor.
• Verify that all poles are fully inserted and locked into the shelf slots.
• Confirm that the unit is not overloaded, and weight is evenly distributed.
• Utilize the included wall mounting brackets to secure the unit to a wall.

Shelf Sagging:

• Check if the weight on the shelf exceeds the 200 lbs capacity. Reduce the load if necessary.
• Ensure the weight is evenly distributed across the shelf surface.

8. Specifications

Detailed specifications for the CX Craftsman 4-Tier Storage Rack:

Image 8.1: Dimensional diagram of the Craftsman 4-Tier Storage Rack.

9. Warranty and Support

Specific warranty information for the CX Craftsman 4-Tier Storage Rack is not provided in this manual. For warranty details, product support, or to inquire about replacement parts, please contact the manufacturer, American Plastics, directly or visit their official website.

For general inquiries, you may also visit the CX Store on Amazon.
