1. Important Safety Instructions
Please read all instructions carefully before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- This appliance is for household use only. Do not use outdoors or on wet surfaces.
- Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and filters in place.
- Turn off the appliance before making any adjustments, changing accessories, or storing the vacuum cleaner.
- Use only manufacturer-recommended attachments.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Exercise extra care when cleaning on stairs.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
2. Product Overview
The Laresar Elite 2 is a versatile cordless vacuum cleaner designed for efficient cleaning across various surfaces. It features a powerful motor, multiple attachments, and a foldable design for enhanced maneuverability.

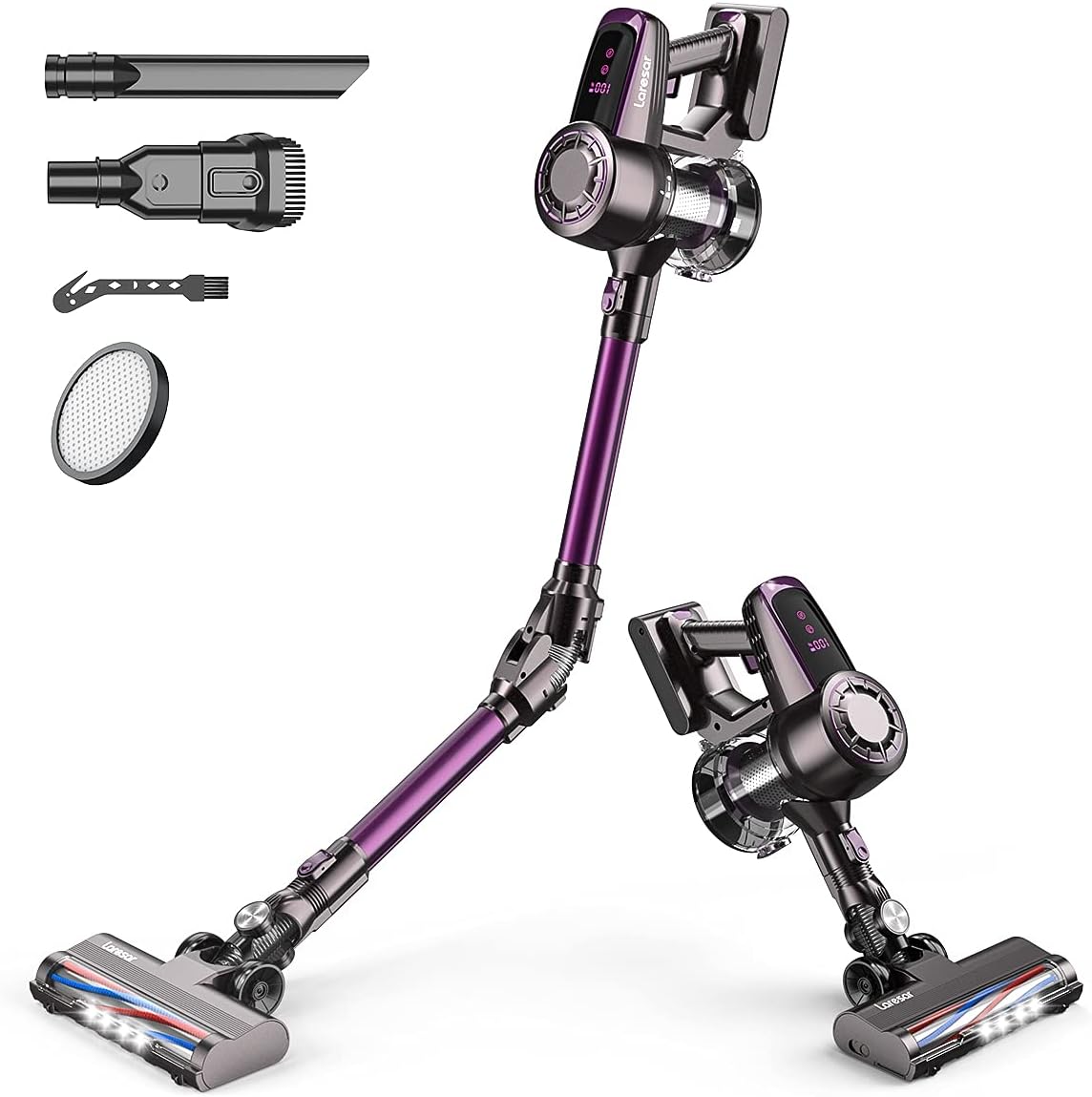

Image: The Laresar Elite 2 Cordless Vacuum Cleaner shown with its main body, extension tube, floor brush, and various accessory nozzles.
Key Features:
- Powerful Suction: Up to 25Kpa for effective cleaning.
- Brushless Motor: Equipped with a 250W brushless motor for strong performance and durability.
- Long Battery Life: Up to 40 minutes of runtime on a single charge.
- 5-Stage Filtration System: Advanced HEPA filtration captures fine dust and allergens.
- Foldable Design: The extension tube can bend for easy cleaning under furniture.
- LED Display: Digital display shows battery level and power mode.
- Low Noise: Operates at approximately 68 decibels.
- Large Dustbin: 1.2-liter capacity dustbin with one-click emptying.
Image: A visual representation of the Laresar Elite 2 Cordless Vacuum Cleaner highlighting its digital display and various features like suction power, battery life, and motor.
Included Components:
- Main Motor Unit
- Extension Tube (Foldable)
- Motorized Floor Brush with LED lights
- Long Crevice Nozzle
- 2-in-1 Upholstery Brush
- Wall Mount Bracket
- Power Adapter
- Extra HEPA Filter
- Cleaning Tool
Image: An illustration showing all the components and accessories that come with the Laresar Elite 2 Cordless Vacuum Cleaner.
3. Setup Instructions
3.1 Assembly
- Attach the Extension Tube: Align the main motor unit with the extension tube and push until it clicks into place.
- Attach the Floor Brush: Connect the motorized floor brush to the other end of the extension tube, ensuring it locks securely.
- Install Battery: Insert the battery pack into the main motor unit until it clicks.
3.2 Charging the Battery
Before first use, fully charge the battery. The battery can be charged while attached to the vacuum or separately.
- Direct Charging: Connect the power adapter to the charging port on the main motor unit. Plug the adapter into a wall outlet.
- Separate Charging: Remove the battery from the main unit. Connect the power adapter to the battery charging base and plug it into a wall outlet.
The LED display will show the charging status. A full charge typically takes approximately 4 hours.
Image: The Laresar Elite 2 vacuum cleaner showing both direct charging while mounted and separate battery charging on a base.
3.3 Wall Mount Installation
The included wall mount allows for convenient storage and charging.
- Choose a suitable location near a power outlet.
- Mark the drilling points for the wall mount bracket.
- Drill holes and insert wall anchors if necessary.
- Secure the wall mount bracket with screws.
- Hang the vacuum cleaner on the mount.
4. Operating Instructions
4.1 Power On/Off and Suction Modes
- Power On: Press the power button (trigger on the grip) to start the vacuum cleaner.
- Change Suction Mode: Press the mode button on the back of the main unit to switch between standard and max suction modes. The LED display will indicate the current mode.
- Power Off: Press the power button again to turn off the vacuum cleaner.
4.2 Using Attachments
The Laresar Elite 2 can be configured for various cleaning tasks:
- Motorized Floor Brush: Ideal for hard floors and low-pile carpets. The integrated LED lights illuminate dust and debris.
- Long Crevice Nozzle: Use for narrow spaces, corners, and edges, such as between sofa cushions or along baseboards.
- 2-in-1 Upholstery Brush: Suitable for cleaning upholstery, curtains, and delicate surfaces. The brush can be extended or retracted.
Image: The Laresar Elite 2 vacuum cleaner shown in different configurations, demonstrating its versatility as a stick vacuum, handheld vacuum with crevice tool, and handheld vacuum with brush attachment.
4.3 Cleaning Under Furniture
The foldable extension tube allows for easy access under low furniture without bending down.
- While operating, press the release button on the extension tube to bend it.
- Guide the floor brush under furniture.
- To return to the straight position, press the release button again and straighten the tube.
Image: A person using the Laresar Elite 2 vacuum cleaner to clean under a sofa, demonstrating the foldable extension tube feature.
4.4 Product Demonstration Video
Video: A comprehensive demonstration of the Laresar Cordless Vacuum Cleaner, showcasing its powerful suction, various attachments, and ease of use for different cleaning scenarios.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
5.1 Emptying the Dustbin
Empty the dustbin after each use or when the MAX fill line is reached.
- Hold the main motor unit over a trash can.
- Press the one-click dust release button to open the dustbin flap and empty the contents.
- Close the flap securely.
Image: A hand demonstrating the one-click dust removal feature of the Laresar Elite 2 vacuum cleaner, emptying debris into a trash bin.
5.2 Cleaning Filters
The HEPA filter and metal filter should be cleaned regularly, ideally once a month, depending on usage.
- Twist and pull to remove the dustbin from the main unit.
- Remove the HEPA filter and metal filter from the dustbin.
- Tap off loose dirt. Rinse both filters under cold running water until the water runs clear.
- Allow filters to air dry completely for at least 24 hours before reassembling. Do not use a dryer or other heating device.
- Reassemble the filters and dustbin once completely dry.
Image: The dustbin, filters, and brush roll of the Laresar Elite 2 vacuum cleaner being rinsed under running water, indicating they are washable components.
5.3 Cleaning the Brush Roll
Periodically check the brush roll for tangled hair or debris.
- Turn off the vacuum cleaner and detach the floor brush.
- Locate the brush roll release tab on the side of the floor brush and open it.
- Remove the brush roll.
- Use the included cleaning tool or scissors to cut and remove any tangled hair or fibers.
- Reinsert the brush roll and close the release tab until it clicks.
6. Troubleshooting
If you encounter issues, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is not charged or not properly installed. | Ensure battery is fully charged and securely inserted. |
| Low suction power | Dustbin is full, filters are clogged, or blockage in the hose/brush. | Empty dustbin, clean filters, check for and remove blockages. |
| Brush roll not spinning | Brush roll is jammed by debris or not properly installed. | Turn off and unplug the vacuum. Remove debris from brush roll. Ensure brush roll is correctly installed. |
| Short battery runtime | Battery not fully charged, or operating in max suction mode. | Fully charge the battery. Use standard mode for longer runtime. Battery life naturally decreases over time. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Laresar |
| Model | Elite 2 |
| Special Features | Foldable, HEPA, Lightweight |
| Filter Type | HEPA Filter |
| Is Cordless? | Yes |
| Capacity | 1.2 Liters |
| Form Factor | Stick |
| Color | Purple (Note: Product images show green/black variant, but spec says Purple) |
| Battery Description | Lithium-Ion |
| Noise Level | 68 Decibels |
| Battery Life | Up to 40 minutes |
| Product Dimensions | 7.48 x 17.13 x 11.42 inches |
| Item Weight | 7.63 pounds |
| Number of Power Levels | 2 |
8. Warranty and Support
Laresar products are designed and manufactured to the highest quality standards. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official Laresar website.
For technical support, troubleshooting assistance, or to order replacement parts, please contact Laresar customer service through their official channels. Contact information can typically be found on the product packaging or the brand's website.
