DL-pro Washing Machine Door Seal Instruction Manual

1. Product Overview

This instruction manual provides essential information regarding the DL-pro washing machine door seal, model 772655. This component is a replacement part designed to ensure a watertight seal for the washing machine door, preventing leaks during operation. It is compatible with a wide range of Bosch and Siemens washing machine models.

Figure 1: DL-pro Washing Machine Door Seal (Model 772655). This image shows the grey rubber door seal with its various nozzles and drainage holes, designed to fit around the washing machine drum opening.

2. Product Features

The DL-pro door seal is engineered to meet the specifications of original equipment, offering reliable performance. Key features include:

• Material: Durable grey rubber for long-lasting performance.
• Water Outlets: Equipped with 3 drainage holes to ensure proper water management.
• Inlet Nozzle: Includes an inlet nozzle for water entry.
• Lighting Socket: Features a lighting socket for models equipped with internal drum lighting.
• Design: Designed without tension rings, compatible with models that utilize separate tension rings.

Figure 2: DL-pro Door Seal as received in packaging. The seal is typically supplied wrapped in protective film to maintain its integrity during transit.

3. Compatibility

This DL-pro door seal (part number 772655, replaces 00681210) is specifically designed as a replacement for various Bosch and Siemens washing machine models. It is crucial to verify your washing machine's model number against the compatibility lists provided below and in the accompanying images to ensure proper fit.

Compatible Brands and Series:

• Bosch: Logixx, EcoLogixx, varioPerfect, Axxis, 500 Series, Meisterstück, Series 8, ActiveOxygen, Titanium Edition, HomeProfessional, SuperSilence, Edition 25, Swiss Edition. Models including WAS.., WAT.., WAW.., WAY.., WM1.. series.
• Siemens: iQ500, iQ700, iQ790, iQ800, iQ890, Top-class, EcoChampion, iSensoric, Sensorio, Champion, S16.7C, S14.47, S14.74, anti-stain system. Models including WM.. series.
• Other Brands: Balay, Constructa, Gaggenau, Neff (specific models may apply).

For a comprehensive list of compatible models, please refer to the detailed images below. These images contain extensive lists of specific model numbers. If your device is not listed or you are unsure, it is recommended to contact the manufacturer or a qualified technician for assistance.

Figure 3: Partial list of compatible Bosch washing machine models. This image displays a column of Bosch model numbers for which this door seal is a suitable replacement.

Figure 4: Partial list of compatible Siemens washing machine models. This image displays a column of Siemens model numbers for which this door seal is a suitable replacement.

Figure 5: Additional list of compatible Bosch washing machine models. This image provides further Bosch model numbers for compatibility verification.

Figure 6: Additional list of compatible Siemens washing machine models. This image provides further Siemens model numbers for compatibility verification.

Figure 7: Extended list of compatible Bosch washing machine models. This image offers an even more comprehensive list of Bosch models.

Figure 8: Extended list of compatible Siemens washing machine models. This image provides an even more comprehensive list of Siemens models.

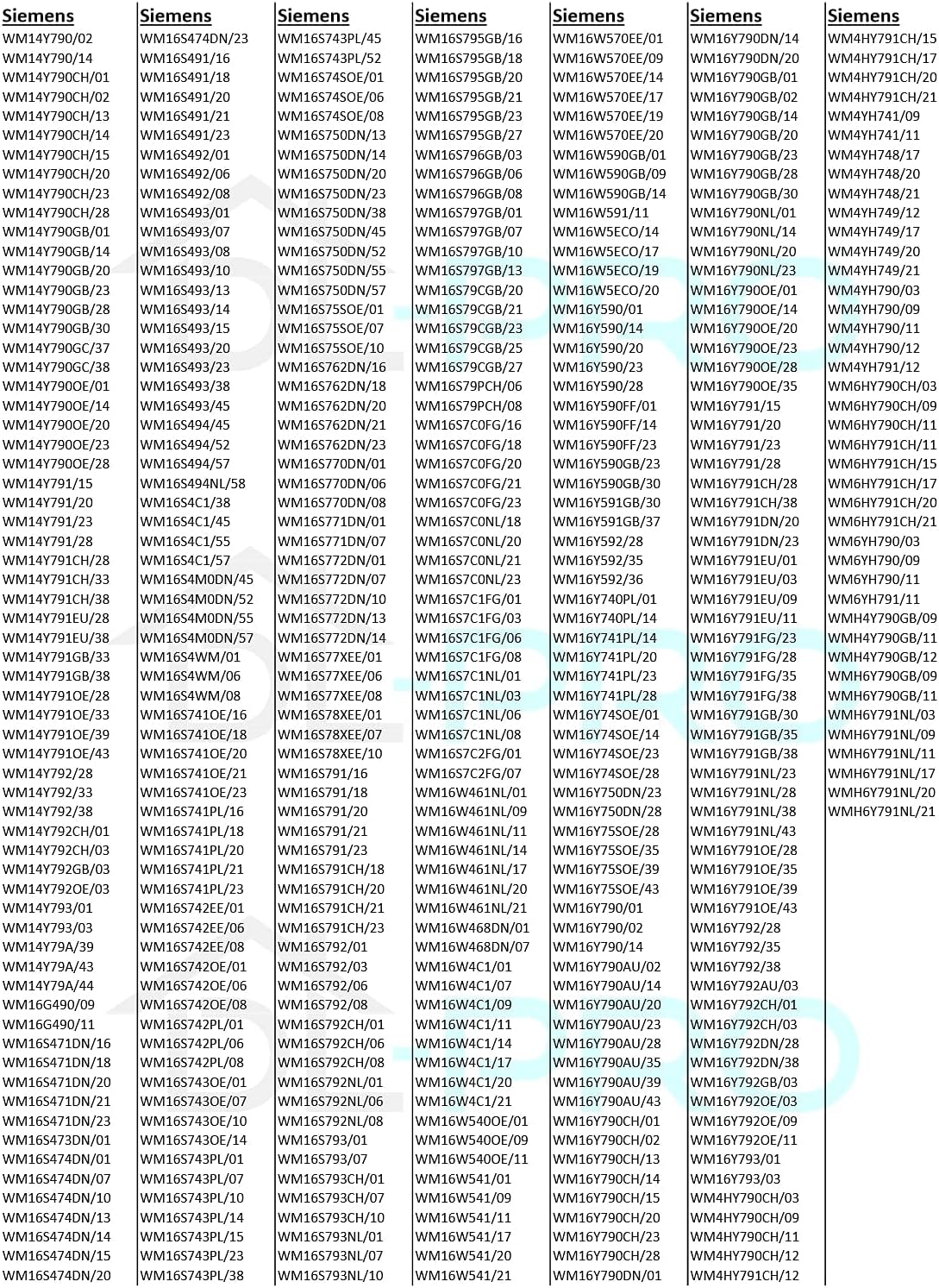

Figure 9: Final section of compatible Siemens washing machine models. This image completes the detailed list of Siemens models.

4. Installation / Setup

Replacing a washing machine door seal requires technical knowledge and careful handling. It is strongly recommended that installation be performed by a qualified appliance technician to ensure proper fitment and prevent potential water damage or injury.

General Installation Considerations:

1. Safety First: Always disconnect the washing machine from the power supply and water supply before attempting any repair or installation.
2. Access: Access to the door seal typically involves removing the front panel or top of the washing machine.
3. Tension Rings: Note that this door seal is supplied without tension rings. The existing tension rings from your old seal will need to be carefully removed and reused with the new seal.
4. Proper Seating: Ensure the new seal is correctly seated and aligned around the drum and door frame to prevent leaks.
5. Testing: After installation, perform a test wash cycle without laundry to check for any leaks before regular use.

Refer to your specific washing machine's service manual for detailed, model-specific installation instructions.

5. Operating Principles (Door Seal Function)

The door seal, also known as a door cuff or gasket, is a critical component in a front-loading washing machine. Its primary function is to create a watertight barrier between the rotating drum and the outer tub, preventing water from leaking out of the machine during wash and spin cycles. It also provides a flexible connection that absorbs vibrations from the drum.

A properly installed and maintained door seal ensures efficient and leak-free operation of your washing machine.

6. Maintenance

Regular maintenance of your washing machine door seal can extend its lifespan and prevent common issues such as mold growth and leaks.

Maintenance Tips:

• Wipe Down: After each wash cycle, wipe down the inside of the door seal with a clean cloth to remove any trapped water, lint, or detergent residue.
• Clean Regularly: Periodically clean the door seal thoroughly using a mild detergent solution or a specialized washing machine cleaner. Pay attention to folds and crevices where mold can accumulate.
• Leave Door Ajar: When the washing machine is not in use, leave the door slightly ajar to allow air circulation and prevent moisture buildup, which can lead to mold and mildew.
• Inspect for Damage: Regularly inspect the seal for any signs of wear, cracks, tears, or foreign objects lodged within it. Early detection of damage can prevent leaks.

7. Troubleshooting

Issues related to the door seal often manifest as leaks or unpleasant odors. If you experience any of the following, consider inspecting or replacing the door seal:

Common Issues and Solutions:

• Water Leaks: If water is leaking from the front of your washing machine, especially during the wash or spin cycle, the door seal may be torn, cracked, or improperly seated. Replacing a damaged seal is necessary.
• Mold or Mildew: Black spots or a persistent musty odor emanating from the washing machine, particularly around the door opening, indicate mold or mildew growth on the seal. Thorough cleaning may help, but severe cases might require seal replacement.
• Drum Movement Issues: While less common, a severely damaged or dislodged seal could potentially affect the drum's balance or movement, though this is usually a symptom of other mechanical failures.

Always ensure the washing machine is level and that hoses are properly connected before attributing leaks solely to the door seal.

8. Specifications

9. Warranty and Support

Specific warranty details for this DL-pro replacement part are not provided in this manual. Please refer to the product packaging or the retailer's website for any applicable warranty information.

For technical support, compatibility inquiries, or assistance with product issues, please contact DL-pro customer service or the authorized reseller from whom the product was purchased. When contacting support, please have your product model number (772655) and washing machine model information readily available.

Figure 10: DL-pro brand logo. DL-pro is a professional brand for spare parts and accessories.
