1. Introduction
Thank you for choosing the TOSHIBA 7KG Fully Automatic Top Load Washing Machine, Model AW-K801A-IND. This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before using the washing machine and retain it for future reference.
This washing machine is designed to provide efficient and convenient laundry care with features such as 8 wash programs, a 15-minute quick wash option, and Fuzzy Control for optimized washing.
2. Safety Instructions
To prevent injury to yourself and others, and to avoid property damage, please observe the following safety precautions:
- Electrical Safety: Ensure the power supply matches the rating label. Do not use extension cords. Always unplug the machine before cleaning or maintenance.
- Water Connection: Connect the water inlet hose securely to prevent leaks. Ensure proper drainage.
- Child Safety: Keep children away from the washing machine during operation. Utilize the Child Lock feature to prevent accidental operation.
- Placement: Install the machine on a firm, level surface. Do not install in areas exposed to direct sunlight or freezing temperatures.
- Flammable Materials: Do not wash items that have been soiled with flammable substances (e.g., gasoline, oil).
3. Product Overview
Familiarize yourself with the components and control panel of your TOSHIBA washing machine.
Image 3.1: Front view of the TOSHIBA 7KG Fully Automatic Top Load Washing Machine, Model AW-K801A-IND. The machine is white with a black top lid and control panel.
Image 3.2: Close-up view of the control panel, showing buttons for Water Level, Preset, Set, Process, Course, Start/Hold, and Power On/Off. An LED display shows current settings.

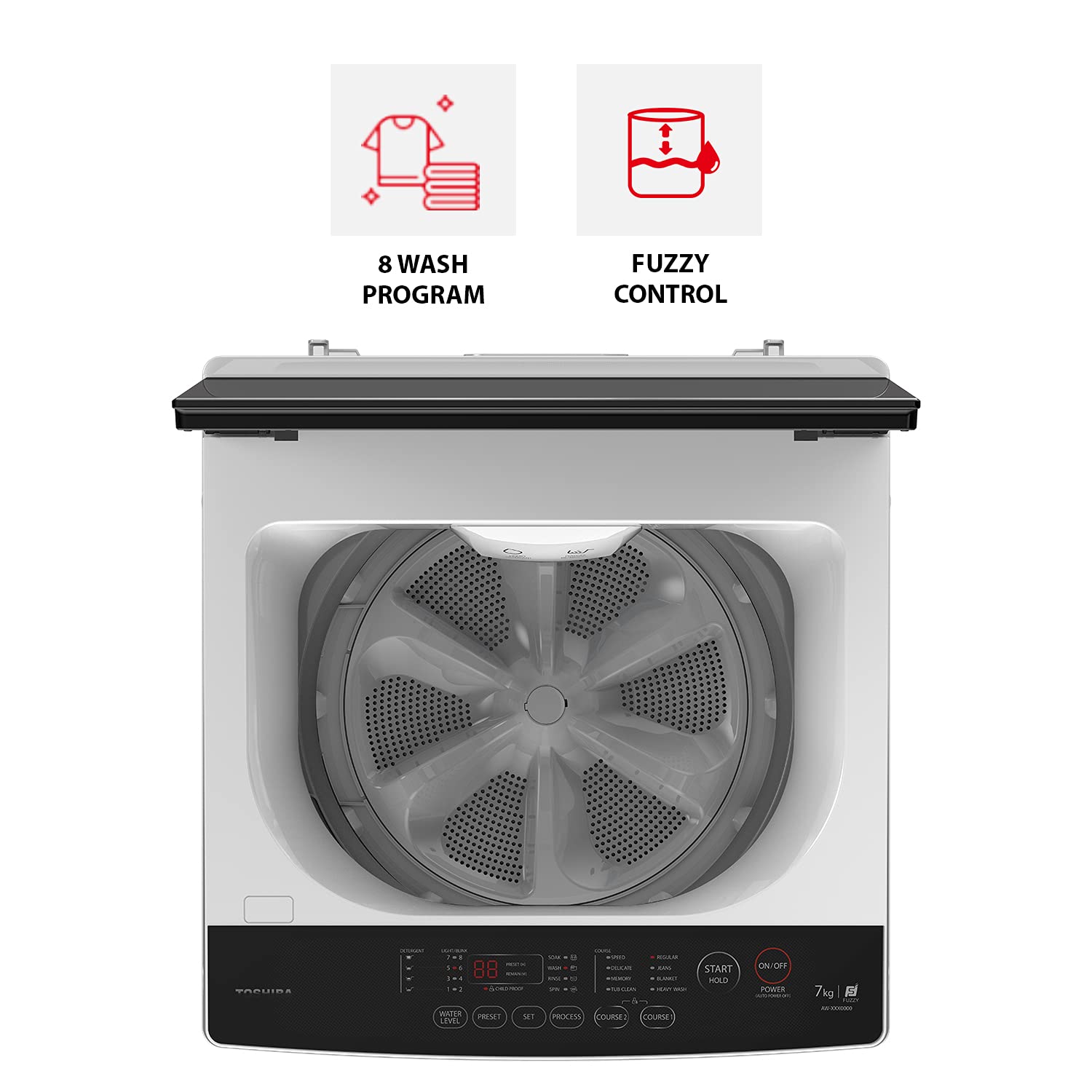

Image 3.3: Top-down view of the washing machine with the lid open, revealing the stainless steel drum and agitator. The control panel is visible at the front.
4. Installation
Proper installation is crucial for the performance and longevity of your washing machine. Please follow these steps carefully.
- Unpacking: Remove all packaging materials, including the base packaging and any internal packing.
- Location: Choose a location with a solid, level floor, away from direct sunlight and heat sources. Ensure adequate space for ventilation and door opening.
- Leveling: Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable and level. This prevents excessive vibration and noise during operation.
- Water Supply Connection: Connect the inlet hose to a cold water tap and securely fasten it to the water inlet valve on the back of the washing machine. Ensure there are no kinks in the hose.
- Drain Hose Connection: Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent dislodging during drainage. The drain hose should not be submerged in water.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Image 4.1: Diagram illustrating the dimensions of the washing machine: 51.5 cm (width), 52.5 cm (depth), and 92.0 cm (height).
5. Operating Instructions
Follow these steps for effective and safe operation of your washing machine.
5.1. Preparing Laundry
- Sort laundry by fabric type, color, and degree of soiling.
- Check pockets for small items that could damage the machine.
- Close zippers and hooks to prevent snagging.
5.2. Loading Laundry
Place laundry loosely into the drum, ensuring not to overload the machine. Overloading can reduce washing efficiency and cause excessive wear.
5.3. Adding Detergent and Softener
Add the appropriate amount of detergent to the detergent dispenser. The machine features an independent Softener Dispenser, designed as an independent grid, which drops liquid efficiently. Add fabric softener to its designated compartment.
5.4. Selecting a Wash Program
Your washing machine offers 8 different wash programs to suit various fabric types and soil levels. Turn on the power, then use the 'Course' button to select the desired program. Common programs include:
- Regular: For daily cottons and mixed fabrics.
- Heavy Wash: For heavily soiled items.
- Delicate: For fragile garments.
- Quick Wash (15-min): For lightly soiled items requiring a fast cycle.
5.5. Key Features
- 15-min Quick Wash: Ideal for small loads of lightly soiled clothes that need a quick refresh.
- Memory Function: Allows you to save your preferred wash settings for quick access.
- Fuzzy Control: Automatically detects the laundry load and water level, optimizing wash time and water usage for efficient cleaning.
- Water Level Selector: Manually adjust the water level if desired, though Fuzzy Control often handles this automatically.
- Child Lock: Press and hold the designated buttons (refer to control panel for specific combination) to lock the control panel, preventing children from accidentally changing settings.
- Soft Close Lid: The lid is designed to close gently and quietly, preventing accidental slamming.
- No-Angular Design: The interior design ensures that clothes are not scratched or damaged during the wash cycle.
Image 5.1: Visual representation of key features including 8 Wash Programs, Water Level Selector, 15-Min Quick Wash, Drum Clean, No Angular Design, Soft Close Lid, Child Lock, Memory Function, and Fuzzy Control.
Image 5.2: The washing machine lid shown in a partially open position, demonstrating the soft close mechanism.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
6.1. Drum Clean Function
The Fundamentally Clean function provides a high-speed water flow that cleans both the inner and outer tubs, preventing mold and detergent residue buildup. It is recommended to run the Drum Clean cycle regularly (e.g., once a month) to maintain hygiene.
Image 6.1: Icon representing the Drum Clean function, showing a sparkling drum interior.
6.2. Cleaning the Dispenser
Periodically remove and clean the detergent and softener dispensers to prevent residue buildup. Rinse with warm water and reinsert.
6.3. Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
7. Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Door not closed properly; Power outage. | Check power connection; Ensure lid is fully closed; Check household circuit breaker. |
| No water filling | Water tap closed; Water inlet hose kinked; Water supply cut off. | Open water tap; Straighten hose; Check water supply. |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged. | Check and clear drain hose; Clean drain pump filter (refer to detailed manual for location). |
| Excessive vibration/noise | Machine not level; Shipping bolts not removed; Overloaded drum. | Adjust leveling feet; Ensure all shipping bolts are removed; Reduce laundry load. |
| Clothes not clean | Too much or too little detergent; Incorrect wash program; Overloaded drum. | Use correct detergent amount; Select appropriate program; Reduce load. |
8. Specifications
Technical details for the TOSHIBA 7KG Fully Automatic Top Load Washing Machine, Model AW-K801A-IND.
| Specification | Value |
|---|---|
| Brand | TOSHIBA |
| Model | AW-K801A-IND |
| Capacity | 7 Kilograms |
| Annual Energy Consumption | 35 Kilowatt Hours Per Year |
| Maximum Rotational Speed | 750 RPM |
| Noise Level | 52 Decibels |
| Installation Type | Screw In |
| Access Location | Top Load |
| Voltage | 230 Volts |
| Item Weight | 33 kg |
| Item Dimensions (LxWxH) | 51.5 x 52.5 x 92 Centimeters |
| Country of Origin | Thailand |
9. Warranty and Support
Your TOSHIBA washing machine comes with a comprehensive warranty to ensure peace of mind.
- Product Warranty: 2 years on the entire product.
- Motor Warranty: 10 years on the motor.
For warranty claims, technical support, or service requests, please contact your local authorized TOSHIBA service center or the importer:
Importer: Midea India Private Limited, Unit No 517-522, 5th Floor, BPTP Park Centra, Sector-30, Gurgaon- Haryana- 122001
Please have your model number (AW-K801A-IND) and purchase details ready when contacting support.
