UNICOO L-Shaped Crank Height Adjustable Standing Desk (Model NTCSET-BR) User Manual

Important Safety Information

Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Weight Limit: Do not exceed the maximum weight capacity of 175 lbs (79.3 kg). Exceeding this limit may compromise stability and cause damage.
• Assembly: Follow all assembly instructions precisely. Ensure all fasteners are securely tightened before use. Two people are recommended for assembly.
• Liquids: Keep liquids away from the desk surface to prevent damage and potential slipping hazards.
• Placement: Place the desk on a level and stable surface.
• Children and Pets: Keep children and pets away from the desk during height adjustment to prevent injury.

Package Contents

Verify that all components are present before beginning assembly. Refer to the included parts list in your product packaging.

• L-shaped tabletop sections
• Desk frame components (legs, beams)
• Manual hand crank system
• Assembly hardware (screws, bolts, etc.)
• Assembly instructions (separate document)

Note: All necessary assembly tools are not included and may need to be acquired separately.

Assembly Instructions

Assembly requires careful attention to detail. It is recommended that two people perform the assembly to ensure safety and ease of construction.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Initial Frame Assembly: Begin by assembling the main frame components. Attach the leg columns to the crossbeams. Important: Do not fully tighten screws at this stage. Keep them loose to allow for adjustments.
3. Install Crank Mechanism: Integrate the manual hand crank system into the designated frame section. Ensure the rod aligns correctly.
4. Attach Tabletop Sections: Carefully place the L-shaped tabletop sections onto the assembled frame. Align the pre-drilled holes with the frame.
5. Secure Tabletop: Attach the tabletop to the frame using the provided screws.
6. Final Tightening: Once all components are correctly aligned and in place, systematically tighten all screws and bolts. Ensure the desk is stable and level.
7. Install Adjustable Feet: Attach the adjustable feet to the bottom of the desk legs.
8. Insert Crank Handle: Insert the foldable crank handle into its port.

Refer to the detailed pictorial instructions included with your product for specific step-by-step guidance.

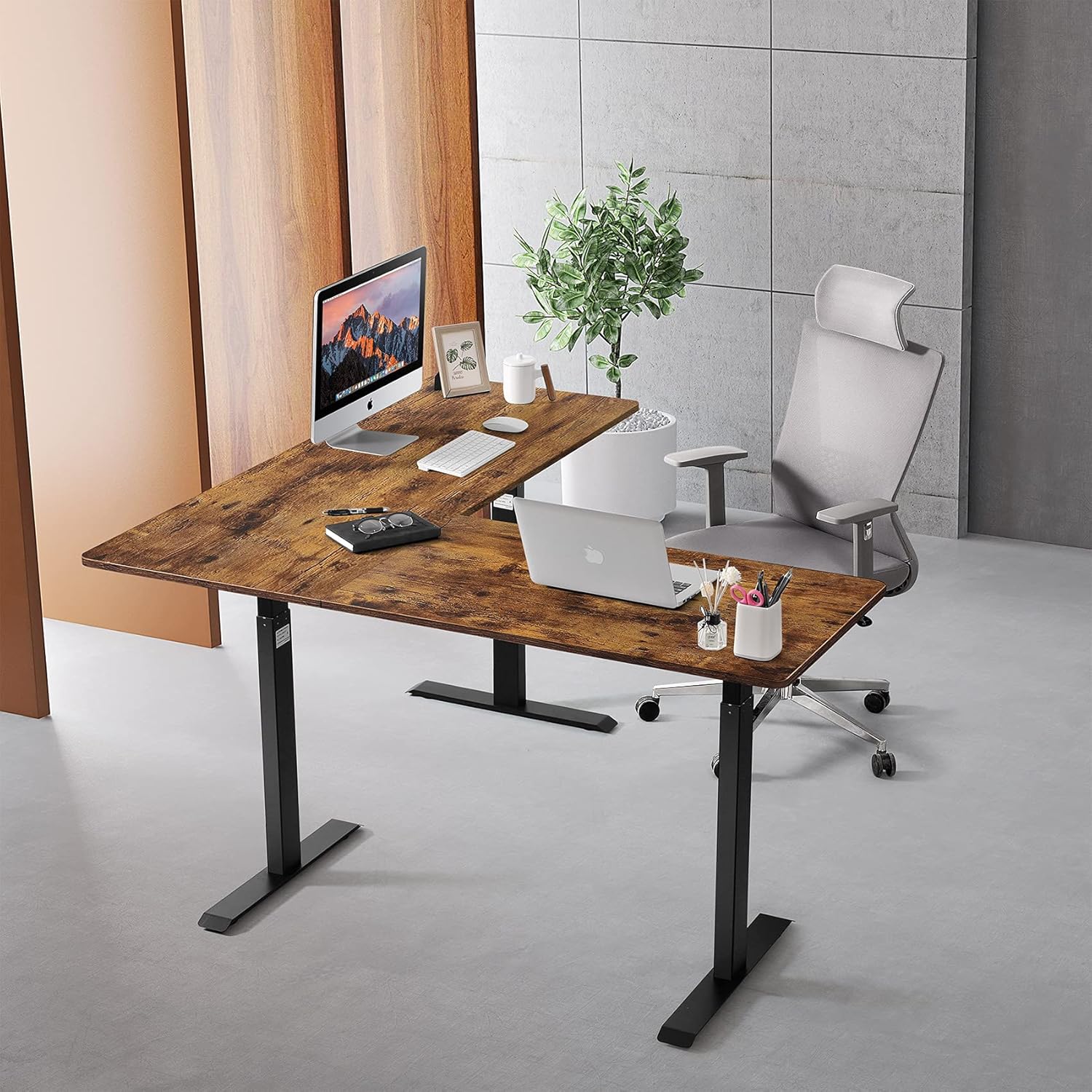

Image: The UNICOO L-Shaped Standing Desk assembled in an office environment, showcasing its spacious design and functionality with a computer and laptop setup.

Operating Instructions

The UNICOO L-Shaped Standing Desk features a manual crank system for smooth height adjustments.

Adjusting Desk Height

1. Locate the Crank Handle: The manual crank handle is located on one side of the desk frame. It is designed to fold in when not in use.
2. Extend the Handle: Pull the crank handle outwards to extend it into the operating position.
3. Raise the Desk: Turn the crank handle clockwise to raise the desk height.
4. Lower the Desk: Turn the crank handle counter-clockwise to lower the desk height.
5. Fold the Handle: Once the desired height is reached, push the crank handle inwards to fold it away, preventing it from being an obstruction.

The desk offers a height range from 27.5 inches (70 cm) to 45.3 inches (115 cm), including the tabletop. Each turn of the crank adjusts the height by approximately 10mm.

Image: Detailed views of the desk's features, including the rounded corner, the foldable crank handle mechanism, and the adjustable feet for leveling.

Maintenance

To ensure the longevity and optimal performance of your UNICOO L-Shaped Standing Desk, follow these simple maintenance guidelines:

• Cleaning: Wipe the desk surface and frame with a damp or dry cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Regular Checks: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary.
• Crank Mechanism: Keep the crank mechanism free from dust and debris. If the crank feels stiff, ensure it is fully extended before turning and check for any obstructions.

Troubleshooting

If you encounter any issues with your UNICOO L-Shaped Standing Desk, refer to the following common solutions:

Desk is Unstable or Wobbles

• Ensure all assembly screws and bolts are fully tightened.
• Verify that the desk is placed on a level surface. Use the adjustable feet to compensate for uneven floors.
• Check that the leg columns are properly seated and secured to the crossbeams.

Crank Handle is Difficult to Turn or Gets Stuck

• Ensure the crank handle is fully extended before attempting to turn it.
• Check for any obstructions around the crank mechanism or the telescopic legs.
• Verify that the internal rod of the crank system is correctly aligned and inserted. Refer to the assembly instructions.
• Do not force the crank. If resistance is significant, re-check the assembly of the crank mechanism and leg extensions.

Desk Does Not Adjust Height Smoothly

• Confirm that the desk is not overloaded beyond its 175 lbs weight capacity.
• Inspect the telescopic legs for any visible damage or obstructions.
• Ensure the crank mechanism is operating freely.

If these troubleshooting steps do not resolve the issue, please contact UNICOO customer support for assistance.

Specifications

Image: A diagram illustrating the key dimensions of the L-shaped desk, including length, depth, and adjustable height range.

Warranty and Support

UNICOO stands behind the quality of its products.

• Warranty: This UNICOO L-Shaped Crank Height Adjustable Standing Desk comes with a 1-year limited warranty for the frame.
• Customer Support: For any questions, concerns, or technical assistance, please contact UNICOO customer support. Refer to the contact information provided in your product packaging or on the official UNICOO website.
