1. Safety Instructions
Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operation.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
- Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Maintenance: Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation.
2. Product Overview
The Ingco 1500W Rotary Hammer Drill Model RH15008 is a powerful and versatile tool designed for drilling into concrete, masonry, wood, and metal, as well as for chiseling applications. It features a robust motor and multiple operating modes to handle various tasks efficiently.

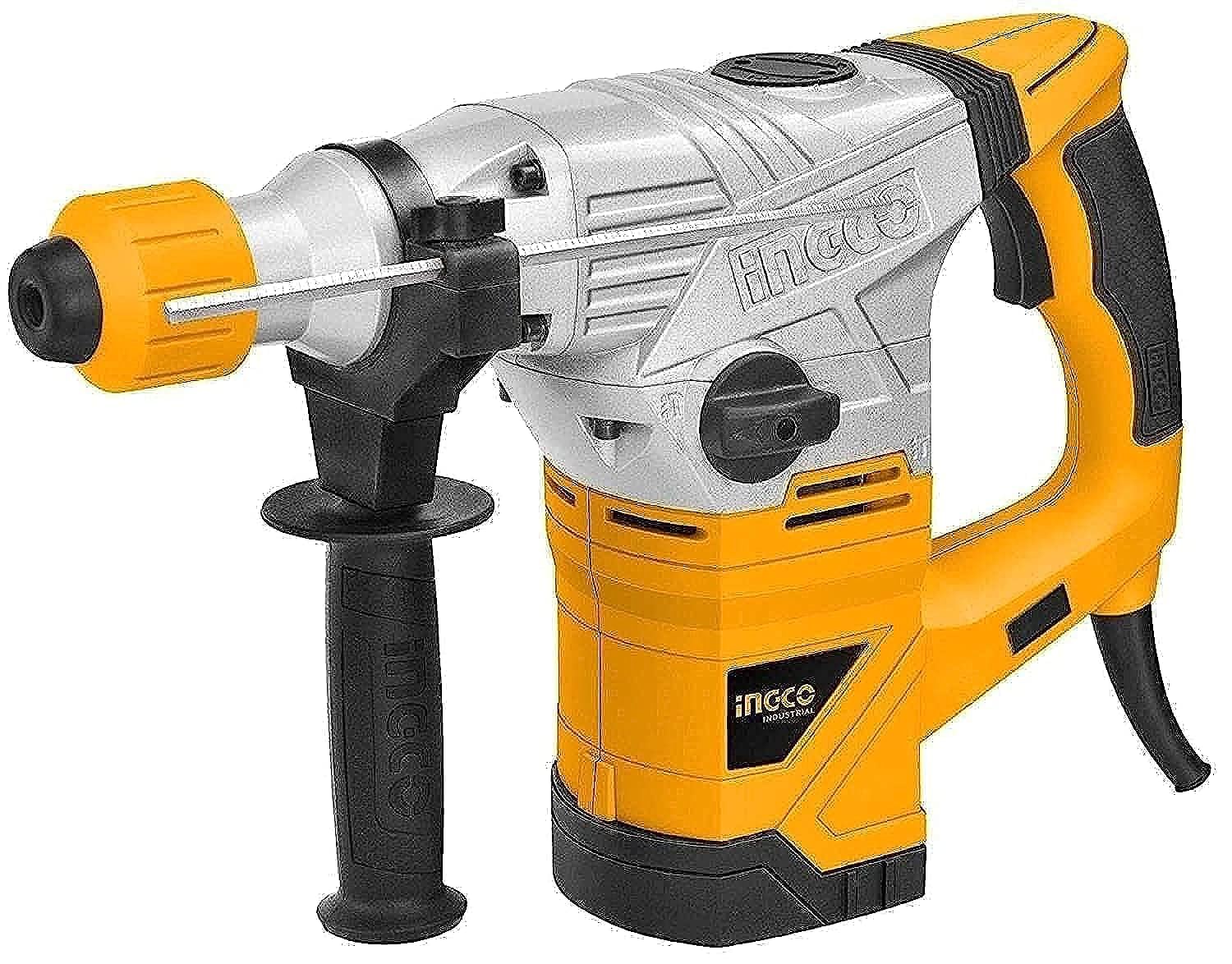

Figure 1: Ingco 1500W Rotary Hammer Drill RH15008. This image shows the main unit of the rotary hammer drill, highlighting its ergonomic design and key components such as the handle, chuck, and motor housing.
Key Features:
- Powerful 1500W motor for demanding applications.
- Multiple operating modes: drilling, hammer drilling, and chiseling.
- Reverse rotation function for versatility.
- Keyless chuck for quick and easy bit changes.
- Ergonomic design for comfortable handling.
3. Specifications
| Feature | Specification |
|---|---|
| Model Number | RH15008 |
| Part Number | 0218Z0WRK5I |
| Power Input | 1500 W |
| Voltage | 220 V |
| No-load Speed | 750 RPM |
| Drill Type | Rotary Hammer |
| Chuck Type | Keyless |
| Max Drilling Diameter | 36 mm |
| Reverse Function | Yes |
| Item Weight | 8.9 kg |
| Shipping Dimensions | 48.2 x 39.29 x 15.2 cm |
| Color | Multi-color |
4. Setup
- Unpacking: Carefully remove the rotary hammer drill and all accessories from the packaging. Inspect for any damage.
- Handle Attachment: Attach the auxiliary handle securely to the drill. Ensure it is tightened to provide stable grip during operation.
- Bit Installation:
- Clean the shank of the drill bit.
- Insert the bit into the chuck until it clicks into place. Pull on the bit to ensure it is securely locked.
- For SDS-Plus bits, a slight play is normal and necessary for the hammer mechanism.
- Power Connection: Ensure the power switch is in the OFF position. Connect the power cord to a suitable 220V power outlet.
5. Operating Instructions
Operating Modes:
- Drilling Mode: For drilling into wood, metal, and plastic without hammer action.
- Hammer Drilling Mode: For drilling into concrete, brick, and masonry with combined rotation and hammer action.
- Chiseling Mode: For light chiseling, chipping, and demolition work (e.g., removing tiles).
General Operation:
- Select Mode: Use the mode selector switch to choose the desired operating mode.
- Grip: Hold the drill firmly with both hands, using the main handle and the auxiliary handle.
- Starting: Press the trigger switch to start the drill. The speed can be adjusted by varying the pressure on the trigger.
- Drilling: Apply steady, even pressure. Do not force the tool. Allow the drill to do the work.
- Stopping: Release the trigger switch to stop the drill.
- Reverse Function: Use the reverse switch for removing jammed bits or for driving/removing screws (if applicable with appropriate accessories).
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your tool.
- Cleaning: After each use, clean the tool with a soft cloth. Remove any dust or debris from the ventilation openings to prevent overheating.
- Chuck Maintenance: Keep the chuck clean and free of debris. Periodically apply a small amount of grease to the chuck mechanism for smooth operation.
- Carbon Brushes: The carbon brushes may need replacement after extended use. This should ideally be performed by a qualified service technician.
- Storage: Store the tool in a dry, secure place, out of reach of children.
7. Troubleshooting
If you encounter issues with your rotary hammer drill, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply; Faulty power cord/plug; Defective switch | Check power connection and outlet; Inspect cord/plug for damage; Contact service center if switch is faulty. |
| Reduced drilling performance | Worn drill bit; Incorrect mode selected; Overheating | Replace drill bit; Select appropriate mode (e.g., hammer drilling for concrete); Allow tool to cool down. |
| Excessive vibration/noise | Loose components; Damaged internal parts | Check for loose screws or attachments; Discontinue use and contact service center. |
| Overheating | Blocked ventilation; Prolonged heavy use | Clean ventilation slots; Allow tool to rest and cool down; Reduce load. |
8. Warranty and Support
This Ingco product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.
For technical support, service, or spare parts, please contact your local Ingco dealer or authorized service center. Keep your purchase receipt as proof of purchase for warranty claims.
