1. Introduction
The FEETECH FT5330M is a high-performance 35KG digital servo motor designed for demanding applications in RC vehicles, robotics, and other projects requiring precise and powerful control. Featuring a full metal gear set, high voltage compatibility (7.4V), and waterproof capabilities, this servo delivers exceptional torque and speed for reliable operation in various environments. Its robust construction ensures durability and a long service life.
Image 1.1: Overview of the FEETECH 35KG RC Servo Motor highlighting its features.
2. Key Features
- High Torque Output: Delivers a strong stall torque of 35.5kg.cm at 7.4V, providing ample power for heavy-duty applications.
- High Voltage Compatibility: Operates efficiently within a voltage range of 4V to 8.4V, suitable for various power setups.
- Full Metal Gear Digital Servo: Equipped with sturdy steel metal gears for enhanced durability, precision, and longevity compared to plastic gears.
Image 2.1: Illustration comparing the durability of metal gears (left) versus plastic gears (right).
- Waterproof Performance (IP54): Features IP54-rated waterproof performance, protecting the internal components from splashes and dust, making it suitable for outdoor and challenging environments.
Image 2.2: The servo motor demonstrating its waterproof capability.
- Fast Rotation Speed: Achieves a speed of 0.192 sec/60° at 7.4V, ensuring quick and responsive movements.
- 180° Control Angle: Provides a precise control angle of 180 degrees (at 500→2500μsec pulse width). When power is stopped, it can rotate 360 degrees freely.

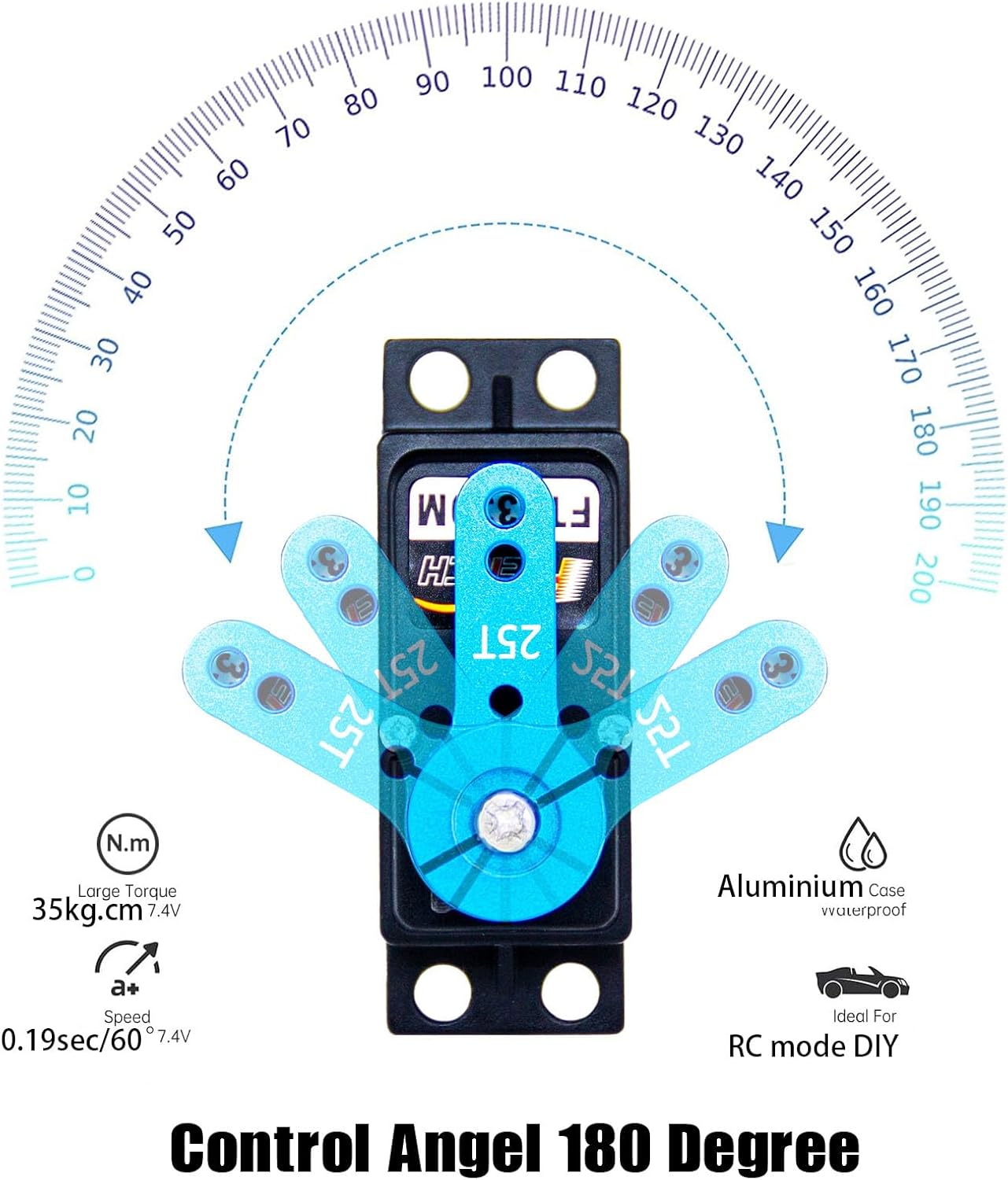

Image 2.3: Visual representation of the 180-degree control angle.
- Servo Protection Mechanism: Incorporates an overload protection mechanism. If the output torque exceeds the overload torque for 8 seconds, or the temperature exceeds 70°C, the servo will automatically stop outputting torque to prevent damage. The overload torque can be modified.
- Wide Compatibility: Compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application utilizing a standard servo system.
3. Package Contents
Upon opening the package, please verify that all components are present and in good condition. The standard package for the FEETECH FT5330M servo motor typically includes:
- 1 x FEETECH FT5330M 35KG Digital Servo Motor
- 1 x 25T Metal Servo Horn (pre-attached or separate)
- Various Plastic Servo Horns (e.g., cross, single arm)
- Mounting Screws and Brass Bushings/Rubber Dampers
Image 3.1: Contents of the FEETECH 35KG Servo Motor package.
4. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your servo motor. Follow these general steps for installation:
- Mounting the Servo: Securely mount the servo motor into the designated servo tray or mounting location on your RC vehicle or robot. Use the provided mounting screws and, if applicable, rubber dampers to reduce vibration. Ensure the servo is firmly seated but not overtightened, which could distort the casing.
- Attaching the Servo Horn: Select the appropriate servo horn for your application. Attach it to the servo output shaft. Ensure the horn is centered before tightening the small screw that secures it to the shaft. For steering applications, ensure the wheels are straight before attaching the horn.
- Connecting to Receiver/Controller: Connect the servo's three-wire cable to the corresponding channel on your RC receiver or microcontroller (e.g., Arduino, Raspberry Pi).
- Red Wire: Positive (+) power supply (typically 4V-8.4V).
- Brown/Black Wire: Ground (GND).
- Orange/Yellow/White Wire: Signal (PWM input).
- Power Supply: Ensure your power supply (battery, BEC) can provide sufficient current and voltage for the servo, especially under load. This 35KG servo performs best at 7.4V.
- Initial Testing: Before full operation, perform a basic test to ensure the servo responds correctly to control inputs and moves smoothly through its full range of motion without binding.
Image 4.1: The servo motor installed within an RC car chassis.
5. Operating Principles
The FEETECH FT5330M is a digital servo, meaning it uses a microcontroller to process the incoming Pulse Width Modulation (PWM) signal from your receiver or controller. This allows for more precise and consistent control compared to analog servos.
- PWM Signal: The servo's position is determined by the width of the incoming pulse. A standard servo typically uses a pulse width between 1000 microseconds (µs) and 2000 µs, with 1500 µs being the center position. This servo's 180° control angle is achieved with a pulse width range of 500µs to 2500µs.
- Control Range:
- 500µs: Corresponds to one extreme end of the 180° rotation.
- 1500µs: Corresponds to the center position.
- 2500µs: Corresponds to the other extreme end of the 180° rotation.
- Stall Torque: The maximum torque the servo can produce when its output shaft is prevented from rotating. For this model, it's 35.5kg.cm at 7.4V. Avoid prolonged stalling, as it can lead to overheating and damage.
- Speed: The time it takes for the servo to rotate 60 degrees. For this model, it's 0.192 sec/60° at 7.4V.
6. Maintenance
Regular maintenance helps extend the life and maintain the performance of your FEETECH servo motor:
- Keep Clean: Periodically clean the exterior of the servo to remove dirt, dust, and debris. While waterproof, excessive build-up can still affect performance or lead to issues.
- Check Connections: Ensure all electrical connections (power, signal) are secure and free from corrosion. Loose connections can cause erratic behavior or damage.
- Inspect Gears: Although equipped with durable metal gears, inspect them periodically for any signs of wear, damage, or foreign objects that might impede smooth operation.
- Avoid Overloading: Do not consistently operate the servo beyond its specified torque limits. Continuous overloading can lead to premature wear of gears and motor, and trigger the protection mechanism.
- Temperature Management: Ensure adequate airflow around the servo, especially during intense operation, to prevent overheating. The built-in temperature protection will activate if temperatures exceed 70°C.
- Storage: When not in use for extended periods, store the servo in a dry, cool environment, away from direct sunlight and extreme temperatures.
7. Troubleshooting
If you encounter issues with your FEETECH FT5330M servo, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Servo not responding or erratic movement |
|
|
| Servo hums or jitters at rest |
|
|
| Servo overheats |
|
|
| Reduced torque or speed |
|
|
8. Specifications
Detailed technical specifications for the FEETECH FT5330M 35KG Digital Servo Motor:
| Parameter | Value |
|---|---|
| Model | FT5330M |
| Operating Voltage Range | 4V - 8.4V |
| Stall Torque (6V) | 28.8 kg.cm |
| Stall Torque (7.4V) | 35.5 kg.cm |
| Rotation Speed (6V) | 0.238 sec/60° |
| Rotation Speed (7.4V) | 0.192 sec/60° |
| Control Angle | 180° (at 500→2500µsec) |
| Dead Band Width | ≤ 4 µsec |
| Gear Type | Full Metal Gear (Steel) |
| Case Material | PA Aluminum Middle Shell |
| Waterproof Performance | IP54 |
| Product Dimensions | 40 x 20 x 43 mm (1.57 x 0.79 x 1.69 inches) |
| Product Weight | 67g (2.36 ounces) |
Image 8.1: Detailed dimensions and technical drawing of the servo motor.
Image 8.2: Internal structure and key specifications of the FT5330M servo.
9. Warranty and Support
FEETECH stands behind the quality of its products. For specific warranty details and support inquiries, please refer to the official FEETECH website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance, you may visit the FEETECH Store on Amazon.
