Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Lexicon Galen Reversible Step Storage Wood Bunk Bed. Please read all instructions carefully before assembly and use to ensure safe and proper operation.
The Lexicon Galen Bunk Bed is designed to maximize sleep space and storage. It features a twin-over-twin configuration with a reversible step unit that includes four built-in storage drawers, and additional under-bed storage boxes with casters. The bed is constructed from wood and engineered wood with a white finish.
Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always use the recommended mattress size for both the upper and lower bunks. For the top bunk, the mattress should not be thicker than 6 inches.
- Ensure all guard rails are properly installed and secured on the upper bunk.
- Do not allow children under 6 years of age on the upper bunk.
- Periodically check and ensure that all connectors are tight. Do not overtighten.
- Do not use substitute parts. Contact the manufacturer for replacement parts.
- The bed is designed to support up to 300 lbs per bed. Do not exceed this weight limit.
- Always use the provided step unit for access to the upper bunk. Do not jump on the bed.
- Keep hands and fingers clear of moving parts, especially during assembly and when operating drawers.
Components List
Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
| Part | Description | Quantity |
|---|---|---|
| A | Upper Bunk Frame | 1 |
| B | Lower Bunk Frame | 1 |
| C | Reversible Step Unit | 1 |
| D | Storage Drawers for Step Unit | 4 |
| E | Under-Bed Storage Boxes with Casters | 2 |
| F | Guard Rails | 2 |
| G | Slats (for both bunks) | Sufficient quantity |
| H | Hardware Pack (screws, bolts, nuts, Allen wrench) | 1 |
Setup and Assembly
Assembly requires at least two adults. Clear a large area for assembly. Do not use power tools for assembly as they may overtighten and damage the wood.
Step 1: Unpack and Identify Parts
Carefully unpack all components and lay them out on a soft, clean surface to prevent scratching. Compare each part to the Components List to ensure everything is present.

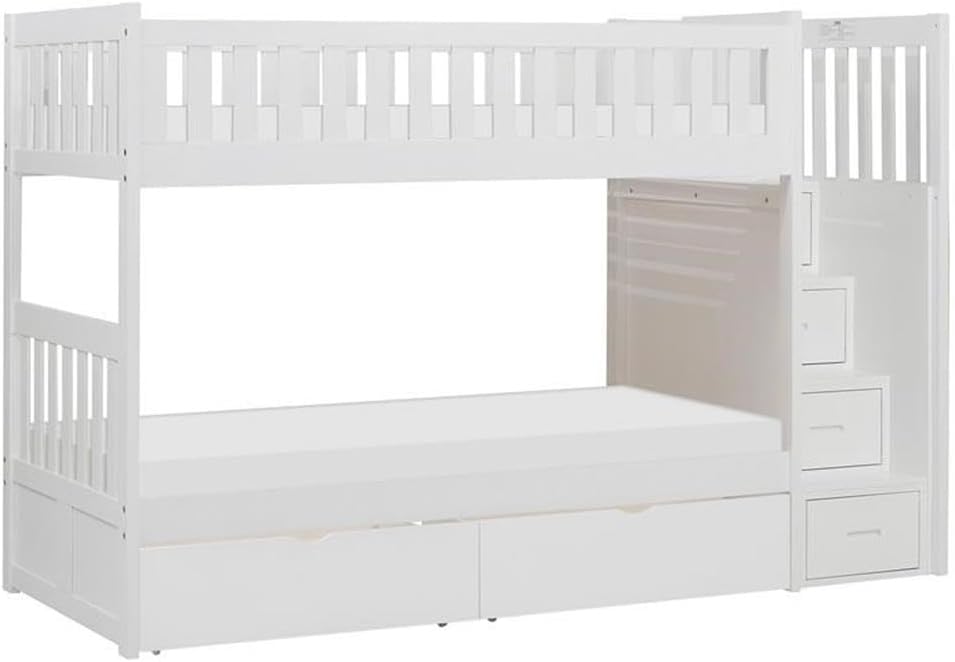

Image: The Lexicon Galen Bunk Bed in white, featuring the twin-over-twin design, reversible step unit with drawers, and under-bed storage boxes. This image provides an overall view of the assembled product.
Step 2: Assemble the Lower Bunk Frame
Connect the headboard, footboard, and side rails for the lower bunk using the provided hardware. Ensure all connections are snug but do not fully tighten bolts until the entire frame is assembled.
Step 3: Assemble the Upper Bunk Frame
Repeat the process for the upper bunk frame, connecting the headboard, footboard, and side rails. Attach the guard rails to the upper bunk frame as per the instructions in the hardware pack.
Step 4: Attach the Step Unit
The step unit is reversible. Determine which side you want the step unit to be on (left or right) relative to the bed. Attach the step unit to the bunk bed frame using the designated connectors. Ensure it is securely fastened to both the upper and lower bunk frames.
Image: The Lexicon Galen Bunk Bed positioned in a bedroom, showcasing the under-bed storage boxes partially pulled out. This view demonstrates the practical use of the storage features within a living space.
Step 5: Install Slats
Place the wooden slats evenly across the support rails for both the upper and lower bunks. Secure them in place using the provided screws. Ensure slats are properly spaced to provide adequate mattress support.
Image: A close-up view of the Lexicon Galen Bunk Bed, highlighting the wooden slats that support the mattress on both the upper and lower bunks. This image illustrates the internal support structure of the bed frames.
Step 6: Assemble and Insert Drawers
Assemble the four storage drawers for the step unit and the two under-bed storage boxes according to the separate instructions for drawer assembly. Once assembled, slide them into their respective compartments. The under-bed boxes have casters for easy movement.
Image: The Lexicon Galen Bunk Bed with the under-bed storage boxes fully extended, revealing their capacity. This image demonstrates the functionality and accessibility of the integrated storage solutions.
Step 7: Final Tightening
Once all components are assembled and aligned, go back and fully tighten all bolts and screws. Do not overtighten. Ensure the bed is stable and does not wobble.
Operating Instructions
Using the Bunk Beds
- Upper Bunk Access: Use the integrated step unit to safely access the upper bunk. Always face the steps when ascending or descending.
- Mattress Placement: Place a twin-sized mattress on both the upper and lower bunks. For the upper bunk, ensure the mattress thickness does not exceed 6 inches to maintain adequate guard rail height.
Utilizing Storage
- Step Unit Drawers: The four drawers integrated into the step unit provide convenient storage for smaller items. Pull the handles to open and push to close.
- Under-Bed Storage Boxes: The two large storage boxes under the lower bunk are equipped with casters for easy rolling in and out. These are ideal for bedding, toys, or other larger items.
Maintenance
- Cleaning: Wipe down the bed frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
- Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they remain tight. Retighten as necessary, but do not overtighten.
- Drawer Maintenance: Keep drawer tracks clean and free of debris to ensure smooth operation. If drawers become stiff, a small amount of silicone spray on the tracks may help.
- Wood Care: Protect the wood finish from direct sunlight and extreme temperature changes to prevent warping or fading.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed wobbles or feels unstable | Loose hardware connections. | Check and tighten all bolts and screws. Ensure the bed is on a level surface. |
| Drawers stick or are difficult to open/close | Debris in tracks, misaligned, or worn glides. | Clean tracks. Check if drawers are properly seated. Apply silicone spray to glides if needed. |
| Squeaking noises | Loose connections or friction between wood parts. | Tighten all hardware. If squeaking persists, apply a small amount of wax or lubricant to contact points between wood pieces. |
Specifications
- Model: B2053SBW-1_T
- Dimensions (Overall): 41.5"L x 97"W x 63.5"H
- Material: Wood and Engineered Wood
- Finish: White
- Bed Type: Twin Over Twin Bunk Bed
- Weight Capacity: Up to 300 lbs per bed
- Recommended Mattress Thickness (Upper Bunk): Not thicker than 6 inches
- Features: Reversible Step Storage with 4 Drawers, Under-Bed Storage Boxes with Casters, Guard Rails
- Assembly Required: Yes
- Product Weight: Approximately 247.5 lbs

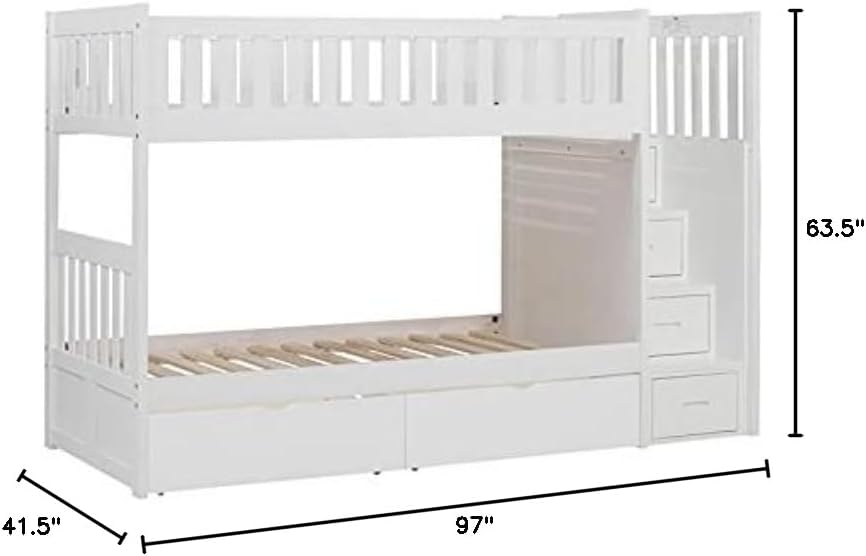

Image: A diagram of the Lexicon Galen Bunk Bed with key dimensions labeled, including length (97"), width (41.5"), and height (63.5"). This provides a visual reference for the product's physical size.
Warranty and Support
For information regarding warranty coverage, replacement parts, or technical support, please refer to the warranty card included with your product packaging or contact Lexicon customer service directly.
Lexicon Customer Service: Please refer to the contact information provided at the point of purchase or on the manufacturer's official website.
When contacting support, please have your model number (B2053SBW-1_T) and purchase date available.
