Yard Force 21-Inch 3N1 Lawn Mower Blade Replacement Manual

1. Product Overview

This manual provides essential information for the safe and effective use of your Yard Force 21-Inch 3N1 Lawn Mower Blade Replacement, OEM Part 1253556001. This precision-engineered blade is designed to restore the factory cutting performance of Yard Force mower models YF22-3N1SP, YF22-3N1SP-SC, and YF22-3N1SPVS-SC. Constructed from durable stamped steel, it features a dual-edge mulching design for a consistent cut and an exclusive airflow design for superior bagging, mulching, or side discharge.

Key Features:

• Genuine OEM Replacement: Part 1253556001, ensuring perfect compatibility with specified Yard Force models.
• Precision Machined: Delivers a smooth, even cut across various grass types.
• 3-in-1 Cutting Design: Optimized airflow for improved bagging, mulching, and side discharge efficiency.
• Durable Construction: Made from high-strength stamped steel for longevity and reduced vibration.

Image 1.1: Yard Force 21-Inch 3N1 Lawn Mower Blade in its retail packaging.

2. Safety Information

Always prioritize safety when working with lawn mower blades. Failure to follow these safety instructions can result in serious injury.

• Disconnect Spark Plug: Before performing any maintenance or blade replacement, always disconnect the spark plug wire to prevent accidental engine starting. For electric mowers, remove the battery or unplug the power cord.
• Wear Protective Gear: Always wear heavy-duty gloves to protect your hands from sharp blade edges. Safety glasses are also recommended to protect your eyes from debris.
• Stable Surface: Ensure the mower is on a flat, stable surface. Block the wheels if necessary to prevent movement.
• Proper Lifting: If tilting the mower, ensure the carburetor side is up to prevent fuel or oil leakage.
• Read Mower Manual: Refer to your specific lawn mower's owner's manual for additional safety precautions and detailed instructions for blade removal and installation.

3. Installation Instructions

Follow these steps to safely replace your lawn mower blade. Ensure all safety precautions from Section 2 are followed before proceeding.

3.1. Tools Required

• Heavy-duty work gloves
• Socket wrench with appropriate size socket for blade bolt (typically 15mm or 5/8 inch)
• Wood block or blade removal tool

3.2. Blade Removal

1. Prepare Mower: Disconnect the spark plug wire (or remove battery/unplug power cord). Ensure the fuel tank is less than half full if tilting the mower.
2. Position Mower: Tilt the mower onto its side with the carburetor and air filter facing upwards to prevent fuel and oil from leaking.
3. Secure Blade: Place a wood block between the blade and the mower deck to prevent the blade from turning while you loosen the bolt.
4. Remove Blade Bolt: Using the socket wrench, turn the blade bolt counter-clockwise to loosen and remove it. Note the orientation of any washers or spacers.
5. Remove Old Blade: Carefully remove the old blade. Inspect the blade adapter for any damage or debris.

3.3. New Blade Installation

1. Orient New Blade: Ensure the new blade is installed with the cutting edges facing the correct direction (upwards, towards the mower deck). The curved ends of the blade should point towards the mower deck.
2. Align Blade: Align the center hole of the blade with the blade adapter and ensure any alignment pins or keys on the adapter fit into the corresponding holes on the blade.
3. Install Bolt: Reinstall the blade bolt and any washers/spacers.
4. Tighten Bolt: Place the wood block back between the blade and the mower deck. Tighten the blade bolt clockwise using the socket wrench. Tighten securely to the manufacturer's recommended torque specification (refer to your mower's manual). An improperly tightened blade can be dangerous.
5. Final Check: Once tightened, remove the wood block, return the mower to its upright position, and reconnect the spark plug wire.

4. Operating the 3-in-1 Blade

The Yard Force 21-Inch 3N1 blade is designed for versatile cutting performance, supporting mulching, bagging, and side discharge operations. Its exclusive airflow design optimizes clipping flow for each mode.

• Mulching: When mulching, the blade's design creates a powerful updraft that keeps grass clippings suspended longer, allowing them to be cut into finer pieces before falling back onto the lawn as natural fertilizer. Ensure your mower's mulching plug is installed.
• Bagging: For bagging, the enhanced airflow efficiently directs clippings into the collection bag, reducing clumping and improving fill capacity. Ensure your mower's bag is properly attached.
• Side Discharge: When using side discharge, the blade's design helps propel clippings out of the discharge chute smoothly and evenly, preventing buildup under the deck. Ensure the side discharge chute is open and clear.

For optimal performance, always mow with a sharp blade and adjust your mower's cutting height according to grass conditions.

5. Maintenance and Care

Regular maintenance of your lawn mower blade ensures a clean cut, extends blade life, and maintains mower efficiency.

5.1. Inspection and Cleaning

• After Each Use: Disconnect the spark plug wire. Carefully inspect the blade for any damage, bends, or excessive wear. Clean grass clippings and debris from the blade and underside of the mower deck.
• Seasonal Inspection: At the beginning of each mowing season, perform a thorough inspection for cracks, nicks, or significant dullness.

5.2. Sharpening

A sharp blade is crucial for a healthy lawn. Dull blades tear grass, leading to brown tips and increased susceptibility to disease.

• Frequency: Sharpen the blade after approximately 25 hours of use, or at least once per mowing season. More frequent sharpening may be needed for sandy conditions or if you frequently hit objects.
• Procedure: Remove the blade (refer to Section 3.2). Use a file or grinding wheel to sharpen the cutting edges, maintaining the original angle. Sharpen both ends equally to maintain balance.
• Balancing: After sharpening, check the blade's balance using a blade balancer. An unbalanced blade can cause excessive vibration, damage to the mower, and an uneven cut. Remove small amounts of metal from the heavier side until balanced.

5.3. Replacement

Replace the blade if it is severely bent, cracked, or has significant metal loss that cannot be corrected by sharpening and balancing. A damaged blade can be dangerous and impair cutting performance. The frequency of replacement depends on usage and conditions, but typically every 1-2 years for average residential use.

6. Troubleshooting Common Issues

If you experience issues with your mower's cutting performance after blade replacement, consider the following:

• Uneven Cut / Ragged Grass:
  • Cause: Dull blade, bent blade, or incorrect blade installation.
  • Solution: Sharpen or replace the blade. Ensure the blade is installed correctly and securely tightened. Check for any bends in the blade.
• Excessive Vibration:
  • Cause: Unbalanced blade (after sharpening or due to impact), bent blade, or loose blade bolt.
  • Solution: Check blade balance. Inspect for bends. Ensure blade bolt is tightened to specifications. Replace if severely bent.
• Poor Bagging/Mulching Performance:
  • Cause: Dull blade, excessive grass height, wet grass, or clogged mower deck/chute.
  • Solution: Sharpen blade. Mow dry grass. Cut tall grass in multiple passes. Clean under the mower deck and clear any obstructions.
• Blade Not Spinning Freely:
  • Cause: Obstruction, incorrect installation, or damaged blade adapter.
  • Solution: Disconnect spark plug. Inspect for debris. Recheck blade installation. Inspect blade adapter for damage.

7. Product Specifications

The following specifications apply to the Yard Force 21-Inch 3N1 Lawn Mower Blade Replacement, OEM Part 1253556001:

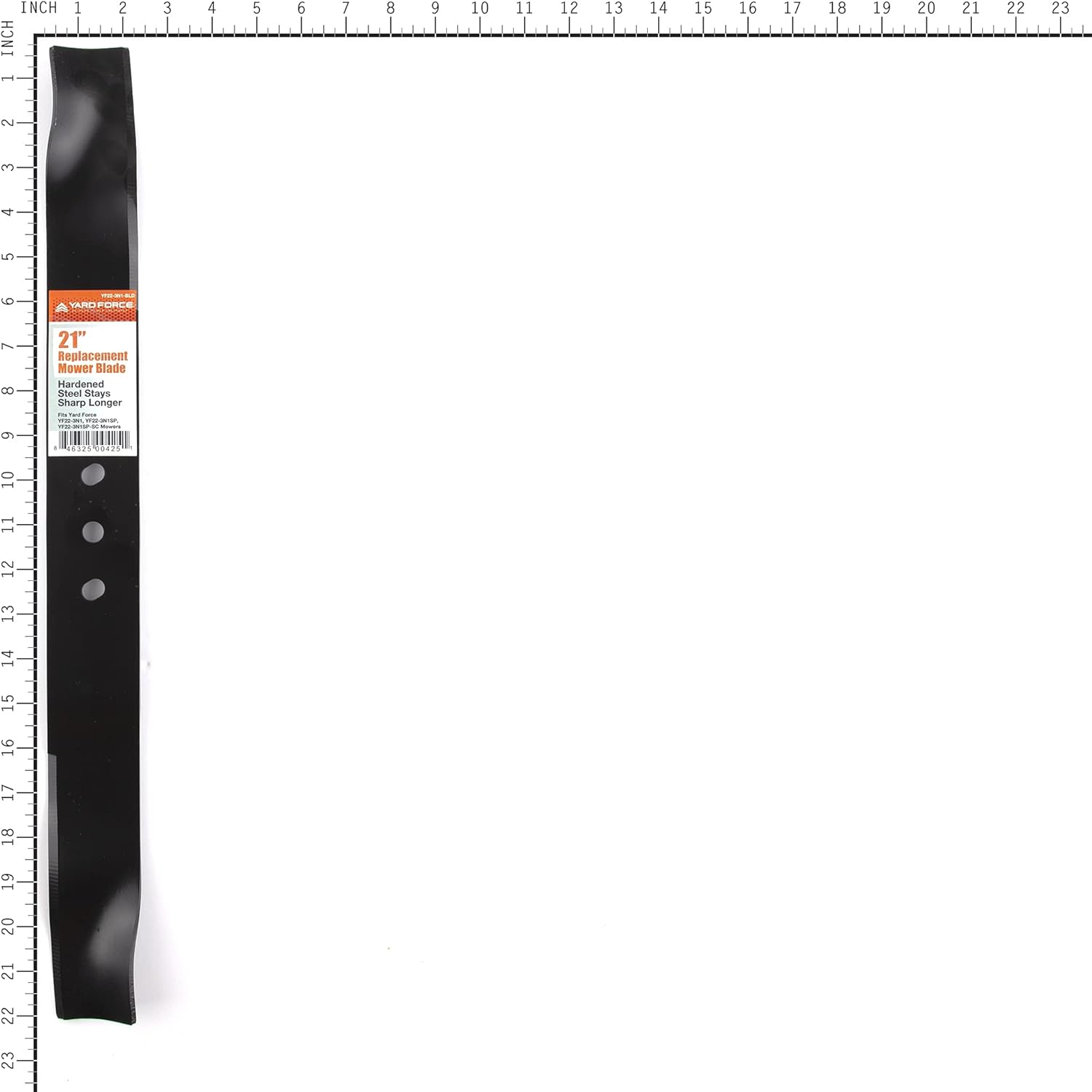

Image 7.1: Yard Force 21-Inch 3N1 Lawn Mower Blade with a ruler for visual dimension reference.

8. Warranty Information

This Yard Force OEM replacement blade is designed for durability and performance. For specific warranty details regarding this replacement part, please refer to the original owner's manual for your Yard Force lawn mower or visit the official Yard Force website. Warranty coverage typically applies to manufacturing defects and does not cover normal wear and tear, misuse, or damage from impacts.

9. Customer Support

If you have any questions regarding the installation, operation, or maintenance of your Yard Force 21-Inch 3N1 Lawn Mower Blade Replacement, please contact Yard Force customer support.

• Online Support: Visit the official Yard Force website for FAQs, product registration, and contact information.
• Phone Support: Refer to your mower's owner's manual for the customer service phone number.

When contacting support, please have your mower model number and the blade's OEM part number (1253556001) available for quicker assistance.
