1. Introduction
Thank you for choosing the BLAUPUNKT HOR301 Oil Radiator. This manual provides important information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and keep it for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions before using this heater.
- Placement: Always place the heater on a firm, level surface. Do not place it on soft surfaces like beds or rugs where openings may be blocked.
- Clearance: Maintain a minimum distance of 3 feet (0.9 meters) from walls, furniture, curtains, and other combustible materials.
- Power Supply: Ensure the voltage indicated on the heater's rating label corresponds with your mains supply voltage. Do not overload electrical circuits.
- Power Cord: Do not run the power cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas where it will not be tripped over.
- Moisture: Do not use the heater in bathrooms, laundry areas, or similar indoor locations where it may come into contact with water. Never immerse the heater in water.
- Supervision: Close supervision is necessary when any appliance is used by or near children or invalids.
- Ventilation: Do not block air intakes or exhaust openings.
- Overheating: The heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Maintenance: Do not attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty.
- Unplug: Always unplug the heater when not in use.
3. Product Overview
The BLAUPUNKT HOR301 is an efficient oil-filled radiator designed to provide consistent warmth for indoor spaces up to 14m². It features multiple heating levels and a thermostat for precise temperature control.
Figure 1: Front view of the BLAUPUNKT HOR301 Oil Radiator, showing control knobs and fins.
Key Features:
- 3 Heating Power Levels: Allows selection of desired heat output.
- Temperature Regulation with Thermostat: Maintains a consistent room temperature.
- 3 Oil Pipes: Designed for faster heat distribution.
- Portable Design: Equipped with wheels for easy movement.
4. Setup and Assembly
The BLAUPUNKT HOR301 Oil Radiator typically comes with wheels that need to be attached before first use. Follow these steps:
- Carefully unpack the radiator and all components from the packaging.
- Turn the radiator upside down on a soft, non-abrasive surface to avoid scratching.
- Locate the wheel assembly brackets and the wheels.
- Attach the wheel brackets to the base of the radiator using the provided screws. Ensure they are securely fastened.
- Insert the wheels into the brackets until they click into place.
- Carefully turn the radiator upright.
- Place the radiator on a stable, level surface, ensuring adequate clearance from walls and furniture as described in the safety instructions.

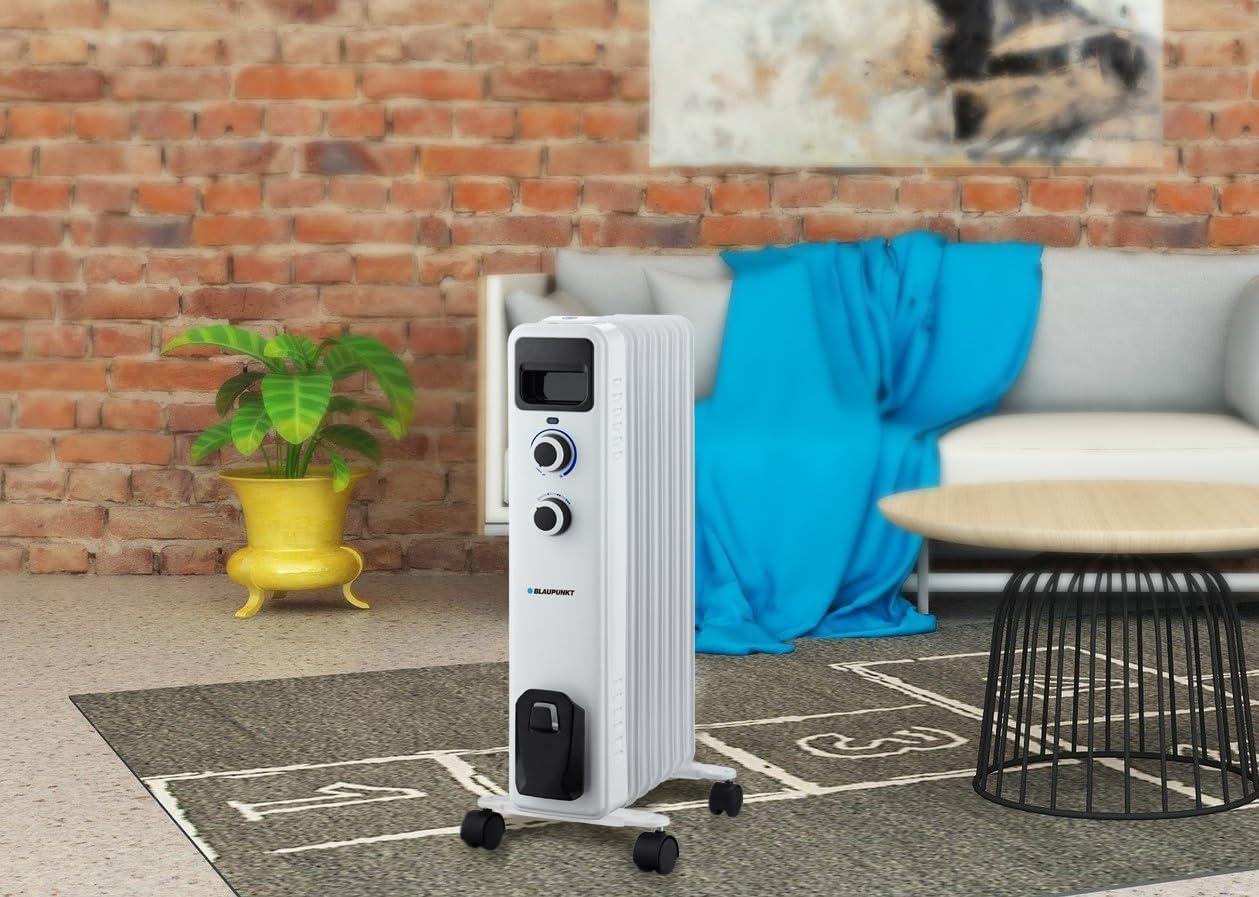

Figure 2: The oil radiator positioned in a living room, demonstrating proper placement.
5. Operating Instructions
Follow these steps to operate your BLAUPUNKT HOR301 Oil Radiator:
- Plug In: Ensure the radiator is placed correctly and plug the power cord into a suitable 220V electrical outlet.
- Power On: Turn the power switch (if present, or the power level knob) to the desired heating level. The HOR301 offers 3 power levels.
- Set Thermostat: Rotate the thermostat control knob clockwise to increase the desired temperature setting, or counter-clockwise to decrease it. The heater will cycle on and off to maintain the set temperature.
- Adjust Heat: You can adjust the heating power level and thermostat setting to achieve your preferred comfort level.
- Power Off: To turn off the heater, turn the power level knob to the "OFF" position and unplug the unit from the wall outlet.
Note: It is normal for the heater to emit a slight odor when first used. This will dissipate after a short period of operation.
6. Maintenance and Storage
Cleaning:
- Always unplug the heater and allow it to cool completely before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Do not immerse the heater in water or allow water to drip into the interior of the heater.
Storage:
- When not in use, store the heater in a cool, dry location.
- It is recommended to store the heater in its original packaging to protect it from dust and damage.
7. Troubleshooting
If your BLAUPUNKT HOR301 Oil Radiator is not operating correctly, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | Not plugged in; power switch off; thermostat set too low; circuit breaker tripped. | Ensure plug is securely in outlet; turn power switch on; increase thermostat setting; check household circuit breaker. |
| Heater produces no heat. | Thermostat set too low; power level set too low. | Increase thermostat setting; select a higher power level. |
| Heater cycles on and off frequently. | Thermostat setting is too close to room temperature. | Adjust the thermostat to a slightly higher or lower setting to find a stable point. This is normal operation for a thermostat-controlled heater. |
| Unusual odor during operation. | New unit burning off manufacturing residues; dust accumulation. | Initial odor will dissipate with use. Clean the heater if dust is suspected. Ensure proper ventilation. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | BLAUPUNKT |
| Model Number | HOR301 |
| Special Feature | Energy Efficient |
| Color | White (Weiss) |
| Form Factor | Pedestal |
| Indoor/Outdoor Usage | Indoor |
| Recommended Uses | Home |
| Mounting Type | Floor Mount |
| Room Type | Home Office |
| Burner Type | Radiant |
| Fuel Type | Electric |
| Number of Speeds | 3 |
| Voltage | 220 Volts |
| Amperage | 6.82 Amps |
| Product Dimensions | 23.62 x 23.62 x 33.46 inches |
| Item Weight | 4.4 pounds |
9. Warranty and Support
BLAUPUNKT products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official BLAUPUNKT website.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact BLAUPUNKT customer service. Contact details can typically be found on the product packaging or the official brand website.
Website: www.blaupunkt.com (Example link, actual link may vary)
