Polti Vaporetto Lecoaspira Water Level Sensor Kit Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation and proper use of the Polti Vaporetto Lecoaspira Water Level Sensor Kit. This kit is an original Polti spare part, designed to replace or repair the water level sensing mechanism in compatible Polti Vaporetto Lecoaspira steam generators. Proper installation ensures accurate water level detection and safe operation of your appliance.

2. Safety Information

Always observe the following safety precautions when handling and installing this component:

• Disconnect Power: Before beginning any installation or maintenance, always unplug the Polti Vaporetto Lecoaspira appliance from the electrical outlet to prevent electric shock.
• Allow Cooling: Ensure the appliance has completely cooled down before opening it or handling internal components. Hot steam or water can cause severe burns.
• Drain Water: Completely drain any remaining water from the boiler and water tank before proceeding with the installation.
• Use Original Parts: Only use original Polti spare parts to ensure compatibility, safety, and optimal performance.
• Professional Assistance: If you are unsure about any step of the installation process, consult a qualified technician or Polti customer support.
• Keep Away from Children: Store the kit and tools out of reach of children.

3. Compatibility

This Water Level Sensor Kit is compatible with the following Polti Vaporetto Lecoaspira models:

• Polti Vaporetto Lecoaspira 710 (PVEU0009, PVEU0010, PVEU0012, PVEU0015, PVEU0016)
• Polti Vaporetto Lecoaspira 715 (PVEU0044, PVEU0049)
• Polti Vaporetto Lecoaspira 720 LUX (EUPV0023)
• Polti Vaporetto Lecoaspira 725 (PVEU0050)

To verify your specific model, locate the identification plate on your appliance, typically found on the underside. If your model is not listed, please contact Polti customer support for assistance.

4. Setup & Installation

This section guides you through the installation of the water level sensor kit. Refer to your appliance's main instruction manual for details on how to access internal components if necessary.

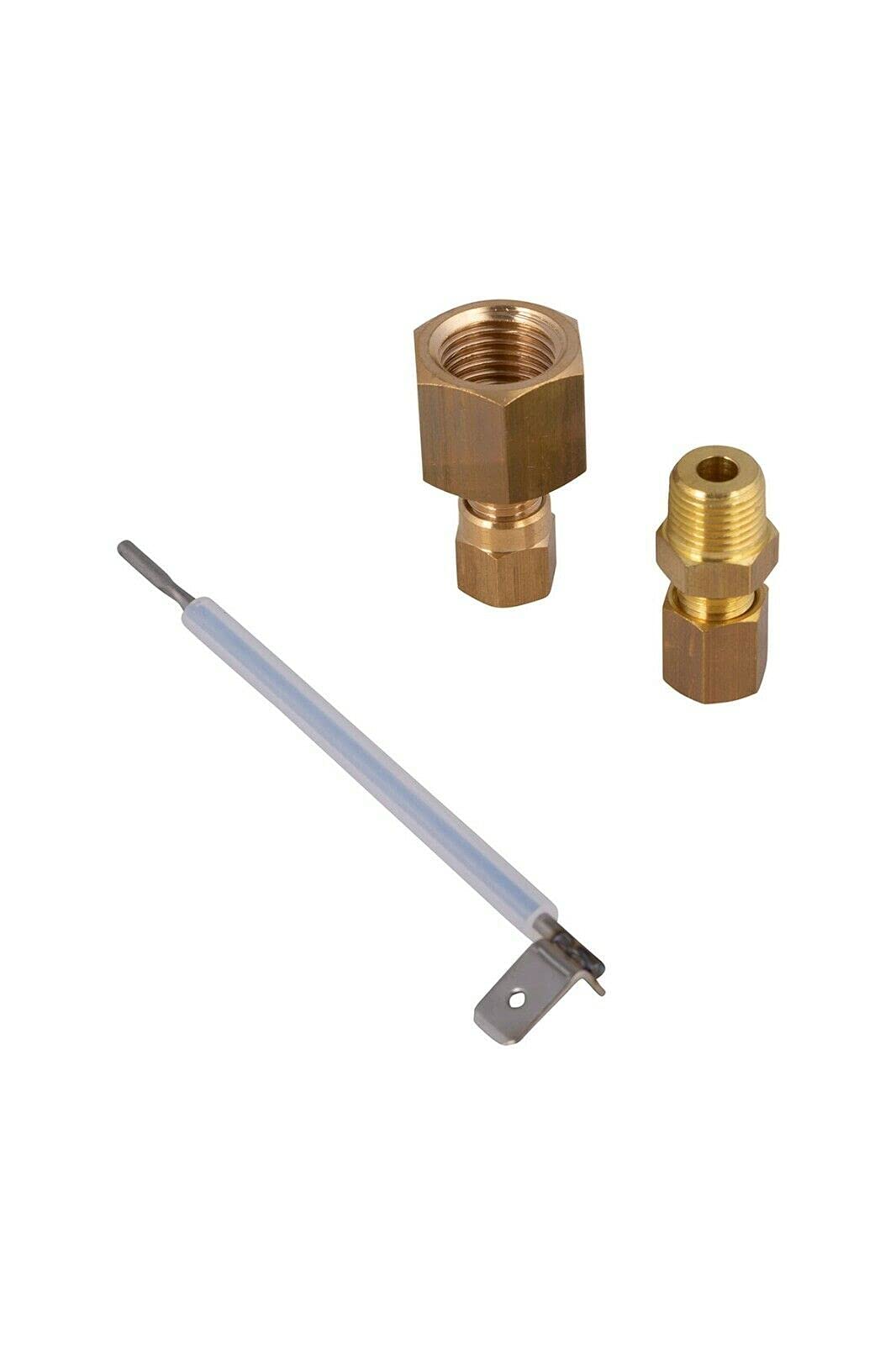

Figure 1: Polti Vaporetto Lecoaspira Water Level Sensor Kit. This image shows the connection kit and the water level sensor rod, which are essential components for accurate water level detection in your steam generator.

Required Tools:

• Screwdriver set (Phillips and flathead, as required by your appliance model)
• Pliers (optional, for hose clamps)
• Clean cloth

Installation Steps:

1. Preparation: Ensure the appliance is unplugged and completely cool. Drain all water from the boiler and water tank.
2. Access Internal Components: Carefully open the appliance casing to access the boiler and the existing water level sensor. This usually involves removing screws from the bottom or back panel. Refer to your main appliance manual for specific instructions on opening the casing.
3. Identify Existing Sensor: Locate the current water level sensor rod and its connection point to the boiler. It is typically a rod extending into the boiler.
4. Disconnect Old Sensor (if applicable): If replacing an existing sensor, carefully disconnect any electrical wiring and unscrew or unclip the old sensor rod from its housing. Note the orientation and connection points for reassembly.
5. Install New Sensor Rod: Insert the new water level sensor rod into the designated opening on the boiler. Ensure it is securely fastened, either by screwing it in or clipping it into place, depending on the design.
6. Connect Wiring: Attach the electrical wiring from the connection kit to the new sensor rod and the appliance's control board, following the original connections. Ensure all connections are firm and correct.
7. Secure Connections: Double-check all connections for tightness and proper seating. Ensure no wires are pinched or obstructing the casing.
8. Reassemble Appliance: Carefully reassemble the appliance casing, ensuring all screws are tightened and panels are securely in place.
9. Initial Test: Fill the water tank with the appropriate amount of water. Plug in the appliance and turn it on. Observe the water level indicator to ensure it functions correctly. Allow the appliance to heat up and check for any leaks or unusual operation.

If the water level indicator does not function as expected after installation, refer to the Troubleshooting section.

5. Operating Principle

The water level sensor kit is a critical component that monitors the water level inside the boiler of your Polti Vaporetto Lecoaspira steam generator. It works by detecting the presence or absence of water at specific points, sending signals to the appliance's control system. This ensures that the boiler is adequately filled for steam generation and prevents the appliance from operating when water levels are too low, protecting the heating element from damage and ensuring user safety.

6. Maintenance

The water level sensor itself requires minimal maintenance. However, to ensure its longevity and accurate operation:

• Regular Descaling: Follow the descaling procedures outlined in your main Polti Vaporetto Lecoaspira manual. Limescale buildup can affect the sensor's accuracy.
• Cleanliness: During routine maintenance or when the appliance is open for other repairs, gently wipe the sensor rod with a clean, damp cloth to remove any residue. Ensure the appliance is unplugged and cool before cleaning.
• Inspection: Periodically inspect the sensor rod and its connections for any signs of wear, corrosion, or damage. Replace the kit if any damage is observed.

7. Troubleshooting

If you encounter issues after installing the water level sensor kit, consider the following:

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Polti customer support.

8. Specifications

• Product Type: Water Level Sensor Kit (Original Polti Spare Part)
• Part Number: Not explicitly stated for the kit, but compatible with models listed.
• Dimensions (L x W x H): Approximately 2 x 1 x 7 cm (0.79 x 0.39 x 2.76 inches)
• Item Weight: Approximately 40 grams (0.09 lbs)
• Material: Components designed for high-temperature and water exposure within steam generators.
• Compatibility: Polti Vaporetto Lecoaspira 710, 715, 720, 725 series.

9. Warranty & Support

Warranty Information:

Specific warranty details for this spare part are typically covered under the terms and conditions of the original appliance purchase or Polti's spare parts policy. Please refer to the warranty documentation provided with your Polti Vaporetto Lecoaspira appliance or visit the official Polti website for the most current warranty information.

Customer Support:

For technical assistance, questions regarding compatibility, or to report a faulty part, please contact Polti customer support. You can find contact information on the official Polti website or in your appliance's main instruction manual.

Polti Official Website: www.polti.com
