1. Product Overview
The JIATONG DC12V 5M RGBWW LED Light Strip is designed to provide versatile and vibrant lighting effects for various indoor applications. This full set includes a 5-meter LED strip, a 40-key IR remote controller, and a 12V 3A power adapter, offering a complete solution for custom lighting setups. The RGBWW (Red, Green, Blue, Warm White) configuration allows for a wide spectrum of colors, including dedicated warm white light, enhancing ambiance and functionality.
Key Features:
- Flexible 5-meter RGBWW LED strip (SMD 5050).
- 60 LEDs per meter for bright and uniform illumination.
- 40-key IR remote controller for comprehensive control.
- Adjustable brightness, static colors, and dynamic flash modes.
- Low power consumption and stable performance.
- Self-adhesive backing for easy installation.
Image 1.1: Complete set of the JIATONG DC12V 5M RGBWW LED Light Strip, including the LED strip reel, 40-key IR remote controller, and power adapter.
2. Safety Information
Please read all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Ensure the power supply is disconnected before installation or maintenance.
- Use only the provided 12V 3A power adapter. Using an incompatible power supply may damage the product or pose a fire risk.
- This product is IP20 No-Waterproof. Do not expose the LED strip or controller to water, moisture, or high humidity. It is intended for indoor use only.
- Do not bend the LED strip sharply or apply excessive force, as this may damage the circuit board or LEDs.
- Keep out of reach of children.
- Do not cover the power adapter or controller during operation to ensure proper ventilation.
- If any damage is observed, discontinue use immediately and contact customer support.
Image 2.1: Visual comparison highlighting the difference between IP65 Waterproof (with silicone coating) and IP20 No-Waterproof (without silicone coating). This product is IP20 No-Waterproof.
3. Package Contents
Verify that all items are present and in good condition upon opening the package:
- 1 x 5-meter RGBWW LED Strip (SMD 5050)
- 1 x 40-Key IR Remote Controller
- 1 x IR Receiver/Controller Box
- 1 x 12V 3A Power Adapter
4. Setup Instructions
Follow these steps to set up your LED light strip:
- Prepare the Surface: Choose a clean, dry, and smooth surface for installation. Ensure the surface is free of dust, oil, or moisture.
- Connect the LED Strip to the Controller: Locate the 5-pin connector on the LED strip and align it with the corresponding 5-pin port on the IR receiver/controller box. Ensure the arrows on both connectors are aligned before gently pushing them together.
- Connect the Power Adapter: Plug the DC output jack of the 12V 3A power adapter into the power input port on the IR receiver/controller box.
- Mount the LED Strip: Peel off the protective backing from the 3M adhesive tape on the back of the LED strip. Carefully press the strip onto the prepared surface, ensuring firm and even adhesion.
- Plug into Power: Once all connections are secure and the strip is mounted, plug the power adapter into a standard electrical outlet. The LED strip should light up, indicating successful setup.
Image 4.1: Close-up view of the 5-pin connector on the LED strip and the corresponding input on the controller, showing the RGBW and Power Supply pins.
Image 4.2: Detailed view of the power interface and the LED strip light interface on the controller box.
5. Operating Instructions
The LED light strip is controlled using the included 40-key IR remote. Ensure the remote is pointed towards the IR receiver on the controller box for optimal performance.
Image 5.1: Diagram of the 40-key RGBW remote controller, detailing the function of each button.
Remote Control Functions:
- Power On/Off: Press the ON or OFF button to turn the lights on or off.
- Brightness Adjustment: Use the Brightness adjustment buttons (up/down arrows) to increase or decrease the light intensity. Quick shortcuts for 25%, 50%, 75%, and 100% brightness are also available.
- Static Colors: Select from a wide range of preset static colors by pressing the corresponding color buttons. This includes Red, Green, Blue, White, and various mixed colors.
- White/Warm White Switch: Dedicated buttons for switching between white and warm white light, and adjusting their brightness.
- Dynamic Modes:
- JUMP3 / JUMP7: 3-color or 7-color jumpy change modes.
- FADE3 / FADE7: 3-color or 7-color fade change modes.
- FLASH: Flashing mode.
- AUTO: Automatic cycle through various modes.
- QUICK / SLOW: Adjust the speed of dynamic modes.

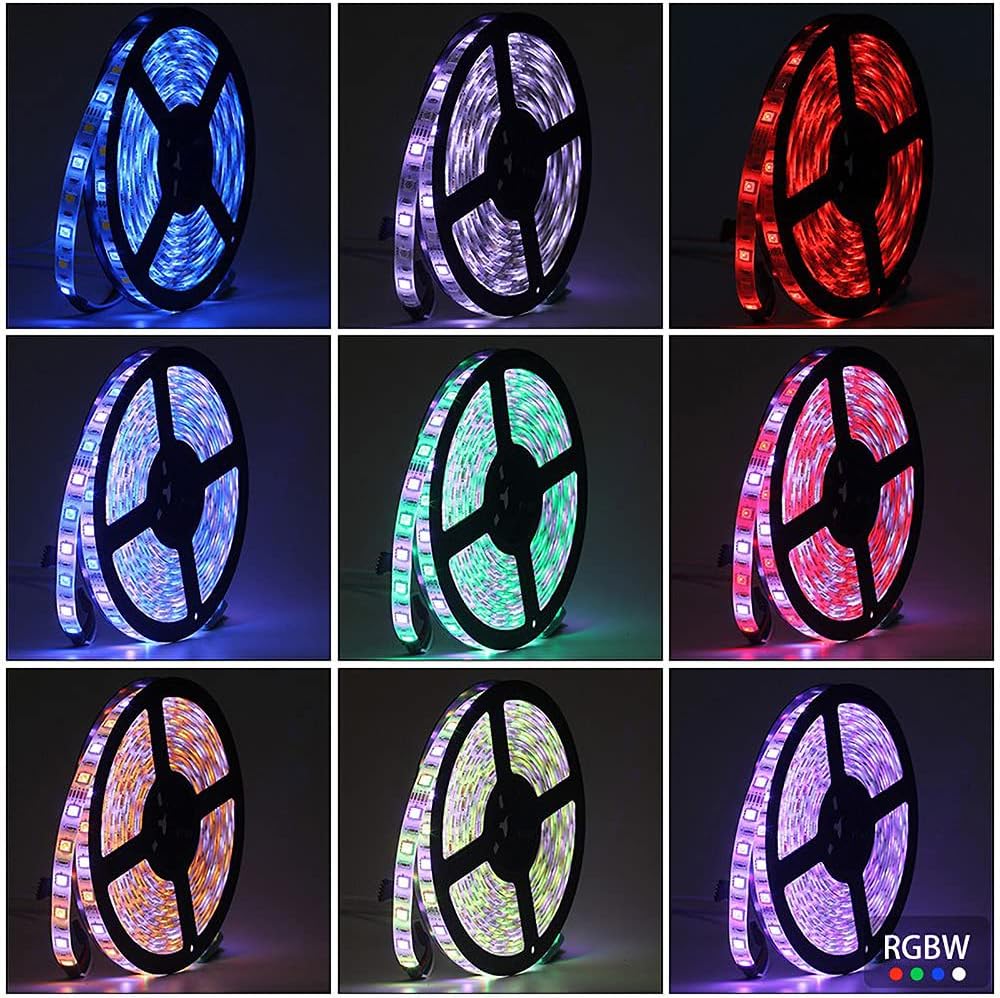

Image 5.2: Examples of various RGBW static colors displayed on the LED strip.

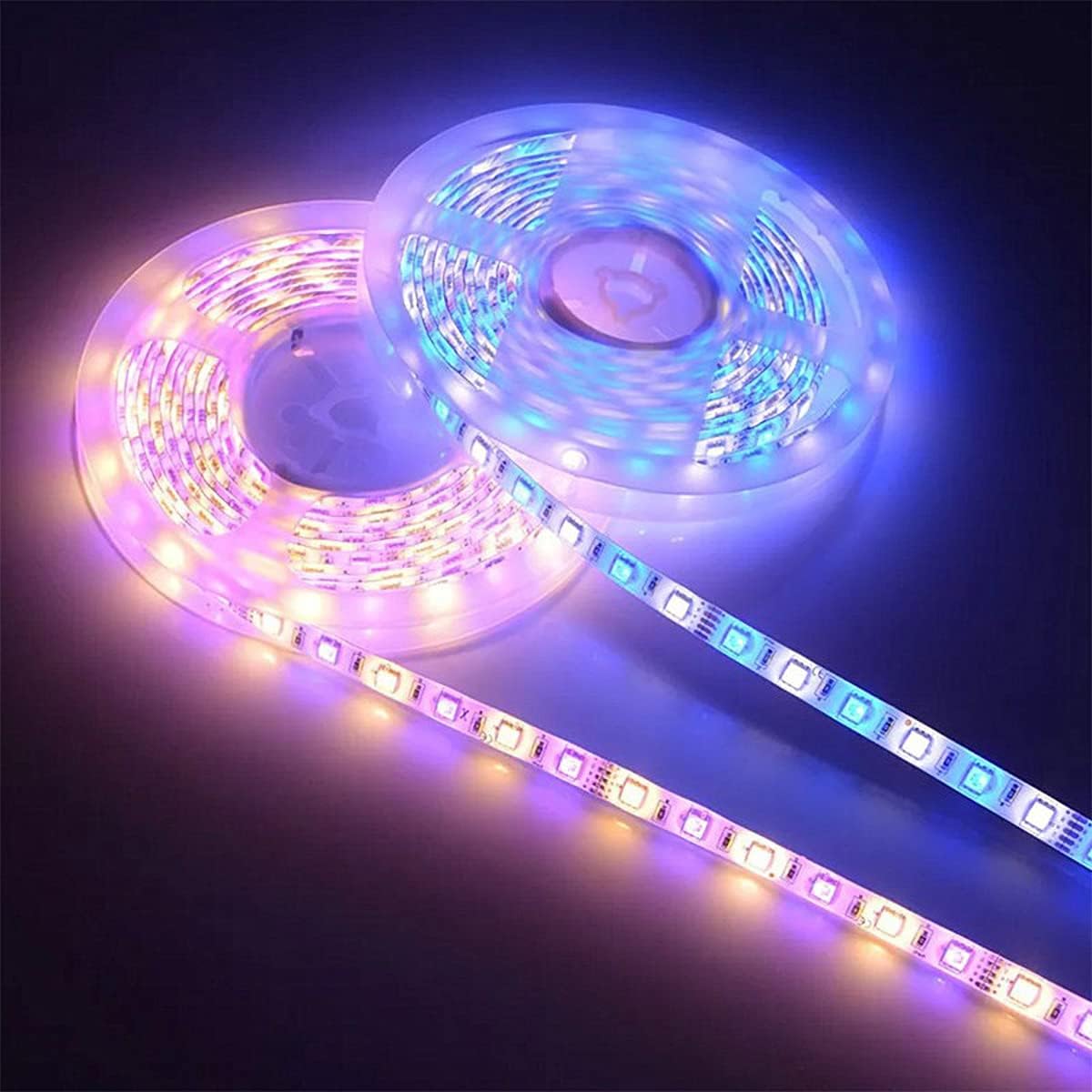

Image 5.3: Examples of various RGBWW static colors, including warm white, displayed on the LED strip.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your LED light strip.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to gently wipe the LED strip and controller. Do not use abrasive cleaners or solvents.
- Storage: If storing the strip for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Water Exposure: As this product is IP20 No-Waterproof, avoid any contact with liquids. Do not install in bathrooms, outdoors, or any areas prone to moisture.
7. Troubleshooting
If you encounter issues with your LED light strip, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LED strip does not light up. | No power, loose connection, faulty power adapter/controller. | Check if the power adapter is securely plugged into the outlet and the controller. Ensure the 5-pin connector between the strip and controller is firmly connected and aligned. Test the outlet with another device. |
| Remote control not working. | Battery depleted, IR receiver blocked, remote not pointed at receiver. | Replace the remote control battery. Ensure there are no obstructions between the remote and the IR receiver on the controller box. Point the remote directly at the receiver. |
| Colors are incorrect or inconsistent. | Incorrect 5-pin connection, damaged strip segment. | Ensure the 5-pin connector is correctly aligned (arrow to arrow) and fully inserted. If only a segment is affected, that part of the strip may be damaged. |
| Lights flicker or dim unexpectedly. | Unstable power supply, loose connection. | Check all connections for looseness. Ensure the power adapter is not overloaded and is receiving stable power from the outlet. |
8. Specifications
| Component | Specification |
|---|---|
| LED Strip Type | SMD 5050 RGBWW |
| LED Quantity | 60 LEDs/meter |
| Strip Length | 5 meters |
| Light Color | RGBWW (Red, Green, Blue, Warm White) |
| Beam Angle | 120 degrees |
| Input Voltage | DC 12V |
| Power Adapter | 12V 3A |
| Waterproof Rating | IP20 (No-Waterproof) |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Controller Type | 40-Key IR Remote Controller |
| Max Load Current (Controller) | 2A per color |
| Connection Mode (Controller) | Common Anode |
9. Warranty and Support
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact your retailer. If you require technical assistance or have questions not covered in this manual, please contact JIATONG customer support through your purchase platform or the official brand website.
