Tornado 32-inch Smart HD LED TV - Model 32EB8400E User Manual

1. Introduction

Thank you for purchasing the Tornado 32-inch Smart HD LED TV, model 32EB8400E. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new television. Please read this manual thoroughly before using the product and retain it for future reference.

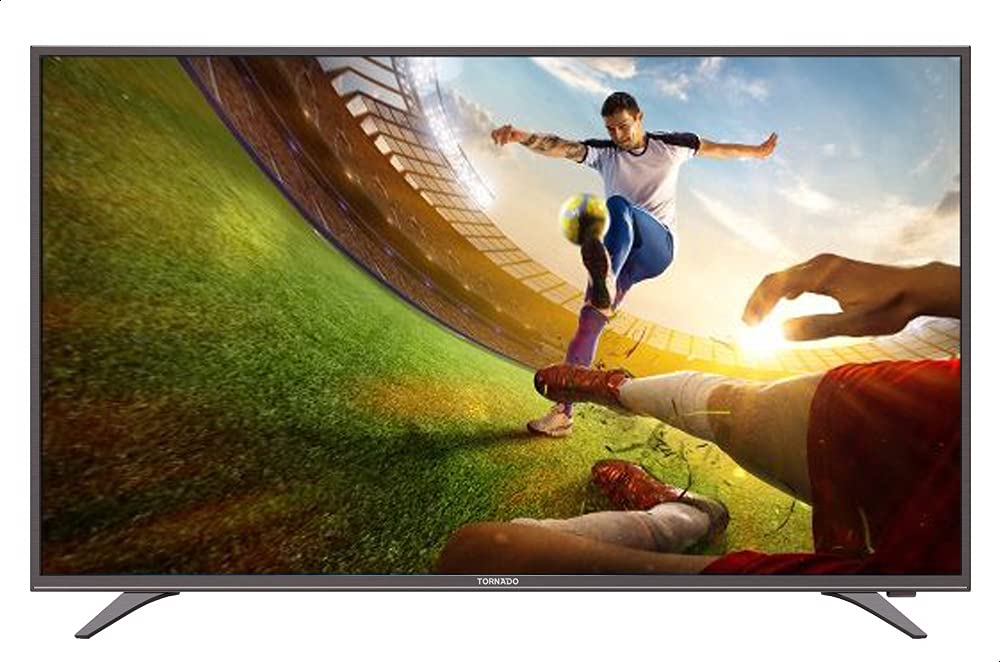

Image: Tornado 32-inch Smart HD LED TV, model 32EB8400E, displaying a vibrant football scene.

2. Safety Information

To ensure safe operation and prevent damage, observe the following safety precautions:

• Power Supply: Connect the TV only to an AC power source within the specified voltage range. Do not overload power outlets.
• Placement: Place the TV on a stable, level surface. Ensure adequate ventilation around the TV. Avoid direct sunlight, heat sources, and areas with high humidity or dust.
• Water and Moisture: Do not expose the TV to rain or moisture. Do not place objects filled with liquids, such as vases, on the TV.
• Cleaning: Unplug the TV before cleaning. Use a soft, dry cloth to clean the screen and cabinet. Do not use liquid cleaners or aerosol sprays.
• Ventilation: Do not block ventilation openings. Ensure a minimum distance of 10 cm around the TV for proper airflow.
• Servicing: Do not attempt to service the TV yourself. Refer all servicing to qualified personnel.

3. Package Contents

Verify that all items are present in the package:

• Tornado 32-inch Smart HD LED TV
• Remote Control
• Power Cable
• TV Stand (Base)
• User Manual (this document)

4. Setup

4.1 Unpacking

Carefully remove the TV and all accessories from the packaging. Keep the packaging materials for future transport or storage.

4.2 Attaching the Stand

Place the TV screen-down on a soft, flat surface to prevent scratches. Align the TV stand with the mounting holes on the bottom of the TV. Secure the stand using the provided screws. Ensure the stand is firmly attached before placing the TV upright.

4.3 Connecting Power

Connect the power cable to the TV's power input and then plug the other end into a wall outlet. Ensure the power outlet is easily accessible.

4.4 Connecting External Devices

Your TV features multiple ports for connecting external devices:

• HDMI Ports (3): For connecting Blu-ray players, game consoles, set-top boxes, etc.
• USB Ports (2): For connecting USB storage devices to play media files.
• Video Port (1): For connecting older devices using composite video.
• Ethernet (LAN) Port (1): For a wired internet connection.
• Ground Port (1): For grounding the TV.

Connect your devices to the appropriate ports. Refer to the device's manual for specific connection instructions.

4.5 Initial Setup Wizard

Upon first power-on, the TV will guide you through an initial setup process. This typically includes:

1. Language Selection: Choose your preferred language.
2. Network Connection: Connect to your Wi-Fi network or use a wired Ethernet connection. Enter your Wi-Fi password if prompted.
3. Time Zone and Date: Set the correct time zone and date.
4. Channel Scan: If connecting an antenna or cable, the TV will scan for available channels.

5. Operating Instructions

5.1 Power On/Off

Press the Power button on the remote control or on the TV to turn the TV on or off.

5.2 Remote Control Overview

Familiarize yourself with the remote control buttons for navigation, volume, channel selection, input source, and smart features.

5.3 Navigating the Smart TV Interface (Tornado Portal)

Use the arrow buttons on your remote to navigate through the Tornado Portal smart interface. Press OK/Enter to select items. The Home button will take you to the main smart TV menu.

5.4 Accessing Applications

Your TV comes with pre-installed applications like Netflix and YouTube. Navigate to these apps from the Tornado Portal home screen and select them to launch. Ensure your TV is connected to the internet for these services to function.

5.5 Wi-Fi Connection

To connect or manage your Wi-Fi connection:

1. Go to the Settings menu.
2. Select Network or Internet Settings.
3. Choose Wi-Fi and select your network from the list.
4. Enter your Wi-Fi password if required.

5.6 Input Selection

Press the Source or Input button on your remote control to switch between connected devices (HDMI 1, HDMI 2, USB, etc.).

6. Maintenance

6.1 Cleaning the Screen

Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner (ensure it is safe for LED screens) and wipe carefully. Do not apply pressure or spray liquids directly onto the screen.

6.2 Cleaning the TV Body

Use a soft, dry cloth to wipe the TV cabinet and stand. Avoid using abrasive cleaners or solvents that could damage the finish.

6.3 Storage

If storing the TV for an extended period, unplug it, remove any connected devices, and ideally store it in its original packaging in a dry, dust-free environment.

7. Troubleshooting

Before contacting support, try these common troubleshooting steps:

• No Power: Ensure the power cable is securely connected to both the TV and the wall outlet. Try plugging another device into the same outlet to confirm it has power.
• No Picture/Black Screen: Check that the TV is powered on. Verify the correct input source is selected (e.g., HDMI 1, USB). Ensure external devices are powered on and connected correctly.
• No Sound: Check the volume level and ensure the TV is not muted. Verify audio cables for external devices are connected properly.
• Remote Control Not Working: Check the batteries in the remote control and replace them if necessary. Ensure there are no obstructions between the remote and the TV's IR sensor.
• Network Connection Issues: Restart your Wi-Fi router. Re-enter your Wi-Fi password in the TV's network settings. Try a wired Ethernet connection if available.
• Picture Quality Issues: Adjust picture settings (brightness, contrast, color) in the TV menu. Ensure the input source is providing a high-quality signal.

8. Specifications

9. Warranty and Support

Your Tornado TV is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details. For technical assistance, service, or warranty claims, please contact Tornado customer support through their official channels. Keep your purchase receipt as proof of purchase.
