1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your VIGO Sterling single handle single-hole bathroom faucet. Designed with a modern aesthetic and innovative engineering, this faucet features a sleek single-handle with diamond knurling and a high arc spout for comfortable use. Constructed from solid brass with a premium 7-layer chrome finish, it offers long-lasting durability and resistance to rust, tarnish, and corrosion.

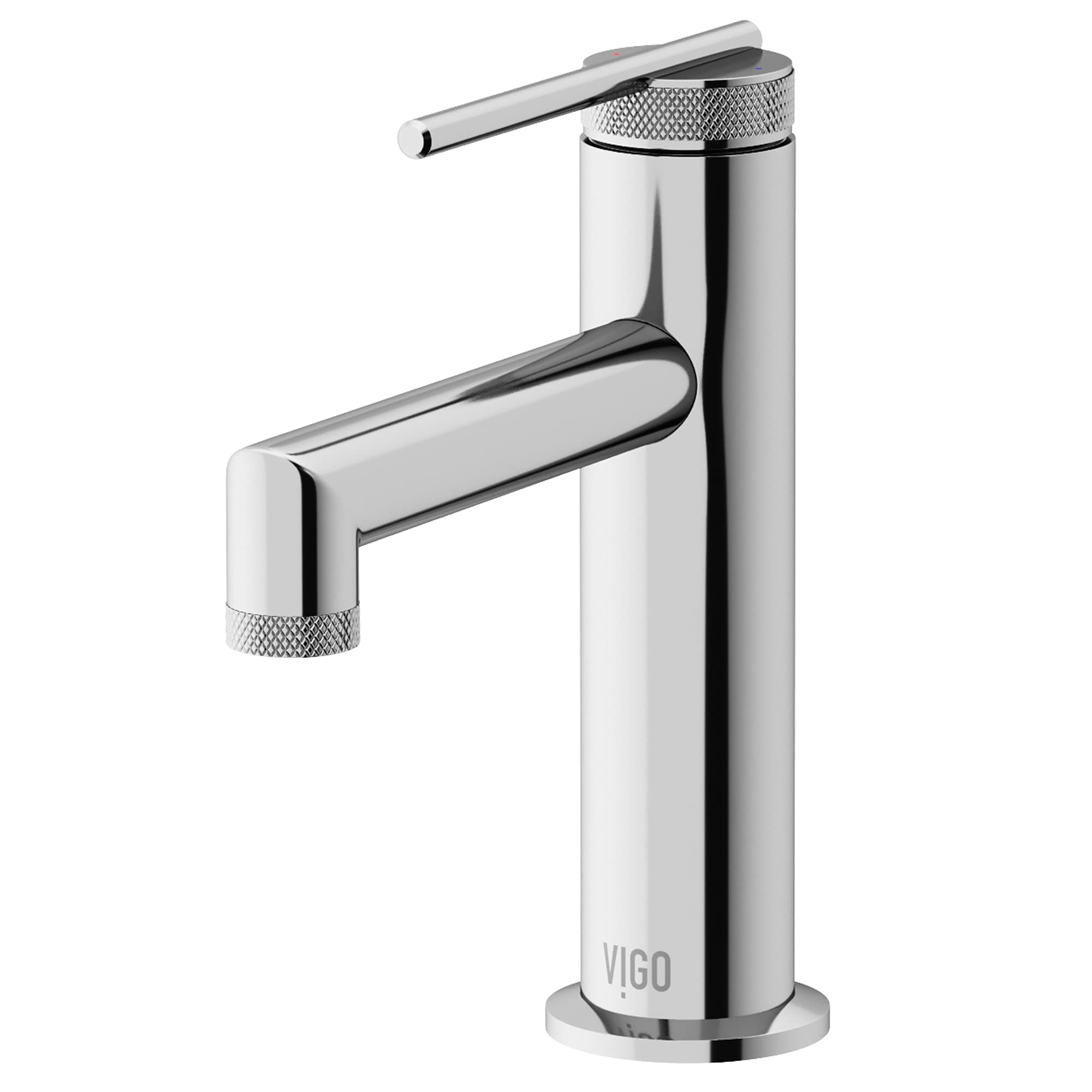

Image 1.1: VIGO Sterling Single Handle Single-Hole Bathroom Faucet in Chrome.
Key Features:
- Contemporary Design: Chic 7-inch height single-hole faucet with modern aesthetics.
- User-Friendly Operation: Single handle for smooth control of water temperature and flow.
- Eco-Friendly Water Flow: Delivers a robust 1.2 GPM flow rate, minimizing water usage while maintaining strong pressure.
- Durable Construction: Features a Sedal ceramic disc valve tested for over 500,000 uses, ensuring reliable performance.
- Low-Maintenance Finish: Surface resists fingerprints and water spots for a consistently clean appearance.
- Easy Installation: Designed for effortless DIY installation with standard plumbing connections.
- Quality Assured: cUPC, NSF-61, and AB1953 certified for compliance with quality and safety standards.
2. Setup and Installation
The VIGO Sterling faucet is designed for a simple 5-step DIY installation process. It is compatible with all sink types, except vessel sinks. For vessel sink compatibility, please refer to the VIGO Vessel Faucets collection. Ensure your sink or countertop has a standard 1-3/8 inch hole opening and a maximum deck thickness of 2 inches.
Required Tools (Not Included):
- Adjustable Wrench
- Phillips Head Screwdriver
- Plumber's Putty or Silicone Sealant
- Safety Glasses
Installation Steps:
- Prepare the Sink: Ensure the sink hole is clean and free of debris. Apply plumber's putty or silicone sealant around the base of the faucet.
- Mount the Faucet: Insert the faucet into the single-hole opening on your sink or countertop. Secure it from underneath with the provided mounting hardware.
- Connect Water Supply Lines: Attach the included metal-braided PEX supply lines to your hot and cold water shut-off valves. Ensure connections are tight to prevent leaks.
- Test for Leaks: Slowly turn on the water supply and check all connections for any leaks. Tighten as necessary.
- Verify Operation: Test the faucet handle for smooth operation and proper water flow and temperature control.
Video 2.1: Official VIGO VG01049 Product Video demonstrating installation and features.
Video 2.2: VIGO Sterling Single Handle Faucet overview, including installation insights.
3. Operating Instructions
The VIGO Sterling faucet features a single lever handle for intuitive control over water flow and temperature. The design ensures ease of operation for all users.
Water Flow and Temperature Control:
- To Turn On/Off: Lift the single lever handle upwards to turn on the water. Push it downwards to turn off the water.
- To Adjust Temperature: Move the lever handle to the left for hot water and to the right for cold water. The further you move it, the hotter or colder the water will be.
- To Adjust Flow: The height to which you lift the handle controls the water flow rate. Lift it higher for more flow, lower for less.
Image 3.1: Water flowing from the VIGO Sterling faucet, demonstrating the high arc spout.
Image 3.2: Close-up of the faucet handle, showing the hot (red dot) and cold (blue dot) indicators for temperature adjustment.
4. Maintenance and Care
Proper care and maintenance will ensure the longevity and pristine appearance of your VIGO Sterling faucet. The faucet's premium 7-layer finish is designed to resist rust, tarnish, and corrosion, and its surface effectively resists fingerprints and water spots.
Cleaning Instructions:
- Regular Cleaning: Clean the faucet regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Water Spot Removal: For water spots, wipe the surface with a soft cloth immediately after use. For stubborn spots, a solution of equal parts white vinegar and water can be used, followed by rinsing and drying.
- Aerator Maintenance: The faucet features an easy-to-replace and clean aerator. If water flow becomes restricted, unscrew the aerator from the spout, clean any mineral deposits, and reassemble.
Image 4.1: Close-up of the faucet spout, highlighting the diamond knurling detail and easy-to-clean design.
5. Troubleshooting
If you encounter any issues with your VIGO Sterling faucet, please refer to the common troubleshooting tips below. For problems not listed here, contact VIGO customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve. | Clean or replace aerator. Ensure shut-off valves are fully open. |
| Leaking from Spout | Worn ceramic disc cartridge. | Contact customer support for a replacement cartridge. |
| Leaking at Base | Loose mounting nut; improper sealant application. | Tighten mounting nut. Reapply plumber's putty or silicone sealant if necessary. |
| Difficulty Adjusting Temperature | Faulty cartridge. | Contact customer support for a replacement cartridge. |
6. Specifications
Detailed technical specifications for the VIGO Sterling Single Handle Single-Hole Bathroom Faucet (Model VG01049CH).
Image 6.1: Dimensional drawing of the VIGO Sterling faucet, showing height, spout height, and spout reach.
| Feature | Detail |
|---|---|
| Brand | VIGO |
| Model Name | Sterling |
| Model Number | VG01049CH |
| Color | Chrome |
| Material | Brass |
| Finish Type | Brushed |
| Mounting Type | Deck Mount |
| Number of Handles | 1 |
| Hole Count | 1 |
| Installation Type | Single Hole |
| Maximum Flow Rate | 1.2 Gallons Per Minute (GPM) |
| Faucet Height | 7 inches |
| Spout Height | 3-3/4 inches |
| Spout Reach | 5 inches |
| Faucet Hole Size | 1-3/8 inches |
| Maximum Deck Thickness | 2 inches |
| Item Weight | 5 pounds |
| Included Components | All Mounting Hardware; Handles; Supply Lines |
| Certifications | cUPC, NSF-61, AB1953, ADA Compliant |
7. Warranty Information
The VIGO Sterling Single Handle Single-Hole Bathroom Faucet (Model VG01049CH) is covered under VIGO's lifetime limited warranty for residential use and a 1-year commercial warranty. This warranty covers defects in material and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please visit the official VIGO website or contact customer support.
8. Customer Support
Should you require further assistance, have questions about your product, or need to report an issue, please contact VIGO customer support through the following channels:
- Online: Visit the official VIGO website for FAQs, product registration, and support contact forms.
- Phone: Refer to the contact information provided in your product packaging or on the VIGO website.
California Residents: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
