ANESOK 3-Speed Bluetooth Turntable and Belt Drive Vinyl Player Instruction Manual

1. Introduction

Thank you for purchasing the ANESOK 3-Speed Bluetooth Turntable. This manual provides essential information for the proper setup, operation, and maintenance of your new record player. Please read these instructions thoroughly before use to ensure optimal performance and longevity of the device. Keep this manual for future reference.

2. Safety Instructions

• Power Source: Use only the provided power adapter. Ensure the voltage matches your local power supply.
• Water and Moisture: Do not expose the unit to rain, moisture, or liquids. Avoid placing objects filled with liquids, such as vases, on the unit.
• Heat: Keep the unit away from heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Ventilation: Ensure proper ventilation. Do not block any ventilation openings.
• Cleaning: Unplug the unit from the wall outlet before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
• Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
• Placement: Place the unit on a stable, level surface to prevent damage from falling.

3. Package Contents

Please check that all items listed below are included in your package:

• ANESOK 3-Speed Bluetooth Turntable
• Power Adapter
• 45 RPM Adapter
• Instruction Manual
• Dust Cover

4. Product Overview

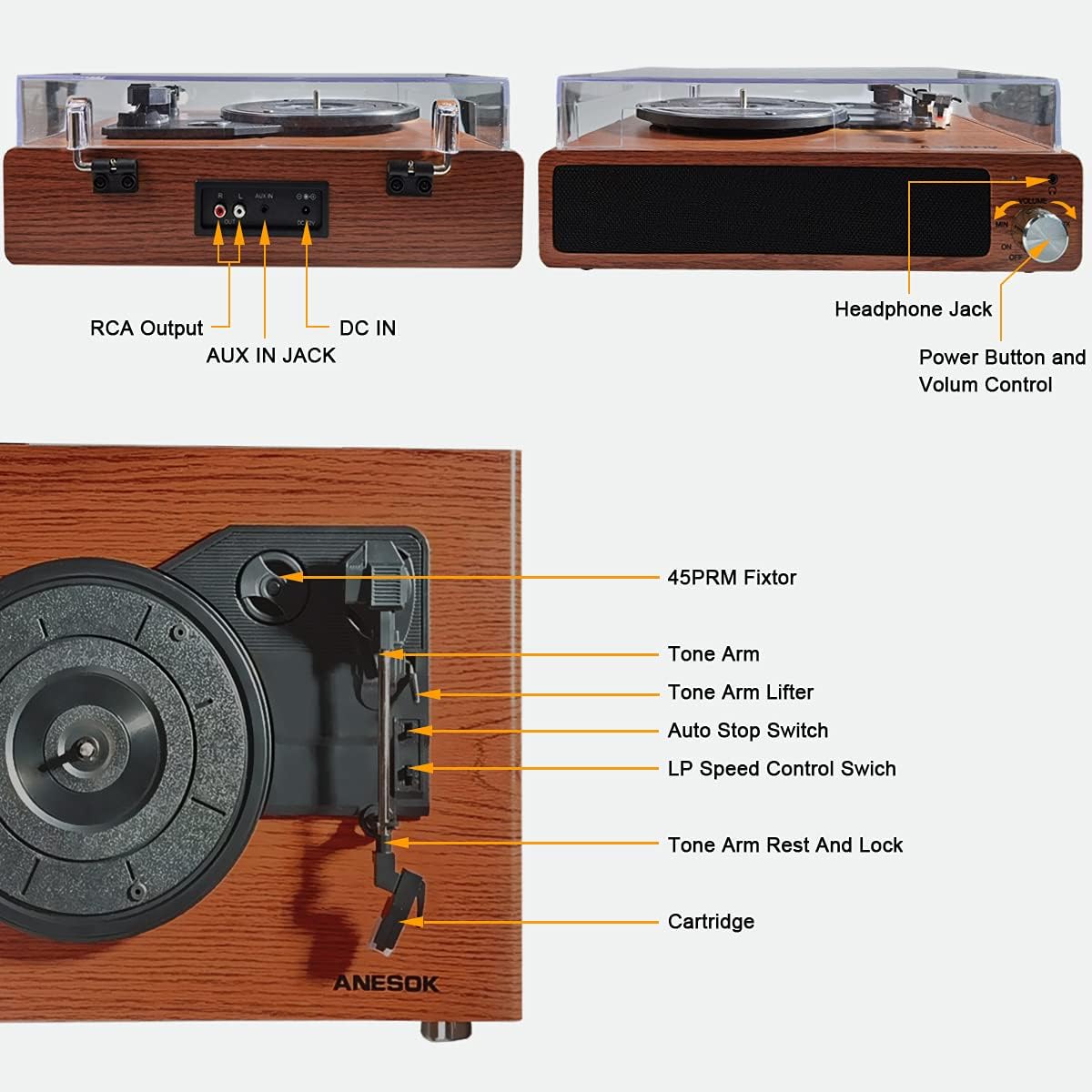

Figure 1: A comprehensive diagram pointing out all the essential parts and connection ports of the ANESOK record player, including inputs, outputs, and operational controls.

1. 45 RPM Fixtor: Used for playing 7-inch records with a large center hole.
2. Tone Arm: Holds the cartridge and stylus.
3. Tone Arm Lifter: Raises and lowers the tone arm gently.
4. Auto Stop Switch: Toggles the automatic stop function for vinyl playback.
5. LP Speed Control Switch: Selects playback speeds (33, 45, 78 RPM).
6. Tone Arm Rest and Lock: Secures the tone arm when not in use.
7. Cartridge: Contains the stylus that reads the record grooves.
8. Headphone Jack: For private listening with headphones.
9. Power Button and Volume Control: Turns the unit on/off and adjusts speaker volume.
10. RCA Output: Connects to external amplifiers or powered speakers.
11. AUX IN Jack: Connects external audio devices via a 3.5mm cable.
12. DC IN: Power input for the adapter.

5. Setup

5.1 Unpacking and Placement

• Carefully remove the turntable from its packaging.
• Place the unit on a flat, stable, and level surface to prevent vibrations and ensure proper playback.
• Avoid placing the unit near strong magnetic fields or direct sunlight.

5.2 Dust Cover Installation

• Align the hinges of the dust cover with the corresponding slots on the back of the turntable.
• Gently push down to secure the dust cover. Ensure it opens and closes smoothly.

5.3 Power Connection

• Connect the DC plug of the power adapter to the DC IN jack on the back of the turntable.
• Plug the AC adapter into a wall outlet.

6. Operating Instructions

6.1 Playing Vinyl Records

Figure 2: Front view of the ANESOK record player, showcasing its walnut wood finish, built-in speakers, and control knob. A vinyl record is currently playing on the platter.

1. Power On: Turn the Power Button/Volume Control knob clockwise to power on the unit. The indicator light will illuminate.
2. Select Speed: Set the LP Speed Control Switch to the appropriate speed (33, 45, or 78 RPM) for your record. Use the 45 RPM adapter for 7-inch singles with large center holes.
3. Place Record: Carefully place your vinyl record on the turntable platter.
4. Unlock Tone Arm: Release the Tone Arm Rest and Lock.
5. Lift Tone Arm: Use the Tone Arm Lifter to gently raise the tone arm.
6. Position Tone Arm: Move the tone arm over the desired starting track of the record.
7. Lower Tone Arm: Gently lower the tone arm onto the record using the Tone Arm Lifter. The record will begin to play.
8. Adjust Volume: Rotate the Power Button/Volume Control knob to adjust the sound level from the built-in speakers.
9. Auto Stop: If the Auto Stop Switch is set to ON, the turntable will automatically stop spinning when the record finishes playing. If set to OFF, the platter will continue to spin.
10. End Playback: When finished, use the Tone Arm Lifter to raise the tone arm, return it to the Tone Arm Rest, and secure it with the lock. Turn the Power Button/Volume Control knob counter-clockwise to power off the unit.

Figure 3: An illustration detailing the turntable's versatility, supporting three common record sizes (7", 10", 12") and three playback speeds (33, 45, 78 RPM).

6.2 Bluetooth Connection

Figure 4: The record player is shown connected to a smartphone, demonstrating its Bluetooth capability for streaming music from external devices through the turntable's speakers.

• Turn on the turntable. The Bluetooth indicator light will flash, indicating it is in pairing mode.
• Enable Bluetooth on your smartphone, tablet, or other Bluetooth-enabled device.
• Search for "ANESOK" in your device's Bluetooth settings and select it to pair.
• Once paired, the Bluetooth indicator light on the turntable will stop flashing and remain solid.
• You can now play audio from your device through the turntable's built-in speakers. Adjust volume using the turntable's volume knob or your connected device.

6.3 Aux-in Connection

• Connect one end of a 3.5mm audio cable (not included) to the AUX IN jack on the back of the turntable.
• Connect the other end of the cable to the audio output of your external device (e.g., MP3 player, CD player).
• Turn on the turntable and your external device. The audio from your external device will play through the turntable's speakers.
• Adjust volume using the turntable's volume knob or your connected device.

6.4 Headphone Jack

• Plug your headphones into the Headphone Jack on the front of the turntable for private listening.
• The built-in speakers will automatically mute when headphones are connected.

6.5 RCA Output

• Connect an RCA cable (not included) to the RCA Output jacks on the back of the turntable.
• Connect the other end of the RCA cable to the audio input of an external amplifier or powered speakers.
• Ensure the external audio system is set to the correct input.
• Adjust volume through your external audio system.

7. Maintenance

7.1 Cleaning the Unit

• Always unplug the turntable from the power outlet before cleaning.
• Use a soft, dry, lint-free cloth to wipe the exterior surfaces.
• Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.

7.2 Stylus Care

• The stylus is delicate. Handle it with care.
• Clean the stylus periodically using a soft brush (not included) in a back-to-front motion.
• A worn stylus can damage records and degrade sound quality. Replace the stylus when signs of wear appear (typically after 300-500 hours of play).

7.3 Dust Cover Care

• Wipe the dust cover with a soft, damp cloth. Avoid harsh chemicals.
• The dust cover protects your records and turntable from dust when not in use.

8. Troubleshooting

9. Specifications

• Brand: ANESOK
• Model Number: LPTurntableHUTAO2
• Playback Speeds: 33 1/3, 45, 78 RPM
• Drive Type: Belt Drive
• Motor Type: AC Motor
• Connectivity: Bluetooth, 3.5mm Aux-in, RCA Output, Headphone Jack
• Speakers: Dual Built-in Stereo Speakers
• Special Feature: Portable, Auto-stop function
• Material: Plastic, Wood (Walnut Wood finish)
• Item Weight: 7.26 pounds
• Package Dimensions: 16.69 x 13.74 x 7.6 inches

10. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact ANESOK customer service through the retailer where the product was acquired. Please have your model number (LPTurntableHUTAO2) and purchase date available when contacting support.
