1. Product Overview
The Oster IcedCoffee Maker BVST-ICMBL-033 is designed to simplify the process of preparing refreshing iced coffee at home. This appliance brews hot, concentrated coffee directly over ice, ensuring a bold flavor that is not watered down. It includes a reusable coffee filter and a 22 oz. BPA-free Tritan tumbler with a lid and straw for convenience.
Components Included:
- Oster IcedCoffee Maker Unit
- Reusable Coffee Filter
- Coffee Scoop
- 22 oz. Reusable Tritan Tumbler with Lid and Straw

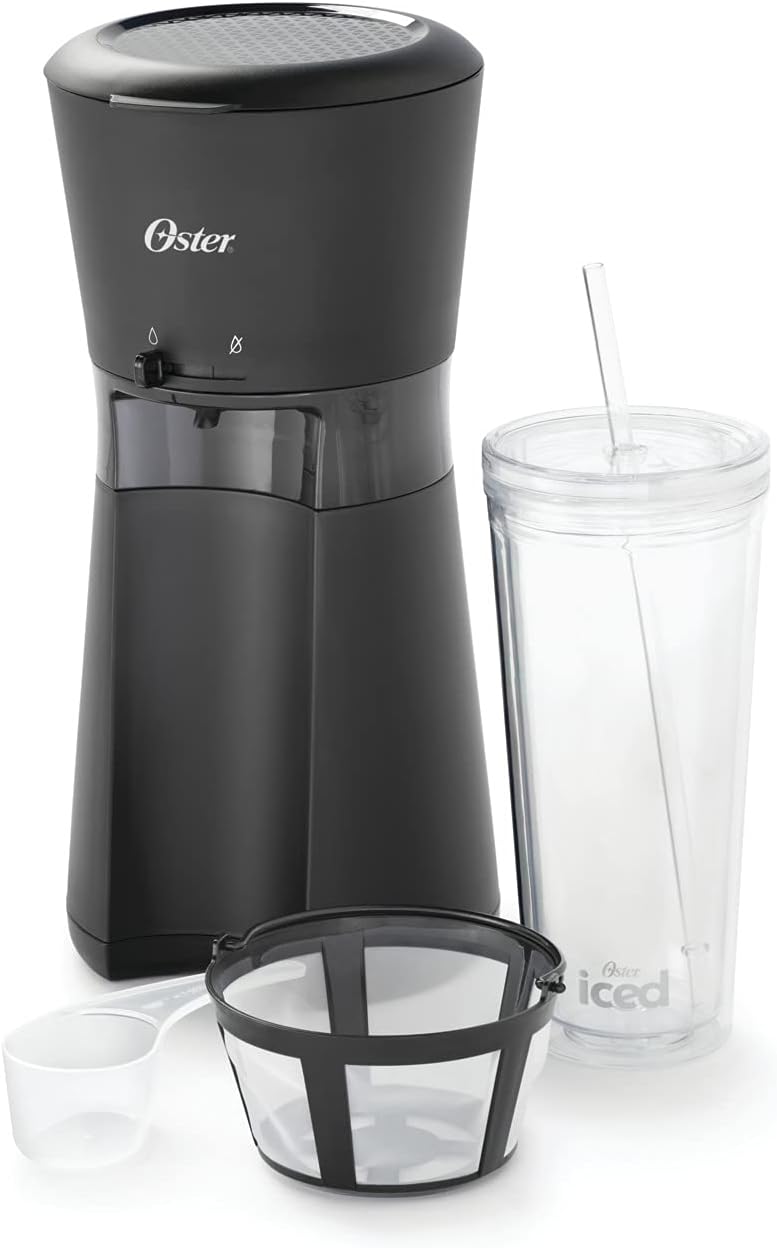

Figure 1.1: Oster IcedCoffee Maker and its accessories.
This image displays the complete Oster IcedCoffee Maker package, including the main brewing unit, the clear 22 oz. tumbler with its lid and straw, a measuring scoop, and the reusable coffee filter. All components are shown together, highlighting the product's readiness for use.
2. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before using this product.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- To disconnect, turn any control to "off," then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Scalding may occur if the lid is removed during the brewing cycle.
- Ensure the tumbler is properly placed before brewing.
3. Initial Setup
3.1 Unpacking
Carefully remove all components from the packaging. Retain packaging materials for future storage or transport if needed. Verify that all listed components in Section 1.1 are present and undamaged.
3.2 First Use Cleaning
Before first use, wash the reusable coffee filter, coffee scoop, tumbler, lid, and straw in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the coffee maker unit with a damp cloth. Do not immerse the coffee maker unit in water.
3.3 Placement
Place the coffee maker on a flat, stable, heat-resistant surface, away from the edge of the counter. Ensure there is adequate clearance around the unit for proper ventilation and to prevent steam from damaging overhead cabinets.
4. Operating Instructions: Making Iced Coffee
Follow these steps to brew a perfect cup of iced coffee:
- Prepare the Tumbler: Fill the 22 oz. reusable tumbler with ice cubes up to the designated ice line. Place the tumbler under the coffee maker's dispenser.
- Add Coffee Grounds: Open the lid of the coffee maker. Place the reusable coffee filter into the filter basket. Use the included coffee scoop to add your desired amount of coffee grounds into the filter. The measuring system is designed to brew a concentrated coffee over ice. Close the lid securely.
Figure 4.1: Adding coffee grounds to the filter.
This image shows a hand using the provided scoop to add coffee grounds into the reusable filter basket of the Oster IcedCoffee Maker. The lid of the coffee maker is open, revealing the filter compartment, and the machine is placed on a kitchen counter.
- Add Water: Fill the water reservoir with cold, fresh water up to the indicated water line. Do not overfill.
- Start Brewing: Plug the coffee maker into a standard electrical outlet. Press the 'Start' button or flip the power switch to begin the brewing cycle. The coffee maker will brew hot, concentrated coffee directly into the ice-filled tumbler.
Figure 4.2: Coffee brewing over ice.
This image captures the Oster IcedCoffee Maker in action, dispensing hot, freshly brewed coffee into the clear tumbler already filled with ice. Visible steam indicates the hot coffee interacting with the cold ice, a key step in creating iced coffee.
- Customization: Once brewing is complete, remove the tumbler. You can now customize your iced coffee with your preferred flavorings, sweeteners, or milk.
- Enjoy: Secure the lid and straw onto the tumbler. Your refreshing iced coffee is ready to enjoy.
Figure 4.3: Reusable Tumbler with Lid and Straw.
This image showcases the clear, double-wall insulated 22 oz. Tritan tumbler that comes with the Oster IcedCoffee Maker. The tumbler is shown alongside its clear lid and reusable straw, emphasizing its portability and design for iced beverages.
5. Cleaning and Care
Regular cleaning ensures optimal performance and extends the life of your Oster IcedCoffee Maker.
5.1 Daily Cleaning
- Reusable Filter: After each use, remove the reusable coffee filter and discard used coffee grounds. Rinse the filter thoroughly under running water. It can also be washed with warm, soapy water.
- Tumbler, Lid, and Straw: The tumbler, lid, and straw should be hand-washed with warm, soapy water after each use. The tumbler is hand-wash only to maintain its insulation properties and prevent damage.
- Coffee Maker Exterior: Wipe the exterior of the coffee maker unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
5.2 Descaling (Monthly or as needed)
Mineral deposits from water can build up in the coffee maker over time, affecting performance. Descale your unit monthly or when you notice a decrease in brewing speed or coffee temperature.
- Fill the water reservoir with a mixture of one part white vinegar and two parts water.
- Place an empty tumbler or mug under the dispenser.
- Run a brewing cycle without coffee grounds.
- After the cycle, let the unit cool for 15 minutes.
- Repeat the process with fresh water to rinse out any vinegar residue.
6. Troubleshooting Guide
If you encounter issues with your Oster IcedCoffee Maker, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew. | Unit not plugged in; power switch off; no water in reservoir. | Ensure unit is plugged in and power is on. Fill water reservoir to the appropriate level. |
| Coffee tastes weak or watered down. | Insufficient coffee grounds; too much water; not enough ice. | Use the recommended amount of coffee grounds. Ensure water is filled to the correct line. Fill tumbler with ice to the ice line. |
| Brewing is slow. | Mineral buildup (scaling); clogged filter. | Perform descaling procedure (Section 5.2). Clean the reusable filter thoroughly. |
| Coffee overflows from tumbler. | Tumbler not positioned correctly; too much water added. | Ensure tumbler is centered under the dispenser. Do not exceed the maximum water fill line. |
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Oster |
| Model Number | BVST-ICMBL-033 |
| Color | Black |
| Product Dimensions | 25.5 x 18.5 x 37 cm |
| Item Weight | 1.65 kg |
| Capacity | 624 g (coffee grounds) / 22 oz. (tumbler) |
| Power/Wattage | 700 watts |
| Material | Nylon (filter), Tritan (tumbler) |
| Special Feature | Manual operation, Drip-stop function |
8. Warranty and Support
For detailed warranty information and customer support, please refer to the official Oster website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
Oster Official Website: www.oster.ca
For service, please do not return this product to the place of purchase. Contact Oster customer service directly for assistance.
