Introduction
Thank you for choosing the Blossom LED Mirror Medicine Cabinet. This manual provides essential information for the safe installation, operation, and maintenance of your new medicine cabinet. Please read this manual thoroughly before installation and keep it for future reference.
Important Safety Information
Caution:
- Ensure electrical installation is handled by a qualified professional.
- Do not exceed the maximum weight limit for shelves.
- LED medicine cabinets are not intended to be the primary lighting source; additional lighting may be required.
- Always disconnect power before performing any installation, maintenance, or cleaning.
- Handle glass components with care to prevent breakage and injury.
Product Features
The Blossom LED Mirror Medicine Cabinet is designed with advanced features for convenience and durability:
- Versatile & Durable Design: Full-mirrored exterior and interior with tempered glass front mirror (anti-black, copper-free). Anodized aluminum frame is anti-corrosion and scratch-free.
- Built-in Defogger: Prevents mirror fogging and automatically turns off after 45-60 minutes to save energy.
- Superior Lighting & Safety: ETL-certified, IP44-rated, CRI 90+ LED light source for bright, high-quality illumination. Interior LED light activates automatically when the door opens. Grooved door edges and corners enhance safety.
- Flexible Installation & Storage: Supports both surface and recess wall mounting. Includes three adjustable 8mm thick tempered crystal glass shelves.
- Long-Lasting & High-Quality Build: LED lights with a 50,000-hour lifespan. Soft-close hinge and concealed finger-pull door. 100,000 switch touch lifespan.
Image: The Blossom LED Mirror Medicine Cabinet, 48-inch model, showcasing its sleek design and integrated lighting in a bathroom setting.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Blossom |
| Model Name | MCL4 4832 |
| Size | V- 48" x 32" |
| Product Dimensions | 5"D x 48"W x 32"H |
| Color | Silver |
| Mounting Type | Wall Mount (Recessed or Surface) |
| Number of Shelves | 3 (Adjustable, 8mm thick tempered crystal glass) |
| Frame Material | Aluminum |
| LED Lifespan | 50,000 hours |
| Button Lifespan | 100,000 touches |
| Total Power | 69 W |
| Color Temperature | 6000K |
| Product Weight | 90 lbs |
| UPC | 842708121195 |

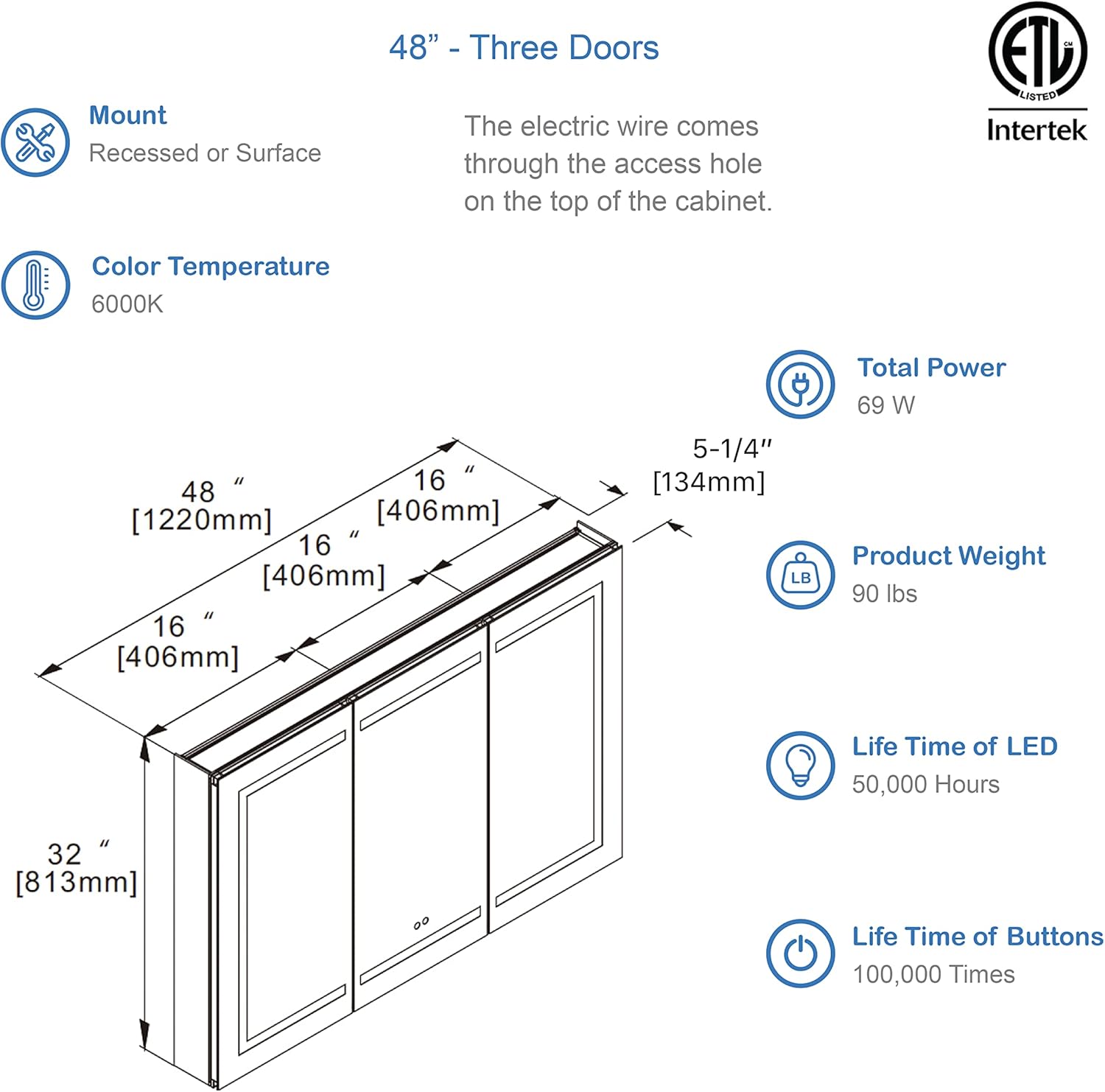

Image: Detailed technical drawing illustrating the dimensions (48"W x 32"H x 5.25"D) and key specifications like power, weight, and LED lifespan.
Installation Instructions
The Blossom LED Mirror Medicine Cabinet can be installed using either recessed or surface mounting methods. For detailed, step-by-step instructions, please refer to the official Installation Manual (PDF) provided by the manufacturer. A qualified electrician should handle all electrical connections.
Key Installation Considerations:
- Mounting Options: Choose between recessed installation (flush with the wall) or surface installation (mounted on the wall).
- Electrical Connection: The electric wire comes through the access hole on the top of the cabinet. Ensure proper hard-wiring by a professional.
- Weight: The cabinet weighs approximately 90 lbs. Ensure the mounting surface and hardware can support this weight. It is recommended to have two people for installation.
- Shelf Installation: The cabinet comes with three adjustable glass shelves. Install them after the main cabinet body is securely mounted.
You can download the official installation manual here.
Operating Instructions
Your Blossom LED Mirror Medicine Cabinet features intuitive controls for ease of use.
Touch Controls
The cabinet features two soft-touch keys integrated into the mirror surface:
Image: The two soft keys on the mirror, one for defogger and one for power/brightness.
- Power On/Off & Brightness Adjustment:
- Short press the power icon to turn the main LED lights on or off.
- Long press the power icon to adjust the brightness (dimmer function). The light will cycle through brightness levels (e.g., 10%, 50%, 100%). The smart memory function will retain your last brightness setting.
- Defogger Activation:
- Short press the defogger icon to activate the built-in defogger.
- The defogger will automatically turn off after 45-60 minutes to conserve energy. It is recommended to manually switch it off when not in use.
Interior Lighting with Sensor
The cabinet is equipped with an interior LED light that operates automatically:
- When the cabinet door is opened, the interior light will automatically turn on.
- When the cabinet door is closed, the interior light will automatically turn off.
Image: Illustration of the interior lighting system, demonstrating how lights activate upon opening the cabinet doors for visibility.
Maintenance and Care
To ensure the longevity and optimal performance of your Blossom LED Mirror Medicine Cabinet, follow these care guidelines:
- Cleaning the Mirror and Frame: Use a soft, damp cloth with a mild, non-abrasive glass cleaner. Do not spray cleaner directly onto the mirror or frame; apply it to the cloth first. Avoid cleaners containing ammonia or harsh chemicals.
- Cleaning Interior Shelves: The tempered glass shelves can be removed for cleaning. Wash with mild soap and water, rinse thoroughly, and dry completely before reinserting.
- Electrical Components: Never attempt to clean electrical components with water or liquid cleaners. Ensure the power is off before cleaning any part of the cabinet.
- Hinges and Moving Parts: The soft-close hinges are designed for long-term use and generally do not require lubrication. Avoid forcing the doors open or closed.
- General Care: Avoid placing excessively heavy items on the shelves. Do not use sharp objects near the mirror surface or frame to prevent scratches.
Image: Detail showing the 110° wide open soft-close hinge and the 8mm thick adjustable shelf, highlighting the quality components.
Troubleshooting
If you encounter any issues with your medicine cabinet, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights do not turn on. | No power supply; loose electrical connection; faulty switch. | Check circuit breaker. Ensure all electrical connections are secure (consult a qualified electrician). Try pressing the power button again. |
| Defogger not working or only partially working. | Defogger not activated; internal wiring issue. | Ensure the defogger button is pressed. If only part of the mirror defogs, contact customer support for assistance. |
| Interior light not working. | Door sensor obstruction; faulty sensor. | Ensure nothing is blocking the door sensor. Open and close the door fully. If the issue persists, contact customer support. |
| Cabinet feels unstable after installation. | Improper mounting; insufficient wall support. | Re-check mounting hardware and wall anchors. Ensure the cabinet is securely fastened to wall studs or appropriate blocking. If unsure, consult a professional installer. |
| Doors do not close smoothly or are misaligned. | Hinge adjustment needed; obstruction. | Check for any obstructions. Adjust hinges if necessary (refer to installation manual for hinge adjustment details). |
Warranty and Support
The Blossom LED Mirror Medicine Cabinet comes with a two-year warranty from the date of purchase, covering manufacturing defects and malfunctions under normal use.
For warranty claims, technical support, or any questions not addressed in this manual, please contact Blossom customer service. Please have your model number (MCL4 4832) and proof of purchase ready when contacting support.
You can visit the official Blossom Store on Amazon for more information and contact details: Blossom Store
