Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your NOVSIGHT F03 LED Headlight Bulb Conversion Kit. The F03 series features TX SMD LED chips, delivering a 6000K cool white light with a total output of 15000 lumens (7500 lumens per lamp) and a power consumption of 90W per set (40-45W per lamp). Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Setup and Installation
The NOVSIGHT F03 LED Headlight Bulbs are designed for a universal fit and feature a plug-and-play design for straightforward installation. Ensure your vehicle's engine is off and the battery is disconnected before beginning installation.

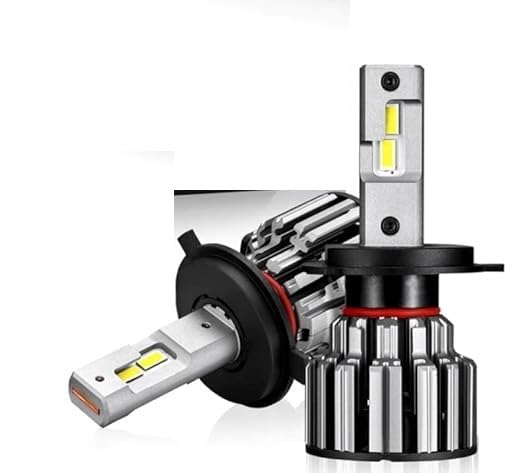

Image: NOVSIGHT F03 LED Headlight Bulb, showcasing its design and light projection.
Product Structure Overview
Understanding the components of your LED headlight bulb is crucial for proper installation and maintenance.
Image: Detailed diagram illustrating the internal and external components of the NOVSIGHT F03 LED Headlight Bulb, including the OEM car installation chuck, waterproof rubber ring, automotive grade LED, 6063 aluminum alloy heat sink, rust-proof screws, and high-speed silent fan.
Installation Steps
- Preparation: Ensure your vehicle is turned off and cool. Locate your vehicle's existing headlight bulbs.
- Remove Old Bulbs: Carefully disconnect the wiring harness from the old bulb and remove the bulb from its housing. Refer to your vehicle's owner's manual for specific instructions on removing headlight bulbs.
- Install LED Bulbs: Insert the NOVSIGHT F03 LED bulb into the headlight housing. Ensure it is seated correctly and securely. The plug-and-play design means direct replacement in most cases.
- Connect Wiring: Connect the LED bulb's wiring harness to your vehicle's original headlight connector. Ensure a firm connection.
- Test Functionality: Before reassembling all components, turn on your vehicle's headlights to verify that both LED bulbs are functioning correctly.
- Secure Components: Once confirmed, secure any loose wiring and reassemble the headlight housing components.
Image: Diagram showing the dimensions of the NOVSIGHT F03 LED Headlight Bulb and its plug-and-play connector for easy installation.
Operating Instructions
The NOVSIGHT F03 LED Headlight Bulbs are designed to provide superior illumination for your vehicle. Once installed, operate them as you would your standard headlights.
- Light Color: Experience a clear and bright 6000K cool white light, enhancing visibility during night driving.
- Lumen Output: Each bulb delivers 7500 lumens, totaling 15000 lumens per pair, for powerful and effective road illumination.
- Power Consumption: The bulbs operate at 40-45W per lamp, with a total of 80-90W per pair, ensuring efficient energy use.
Maintenance
The NOVSIGHT F03 LED Headlight Bulbs are engineered for durability and minimal maintenance, thanks to their robust design and advanced cooling system.
- Cooling System: Equipped with an aviation aluminum cooling system and a high-speed silent fan (up to 12,000 RPM/Min), these bulbs effectively dissipate heat, ensuring stable performance and extended lifespan.
- Durability: The bulbs feature an IP68 waterproof and dustproof rating, allowing them to withstand harsh weather conditions and environmental factors.
- Lifespan: With an operating life of up to 50,000 hours, these LED bulbs offer long-term reliability, reducing the need for frequent replacements.
Image: Visual representation of performance testing, demonstrating the IP68 waterproof rating, anti-freezing capabilities, and heat-resistant design of the NOVSIGHT F03 LED Headlight Bulbs.
Troubleshooting
If you encounter issues with your NOVSIGHT F03 LED Headlight Bulbs, consider the following:
- Bulb Size Compatibility: If you are unsure which bulb size fits your vehicle, consult your vehicle's owner's manual or contact NOVSIGHT customer support for assistance.
- Bulb Not Lighting Up: Check all electrical connections to ensure they are secure. Verify that the vehicle's headlight switch is in the correct position.
- Flickering: Ensure the connections are stable. In some vehicles, an additional CANbus decoder might be required to prevent flickering or error messages.
- Uneven Light Output: Re-check the installation of the bulbs to ensure they are seated correctly and oriented properly within the headlight housing.
Specifications
| Feature | Specification |
|---|---|
| Brand | NOVSIGHT |
| Model | F03 (9005/HB3) |
| Light Source Type | Light Emitting Diode (LED) |
| Included Components | 1 Pair of LED Bulbs |
| Wattage | 90 Watts (per set) |
| Fit Type | Universal Fit |
| Colour Temperature | 6000 Kelvin |
| Light Color | White |
| Auto Part Position | Front |
| Operating Life | 50000 Hours |
| Light Output Maximum | 15000 Lumens (per set) |
| Voltage | 30 Volts |
| Item Weight | 350 Grams |
| Country of Origin | China |
