1. Introduction
This manual provides essential information for the safe and effective use of your JIATONG SMD 2835 12V LED Strip Light. Please read these instructions carefully before installation and operation. This product is designed for indoor use and is not waterproof.

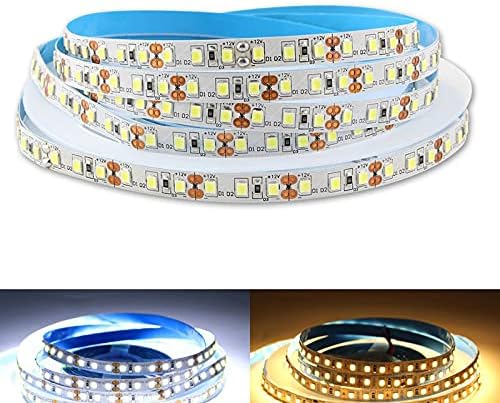

Image 1.1: The JIATONG SMD 2835 LED Strip Light, coiled for packaging. This flexible strip features numerous small LED chips designed for various lighting applications.
2. Product Features
The JIATONG SMD 2835 LED Strip Light offers a range of features for versatile indoor lighting:
- High Brightness: Utilizes super bright 2835 SMD LEDs for high intensity illumination.
- Durability: Designed for a long lifespan of approximately 50,000 hours.
- Flexibility: The ribbon design allows for easy curving around bends and irregular surfaces.
- Even Light Distribution: Engineered to provide a smooth and consistent light spread, eliminating uneven luminous spots.
- Energy Efficient: Operates at a low temperature with low power consumption.
- Quality Construction: Features high-quality LED chips, pure gold wire lamp beads, anti-bad bead technology, and a pure copper circuit board for reliable performance.
Image 2.1: A detailed view of the LED strip highlighting its construction, including high-quality LED chips, pure gold wire lamp beads, anti-bad bead technology, and a pure copper circuit board.
3. Specifications
| Specification | Detail |
|---|---|
| LED Type | SMD 2835 |
| Emitting Color | Warm White |
| Protection Rate | IP20 - Not Waterproof (Indoor Use Only) |
| Working Voltage | 12V DC |
| LED Quantity | 120 LEDs per meter |
| Strip Length | 5 meters |
| View Angle | 120° ~ 140° |
| Working Temperature | -20°C to 50°C |
| Power Source | Corded Electric |
| Material | Plastic |

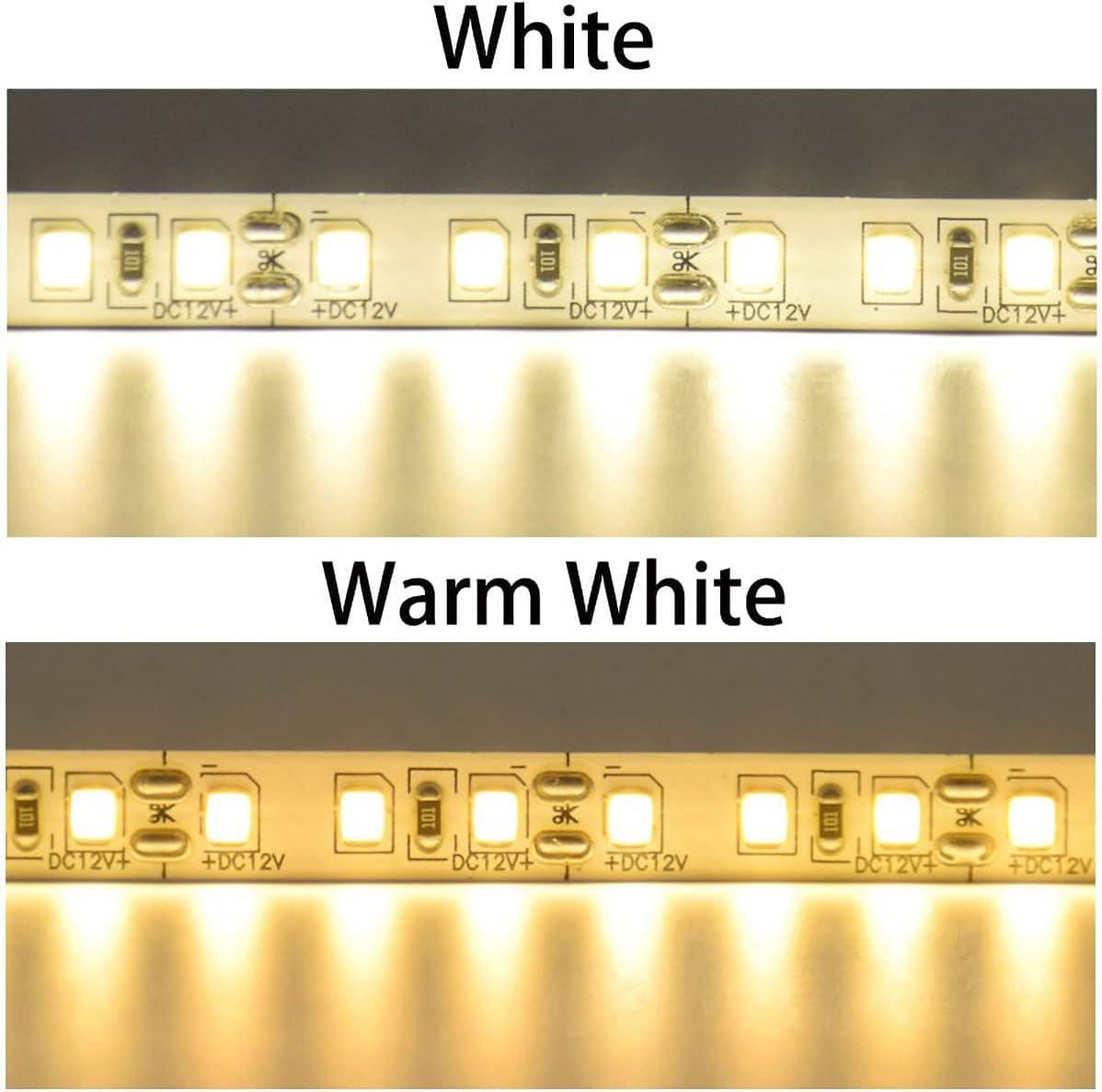

Image 3.1: A visual comparison demonstrating the difference between White and Warm White LED light output. This product is the Warm White variant.
4. Package Contents
Upon opening your package, you should find the following item:
- 1 x 5-meter DC12V SMD2835 Flexible LED Strip Light
5. Installation Instructions
Follow these general steps for installing your LED strip light. Specific installation methods may vary based on your application.
- Preparation: Ensure the installation surface is clean, dry, and smooth. Remove any dust or debris.
- Measure and Cut (Optional): If necessary, measure the desired length. The LED strip can be cut at designated marks (usually indicated by a scissor icon or copper pads) to fit your space. Do not cut elsewhere.
- Power Connection: Connect the LED strip to a compatible 12V DC power supply (not included unless specified). Ensure correct polarity (positive to positive, negative to negative).
- Mounting: The strip typically has an adhesive backing. Peel off the protective layer and firmly press the strip onto the prepared surface. For long-term or uneven surfaces, additional clips or adhesive may be required.
- Testing: Before final placement, connect the power supply and test the strip to ensure it illuminates correctly.
Important: This LED strip is NOT waterproof (IP20 rated). Do not install in areas exposed to moisture or direct water.
6. Operation
To operate your JIATONG LED Strip Light:
- Power On/Off: Once connected to a 12V DC power supply, the strip will illuminate. Use the switch on your power supply or a separate inline switch (if installed) to turn the lights on or off.
- Control Method: The product specifications mention 'App' as a control method. If your setup includes a compatible smart controller (not included with the basic strip), refer to the controller's manual for app-based operation.
7. Maintenance and Care
Proper care will help extend the life of your LED strip:
- Cleaning: Gently wipe the strip with a dry, soft cloth to remove dust. Do not use liquid cleaners or abrasive materials.
- Avoid Moisture: As the strip is not waterproof, ensure it remains dry and away from any liquids.
- Temperature: Operate within the specified working temperature range (-20°C to 50°C) to prevent damage.
- Handling: Avoid excessive bending or twisting of the strip, especially at connection points, to prevent damage to the circuit.
8. Troubleshooting
If you encounter issues with your LED strip, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| LED strip does not light up. | No power, incorrect polarity, faulty power supply, or damaged strip. | Check power connection, ensure 12V DC power supply is working, verify polarity (+ to +, - to -), inspect strip for visible damage. |
| Some sections of the strip are not lighting. | Damaged section, poor connection, or cut in the wrong place. | Inspect the non-lighting section for physical damage or loose connections. If cut, ensure it was at a designated cut mark. |
| Lights are dim or flickering. | Insufficient power supply, voltage drop, or loose connection. | Ensure power supply meets the strip's requirements. Check all connections for tightness. |
9. Applications
The JIATONG SMD 2835 LED Strip Light is suitable for a variety of indoor lighting and decorative purposes, including:
- Hotel and shopping mall accent lighting
- Counter and commercial display illumination
- Home lighting and decorative accents
- Storefront and showcase lighting
- Restaurant and indoor decoration
- Art hall, museum, office, and reading room local lighting
- Atmosphere lighting for entertainment venues like karaoke rooms
- Jewelry, gold, silver jewelry, and fashion lighting displays

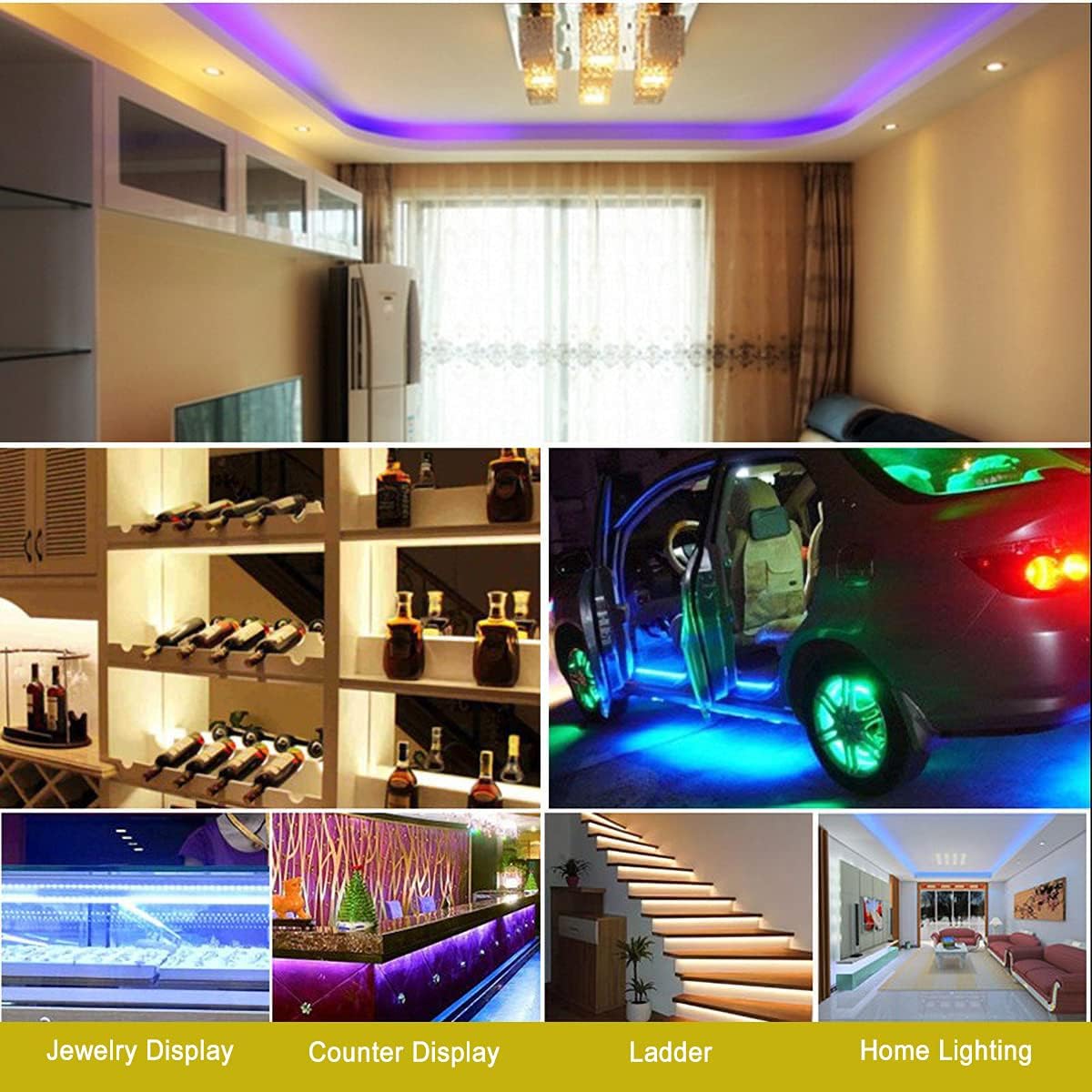

Image 9.1: Examples of the LED strip light used in various settings, including ceiling coves, under cabinets, and for accent lighting in commercial and residential spaces.
10. Warranty and Support
For warranty information or technical support, please refer to the retailer where you purchased this product or visit the official JIATONG website. Keep your purchase receipt as proof of purchase.
