JOYOUNG M6-L20S Automatic Pasta Maker User Manual

1. Safety Instructions

Please read all instructions carefully before using the JOYOUNG M6-L20S Automatic Pasta Maker. Retain this manual for future reference.

• Always ensure the appliance is unplugged before assembly, disassembly, or cleaning.
• Do not immerse the main unit in water or any other liquid.
• Keep hands and utensils away from moving parts during operation.
• Use only cold, pure water for noodle preparation.
• Ensure all parts are correctly assembled and the lid is securely closed before starting the machine.
• This appliance is for household use only.
• Keep out of reach of children.

2. Product Overview

The JOYOUNG M6-L20S is a fully automatic pasta maker designed for convenient and fresh noodle preparation at home. It features intelligent flour weighing, automatic water addition, and a 12-hour reservation function.

Key Features:

• 350ml Water Tank: Automatic water addition throughout the process, eliminating manual water pouring.
• Intelligent Flour Weighing: Ensures precise ingredient ratios for optimal dough consistency.
• 12-Hour Reservation Function: Prepare ingredients in advance and set a timer for delayed operation.
• Variety of Noodle Molds: Configure different types of noodles including thick, thin, wide, pasta, and macaroni.
• Tritan Cup Body: Food-grade material for enhanced safety.
• Automatic and Manual Modes: Choose the preferred operation mode.
• Durable Components: Features 304 stainless steel and Tritan materials for longevity.
• Vertical Noodle Extrusion: Designed for non-adhesive, perfectly formed noodles.

Components:

• Main Unit with Motor
• Mixing Chamber with Lid
• Extrusion Screw (Pressure Rod)
• Noodle Dies (various shapes)
• Water Tank (350ml)
• Measuring Cups for Flour and Water
• Cleaning Tools (scraper, brush)

3. Setup

Before first use, wash all detachable parts with warm soapy water, rinse thoroughly, and dry. Ensure the main unit is placed on a stable, flat surface.

1. Assemble the Extrusion Mechanism: Insert the extrusion screw (pressure rod) into the main unit's chamber.
2. Attach Noodle Die: Select your desired noodle die and attach it to the front of the extrusion mechanism. Secure it by screwing on the retaining ring.
3. Position Water Tank: Ensure the 350ml water tank is correctly seated in its designated slot.
4. Close Lid: Securely close the mixing chamber lid. The machine will not operate if the lid is not properly closed.

Figure 3.1: Front view of the JOYOUNG M6-L20S Automatic Pasta Maker.

4. Operating Instructions

4.1 Making Noodles

Follow these steps for fresh, homemade noodles:

1. Add Pure Water: Fill the 350ml water tank with cold, pure water.
2. Press Clear Button: Before adding flour, press the 'Clear' button on the control panel. This is important for accurate flour weighing.
3. Add Flour: Pour the measured flour into the mixing chamber. The machine will intelligently weigh the flour.
4. Close Cover: Ensure the mixing chamber cover is securely closed.
5. Select Mode: Choose between 'Automatic' or 'Manual' mode on the control panel. For baby's colorful fruit and vegetable noodles, select 'Manual' mode and pour juice from the lid's mouth.
6. Start: Press the 'Start' button. The machine will begin mixing the dough and automatically add water from the tank.
7. Extrusion: Once the dough is ready, it will be extruded through the selected noodle die. Use the provided scraper to cut the noodles to your desired length.

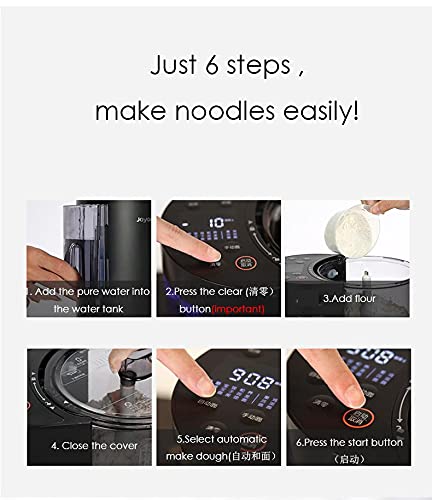

Figure 4.1: Visual guide for the 6-step noodle making process.

Figure 4.2: Automatic water addition feature.

Figure 4.3: Control panel for intelligent operation.

4.2 12-Hour Reservation Function

To use the reservation function:

1. Add flour and water to their respective compartments.
2. Press the 'Reservation' button and set the desired delay time (up to 12 hours).
3. The machine will automatically start mixing and extruding noodles at the set time.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your pasta maker.

1. Disassembly: Unplug the machine. Disassemble the noodle die, retaining ring, extrusion screw, and mixing chamber.
2. Initial Cleaning: Allow any remaining dough to dry for a short period. Dried dough is often easier to remove than wet, sticky dough.
3. Scrape and Brush: Use the provided scraper and brush to remove dried dough from all parts, especially the noodle dies and extrusion screw. For dies with small holes, use the poking tool to clear blockages.
4. Wash: Wash all detachable parts with warm, soapy water. The main unit should be wiped clean with a damp cloth. Do not immerse the main unit in water.
5. Dry: Ensure all parts are completely dry before reassembling or storing.

Figure 5.1: Various noodle dies and cleaning tools.

6. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

7. Specifications

• Brand: JOYOUNG
• Model Number: M6-L20S
• Color: Black
• Material: Plastic (Tritan cup body), Stainless Steel (blade, extrusion screw)
• Item Weight: 5.7 Kilograms
• Number of Blades: 2
• Operation Mode: Automatic
• Is Electric: Yes
• Dishwasher Safe: No (for detachable parts, main unit wipe clean only)
• Included Components: Dough Knead Machine, Noodles Maker, various noodle dies, measuring cups, cleaning tools.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact JOYOUNG customer service directly. Keep your proof of purchase for any warranty claims.
