1. Introduction
Thank you for choosing the JOYOUNG Fully Automatic Noodles Machine M6-L20S. This appliance is designed to simplify the process of making fresh noodles and pasta at home. It features automatic water addition, intelligent flour weighing, and a 12-hour reservation function, offering convenience and versatility for various noodle types.
2. Important Safety Information
- Always use cold, pure water for optimal results and machine longevity.
- Before making noodles, ensure the water tank is filled and press the clear button (if applicable) to reset the system.
- Do not immerse the main unit in water or other liquids.
- Keep hands and utensils away from moving parts during operation.
- Ensure the machine is unplugged before cleaning or assembly/disassembly.
- This appliance is for household use only.
- The cup body is made of Tritan, a food-grade material, ensuring safer use.
3. Package Contents
Upon unpacking, please verify that all items listed below are present and in good condition:
- JOYOUNG Fully Automatic Noodles Machine (Main Unit)
- Noodle Molds (various types for thick, thin, wide, pasta, macaroni, etc.)
- Flour Measuring Cup
- Water Measuring Cup
- Cleaning Scraper
- Dumpling Wrapper Mold (if included)
- Power Cord
- User Manual
Image: The JOYOUNG M6-L20S noodle machine with its various accessories, including different noodle molds, measuring cups, and cleaning tools.
Video: An unboxing and assembly demonstration of the automatic noodle machine, showing how to unpack the components and put them together.
4. Product Overview
The JOYOUNG M6-L20S is designed for ease of use and durability. Key features include:
- Automatic Water Tank: 350ml capacity for automatic water addition throughout the process.
- Intelligent Flour Weighing: Automatically detects and weighs flour for precise ratios.
- 12-Hour Reservation Function: Allows you to set a delayed start time.
- Multiple Noodle Molds: Customize your noodles with various shapes and sizes.
- Food-Grade Material: Tritan cup body for safety.
- Operation Modes: Choose between automatic or manual modes.
- Durable Construction: Features a 304 stainless steel pressure rod for smoother and more durable operation.
Image: Visual representation of the machine's key features, including automatic water addition, intelligent operation panel, and fully automatic noodle extrusion.
Image: Close-up of the 304 stainless steel pressure rod, highlighting its robust construction for smooth and durable noodle extrusion.
5. Setup
Before first use, ensure all packaging materials are removed and components are clean. Follow these steps to assemble your noodle machine:
- Place the main unit on a stable, flat surface.
- Insert the mixing shaft into the main unit's mixing chamber.
- Attach the transparent extrusion chamber to the front of the machine, ensuring it clicks into place securely.
- Select your desired noodle mold and attach it to the end of the extrusion chamber.
- Close the top lid of the mixing chamber.
Video: A detailed demonstration of how to assemble the noodle machine, including attaching the mixing components and noodle molds.
6. Operating Instructions
Follow these steps to make fresh noodles:
- Add Water: Pour pure cold water into the water tank. The machine has a 350ml capacity and automatically adds water.
- Clear Button: Press the "Clear" button on the control panel. This is important for proper operation.
- Add Flour: Open the lid and add the desired amount of flour to the mixing chamber. The machine intelligently weighs the flour.
- Close Cover: Securely close the mixing chamber cover.
- Select Mode: Choose between "Automatic" or "Manual" mode on the control panel. For automatic dough making, select the appropriate option.
- Start: Press the "Start" button to begin the noodle-making process.
Tip for Colorful Noodles: When making baby's colorful fruit and vegetable noodles, select the manual mode and pour the juice from the mouth of the lid instead of the water tank.
Image: A visual guide illustrating the six simple steps to operate the noodle machine, from adding water and flour to starting the process.

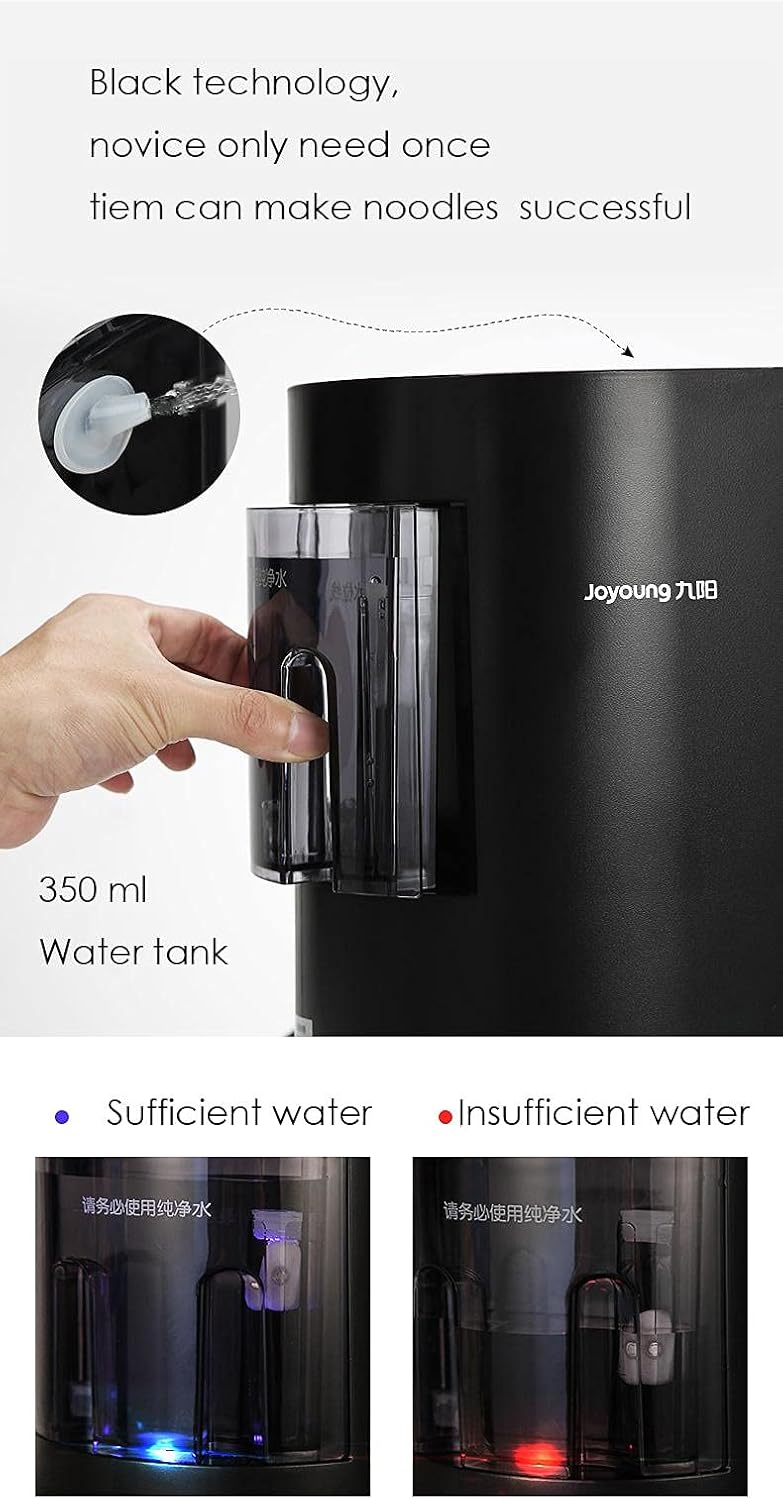

Image: Demonstrates the automatic water addition feature, showing the water tank and the process of water being dispensed into the mixing chamber.
Image: Shows the water level indicators (sufficient and insufficient water) on the machine, guiding users on when to refill the water tank.
Image: Compares the ideal dough consistency achieved with automatic water addition versus dough that received too much water, emphasizing the importance of correct proportions.
Image: Illustrates the vertical extrusion of noodles, ensuring they come out non-adhesive and without breaking.
Video: A demonstration of the noodle machine in operation, showing the process of adding ingredients and the extrusion of fresh noodles.
7. Maintenance and Cleaning
Regular cleaning ensures the longevity and hygienic operation of your noodle machine.
- Unplug: Always unplug the machine from the power outlet before cleaning.
- Disassemble: Carefully disassemble the mixing chamber, extrusion chamber, mixing shaft, and noodle molds.
- Wash Components: Wash all removable parts with warm, soapy water. Use the provided cleaning scraper to remove any dough residue from the molds and internal components.
- Wipe Main Unit: Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
- Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing.
- Dishwasher Safety: The machine is not dishwasher safe.
8. Troubleshooting
If you encounter issues with your noodle machine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start. | Not plugged in; lid not properly closed; power button not pressed. | Ensure power cord is securely plugged in. Close the lid completely. Press the ON/OFF button. |
| Noodles are too sticky or too dry. | Incorrect flour-to-water ratio. | Ensure you are using the correct measurements for flour and water. Use the intelligent weighing function or manual mode for precise control. Refer to the recipe guide for optimal ratios. |
| Noodles are not extruding. | Dough too stiff; mold blocked; extrusion chamber not properly assembled. | Check dough consistency (it should be slightly crumbly). Clean the noodle mold. Reassemble the extrusion chamber correctly. |
| Machine makes unusual noise. | Components not properly assembled; foreign object inside. | Disassemble and reassemble all parts, ensuring they are securely fitted. Check for any foreign objects and remove them. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | JOYOUNG |
| Model Number | M6-L20S |
| Color | Gray |
| Material | Plastic (Tritan cup body), Stainless Steel (Blade/Pressure Rod) |
| Item Weight | 5.7 Kilograms (12.54 pounds) |
| Operation Mode | Automatic, Manual |
| Water Tank Capacity | 350ml |
| Number of Discs/Molds | 5 (various noodle types) |
| Reservation Function | 12 hours |
| Is Dishwasher Safe | No |
| Power | 200W |
| Voltage | 120V |
| Rotating Speed | 40-60 rpm |
| Package Dimensions | 18.5 x 16.54 x 12.01 inches |

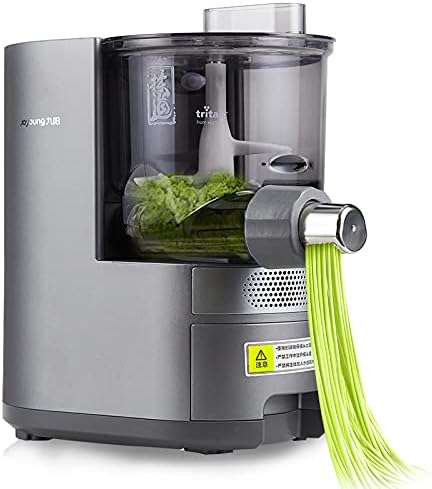

Image: The JOYOUNG M6-L20S noodle machine in gray, actively extruding green-colored noodles, showcasing its functionality.
10. Warranty and Support
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official JOYOUNG website. Keep your purchase receipt as proof of purchase.
You can visit the JOYOUNG Store on Amazon for more information.
