Kerbl 296200-17 Gasket Set Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper use, installation, and maintenance of the Kerbl 296200-17 Gasket Set. This gasket set is specifically designed as a replacement part for Kerbl Limescale Syringe models 296025 and 296030. Regular replacement of gaskets is crucial for maintaining the syringe's sealing integrity and optimal performance, preventing leaks and ensuring efficient operation.

2. Product Overview

The Kerbl 296200-17 Gasket Set contains the necessary sealing components to restore the functionality of your Kerbl Limescale Syringe. Gaskets are vital for creating a tight seal within the syringe mechanism, which is essential for generating and maintaining pressure during operation. A worn or damaged gasket can lead to reduced efficiency and leakage.

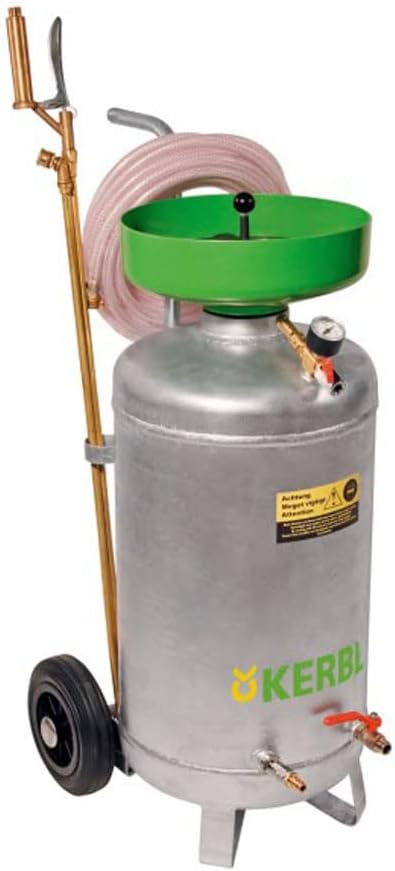

This image displays the complete Kerbl Limescale Syringe, models 296025 or 296030. The 296200-17 Gasket Set is a replacement part for this specific syringe, crucial for maintaining its sealing and operational efficiency.

3. Installation and Setup

Proper installation of the gasket set is critical for optimal performance. Always ensure the syringe is depressurized and empty before beginning any maintenance.

1. Safety First: Ensure the limescale syringe is completely empty and depressurized. Disconnect any hoses or attachments.
2. Disassembly: Carefully disassemble the relevant sections of the syringe where the old gaskets are located. Refer to your specific Kerbl Limescale Syringe model's diagram for precise locations.
3. Remove Old Gaskets: Gently remove all old, worn, or damaged gaskets. Inspect the areas for any residue or damage.
4. Clean Surfaces: Clean the surfaces where the new gaskets will be seated. Ensure they are free from dirt, debris, or old lubricant.
5. Install New Gaskets: Carefully place the new gaskets from the Kerbl 296200-17 set into their respective positions. Ensure they are seated correctly and not twisted or pinched. A small amount of silicone-based lubricant (not petroleum-based) can aid in installation and sealing.
6. Reassembly: Reassemble the syringe components, ensuring all parts are securely fastened. Do not overtighten.
7. Test for Leaks: After reassembly, fill the syringe with water and pressurize it to a low level. Check for any leaks before using it with limescale solution. Gradually increase pressure to ensure all seals hold.

Note: If you are unsure about any step, consult a qualified technician or refer to the original syringe manual for detailed disassembly/assembly instructions.

4. Operating with New Gaskets

Once the new gaskets are installed and tested, the Kerbl Limescale Syringe should operate with restored efficiency. You should observe:

• Improved pressure retention.
• Elimination of leaks from previously compromised seals.
• Consistent and reliable dispensing of limescale solution.

Always follow the operating instructions provided with your Kerbl Limescale Syringe (models 296025/296030) for safe and effective use.

5. Maintenance

To maximize the lifespan of your Kerbl 296200-17 Gasket Set and the overall syringe:

• Regular Cleaning: After each use, thoroughly clean the syringe according to its original instructions to prevent residue buildup that can degrade gaskets.
• Storage: Store the syringe in a cool, dry place, away from direct sunlight and extreme temperatures, which can cause gaskets to dry out or become brittle.
• Lubrication: Periodically apply a suitable, non-petroleum-based lubricant to moving parts and visible gaskets to maintain their flexibility and sealing properties.
• Inspection: Regularly inspect gaskets for signs of wear, cracking, or deformation. Replace them promptly if any damage is observed to prevent operational issues.

6. Troubleshooting

If you encounter issues after replacing the gaskets, consider the following:

• Leaks:
  • Ensure all connections are tight but not overtightened.
  • Re-check gasket seating; a pinched or twisted gasket will leak.
  • Verify the correct gasket size and type were used for each location.
  • Inspect the syringe body for cracks or damage that might be causing leaks unrelated to gaskets.
• Reduced Pressure:
  • This often indicates a seal failure. Re-inspect all installed gaskets for proper seating or damage.
  • Check the pump mechanism for any issues, as this might not be gasket-related.
• Difficulty in Assembly:
  • Ensure gaskets are properly lubricated before installation.
  • Do not force components; if parts don't fit, re-check gasket placement and orientation.

For persistent issues, contact Kerbl customer support or a qualified service technician.

7. Specifications

8. Warranty and Support

This product is typically covered by a 30-day easy return policy. For specific warranty details, please refer to your purchase documentation or contact the retailer.

For customer support, technical assistance, or inquiries regarding the Kerbl 296200-17 Gasket Set, please contact Kerbl customer service or the seller from whom you purchased the product. Contact information can usually be found on the product packaging or the retailer's website.

Manufacturer: Albert Kerbl GmbH
