Kelvinator KDW6-3602E Tabletop Dishwasher Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Kelvinator KDW6-3602E tabletop dishwasher. Please read these instructions carefully before using the appliance and retain them for future reference.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for household use only.

• Ensure the dishwasher is properly grounded.
• Do not operate the dishwasher if it is damaged. Contact qualified service personnel.
• Keep children away from the dishwasher, especially when the door is open.
• Use only detergents and rinse aids specifically designed for automatic dishwashers.
• Do not touch the heating element during or immediately after use.
• Sharp items should be loaded with handles up to prevent injury.
• Unplug the appliance before cleaning or performing maintenance.

Product Overview

The Kelvinator KDW6-3602E is a compact tabletop dishwasher designed for efficient household dish cleaning. It features 6 place settings and 6 wash programs to suit various cleaning needs.

Key Features:

• Capacity: 6 place settings
• Wash Programs: Intensive, Normal, ECO, Glass, 90 min, Rapid
• Energy Class: A+
• Control Type: Touch controls with LED display
• Delay Timer: 1-24 hours
• Material: Metal construction
• Color: Silver finish

Figure 1: Front view of the Kelvinator KDW6-3602E tabletop dishwasher with the door closed.

Setup and Installation

The Kelvinator KDW6-3602E is a freestanding tabletop dishwasher. Ensure proper placement and connection for optimal performance.

Placement:

• Place the dishwasher on a stable, level surface near a water supply, drain, and electrical outlet.
• Ensure adequate clearance around the appliance for ventilation and door opening.
• This model can be placed on a countertop or integrated into cabinetry.

Figure 2: Illustration of typical installation options for the Kelvinator KDW6-3602E, including countertop and built-in configurations.

Water Connection:

• Connect the water inlet hose to a cold water tap with a 3/4-inch thread.
• Ensure all connections are tight to prevent leaks.

Drain Connection:

• Connect the drain hose to a suitable drain pipe or sink.
• Ensure the drain hose is properly secured and positioned to prevent backflow.

Electrical Connection:

• Plug the dishwasher into a grounded electrical outlet.
• Do not use extension cords or adapters.

Operating Instructions

1. Loading the Dishwasher:

Proper loading ensures optimal cleaning performance. Scrape off large food particles before loading.

Figure 3: Interior view of the dishwasher showing a typical load of dishes, including plates, bowls, and cutlery in the basket.

• Place larger items in the lower rack.
• Ensure dishes do not block the spray arms.
• Load cutlery into the cutlery basket with handles down for forks and spoons, and handles up for knives.
• The dishwasher features flexible racks and folding tines for versatile loading.

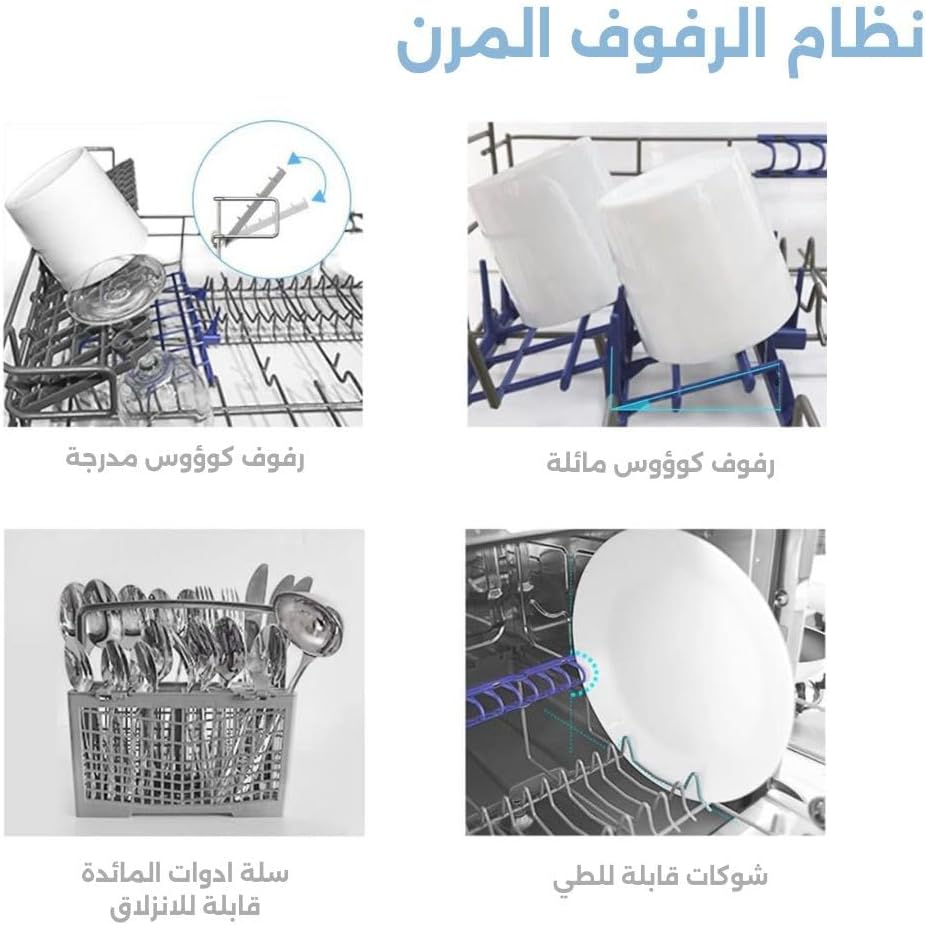

Figure 4: Details of the flexible rack system, illustrating adjustable tines and the removable cutlery basket for efficient loading.

2. Adding Detergent and Rinse Aid:

• Open the detergent dispenser and add the recommended amount of dishwasher detergent.
• Fill the rinse aid dispenser with rinse aid to improve drying performance and prevent spots.

3. Selecting a Wash Program:

Choose a program based on the soil level and type of dishes.

Figure 5: Overview of the 6 wash programs available on the Kelvinator KDW6-3602E, including their recommended temperatures and durations.

• Intensive: For heavily soiled dishes, pots, and pans. (70°C, 140 mins)
• Normal: For normally soiled dishes. (70°C, 120 mins)
• ECO: Energy-saving program for normally soiled dishes. (65°C, 230 mins)
• Glass: For lightly soiled glassware and delicate items. (70°C, 90 mins)
• 90 min: For lightly soiled dishes requiring a quicker wash. (70°C, 90 mins)
• Rapid: A quick wash for lightly soiled dishes without drying. (40°C, 30 mins)

4. Starting a Wash Cycle:

• Close the dishwasher door firmly.
• Press the Power button.
• Select your desired program using the program selection button.
• Press the Start/Pause button to begin the cycle.
• To use the delay timer, select the program, then press the Delay button repeatedly to set the desired delay (1-24 hours) before pressing Start/Pause.

Maintenance

Regular maintenance ensures the longevity and efficiency of your dishwasher.

Cleaning Filters:

• The filter system should be checked and cleaned regularly (e.g., weekly).
• Twist the cylindrical filter counter-clockwise and remove it.
• Remove the fine filter and coarse filter.
• Rinse all filters under running water to remove food particles.
• Reassemble the filters in reverse order, ensuring they are securely in place.

Cleaning Spray Arms:

• Periodically check the spray arm nozzles for blockages.
• If blocked, remove the spray arms and clean the holes with a thin object like a toothpick.
• Ensure spray arms rotate freely after reinstallation.

External Cleaning:

• Wipe the exterior surfaces with a damp cloth and mild detergent.
• Do not use abrasive cleaners or solvents.

Troubleshooting

Before contacting customer service, refer to this section for common issues and solutions.

Specifications

Warranty and Support

Your Kelvinator KDW6-3602E dishwasher comes with a 2-year warranty from the date of purchase.

For technical assistance, service, or warranty claims, please contact Kelvinator customer service.

Customer Service Number: 12840000000

Please have your model number (KDW6-3602E) and proof of purchase ready when contacting support.
