DONGCHENG 9-inch 2800W Angle Grinder DSM05-230 Instruction Manual

1. Introduction and Safety Information

Thank you for choosing the DONGCHENG DSM05-230 9-inch 2800W Angle Grinder. This manual contains important information regarding the safe operation, maintenance, and care of your tool. Please read it thoroughly before use and keep it for future reference.

General Safety Warnings for Power Tools

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
• Personal Safety: Always wear eye protection. Use safety glasses, goggles, or a face shield. Wear hearing protection when operating noisy tools. Use a dust mask if operations create dust. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

2. Product Overview

The DONGCHENG DSM05-230 is a powerful 9-inch angle grinder designed for heavy-duty grinding and cutting tasks. It features a robust 2800W motor and is suitable for various materials.

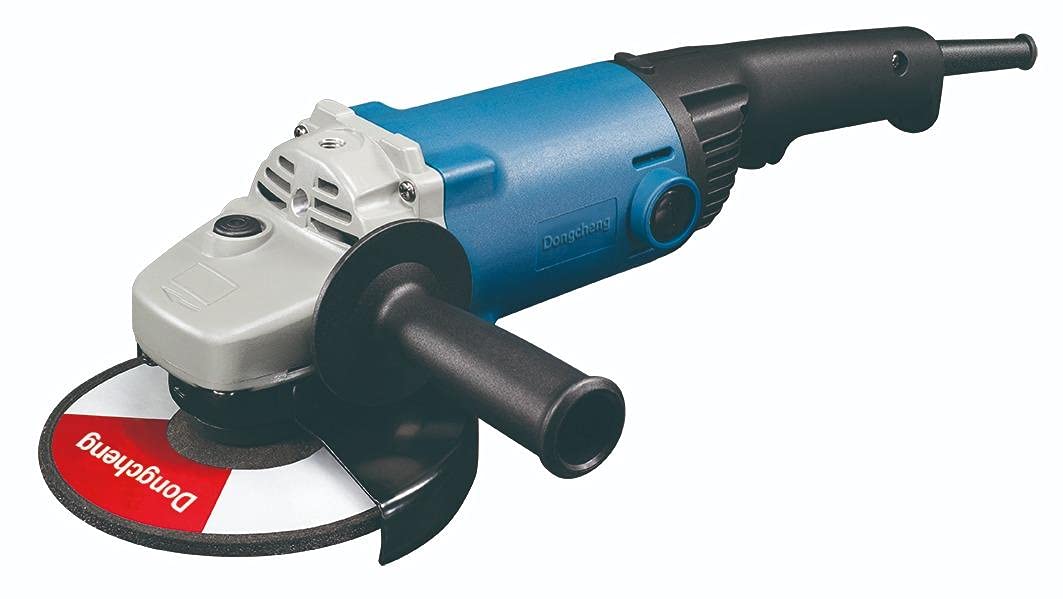

Image 1: DONGCHENG DSM05-230 9-inch 2800W Angle Grinder. This image shows the complete angle grinder unit, highlighting its main body, handle, and disc guard.

Key Features:

• Model Number: DSM05-230
• Type: Angle Grinder
• Power Source: Corded Electric
• Wattage: 2800W
• Disc Diameter: 9 inches
• Material: Plastic housing

3. Setup

Before operating the angle grinder, ensure it is properly assembled and all safety components are in place.

Attaching the Side Handle:

1. Identify the threaded holes on the gear housing of the grinder.
2. Screw the side handle firmly into one of the threaded holes. Choose the position that provides the best control and comfort for your task.
3. Ensure the handle is securely tightened before use.

Mounting the Wheel Guard:

1. Loosen the screw or lever on the wheel guard.
2. Position the guard over the spindle collar, ensuring it covers the maximum possible area of the grinding/cutting disc.
3. Tighten the screw or lever to secure the guard firmly in place. The guard should not rotate freely.

Installing Grinding/Cutting Discs:

1. Always disconnect the grinder from the power supply before changing discs.
2. Press and hold the spindle lock button.
3. Using the provided wrench, loosen and remove the outer flange nut.
4. Place the desired grinding or cutting disc onto the inner flange, ensuring it sits flush. The disc should be rated for the grinder's RPM.
5. Replace the outer flange nut and tighten it securely with the wrench while holding the spindle lock button. Do not overtighten.
6. Release the spindle lock button.

4. Operating Instructions

Follow these instructions for safe and effective operation of your DONGCHENG angle grinder.

Before Starting:

• Ensure the work piece is securely clamped or held.
• Verify that the disc is correctly installed and the guard is properly positioned.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, and a dust mask.
• Check the power cord for any damage.

Starting and Stopping:

1. Plug the grinder into a suitable power outlet.
2. To start, press the ON/OFF switch. Some models may have a lock-on button for continuous operation.
3. Allow the disc to reach full speed before making contact with the workpiece.
4. To stop, release the ON/OFF switch. If the lock-on button was used, press and release the switch to disengage it.

Grinding and Cutting Techniques:

• Grinding: Hold the grinder firmly with both hands. Apply light, even pressure. Use an angle of approximately 15-30 degrees between the disc and the workpiece for optimal material removal and disc life. Move the grinder smoothly across the surface.
• Cutting: Use a cutting disc specifically designed for the material. Hold the grinder firmly and ensure the disc is perpendicular to the workpiece. Make shallow passes, allowing the disc to do the work. Do not force the cut or twist the grinder, as this can cause kickback or disc breakage.
• Avoid Overloading: Do not apply excessive pressure, which can slow down the motor and cause overheating. Let the tool's speed do the work.
• Kickback Prevention: Always maintain a firm grip. Be aware of the disc's rotation direction and potential pinch points. Avoid cutting into corners or edges where the disc can bind.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your angle grinder.

Cleaning:

• Always disconnect the grinder from the power supply before cleaning.
• Clean the ventilation openings regularly to prevent motor overheating. Use compressed air to blow out dust and debris.
• Wipe the tool's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.

Disc Replacement:

Refer to the 'Installing Grinding/Cutting Discs' section under 'Setup' for detailed instructions on replacing discs. Always replace worn, chipped, or damaged discs immediately.

Carbon Brush Inspection:

The carbon brushes are wear items. If the motor performance decreases or sparks become excessive, the carbon brushes may need inspection or replacement. This procedure should ideally be performed by a qualified service technician.

Cord Inspection:

Regularly inspect the power cord for cuts, abrasions, or other damage. A damaged cord must be replaced by a qualified electrician to prevent electrical hazards.

6. Troubleshooting

This section addresses common issues you might encounter with your angle grinder.

7. Specifications

Detailed technical specifications for the DONGCHENG DSM05-230 Angle Grinder.

8. Warranty and Support

For information regarding warranty coverage, technical support, or authorized service centers, please refer to the warranty card included with your product or visit the official DONGCHENG website. Keep your purchase receipt as proof of purchase for any warranty claims.
