Cangaroo Indiana Two-Level Travel Cot

Introduction

The Cangaroo Indiana Travel Cot is designed for convenience and safety, providing a comfortable sleeping and play environment for your child at home or while traveling. This cot features two adjustable levels, mesh windows for ventilation and visibility, a side zipper opening for child access, and a practical changing bag. It is designed for quick assembly and disassembly, making it an ideal portable solution.

Please read this manual carefully before assembly and use to ensure proper operation and the safety of your child. Keep these instructions for future reference.

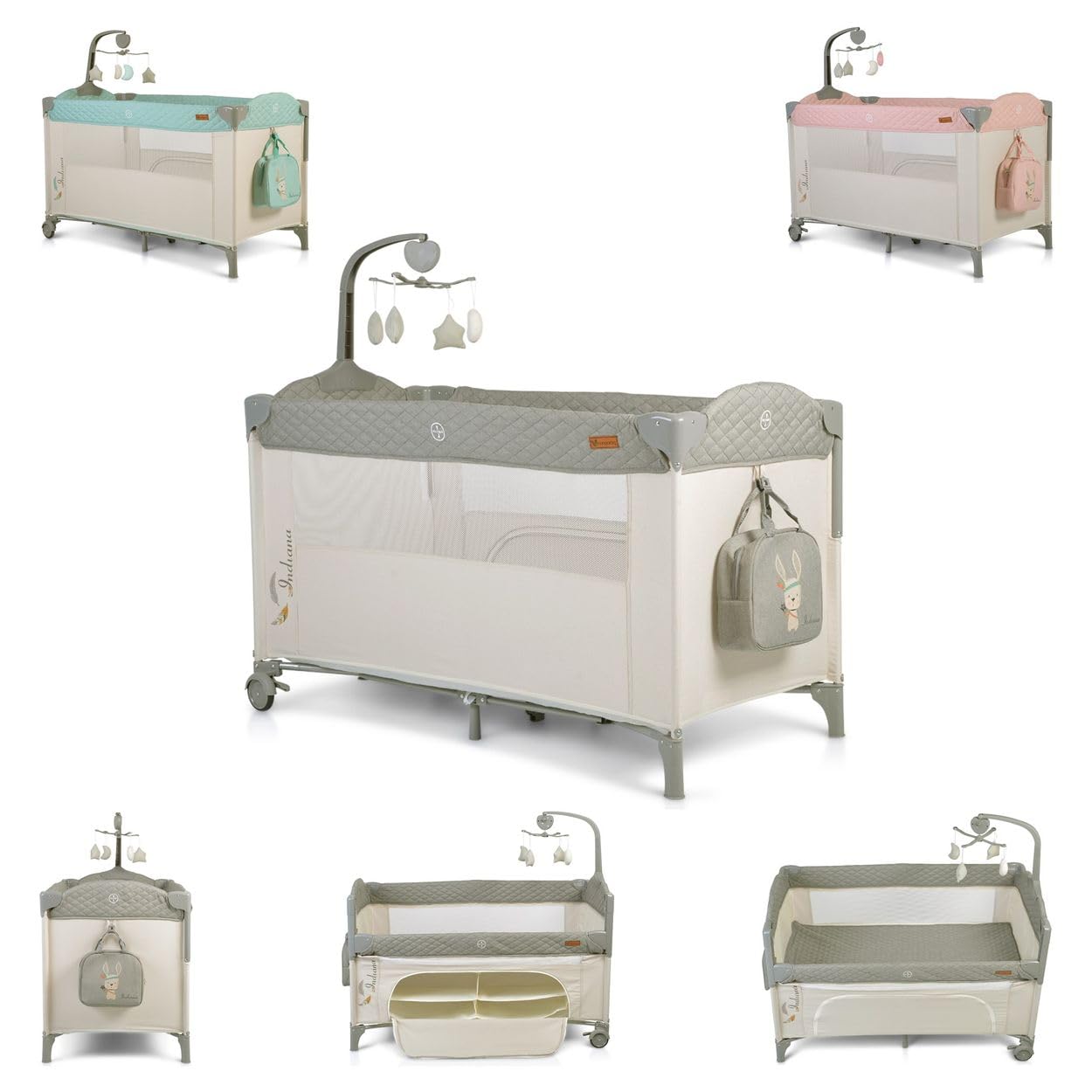

Image: The Cangaroo Indiana Travel Cot, fully assembled, showing its two-level design, mobile, and attached changing bag.

Safety Warnings

• Always ensure all locking mechanisms are securely engaged before placing a child in the cot.
• Exercise caution during the assembly and disassembly of the second level with the zipper to prevent injury.
• Use the wheels with care to avoid any risk of injury, especially when moving the cot with a child inside. Always engage the wheel brakes when the cot is stationary.
• Never leave a child unattended in the travel cot.
• Do not use the cot if any parts are broken, torn, or missing.
• Only use the mattress provided by the manufacturer or a mattress of the specified dimensions.

Setup Instructions

1. Unfolding the Cot: Remove the cot from its transport bag. Stand the cot upright and pull the four corner rails upwards until they lock into place. Ensure all four rails are fully extended and locked.
2. Securing the Base: Push down the center of the cot's base until it lies flat and is securely locked.
3. Installing the Second Level (for newborns up to 6 months): If using the higher level, attach the support tubes for the second level. Zip the second level fabric securely around the top frame of the cot. Ensure the zipper is fully closed and the level is stable.
4. Placing the Mattress: Insert the soft, 3 cm thick mattress into the cot. If using the second level, place it on the second level.
5. Attaching Accessories:
   • Attach the musical arch with the four plush toys to the designated points on the cot frame.
   • Hang the changing bag on the side of the cot using its straps.
6. Checking Stability: Before use, gently push down on the cot to ensure all parts are firmly locked and stable.

Image: Visual representation of the cot's compact folded state and its expansion into the full setup, illustrating the quick assembly process.

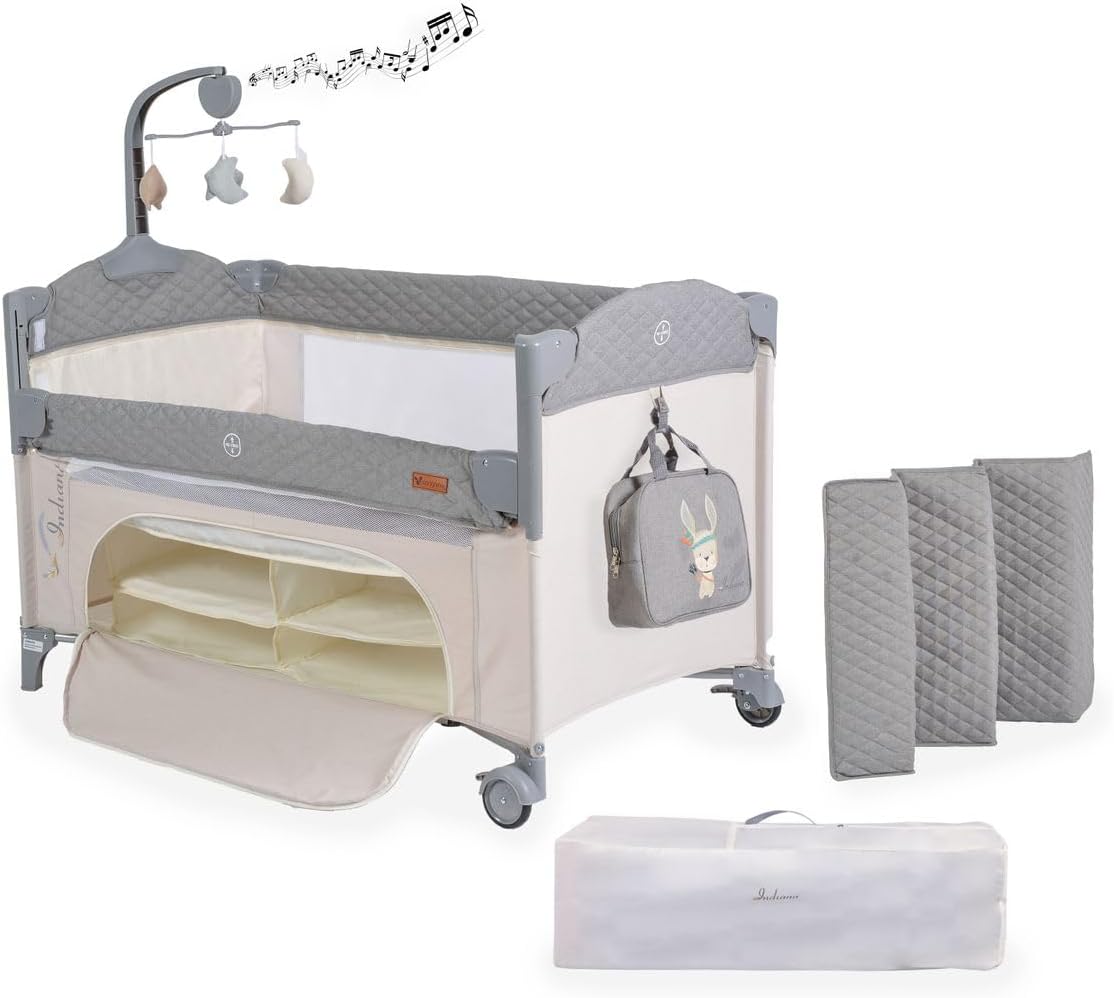

Image: The travel cot shown with its side storage compartment open, revealing multiple shelves for accessories, alongside the musical mobile and changing bag.

Operating Instructions

• Using the Two Levels:
  • The second (higher) level is suitable for newborns from birth up to 6 months, or until the child can push up on their hands and knees, or reaches a maximum weight of 14 kg.
  • The first (lower) level is suitable for children aged 6 to 36 months, up to a maximum weight of 14 kg and a height of 86.4 cm.
• Side Zipper Opening: The cot features a side zipper opening, allowing older children (who can safely enter and exit) to crawl in and out independently. Ensure the zipper is closed when the child is inside and unattended.
• Accessory Storage: Utilize the side opening with a zipper to store accessories such as diapers, clothes, and other essentials, keeping them organized and within reach.
• Mobility: The cot is equipped with two wheels for easy movement. To move the cot, lift the opposite end slightly and roll it. Always engage the wheel brakes when the cot is in its desired position to prevent accidental movement.
• Musical Arch: The musical arch with plush toys provides entertainment and stimulation for your child. Ensure it is securely attached and out of reach of a standing child.

Image: A close-up view of the grey changing bag, featuring a rabbit illustration and the 'Indiana' logo, designed for convenient storage.

Maintenance

• Cleaning: The fabric parts of the cot can be cleaned with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals. Allow to air dry completely before folding or storing.
• Frame Care: Wipe the metal and plastic parts of the frame with a damp cloth.
• Inspection: Regularly inspect the cot for any signs of wear, damage, or loose parts. Pay close attention to the mesh windows, zippers, and locking mechanisms. Discontinue use if any damage is found.
• Storage: When not in use, fold the cot compactly and store it in its transport bag in a dry, cool place, away from direct sunlight.

Troubleshooting

• Cot Not Locking: If the side rails or base do not lock into place, ensure that the center of the base is not pushed down prematurely. Lift the center slightly, then firmly pull up on the side rails until they click into position. Finally, push the center base down.
• Difficulty Folding: Ensure the base is fully pulled up before attempting to release the side rail locking mechanisms. Refer to the folding instructions (reverse of setup).
• Wobbly Cot: Check that all four corner rails are fully extended and locked. Ensure the base is flat and securely engaged.
• Zipper Issues: If a zipper is stuck, do not force it. Gently try to move it back and forth, ensuring no fabric is caught.

Specifications

Warranty Information

Warranty information for the Cangaroo Indiana Travel Cot is not specified in the provided product details. Please refer to your purchase receipt or contact the retailer for specific warranty terms and conditions.

Support

For product support, spare parts, or further assistance, please contact your retailer or the manufacturer, Cangaroo. Keep your model number (108460) and proof of purchase readily available when contacting support.
