Important Safety Information
Please read this manual carefully before operating the unit. Keep this manual for future reference.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Ensure the unit is placed on a stable, level surface.
- Do not block air inlets or outlets. Maintain adequate clearance around the unit for proper airflow.
- Do not insert objects into the unit's openings.
- Always unplug the unit before cleaning or performing any maintenance.
- Do not operate the unit with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- This unit is designed for indoor use only.
- Do not use the unit in wet environments such as bathrooms or laundries.
Product Overview
The Wood's Milan 9K is a portable air conditioning unit designed to provide efficient cooling for rooms up to 26m². It features a digital touch panel, remote control, and Wi-Fi connectivity for smart home integration.
Figure 1: Front view of the Milan 9K unit with the top cover closed, showing its compact design.
Figure 2: Top view of the Milan 9K unit with the air outlet cover open, revealing the internal vents for air circulation.
Main Components:
- Air Conditioning Unit (Main Body)
- Exhaust Hose
- Window Kit (Adjustable window seal plate)
- Remote Control
- Drain Hose (for continuous drainage, if applicable)
- User Manual (this document)
Setup and Installation
- Unpacking: Carefully remove the unit and all accessories from the packaging. Retain packaging for future storage or transport.
- Placement: Place the unit on a firm, level surface. Ensure there is at least 30 cm (12 inches) of clear space around the unit for proper air circulation. The unit is equipped with wheels for easy movement.
Figure 3: Side view of the Milan 9K unit, illustrating its compact footprint and integrated wheels for portability.
- Exhaust Hose Installation:
- Attach one end of the exhaust hose to the air outlet on the back of the unit.
- Attach the other end of the exhaust hose to the window kit adapter.
- Window Kit Installation:
The included window kit allows for easy installation without drilling. Extend the adjustable window seal plate to fit your window opening. Secure the exhaust hose adapter into the opening of the window kit.
Note: For optimal performance, minimize the length and bends in the exhaust hose to ensure efficient hot air expulsion.
- Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the power supply matches the specifications listed on the unit's rating label.
Operating Instructions
The Milan 9K can be controlled via its digital touch panel, the included remote control, or the Wood's app on your smartphone.

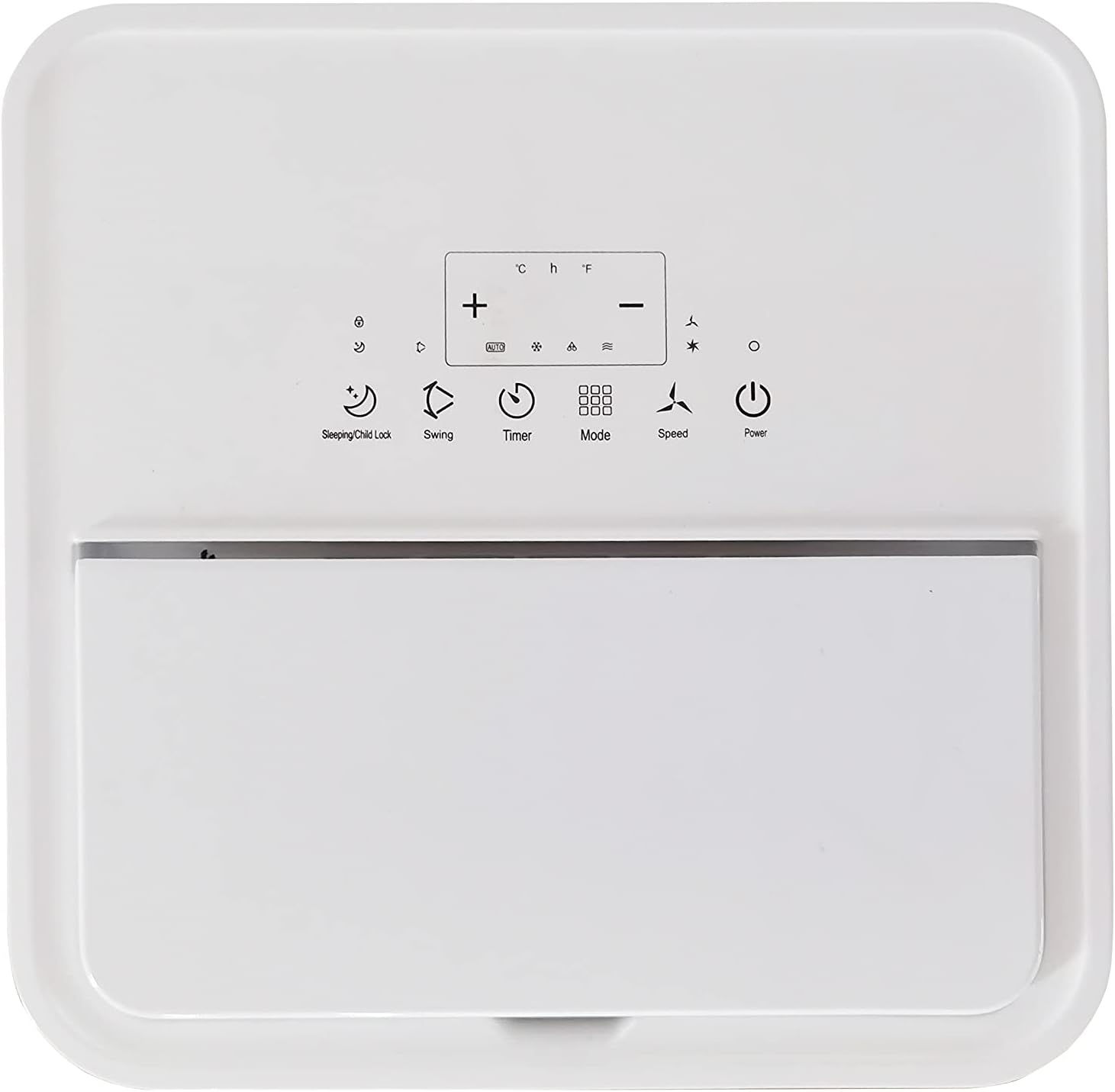

Figure 4: Close-up of the digital touch control panel located on the top of the Milan 9K unit.
Control Panel and Remote Control Functions:
| Button/Indicator | Description |
|---|---|
| Power (⏻) | Turns the unit ON or OFF. |
| Mode (☰) | Cycles through operating modes: Cool, Fan, Dehumidify (if available). |
| Speed (⇋) | Adjusts fan speed: Low, Medium, High. |
| Timer (⏰) | Sets the auto-on or auto-off timer (1-24 hours). |
| Swing (⟳) | Activates or deactivates the automatic louver swing for wider air distribution. |
| Sleeping/Child Lock (😴/👶) | Activates sleep mode for quieter operation or locks the control panel to prevent accidental changes. |
| Temperature Up (+) / Down (-) | Adjusts the desired temperature setting. |
| °C / °F | Switches temperature display between Celsius and Fahrenheit. |
Wi-Fi Connectivity and App Control:
The Wood's Milan 9K is Wi-Fi enabled, allowing control via the Wood's smartphone app (available for Android and iPhone). The app also provides real-time information on room temperature and humidity.
- Download the "Wood's" app from your device's app store.
- Follow the in-app instructions to connect your Milan 9K unit to your home Wi-Fi network.
- Once connected, you can control the unit remotely and integrate it with voice assistants like Alexa and Google Assistant.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioning unit.
Cleaning the Dust Filter:
The Milan 9K has a built-in dust filter that should be cleaned regularly (every two weeks or more often depending on usage and air quality).
- Unplug the unit from the power outlet.
- Locate the filter access panel (usually at the back or side of the unit).
- Remove the dust filter.
- Clean the filter using a vacuum cleaner or wash it gently with warm water and mild detergent. Rinse thoroughly.
- Allow the filter to air dry completely before reinserting it into the unit.
- Close the filter access panel.
Draining Accumulated Water:
During the cooling process, moisture is removed from the air and collects inside the unit. The unit may have an internal reservoir or a continuous drain option.
- Manual Drainage: When the internal water tank is full, the unit may stop operating and display an indicator. Place a shallow pan or tray under the drain port (usually at the bottom rear of the unit) and remove the drain plug to empty the water. Replace the plug securely after draining.
- Continuous Drainage: For continuous operation in high humidity, attach the provided drain hose to the continuous drain port and direct the other end to a suitable drain or container.
Cleaning the Unit Exterior:
Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals, abrasives, or solvents, as these can damage the surface.
Storage:
If storing the unit for an extended period:
- Drain all accumulated water from the unit.
- Clean the dust filter.
- Run the unit in fan-only mode for a few hours to dry the internal components.
- Unplug the power cord and coil it neatly.
- Store the unit in a dry, cool place, preferably in its original packaging.
Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply; Power cord not plugged in; Circuit breaker tripped. | Check power outlet; Ensure plug is fully inserted; Reset circuit breaker. |
| Unit does not cool effectively. | Dust filter clogged; Exhaust hose not properly installed or blocked; Room size too large; Doors/windows open. | Clean dust filter; Check exhaust hose for kinks or blockages; Ensure room is within specified area (up to 26m²); Close all doors and windows. |
| Unit stops operating and displays "FL" (Full Water). | Internal water tank is full. | Drain the accumulated water from the unit. |
| Unit is noisy. | Unit not on a level surface; Obstruction in fan. | Ensure unit is on a flat, stable surface; Check for and remove any obstructions. |
| Remote control not working. | Batteries are dead or incorrectly inserted; Obstruction between remote and unit. | Replace batteries; Ensure line of sight to the unit's receiver. |
Specifications
Detailed technical specifications for the Wood's Milan 9K Air Conditioning Unit.
Figure 5: Dimensions of the Milan 9K unit, showing its height, depth, and width.
| Specification | Value |
|---|---|
| Brand | Wood's |
| Model Name | Milan 9K |
| Part Number | WAC904G |
| Product Dimensions (H x W x D) | 70 x 33.5 x 35 cm (approx. 34.8 x 35.5 x 70 cm) |
| Installation Type | Window (Portable) |
| Form Factor | Portable |
| Special Features | Wi-Fi Enabled, Google Assistant, Alexa Compatible |
| Filter Type | Dust Filter |
| Power Source | Corded Electric |
| Control Method | App, Remote, Touch Panel |
| Recommended Room Size | Up to 26m² |
Warranty and Support
The Wood's Milan 9K Air Conditioning Unit comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact Wood's customer service. Contact details can typically be found on the manufacturer's official website or on the product packaging.
When contacting support, please have your model number (Milan 9K) and part number (WAC904G) ready.
