1. Important Safety Information
Read all instructions carefully before using the appliance. Keep this manual for future reference.
- Always ensure the power supply matches the voltage specified on the rating label.
- Do not use the vacuum cleaner to pick up water or other liquids, flammable substances, or hot ashes.
- Unplug the appliance from the power outlet before cleaning or performing any maintenance.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Do not operate the vacuum cleaner with a damaged cord or plug.
- This appliance is for indoor use only.
2. Product Overview
The Hitachi CV-950F is a powerful 2100W pail can vacuum cleaner designed for efficient dry cleaning. It features a durable construction and a reusable cloth filter.
Key Components
- Main Unit (Motor Head and Dust Container)
- Hose
- Plastic Extension Wands
- Floor Nozzle
- Crevice Tool
- Dusting Brush
- Cloth Filter
Product Features
- High Power: 2100 Watts for strong suction.
- Durable Design: Pail can style for robust use.
- Reusable Cloth Filter: Easy to clean and maintain.
- Sturdy Carry Handle: For convenient portability.
- Extension Wands: Plastic extension wands for extended reach.
- Large Capacity: 18-liter dust container.
Figure 2.1: Main unit of the Hitachi CV-950F Pail Can Vacuum Cleaner.
3. Setup and Assembly
Follow these steps to assemble your vacuum cleaner before first use.
- Unpack Components: Carefully remove all parts from the packaging.
- Attach Hose: Insert the hose connector firmly into the suction inlet on the main unit.
- Assemble Extension Wands: Connect the plastic extension wands together.
- Attach Nozzle: Connect the desired nozzle (e.g., floor nozzle) to the end of the extension wand assembly.
- Secure Motor Head: Ensure the motor head is securely latched onto the dust container.
Video 3.1: This video demonstrates the assembly process of the Hitachi Pail Can Vacuum Cleaner, including attaching the hose and extension wands.

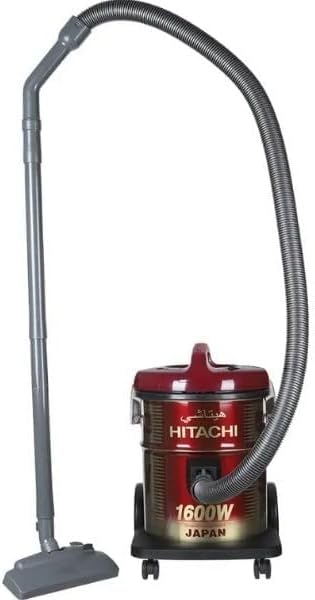

Figure 3.1: Hitachi CV-950F with hose and extension wand attached.
4. Operating Instructions
To operate your Hitachi vacuum cleaner:
- Plug In: Insert the power plug into a suitable electrical outlet (220V).
- Power On: Press the power button located on the motor head to turn on the vacuum cleaner.
- Vacuuming: Guide the floor nozzle or other attachments over the surface to be cleaned.
- Power Off: After use, press the power button again to turn off the appliance.
- Unplug: Disconnect the power plug from the outlet.
- Store: Store the vacuum cleaner and its accessories in a dry place.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
Emptying the Dust Container
- Ensure the vacuum cleaner is unplugged.
- Unlatch the clips on the sides of the main unit and lift off the motor head.
- Carefully remove the cloth filter.
- Empty the dust and debris from the container into a waste bin.
- Clean the inside of the dust container with a damp cloth if necessary.
Cleaning the Cloth Filter
- Remove the cloth filter as described above.
- Gently shake or tap the filter to dislodge accumulated dust.
- For a more thorough clean, the cloth filter can be hand-washed in lukewarm water. Allow it to air dry completely before reinserting.
- Do not use a washing machine or dryer for the cloth filter.
Cleaning Accessories
Wipe down the hose, wands, and nozzles with a damp cloth. Ensure they are dry before storage.
6. Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | No power supply. | Check if the plug is properly inserted and the power outlet is working. |
| Reduced suction power. | Dust container is full. | Empty the dust container. |
| Reduced suction power. | Filter is clogged. | Clean or replace the cloth filter. |
| Reduced suction power. | Hose or nozzle is blocked. | Remove any obstructions from the hose or nozzle. |
| Unusual noise during operation. | Foreign object in the fan or motor. | Turn off and unplug the unit. Inspect for foreign objects. If the noise persists, contact customer support. |
If the problem persists after checking these points, please contact customer support.
7. Specifications
Technical details for the Hitachi CV-950F Pail Can Vacuum Cleaner:
| Feature | Specification |
|---|---|
| Brand | Hitachi |
| Model Number | CV-950F |
| Power Consumption | 2100 Watts |
| Voltage | 220 Volts |
| Filter Type | Cloth Filter |
| Dust Container Capacity | 18 Liters |
| Noise Level | 75 dB |
| Item Weight | 8.6 kg |
| Recommended Surface | Hard Floors |
| Control Type | Push Button / Touch |
| Dimensions (L x W x H) | 42 cm x 33.5 cm x 54.5 cm |
8. Warranty and Support
This product comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
For technical assistance, spare parts, or service inquiries, please contact your local Hitachi authorized service center or the retailer where you purchased the product.
Keep your purchase receipt as proof of purchase for warranty claims.
