Introduction
This instruction manual provides essential information for the safe assembly, operation, and maintenance of your mDesign 14297MDCO 5-Drawer Dresser. Please read this manual thoroughly before assembly and retain it for future reference.
Image: The mDesign 14297MDCO 5-Drawer Dresser in Charcoal, featuring a black metal frame and five gray fabric drawers, with a decorative plant and picture frame on top.
Safety Information
- Read all instructions: Ensure you understand all assembly steps before beginning.
- Adult Assembly Required: This product requires adult assembly.
- Keep children away: During assembly, keep small children and pets away from the work area and small parts.
- Tip-over prevention: For safety, it is highly recommended to secure the dresser to a wall using appropriate anti-tip hardware (if included or purchased separately) to prevent accidental tipping.
- Weight limits: Do not overload drawers or the top surface. Refer to specifications for weight capacities.
- Proper placement: Place the dresser on a flat, stable, and level surface.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Steel Frame Components
- MDF Wood Top Panel
- Fabric Drawers (5 units)
- Drawer Handles
- Adjustable Feet
- Assembly Hardware (screws, wrench, etc.)
Setup and Assembly Instructions
Follow these steps carefully for proper assembly. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
- Assemble the Steel Frame: Connect the steel frame components according to the diagram. Ensure all connections are secure but do not overtighten screws until the frame is fully assembled.
- Attach Adjustable Feet: Screw the adjustable feet into the bottom of the assembled steel frame. These can be adjusted later to level the dresser.
- Install MDF Wood Top: Place the MDF wood top panel onto the top of the steel frame and secure it using the provided hardware.
- Prepare Fabric Drawers: Insert the bottom panel into each fabric drawer and attach the drawer handles.
- Insert Drawers: Slide the assembled fabric drawers into their designated slots within the steel frame.
- Final Adjustments: Once fully assembled, gently tighten all screws. Adjust the feet as needed to ensure the dresser is stable and level.
Image: Close-up details of the dresser's construction, highlighting the strong steel frame, durable fabric of the drawers, and the adjustable feet for stability.
Image: A close-up view of an attached black handle on a gray fabric drawer, illustrating the design and attachment point.
Operating Instructions (Usage)
- Drawer Use: Gently pull and push the fabric drawers using the handles. Avoid forcing drawers, especially if they feel stuck, to prevent damage.
- Storage: Utilize the five drawers for organizing clothing, accessories, linens, or other household items. The top surface can hold lamps, books, or decorative items.
- Placement: This dresser is suitable for various rooms including bedrooms, nurseries, playrooms, entryways, and closets. Its compact design makes it ideal for smaller spaces.
Image: The mDesign 5-Drawer Dresser positioned in a bedroom, next to a window with curtains, showcasing its functional use with a lamp, clock, and decorative items on its top surface.
Maintenance and Care
- Cleaning the Frame and Top: Wipe the steel frame and MDF wood top with a dry cloth. For light spills, a slightly damp cloth can be used, followed by immediate drying.
- Cleaning Fabric Drawers: The fabric drawers can be spot cleaned with a damp cloth and mild soap if necessary. Allow them to air dry completely before reinserting. Do not machine wash or tumble dry.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and materials.
- Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dresser is wobbly or uneven. | Uneven floor surface; feet not properly adjusted. | Adjust the leveling feet at the bottom of the frame until the dresser is stable. Ensure all frame connections are tight. |
| Drawers do not slide smoothly. | Drawer bottom not fully inserted; drawer overloaded; frame slightly misaligned. | Ensure the bottom panel is fully inserted into the fabric drawer. Reduce drawer contents if overloaded. Check frame alignment and retighten screws if needed. |
| Missing parts or damaged components. | Manufacturing defect or shipping damage. | Do not proceed with assembly. Contact mDesign customer support immediately for assistance. |
Specifications
- Model: 14297MDCO
- Brand: mDesign
- Dimensions (Overall): 33.75" W x 11.38" D x 32.8" H (85.8 cm W x 28.9 cm D x 83.3 cm H)
- Color: Charcoal
- Material: Alloy Steel (frame), MDF Wood (top), Non-woven Synthetic Fabric (drawers)
- Item Weight: Approximately 23.8 pounds (10.8 kg)
- Assembly Required: Yes
- Product Care: Wipe with Dry Cloth (frame/top), Spot clean (drawers)
- Number of Drawers: 5

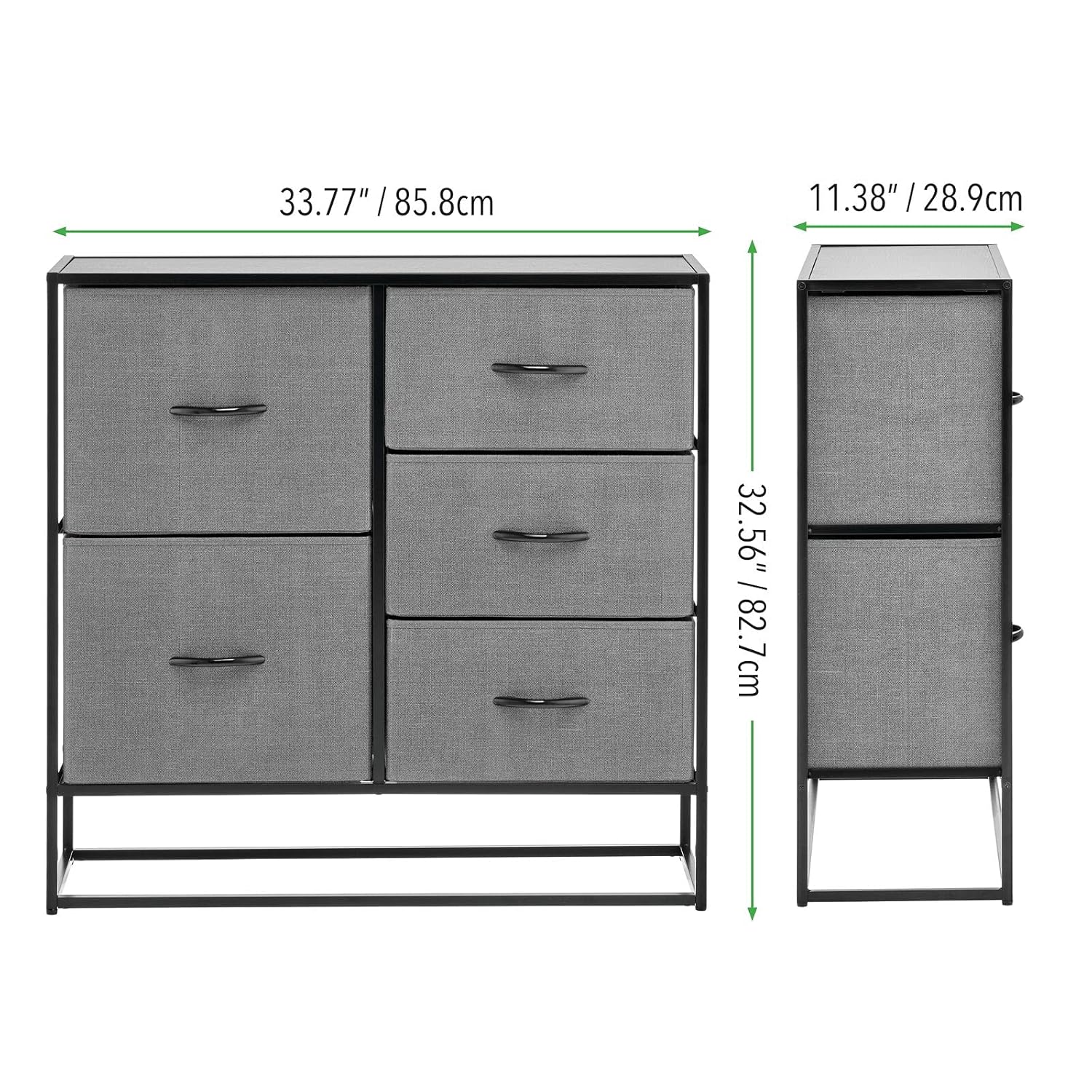

Image: A technical drawing illustrating the precise dimensions of the mDesign 5-Drawer Dresser, including width (33.77 inches / 85.8 cm), depth (11.38 inches / 28.9 cm), and height (32.56 inches / 82.7 cm).
Warranty and Support
Specific warranty details for this product may vary. Please refer to your purchase documentation or the retailer's website for the most accurate warranty information.
For product support, missing parts, or any questions regarding your mDesign 14297MDCO 5-Drawer Dresser, please contact mDesign customer service directly through their official website or the retailer from whom you purchased the product.
