Introduction
This manual provides essential information for the installation, operation, and maintenance of your DL-pro Aquastop Safety Inlet Hose. This hose is designed to prevent water damage by automatically shutting off the water supply in case of an internal leak. Please read these instructions carefully before installation and retain them for future reference.
Image: The DL-pro Aquastop Safety Inlet Hose, illustrating its connection points to a water tap and a dishwasher. Key specifications like 3/4 inch connection and 2.19m length are highlighted.
Setup and Installation
The DL-pro Aquastop Safety Inlet Hose is a replacement part for dishwashers. Installation typically involves replacing an existing inlet hose. Always ensure the main water supply is turned off and the appliance is disconnected from power before beginning installation.
- Preparation: Turn off the main water supply to your dishwasher. Disconnect the dishwasher from the electrical outlet.
- Remove Old Hose: Carefully disconnect the old inlet hose from both the water tap and the dishwasher's water inlet valve. Be prepared for residual water to drain.
- Connect to Water Tap: Attach the 3/4 inch screw connection of the new DL-pro Aquastop hose to your water tap. Ensure the connection is hand-tightened, then use a wrench to tighten it an additional quarter turn. Do not overtighten.
- Connect to Dishwasher: Connect the other end of the Aquastop hose to the water inlet valve on your dishwasher. This connection also requires careful tightening to prevent leaks.
- Electrical Connection: The Aquastop unit includes an electrical connection. This must be properly connected to the dishwasher's internal wiring as per your dishwasher's specific service manual. If you are unsure, consult a qualified technician.
- Check for Leaks: Slowly turn on the main water supply and visually inspect all connections for any signs of leakage.
- Restore Power: Once all connections are secure and leak-free, reconnect the dishwasher to the electrical outlet.
For detailed instructions on accessing your dishwasher's internal components or specific wiring, refer to your appliance's original service manual.
Image: A detailed view of the DL-pro Aquastop Safety Inlet Hose, highlighting the electrical wiring and the water inlet valve for connection to the appliance.
Operation
The DL-pro Aquastop Safety Inlet Hose operates automatically. Once correctly installed and connected to the water and electrical supply, it continuously monitors for internal leaks within the hose. In the event of a leak, the Aquastop mechanism will automatically shut off the water supply to prevent flooding. No manual intervention is required for its safety function during normal operation.
Maintenance
To ensure the longevity and proper functioning of your Aquastop safety inlet hose, consider the following maintenance guidelines:
- Regular Inspection: Periodically inspect the entire length of the hose for any visible signs of wear, kinks, cracks, or damage. Check connections for any drips or moisture.
- Filter Cleaning: Some water inlet valves or taps may have a filter screen. If your dishwasher experiences reduced water flow, check and clean this filter as per your dishwasher's manual.
- Avoid Kinks: Ensure the hose is not bent or kinked, as this can restrict water flow or damage the hose over time.
- Winterization (if applicable): If your appliance is in an area subject to freezing temperatures, ensure the water supply to the hose is drained and disconnected to prevent damage from freezing water.
Troubleshooting
If you encounter issues with your dishwasher's water supply after installing the Aquastop hose, consider the following:
- No Water Supply:
- Ensure the water tap connected to the hose is fully open.
- Check for any kinks or blockages in the hose.
- Verify that the electrical connection to the Aquastop unit is secure and receiving power.
- Dishwasher Error Code (e.g., E02): Some dishwashers display error codes related to water inlet issues. Consult your dishwasher's manual for the specific meaning of the code. If the code indicates a water supply problem, follow the steps above.
- Aquastop Triggered (No Water, but tap is open): If the Aquastop unit has activated and shut off the water, it indicates a detected leak within the hose. In this scenario, the hose cannot be reset and must be replaced.
- Leakage at Connections: If you observe water leaking from the connections, turn off the water supply immediately. Re-tighten the connections, ensuring the rubber seals are correctly seated and not damaged. If leakage persists, the seals or hose may be faulty and require replacement.
Specifications
| Feature | Detail |
|---|---|
| Total Length | 2.19 meters |
| Connection Screw | 3/4 inch |
| Material | Polypropylene (PP) |
| Maximum Pressure | 10 Bar |
| Electrical Rating (Type 100390) | 5A, 220-240V ~ 50-60 Hz, 6VA |
| Electrical Rating (Type 1ES-L) | 220-240V ~ 50-60Hz, 8VA |
| Color | Grey/Red/White |
| Specific Product Use | Used in dishwashers, washing machines, and dryers |
Compatibility
This DL-pro Aquastop Safety Inlet Hose is compatible with a wide range of dishwashers from various manufacturers. Key compatible brands and original part numbers include:
- Arçelik, Arctic, Altus, Beko, Blomberg: Replaces part numbers such as 1885090400 (and its predecessors 1885090100, 1760360200, 1760360100).
- Bauknecht, Ignis, Philips, Whirlpool, Ikea: Replaces part numbers such as 481253029201 (and its predecessors 482000004937, 481253029416, 481253029014).
- Indesit, Ariston, Hotpoint, Scholtès: Replaces part numbers such as C00588407 (and its predecessors C00557377, C00409026, C00405613).
- Amica: Replaces part numbers such as 1032070, 1009009.
- Fagor: Replaces part numbers such as AS0039193.
A comprehensive list of compatible appliance models and brands is provided in the images below. Please compare the model numbers of your appliance with the lists to ensure compatibility. If you are uncertain about compatibility, please contact DL-pro customer service.

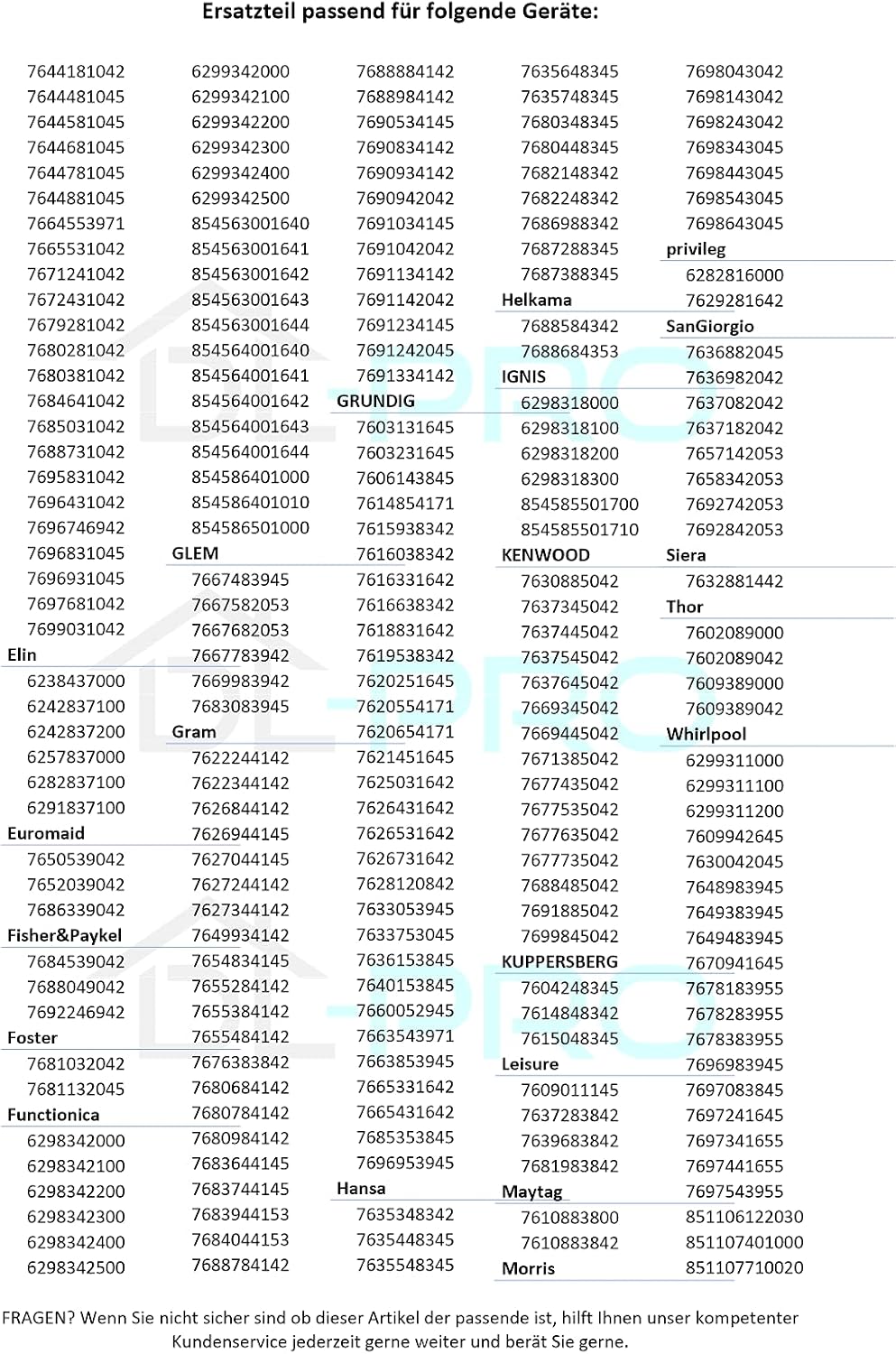

Image: Part 1 of the compatibility list, detailing model numbers for various brands.
Image: Part 2 of the compatibility list, showing additional brands and model numbers.
Image: Part 3 of the compatibility list, with more brands and their corresponding model numbers.
Image: Part 4 of the compatibility list, providing further compatible models.
Image: Part 5 of the compatibility list, completing the extensive list of compatible appliances.
Support and Warranty
DL-pro is committed to providing high-quality replacement parts. While specific warranty details are not provided in this document, DL-pro products are designed for durability and reliability. If you have questions regarding installation, compatibility, or require assistance with your DL-pro Aquastop Safety Inlet Hose, please contact DL-pro customer service. They are available to help ensure you find the correct part and resolve any issues.
