Introduction
Thank you for choosing the TOOLPORT Forest Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your 3x3m gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: The TOOLPORT Forest Gazebo with its cream sidewalls open, providing a shaded area for outdoor furniture.
Safety Instructions
- Ensure the gazebo is installed on a foundation that can withstand winter temperatures.
- While the roof can withstand a certain snow load, it is recommended to remove accumulated snow promptly from the gazebo.
- Always ensure proper assembly and secure anchoring to the ground for stability and safety. Follow all provided assembly instructions carefully.
- Do not use abrasive cleaners, sharp tools, or hard brushes on the hardtop roof.
- In strong winds or severe weather conditions, it is advisable to secure the sidewalls or temporarily remove them to prevent damage.
Package Contents
Before starting assembly, verify that all components are present and undamaged. The package includes:
- Weather-resistant aluminum posts with realistic wood optic finish.
- Galvanized steel hardtop roof panels.
- Four (4) sidewalls, including attachment hooks.
- Eight (8) ground anchors for secure fastening.
- Detailed assembly instructions.
- All necessary hardware for assembly (screws, bolts, etc.).
Setup Instructions
Assembly is straightforward due to pre-drilled profiles and a high-quality connection system. Approximately 4 hours are required for two people to assemble the gazebo.
- Prepare the Site: Choose a level and stable area for the gazebo. Ensure adequate clearance around the structure.
- Unpack Components: Carefully unpack all parts and lay them out, checking against the parts list in the detailed assembly manual.
- Assemble the Frame: Begin by connecting the main support posts and crossbeams according to the provided diagrams. The square profiles are approximately 90 x 90 mm.
- Install Roof Structure: Attach the roof support beams to the main frame.
- Mount Roof Panels: Secure the galvanized steel roof panels to the roof structure. Ensure they are properly aligned and watertight.
- Attach Sidewalls: Hang the four sidewalls using the provided attachment hooks. Ensure they can be easily opened and closed.
- Secure to Ground: Use the eight ground anchors to firmly secure the gazebo to the foundation. This is crucial for stability.
Image: Close-up of the gazebo post base plate, illustrating the secure ground connection.
Image: Interior view of the gazebo's robust roof structure and central connection point.
Operating Instructions
The TOOLPORT Forest Gazebo is designed for year-round outdoor use, providing protection from various weather conditions.
- Sidewall Usage: The four included sidewalls can be opened or closed as needed to provide privacy, shade, or protection from wind and light rain. Use the attachment hooks to secure them.
- Weather Protection: The galvanized steel roof is 100% waterproof, allowing the gazebo to remain outdoors throughout the year without needing to be dismantled.
- Sun Protection: The roof and sidewalls offer UV protection (50 NL), creating a comfortable shaded area.

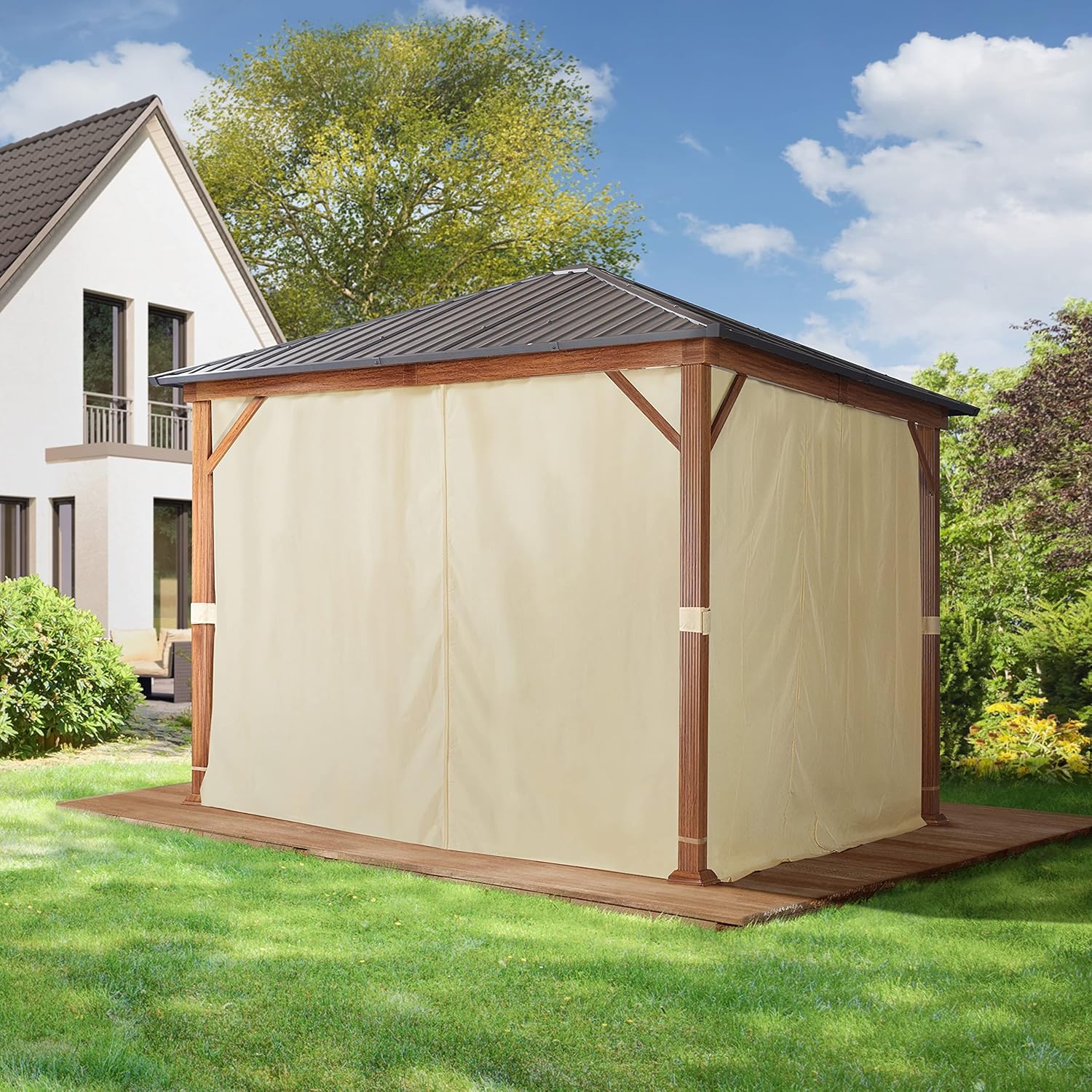

Image: The gazebo with all sidewalls closed, offering complete enclosure and privacy.
Image: Detail of a hand attaching a sidewall to the gazebo frame.
Maintenance
Regular maintenance will ensure the longevity and appearance of your gazebo.
- Roof Cleaning: Keep the hardtop roof clean. Remove dirt immediately with a soft sponge, mild soap, and lukewarm water. Do not use abrasive cleaners, sharp tools, or hard brushes.
- Frame Care: The steel and aluminum frame is weather-resistant and low-maintenance. Unlike wood, it does not require sanding, varnishing, or painting. Periodically wipe down the frame with a damp cloth to remove dust and dirt.
- Sidewall Care: Clean sidewalls with mild soap and water. Ensure they are completely dry before storing or folding to prevent mildew.
- Winter Care: While the roof can withstand some snow, it is recommended to remove heavy snow accumulation to prevent structural stress.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable. | Improper anchoring; loose connections. | Ensure all ground anchors are securely fastened. Check and tighten all bolts and screws on the frame. Verify the foundation is level. |
| Water leakage from roof. | Roof panels not properly sealed or installed. | Inspect roof panel overlaps and connections. Ensure all screws are tight and panels are correctly aligned. Apply a suitable sealant if necessary. |
| Sidewalls do not hang correctly. | Incorrect attachment; damaged hooks. | Verify sidewalls are attached to the correct hooks. Check hooks for damage and replace if needed. |
| Difficulty during assembly. | Missing parts; incorrect step sequence. | Refer to the detailed assembly manual and parts list. Ensure all parts are present. Follow the step-by-step instructions precisely. Contact customer support if parts are missing or damaged. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | Forest |
| Product Dimensions (L x W x H) | 3L x 3W x 2.75H meters (300 x 300 x 275 cm) |
| Weight | 148 Kilograms |
| Color | Cream (sidewalls), Wood Optic (frame), Dark Grey (roof) |
| Material | Aluminum Alloyed Steel (frame), Galvanized Steel (roof) |
| Frame Material | Metal (Aluminum Alloyed Steel) |
| Water Resistance Level | Waterproof (100% for roof) |
| UV Protection | 50 NL |
| Shape | Square |
| Assembly Required | Yes |
| Manufacturer | TOOLPORT |
Image: Dimensional diagram of the gazebo, indicating overall height, entry height, and base dimensions.
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact TOOLPORT customer service directly. TOOLPORT is committed to providing quality products and support.
If you encounter any issues or have questions regarding your gazebo, please visit the official TOOLPORT website or contact their customer support team. You can often find contact details on the product packaging or the brand's Amazon store page: TOOLPORT Store on Amazon.nl.
