Introduction
The Moman Power 99 V-Mount Battery is a compact and powerful solution designed for professional filmmakers and content creators. With a 99Wh capacity, it offers extended power for various camera equipment, including camcorders, monitors, LED lights, and mobile devices. Its versatile output options and portable design make it an ideal choice for on-the-go shooting and travel.

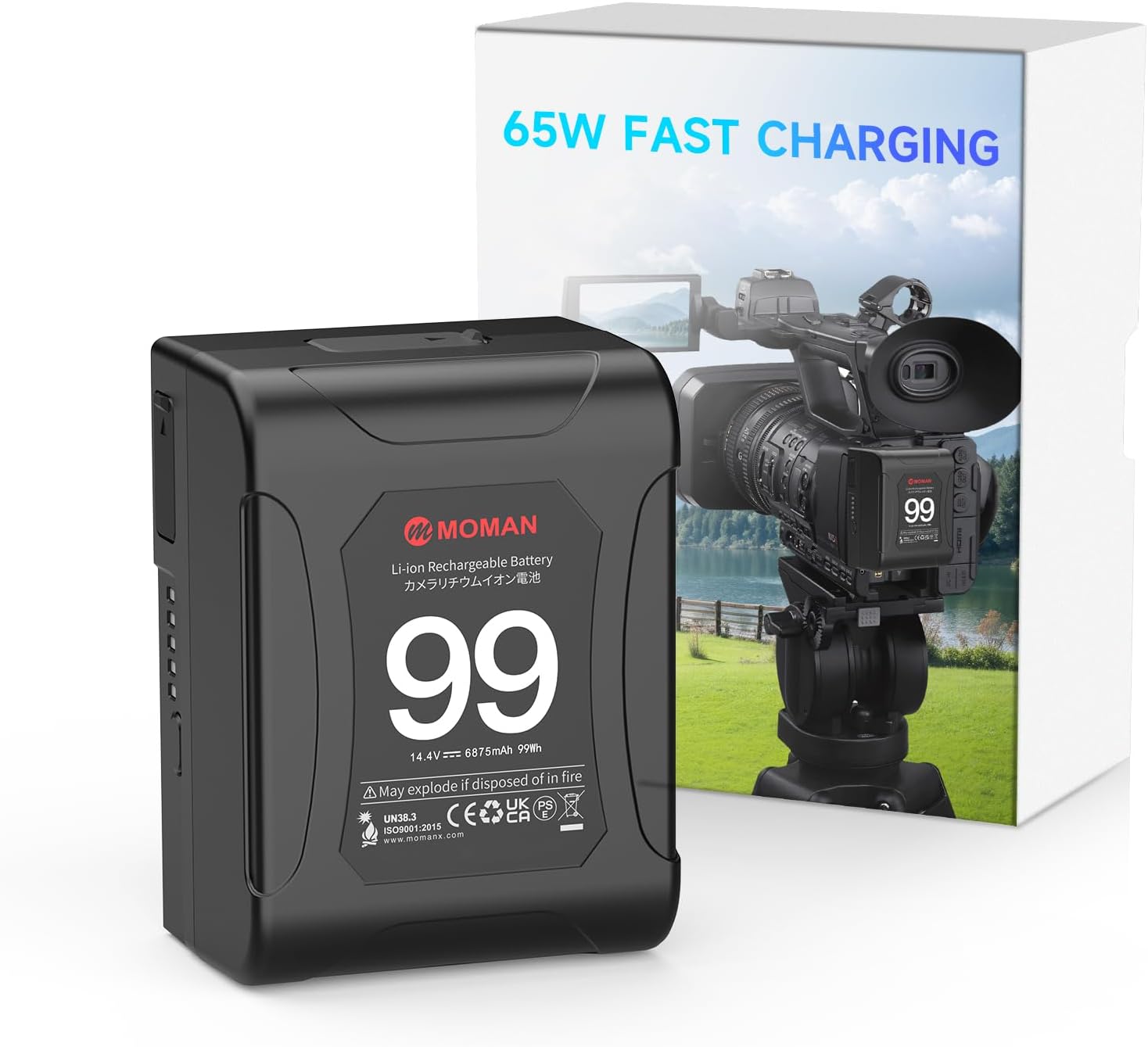

Figure 1: Moman Power 99 V-Mount Battery and its packaging, highlighting 65W fast charging capability.
Key Features
- Compact and Portable Design: Weighing only 1.17 pounds (530g) and measuring 2.87 x 1.93 x 3.94 inches, the Power 99 is palm-sized and designed for easy portability, making it suitable for air travel with its 99Wh capacity.
- High Power Output: Capable of delivering up to 200W with a 15A continuous current, ensuring stable power for multiple high-drain devices simultaneously.
- Versatile Output Ports: Equipped with two D-Tap ports, two USB-A ports, and a 65W USB-C port, allowing power delivery to a wide range of devices including cameras, monitors, smartphones, and laptops.
- 65W USB-C Quick Charge: Supports fast charging of the battery itself via USB-C, offering convenience and reducing the need for dedicated chargers. It also provides 65W output for charging compatible devices.
- Intelligent Battery Management System (BMS): Features a Unique Balance Cell Algorithm to maintain consistent voltage levels across battery cells during charging and discharging, extending the battery's lifespan up to 1000 cycles.
- Durable Construction: Built with high-quality materials including aluminum alloy, PPS, and ABS+PC housing, ensuring robustness and longevity.
Figure 2: Diagram illustrating the Intelligent Battery Management System (BMS) with protections against over-discharge, over-voltage, over-current, and over-temperature.
Figure 3: The Moman Power 99 supports up to 200W output with 15A continuous draw, powering various devices from laptops to LED lights.
Setup
Charging the Battery
The Moman Power 99 battery can be charged using three methods:
- Via USB-C: Connect a 65W Power Delivery (PD) compatible USB-C charger to the USB-C port on the battery. This is the most convenient method for quick charging.
- Via D-Tap: Use a compatible D-Tap charger and connect it to one of the D-Tap input/output ports on the battery.
- Via BP Mount: Attach the battery to a V-mount charging dock or plate that supports BP mount charging.
Ensure the charger's specifications match the battery's requirements for optimal and safe charging. The battery features an indicator to show the current charge level.
Figure 4: The Power 99 battery being charged via its 65W USB-C port, demonstrating its fast charging capability.
Figure 5: Overview of the Moman Power 99's multiple interfaces, including USB-A, USB-C, D-Tap, and BP mount, for both charging and power output.
Operating Instructions
Connecting Devices
The Moman Power 99 offers multiple output options to power your equipment:
- V-Mount: Attach the battery directly to any V-mount compatible device, such as professional camcorders, V-mount plates, or LED lights.
- D-Tap Ports: Use D-Tap cables to power accessories like field monitors, wireless video transmitters, or other D-Tap compatible devices. There are two D-Tap ports for simultaneous use.
- USB-C Port (65W Output): Connect USB-C compatible devices such as laptops (e.g., MacBook Pro), tablets, or modern smartphones for fast charging and power delivery.
- USB-A Ports: Utilize the two USB-A ports to charge or power standard USB devices like older smartphones, small LED lights, or other USB-powered accessories.
Always ensure that the voltage and power requirements of your devices are compatible with the battery's output specifications to prevent damage.
Figure 6: Detailed view of the Moman Power 99, highlighting its five output ports: two USB-A, one USB-C, and two D-Tap, along with the BP mount.
Figure 7: Examples of the Moman Power 99's versatile applications, including powering cameras, photographic lamps, laptops, and smartphones.
Maintenance
- Storage: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to keep the battery at approximately 50% charge.
- Cleaning: Use a soft, dry cloth to clean the battery's exterior. Avoid using harsh chemicals or abrasive materials.
- Charging Cycles: To maximize battery life, avoid fully discharging the battery frequently. Recharge it before it completely runs out of power.
- Avoid Physical Damage: Protect the battery from drops, impacts, and punctures. Do not disassemble the battery.
- Temperature: Operate and charge the battery within the recommended temperature range (typically 0°C to 40°C or 32°F to 104°F).
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Incorrect charger, loose connection, battery deeply discharged, charger malfunction. | Ensure charger is compatible and properly connected. Try a different charging method (USB-C, D-Tap, BP). If deeply discharged, try a trickle charge for a few minutes before full charge. |
| Device not powering on | Battery low/empty, incorrect cable, device power requirements exceed battery output, faulty device. | Check battery charge level. Ensure correct cable is used and securely connected. Verify device power draw is within battery limits (Max 200W, 15A). Test device with another power source. |
| Battery indicator not working | Minor software glitch, physical damage. | Press the power gauge button firmly. If the issue persists, contact customer support. |
| Battery overheating | Overload, charging in high temperature environment, internal fault. | Immediately disconnect the battery from all devices and chargers. Allow it to cool down in a well-ventilated area. Do not use if overheating persists. Contact customer support. |
Specifications
| Attribute | Detail |
|---|---|
| Model Number | Power 99 |
| Battery Capacity | 99Wh / 6875 Milliamp Hours |
| Battery Cell Composition | Lithium Ion |
| Product Dimensions | 2.87 x 1.93 x 3.94 inches (7.3 x 4.9 x 10 cm) |
| Item Weight | 1.17 pounds (530g) |
| Max Continuous Current | 15A |
| Max Power Output | 200W |
| USB-C Output/Input | 65W (Max) |
| D-Tap Output | 14.8V 216W (Max) |
| USB-A Output | 5V 2A (Max) |
| Recommended Uses | Cameras, Camcorders, Monitors, Wireless Transmitters, LED Lights, Smartphones |
Figure 8: The 99Wh capacity of the Moman Power 99 allows for multiple charges of various devices, including iPads, phones, laptops, cameras, GoPros, and wireless video cameras.
Figure 9: Comparison of Moman Power 99 specifications against other brands, highlighting its compact size, capacity, and cell balancing feature.
Warranty and Support
Moman offers comprehensive support for its products:
- 30-Day Refund: If you are not satisfied with your purchase, a 30-day refund option is available.
- 18-Month Replacement: The product is covered by an 18-month replacement policy for manufacturing defects.
- Customer Service: 24/7 professional online support is available for any inquiries or assistance.
For detailed warranty terms and to contact support, please refer to the official Moman website or the contact information provided with your product packaging.
