YOUHE Q70 Ultra-Compact 16GB Voice Recorder Instruction Manual

Introduction

This manual provides detailed instructions for the proper use and maintenance of your YOUHE Q70 Ultra-Compact 16GB Voice Recorder. Please read this manual thoroughly before using the device to ensure optimal performance and to prevent damage.

Product Features

• Extended Recording & Storage: Equipped with a 2600mAh lithium-ion battery, providing up to 500 hours of continuous recording on a full charge. Features 16GB of built-in memory, capable of storing up to 1138 hours of WAV format audio data.
• High-Quality Audio: Supports recording at bitrates from 32kbps to 384kbps, ensuring clear audio capture. Incorporates advanced noise-canceling technology and a high-performance 360-degree omnidirectional microphone with AGC (Automatic Gain Control) to reduce ambient noise.
• Easy Operation: One-touch recording activation by simply sliding a button.
• Voice Operated Recording (VOR): Automatically starts recording when sound is detected and pauses when silent, conserving memory and battery. Features 7 adjustable sensitivity levels for VOR.
• Universal Compatibility: Compatible with Windows and Mac computers. OTG (On-The-Go) function allows direct connection to Android smartphones for instant playback and file management. (Note: iPhone not supported via OTG).
• Compact & Discreet Design: Palm-sized (approximately 7cm in length) and lightweight, designed for portability and discreet use.
• Magnetic Attachment: Built-in strong magnets allow for easy and secure attachment to metallic surfaces, enabling discreet placement during recordings.
• Date & Time Stamp: Synchronize with your computer to accurately stamp recording files with the creation date and time for easy organization.
• Automatic Save: Automatically saves recording data when the battery level is critically low.

Figure 1: Overview of YOUHE Q70 Voice Recorder features, highlighting its long battery life, large storage, high-quality recording, and versatile functions.

Package Contents

Please check that all items are present in the package:

• YOUHE Q70 Voice Recorder
• USB Charging/Data Cable
• OTG Adapter (for Android connection)
• User Manual (this document)

Setup

1. Charging the Device

Before first use, fully charge the voice recorder. Connect the device to a computer's USB port or a USB wall adapter (not included) using the provided USB cable. The indicator light will show charging status (refer to device specific light behavior, usually red for charging, blue/off for full).

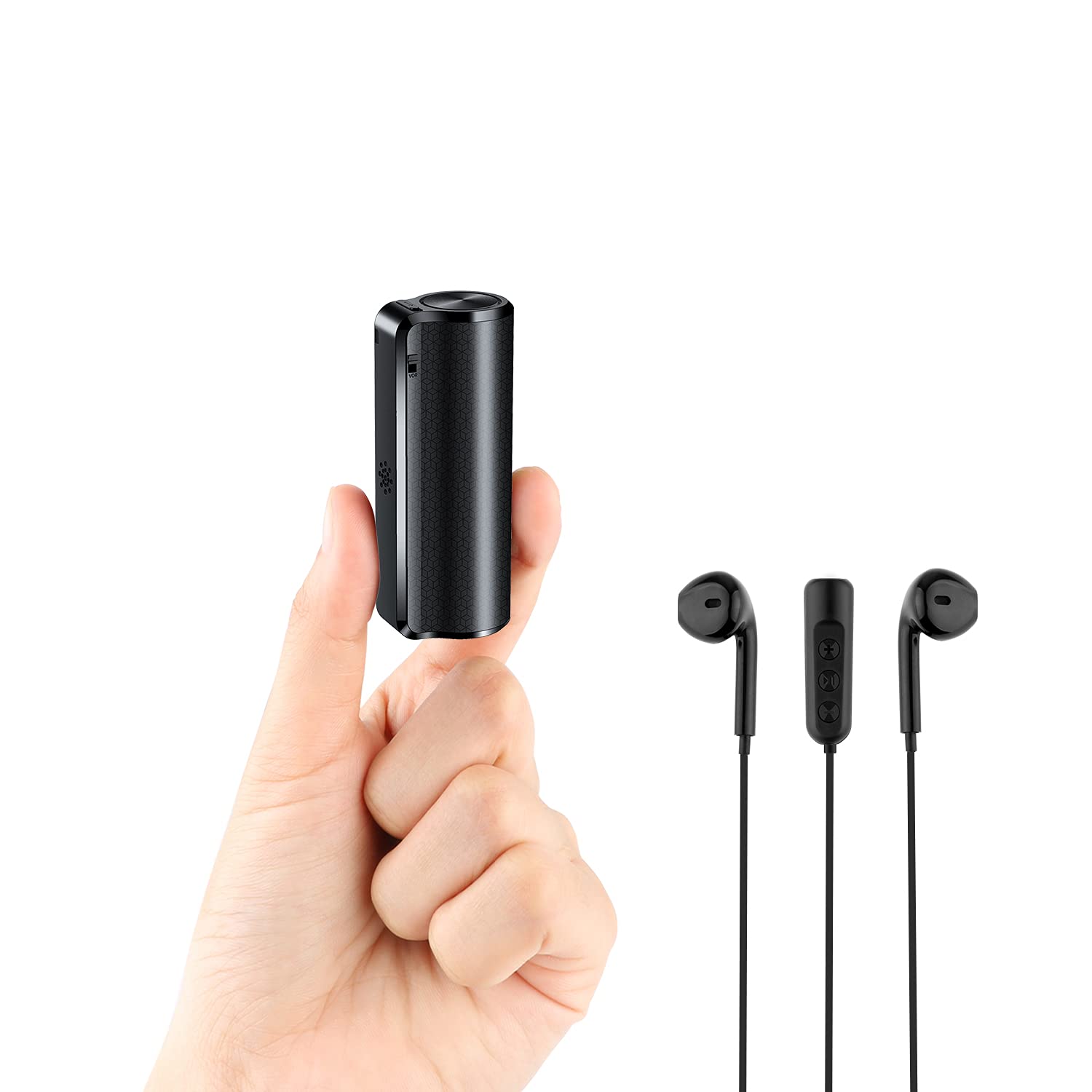

Figure 2: The YOUHE Q70 Voice Recorder, showing its compact design and charging port location.

2. Setting Date and Time (Windows/Mac)

To ensure accurate date and time stamps on your recordings, connect the recorder to your computer. The device will appear as a removable disk. Locate and run the time synchronization utility (usually a file named "SetTime.exe" or similar) on the device's storage. Follow the on-screen instructions to synchronize the device's clock with your computer's system time.

Operating Instructions

1. One-Touch Recording

To start recording, slide the power switch to the ON position. The device will begin recording automatically. To stop recording and save the file, slide the power switch to the OFF position. The recording will be saved as a WAV file.

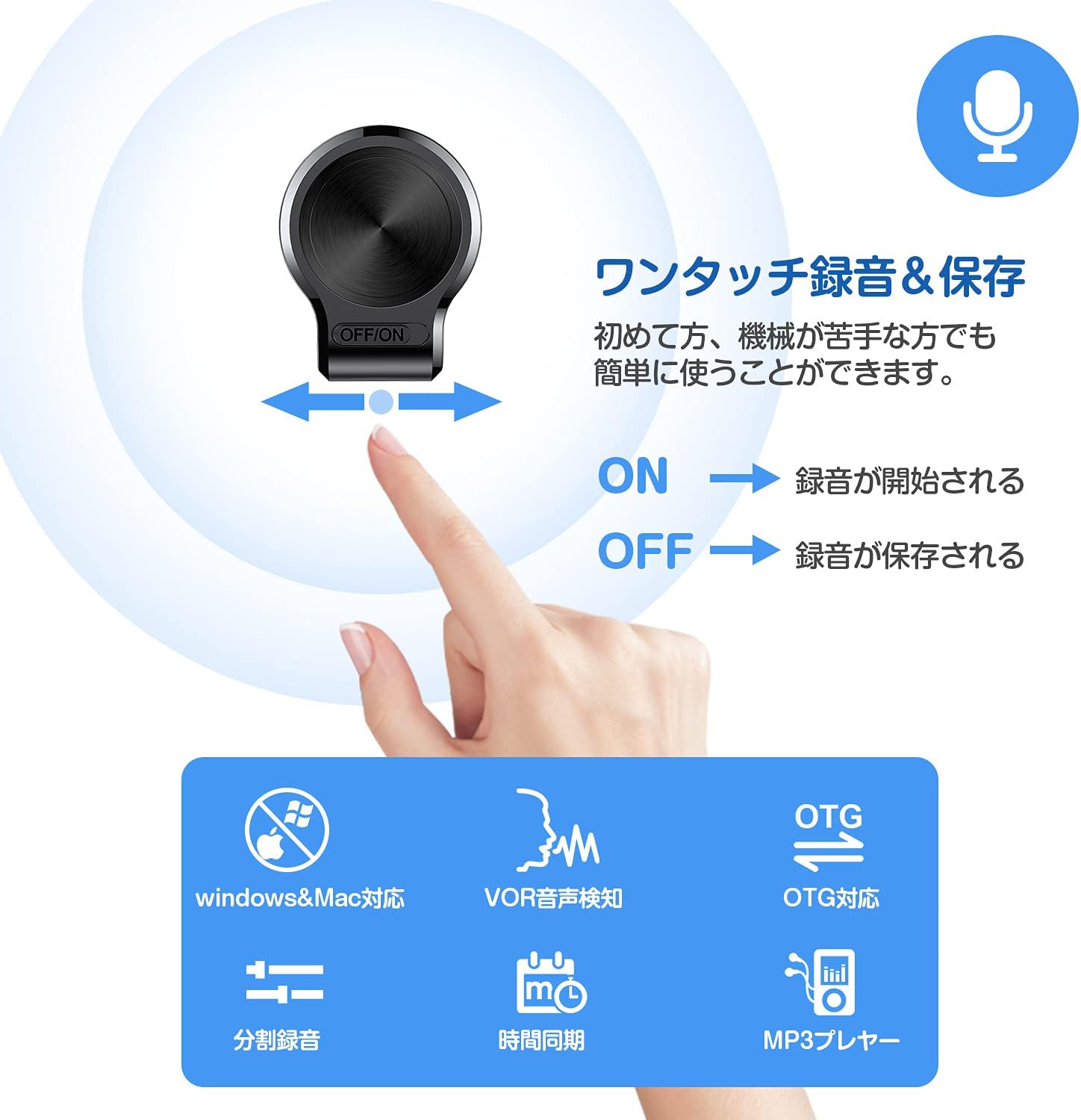

Figure 3: One-touch recording operation. Slide the switch to ON to start, and OFF to save and stop.

2. Voice Operated Recording (VOR)

The VOR function allows the recorder to start recording only when sound is detected, and pause when there is silence. This feature helps save storage space and battery life. To enable VOR, ensure the device is in recording mode and activate the VOR setting (refer to the device's configuration file or specific button if available, usually set via a configuration file when connected to PC). The sensitivity of VOR can be adjusted in 7 levels via the configuration file on a computer.

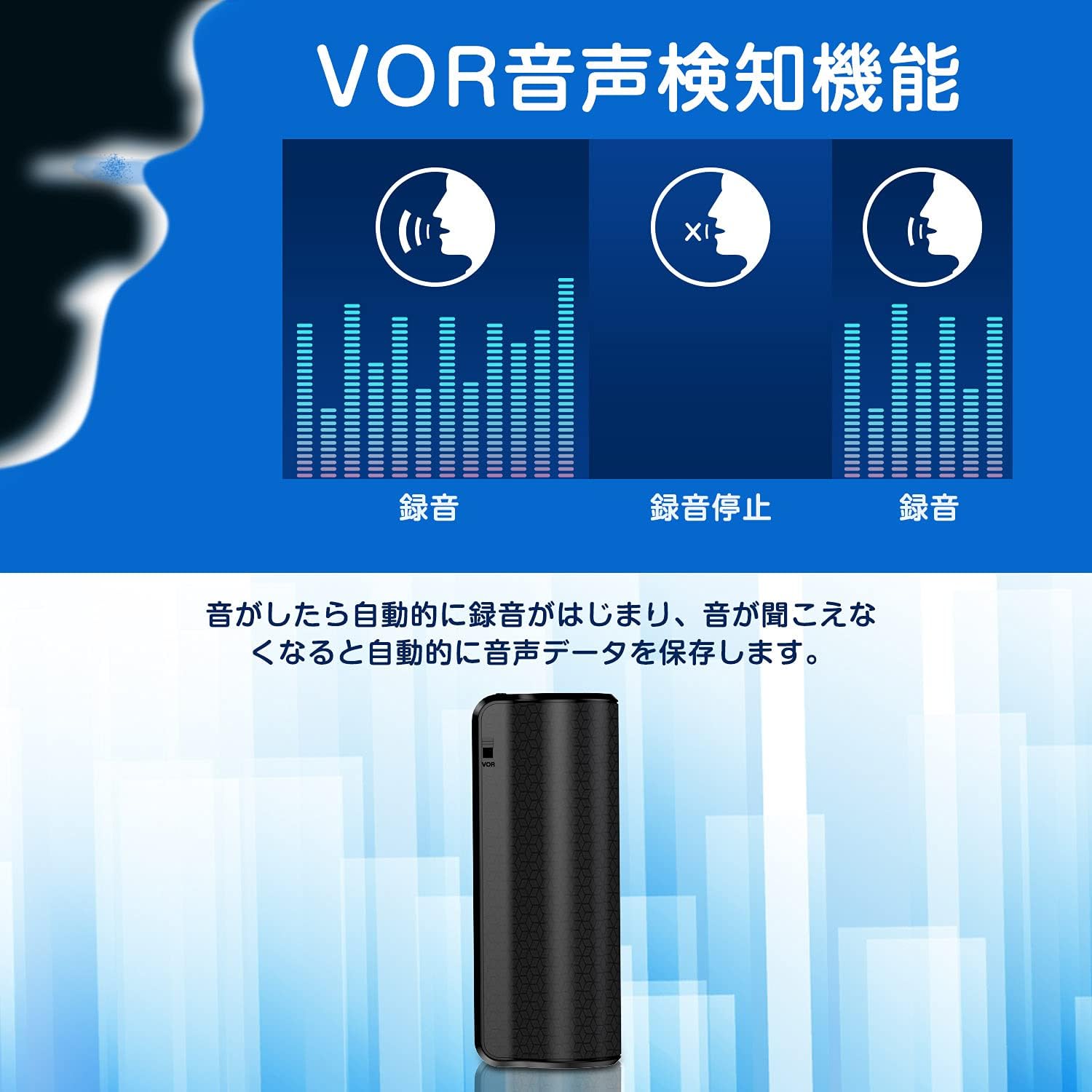

Figure 4: VOR function in action. Recording activates with sound and pauses during silence.

3. Connecting to Computer (Windows/Mac)

Connect the voice recorder to your computer using the provided USB cable. The device will be recognized as a removable storage device. You can then access the recorded WAV files, transfer them to your computer, or delete them. You can also manage device settings via a configuration file (e.g., setting VOR sensitivity, recording quality) found on the device's storage.

4. Connecting to Android Smartphone (OTG)

For Android smartphones that support OTG functionality, use the provided OTG adapter to connect the voice recorder directly to your phone. This allows you to play back, transfer, or delete recorded files directly from your smartphone. Note: iPhone devices are not supported via OTG.

Figure 5: Direct connection to an Android smartphone using the OTG adapter for file access.

5. Discreet Placement with Magnetic Attachment

The built-in magnets allow the recorder to be attached to various metallic surfaces for discreet recording. This is useful in settings like meetings, interviews, or lectures where the device needs to be inconspicuous.

Figure 6: Examples of magnetic attachment for discreet recording in various environments.

6. Recording Quality Settings

The recording quality can be adjusted between 32kbps and 384kbps. This setting is typically configured via a text file (e.g., "settings.txt" or similar) on the device when connected to a computer. Higher bitrates result in better audio quality but consume more storage space.

Figure 7: The YOUHE Q70 supports adjustable recording quality up to 384kbps for clear sound.

7. Split Recording

The device supports splitting long recordings into smaller files. This feature can be configured via a settings file when connected to a computer, allowing you to set the duration for each split file (e.g., 10 to 240 minutes).

Figure 8: Split recording feature, adjustable from 10 to 240 minutes per file.

Maintenance

• Keep the device dry. Avoid exposure to moisture or liquids.
• Clean the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Avoid extreme temperatures. Do not store the device in very hot or cold environments.
• Charge the device regularly, even if not in frequent use, to maintain battery health.
• Back up important recordings to your computer regularly to prevent data loss.

Troubleshooting

Specifications

• Model: Q70
• Brand: YOUHE
• Internal Storage: 16GB
• Recording Format: WAV
• Recording Bitrate: 32kbps - 384kbps (adjustable)
• Battery Capacity: 2600mAh Lithium-ion
• Continuous Recording Time: Up to 500 hours
• Standby Time: Up to 300 days
• Microphone: 360-degree Omnidirectional, Built-in
• Noise Reduction: AGC Noise Canceling Technology
• Connectivity: USB, OTG (for Android)
• Compatibility: Windows, Mac, Android (OTG)
• Dimensions: Approximately 7cm length (palm-sized)
• Features: One-touch recording, VOR (Voice Operated Recording) with 7 levels, Magnetic attachment, Date/Time stamp, Automatic save on low power.

Warranty and Support

For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official YOUHE website. Keep your purchase receipt as proof of purchase for warranty claims.
