1. Introduction
The DIGITNOW M203 35mm Slide and Film Negative Viewer is designed to enlarge and illuminate 35mm slides, film strips, and negatives, allowing for clear viewing of old memories. It features 3X magnification and bright LED lighting for detailed image presentation. The device is portable and can be powered by batteries or a USB cable.
2. Product Overview
Familiarize yourself with the components of your DIGITNOW M203 viewer.
Image 2.1: Labeled components of the DIGITNOW M203 Slide and Film Negative Viewer.
- Magnifying Lens: Provides 3X magnification for slides and film.
- Slide Input: Slot for inserting 2x2 inch mounted slides.
- Slide Output: Area where slides exit after viewing.
- Slide Output Tray: Collects ejected slides.
- Power Button: Activates or deactivates the LED illumination.
- Slide Eject Button: Releases the currently viewed slide into the output tray.
- Film Input: Slot for inserting 35mm film strips and negatives.
3. Setup
3.1 Powering the Device
The DIGITNOW M203 viewer can be powered by either 4 AA batteries or a USB cable.
3.1.1 Battery Operation
- Locate the battery compartment on the underside of the viewer.
- Open the battery compartment cover.
- Insert 4 AA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
Image 3.1: Battery compartment with 4 AA batteries installed.
3.1.2 USB Cable Operation
Alternatively, you can power the viewer using the included USB cable.
- Connect the small end of the USB cable to the power input port on the viewer.
- Connect the standard USB end to a USB power adapter (not included) or a computer's USB port.
Image 3.2: USB cable connected for power.
4. Operation
4.1 Viewing 2x2" Mounted Slides
- Ensure the viewer is powered on by pressing the power button. The LED light will illuminate.
- Gently insert a 2x2 inch mounted slide into the Slide Input slot at the top of the viewer.
- The slide will drop into position for viewing through the magnifying lens.
- To eject the slide, press and hold the Slide Eject Button until the slide fully drops into the Slide Output Tray.
- Repeat the process for additional slides. Ensure the output tray does not become overfilled to prevent slides from getting stuck.
Image 4.1: Inserting a 2x2 inch mounted slide.
Image 4.2: Pressing the slide eject button to release a slide.
4.2 Viewing 35mm Film Strips and Negatives
- Ensure the viewer is powered on.
- Carefully insert a 35mm film strip or negative into the Film Input slot on the side of the viewer.
- Gently slide the film strip across the illuminated viewing area to examine different frames.
- Remove the film strip by pulling it out from either side of the slot.
Image 4.3: Inserting a 35mm film strip for viewing.
4.3 Product Demonstration Video
Video 4.1: This video demonstrates the ease of use of the DIGITNOW M203 viewer, showing how to insert batteries, turn on the device, and view both 2x2 inch mounted slides and 35mm film negatives. It highlights the 3X magnification and LED illumination.
5. Maintenance
- Keep the viewer clean by wiping it with a soft, dry cloth.
- Avoid using abrasive cleaners or solvents, as these can damage the lens or casing.
- If the magnifying lens becomes dusty, use a lens cleaning brush or a microfiber cloth specifically designed for optics.
- When not in use for extended periods, remove the batteries to prevent leakage.
6. Troubleshooting
- No Power/LED not lighting up:
- Check if batteries are inserted correctly with proper polarity.
- Replace old batteries with new ones.
- Ensure the USB cable is securely connected to both the viewer and a working power source.
- Image appears dim or unclear:
- Ensure the LED light is on.
- Clean the magnifying lens if it appears dusty or smudged.
- Verify that the slide or film is correctly positioned in the viewing area.
- Slides getting stuck during ejection:
- Ensure the Slide Eject Button is pressed fully.
- Check if the Slide Output Tray is overfilled. Remove previously viewed slides.
- Inspect slides for any damage or warping that might impede smooth ejection.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | M203 |

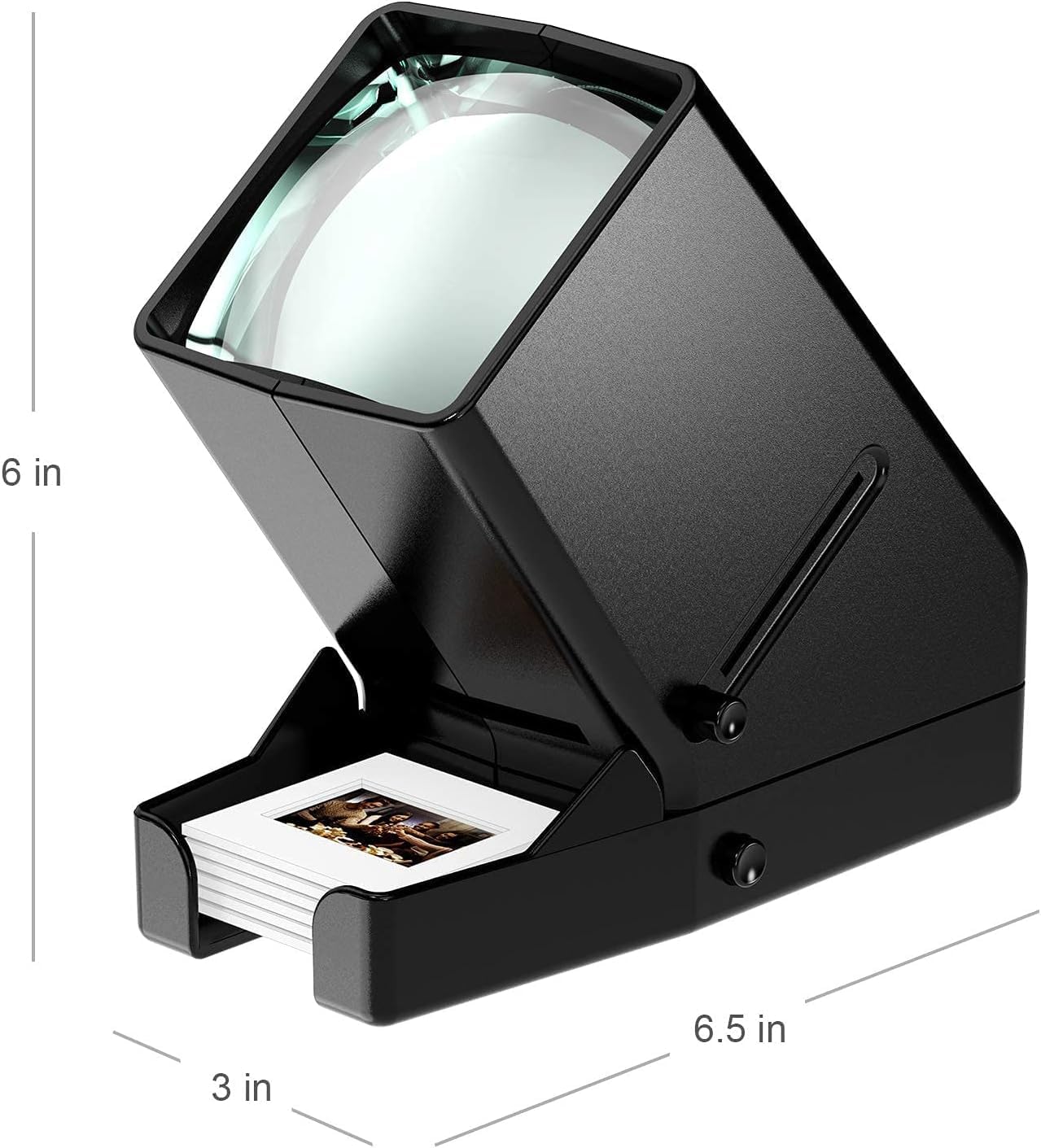

| Product Dimensions | 6.5 x 3 x 6 inches |
| Item Weight | 1.57 pounds |
| Scanner Type | Film |
| Brand | DIGITNOW |
| Connectivity Technology | USB |
| Resolution | 10000 (Note: This refers to the internal sensor resolution, not output resolution for viewing) |
| Minimum System Requirements | Windows 7 (for potential scanning functionality, though this is a viewer) |
| Maximum Media Size | 2x2 inches (for mounted slides) |
| Power Source | 4 AA Batteries (included) or USB Cable |
8. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or contact DIGITNOW customer service directly. Contact details can typically be found on the manufacturer's website or on the product packaging.
