Güde Inverter Generator ISG 3200-2 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Güde Inverter Generator ISG 3200-2. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

The Güde ISG 3200-2 inverter generator is designed for various applications, including gardening, recreational activities, and camping. Its inverter technology makes it suitable for powering sensitive electronic devices such as laptops and mobile phones.

Figure 1: Güde Inverter Generator ISG 3200-2 in an outdoor camping setting, demonstrating its portability and suitability for various outdoor activities.

2. Safety Instructions

Always observe the following safety precautions to prevent personal injury or damage to the generator:

• Read the entire manual: Familiarize yourself with the controls and proper use of the equipment.
• Outdoor use only: Operate the generator in a well-ventilated area to avoid carbon monoxide poisoning. Never operate indoors.
• Fuel handling: Refuel in a well-ventilated area with the engine off and cool. Do not smoke or use open flames near fuel.
• Electrical safety: Do not operate in wet conditions. Ensure all connections are secure and properly grounded.
• Overload protection: The generator features automatic shutdown in case of overload. Do not attempt to bypass this safety feature.
• Oil level: The generator has low oil shutdown protection. Always check the oil level before starting.
• Keep children and pets away: Ensure a safe distance from the operating generator.

3. Product Overview

The Güde ISG 3200-2 is equipped with various features for convenient and safe power generation.

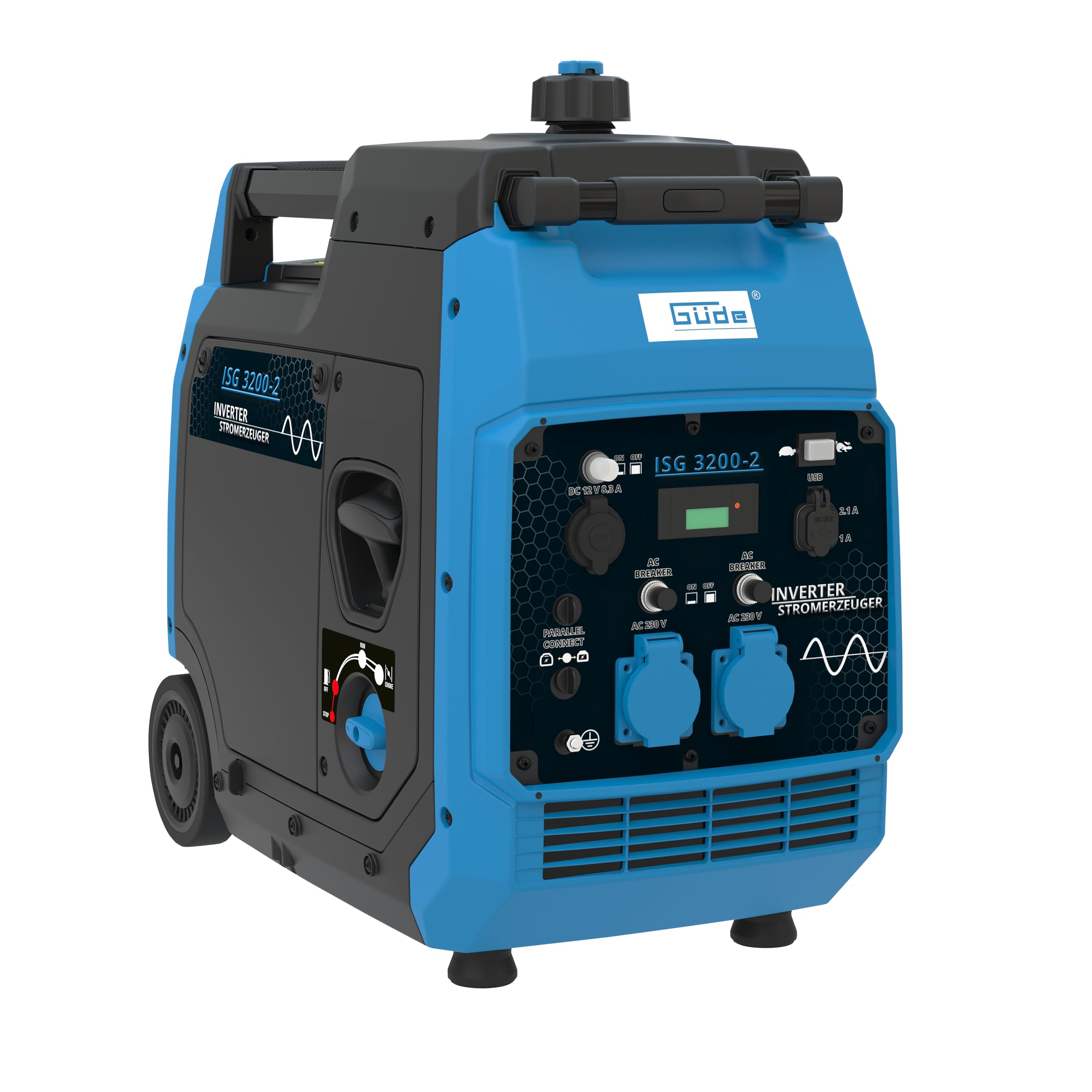

Figure 2: Overview of the Güde ISG 3200-2 Inverter Generator's main features and control panel. Key components include the recoil starter, ECO mode switch, USB ports, AC 230V outlets, DC 12V outlet, and parallel connect terminal.

3.1 Control Panel

Figure 3: Detailed view of the control panel, highlighting the 2x USB ports (1A and 2.1A), 2x 230V AC outlets, 1x 12V DC outlet, LCD display, and circuit breakers.

• LCD Display: Shows oil level and fuel tank content.
• USB Ports: Two ports (1A and 2.1A) for charging mobile devices.
• AC 230V Outlets: Two outlets for standard electrical appliances.
• DC 12V Outlet: One outlet for 12V devices.
• Circuit Breakers: Protect against overload for AC outlets.
• ECO Function: Reduces engine speed for quieter operation and fuel efficiency under light loads.
• Parallel Connect Terminal: Allows two inverter generators to operate in parallel for increased power output.

3.2 Portability Features

Figure 4: The generator features a convenient trolley function with an extendable handle and wheels for easy transport.

• Trolley Function: Integrated wheels and an extendable handle for comfortable transport.
• Compact Design: Dimensions of 60 x 31 x 56.5 cm and a weight of 33 kg contribute to its portability.

4. Setup

Before first use, ensure the generator is properly prepared.

4.1 Adding Engine Oil

The generator is supplied without engine oil. It is crucial to add the correct type and amount of oil before starting.

1. Place the generator on a level surface.
2. Locate the oil fill cap/dipstick.
3. Add 0.6 liters of 5W30 or 10W30 engine oil. A 600ml bottle of oil is included. Note: Do not overfill.
4. Securely replace the oil fill cap.

Figure 5: Motor oil recommendations based on ambient temperature. Use 5W30 or 10W30 for gasoline engines in typical operating temperatures.

4.2 Adding Fuel

Use unleaded gasoline (normal/E10/Super/+).

1. Ensure the engine is off and cool.
2. Open the fuel tank cap.
3. Carefully pour fuel into the tank, up to the indicated fill line. The tank capacity is 7.8 liters.
4. Securely close the fuel tank cap.

5. Operating

5.1 Starting the Generator

1. Ensure the generator is on a level surface and all electrical loads are disconnected.
2. Check engine oil and fuel levels.
3. Turn the fuel valve to the ON position.
4. Set the engine switch to the START position.
5. If the engine is cold, apply choke.
6. Pull the recoil starter handle firmly until the engine starts. It may require several pulls.
7. Once started, gradually push the choke back to the RUN position.
8. Allow the engine to warm up for a few minutes before connecting electrical loads.

5.2 Connecting Electrical Devices

Connect your devices to the appropriate outlets (230V AC, 12V DC, or USB). Ensure the total load does not exceed the continuous power output of 3200W (or 3500W peak).

5.3 ECO Mode

Activate the ECO mode switch for quieter operation and improved fuel economy when running light loads. The engine speed will automatically adjust to the load.

5.4 Stopping the Generator

1. Disconnect all electrical loads.
2. Allow the engine to run for a few minutes without load to cool down.
3. Turn the engine switch to the OFF position.
4. Turn the fuel valve to the OFF position.

6. Maintenance

Regular maintenance ensures the longevity and reliable performance of your generator.

• Engine Oil: Check oil level before each use. Change oil after the first 20 hours of operation, then every 100 hours or annually.
• Air Filter: Inspect and clean the air filter every 50 hours or more frequently in dusty conditions. Replace if damaged.
• Spark Plug: Inspect and clean the spark plug every 100 hours. Replace if necessary.
• Fuel Filter: Inspect periodically and replace if clogged.
• Storage: For long-term storage, drain the fuel tank and carburetor, or use a fuel stabilizer. Store in a clean, dry place.

7. Troubleshooting

Refer to the following table for common issues and their solutions.

8. Specifications

Technical data for the Güde Inverter Generator ISG 3200-2.

9. Warranty and Support

For warranty information, technical support, or spare parts, please contact your authorized Güde dealer or visit the official Güde website. Keep your purchase receipt as proof of purchase for warranty claims.
