1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your DNLK 1/4" Round Urethane Drive Belt, designed for the Astro International WBS-314 Band Saw. This high-strength urethane belt is engineered for durability and consistent performance, serving as a reliable replacement for your band saw's motor drive system. Please read these instructions carefully before proceeding to ensure safe and effective use.

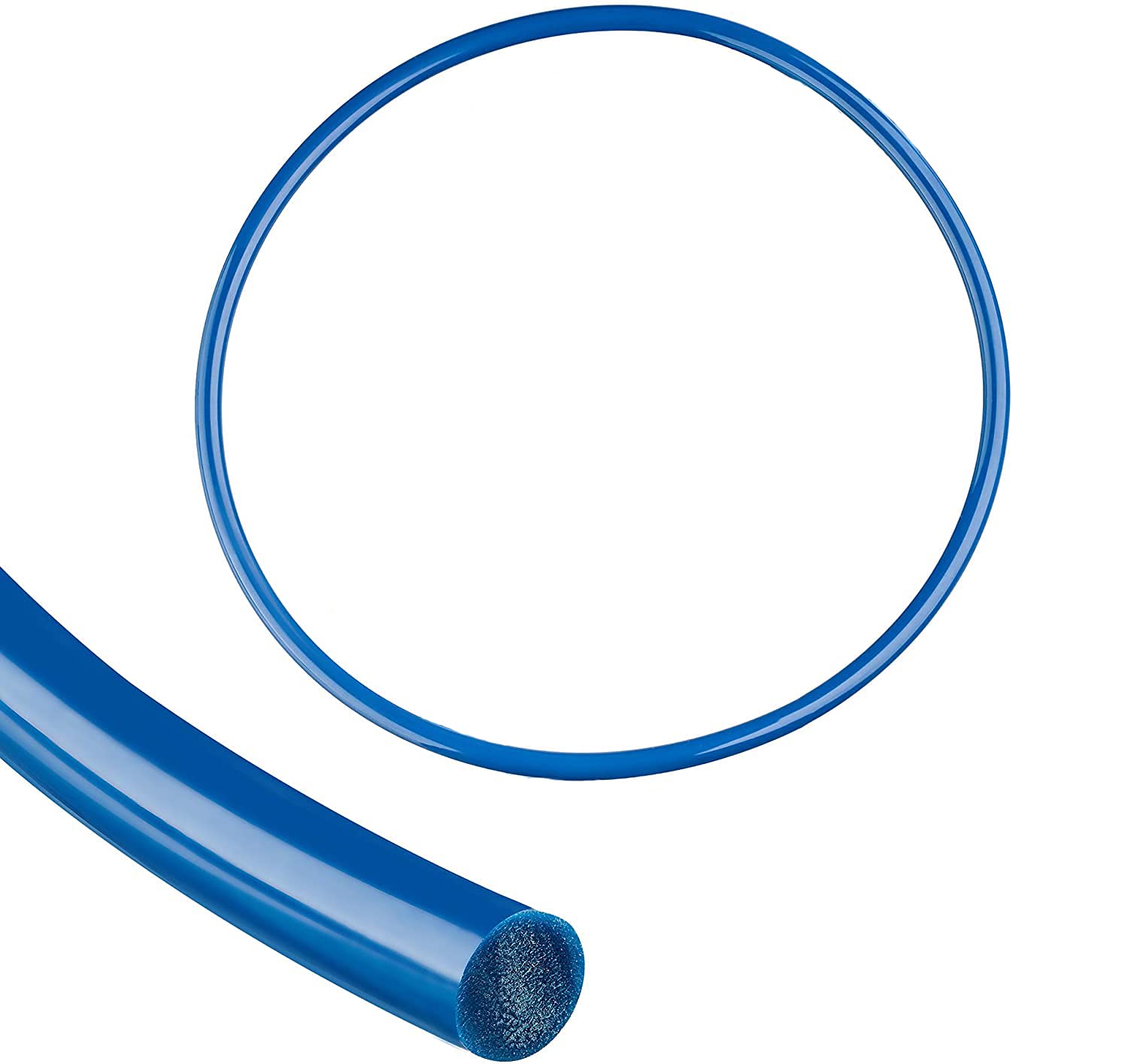

Figure 1: The DNLK 1/4 inch Round Urethane Drive Belt. This image shows the blue, circular urethane belt, which is designed for durability and high performance in band saw applications.
2. Safety Information
Always prioritize safety when working with power tools and machinery. Failure to follow safety guidelines can result in serious injury or damage to equipment.
- Disconnect Power: Before attempting any installation, maintenance, or inspection, ensure the band saw is completely disconnected from its power source.
- Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working with machinery.
- Moving Parts: Be aware of all moving parts. Never operate the band saw with guards removed.
- Read Band Saw Manual: Refer to your Astro International WBS-314 Band Saw's original instruction manual for specific safety procedures related to your machine.
3. Setup and Installation
Follow these steps to properly install your new DNLK Urethane Drive Belt:
- Prepare the Band Saw: Ensure the band saw is unplugged and secured. Open the access panels or covers to expose the motor and drive wheel assembly.
- Remove Old Belt (if applicable): Carefully remove the existing drive belt. Note its routing and tension for reference.
- Clean Drive Surfaces: Clean any dust, debris, or grease from the motor pulley and the band saw's drive wheel. A clean surface ensures optimal grip and belt longevity.
- Install New Urethane Belt: The DNLK urethane belt is designed to be stretched into place. Carefully loop the belt over one pulley, then gradually stretch and guide it onto the second pulley. Avoid forcing or twisting the belt excessively.
- Check Tension: Once installed, the belt should be taut but not overly tight. It should have a slight amount of deflection when pressed firmly in the middle of its longest span. Proper tension is crucial for efficient power transfer and to prevent premature wear.
- Reassemble and Test: Replace all guards and access panels. Plug in the band saw and perform a brief test run at a low speed to ensure the belt runs smoothly and without unusual noise or vibration.
Figure 2: The DNLK 1/4 inch Round Urethane Drive Belt in a circular configuration. This image highlights the consistent round profile of the belt, essential for proper fit and function in compatible band saws.
4. Operating Instructions
Once the DNLK Urethane Drive Belt is correctly installed, operate your Astro International WBS-314 Band Saw according to its manufacturer's guidelines. The new belt will provide reliable power transmission. Always ensure the belt is free from obstructions and running smoothly before beginning any cutting operation.
5. Maintenance
Regular maintenance will extend the life of your DNLK Urethane Drive Belt and ensure consistent performance.
- Regular Inspection: Periodically inspect the belt for signs of wear, cracks, fraying, or glazing. Replace the belt if any significant damage is observed.
- Keep Clean: Keep the belt and pulleys free from sawdust, oil, and other contaminants. Use a dry cloth or brush to clean the belt surface. Avoid using harsh chemicals that could degrade the urethane material.
- Check Tension: Re-check belt tension periodically. Over time, belts can stretch slightly, or components can shift. Adjust tension as needed to maintain optimal performance.
- Proper Storage: If the band saw is stored for an extended period, or if you have a spare belt, store it in a cool, dry place away from direct sunlight and extreme temperatures.
Figure 3: A close-up view of the DNLK Urethane Drive Belt material. This image illustrates the smooth, consistent texture of the high-grade urethane, which contributes to its durability and wear resistance.
6. Troubleshooting
If you encounter issues with your DNLK Urethane Drive Belt, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slipping | Insufficient tension, oily/greasy pulleys, worn belt. | Adjust belt tension. Clean pulleys and belt. Replace belt if worn. |
| Excessive noise (squealing, grinding) | Improper tension, misalignment, foreign objects. | Check and adjust tension. Ensure pulleys are aligned. Inspect for and remove debris. |
| Belt breaking prematurely | Over-tensioning, sharp edges on pulleys, excessive load, incorrect belt size. | Ensure correct tension. Inspect pulleys for damage. Reduce load if possible. Verify belt is correct size for application. |
| Vibration during operation | Belt imbalance, worn pulleys, misalignment. | Inspect belt for deformities. Check pulleys for wear or damage. Verify alignment. |
7. Specifications
- Model Number: 353132225933BLD
- Material: Urethane
- Shape: Circular (Round)
- Color: Blue
- Item Weight: Approximately 170 g (0.37 lbs)
- Special Features: Easy to Install
- Manufacturer: DNLK
- Approximate Parcel Dimensions: 22.86 x 15.24 x 2.54 cm (9 x 6 x 1 inches)
8. Warranty
DNLK provides a Lifetime Assurance on its urethane drive belts, reflecting a commitment to quality and customer satisfaction. This assurance covers manufacturing defects and ensures the belt performs as expected under normal operating conditions. For specific details regarding the terms and conditions of this assurance, please refer to the official DNLK product information or contact customer support.
9. Support
For further assistance, technical support, or inquiries regarding your DNLK Urethane Drive Belt, please visit the official DNLK Store or contact their customer service department.
