1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Crunch SA-1100.1 Monoblock Amplifier. Please read this manual thoroughly before attempting installation or operation to ensure proper function and safety.
Safety Precautions
- Professional installation is recommended for optimal performance and safety.
- Ensure all wiring is correctly connected and insulated to prevent short circuits.
- Avoid exposing the amplifier to moisture or extreme temperatures.
- Mount the amplifier in a location with adequate ventilation to prevent overheating.
- Disconnect the vehicle's battery before making any electrical connections.
2. Product Features
The Crunch SA-1100.1 is a high-performance monoblock Class AB amplifier designed for car audio systems, specifically for driving subwoofers. Key features include:
- Monoblock Design: Optimized for single-channel subwoofer applications.
- Power Output: 195 watts x 1 channel at 2 ohms, 120 watts x 1 channel at 4 ohms.
- Variable Electronic Crossover: 12 dB per octave for precise frequency control.
- Built-in Bass Control: For enhanced low-frequency response.
- Thermal Protection: Integrated heat sink design to maintain optimal operating temperature.
3. Controls and Connections
Familiarize yourself with the amplifier's input and output terminals, and control panel settings.
3.1 Top View
Image 3.1: Top view of the Crunch SA-1100.1 amplifier, showing the Crunch logo and model number.
3.2 Power and Output Connections

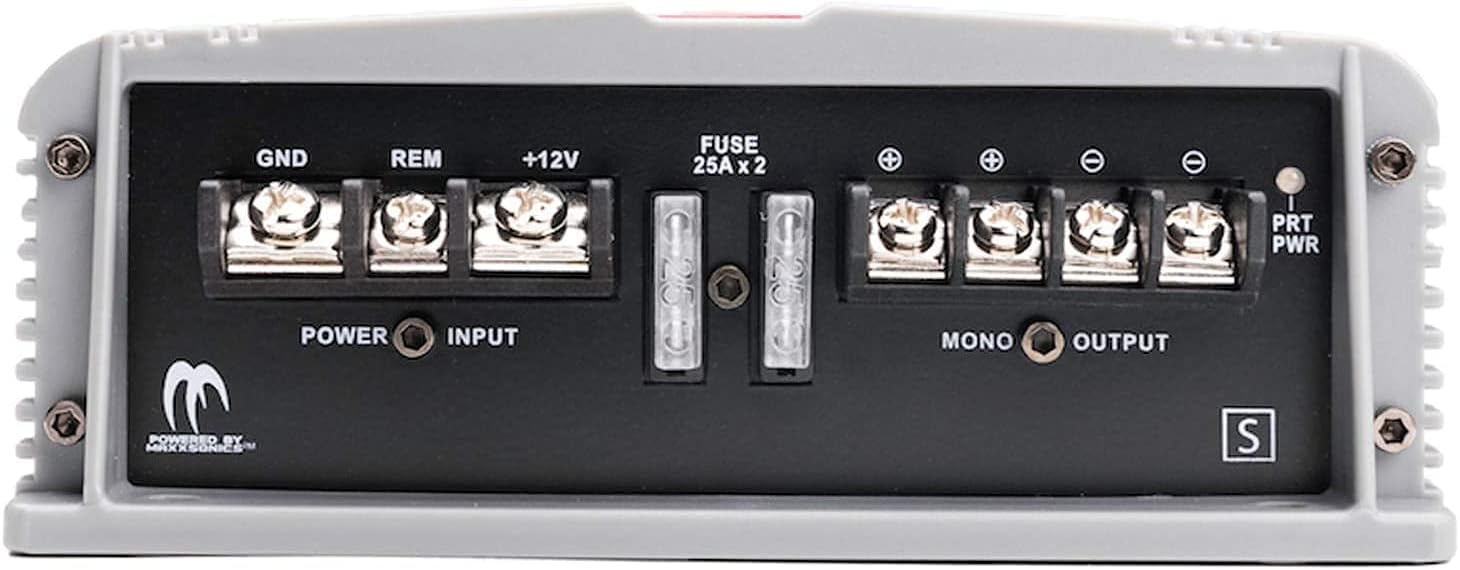

Image 3.2: Rear panel showing power input (GND, REM, +12V), fuse holders (2x 25A), and mono speaker output terminals.
- GND (Ground): Connect to a clean chassis ground point.
- REM (Remote): Connect to the remote turn-on output of your head unit.
- +12V (Power): Connect to the positive terminal of the vehicle's battery via an inline fuse.
- FUSE: Two 25A fuses are provided for protection. Replace only with fuses of the same rating.
- MONO OUTPUT: Connect to your subwoofer(s). Ensure correct polarity.
- PRT (Protection Indicator): Illuminates when the amplifier is in protection mode.
- PWR (Power Indicator): Illuminates when the amplifier is powered on.
3.3 Input and Control Panel

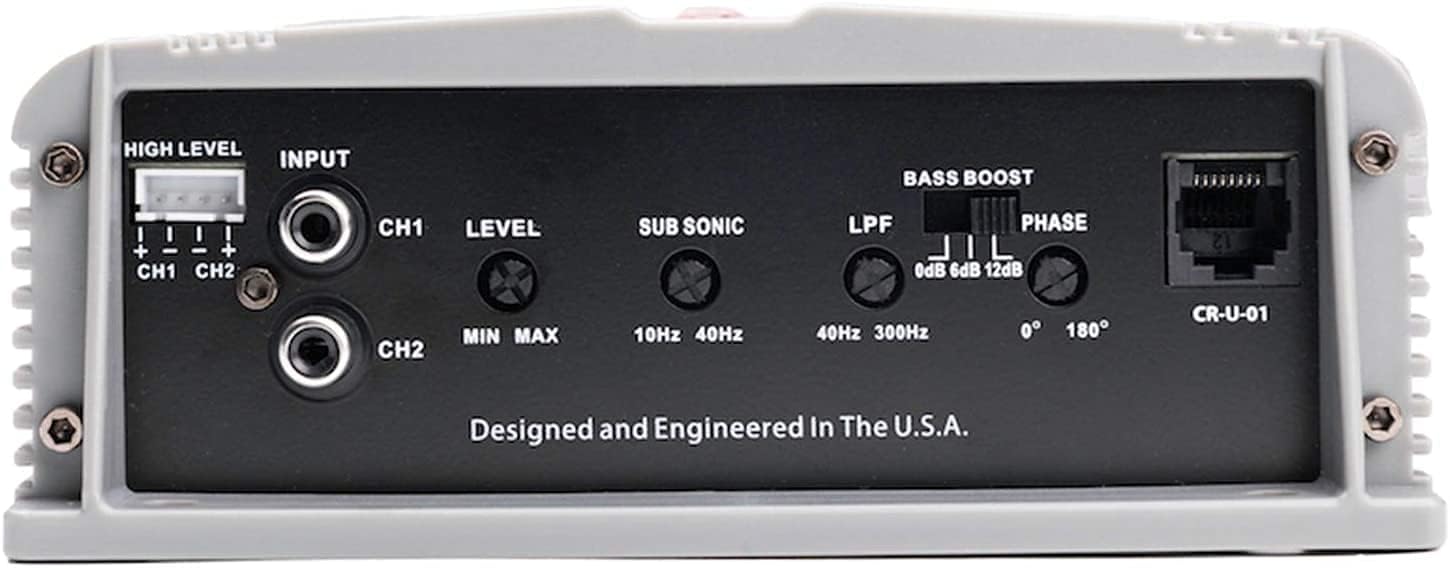

Image 3.3: Front panel showing high-level input, RCA inputs (CH1, CH2), and various control knobs.
- HIGH LEVEL INPUT: For connecting to head units without RCA outputs.
- INPUT (CH1, CH2): RCA inputs for connecting to the head unit's RCA outputs.
- LEVEL (Gain Control): Adjusts the input sensitivity to match the head unit's output voltage.
- SUB SONIC (Subsonic Filter): Adjustable filter (10Hz-40Hz) to remove frequencies below the subwoofer's usable range, protecting the subwoofer.
- LPF (Low Pass Filter): Adjustable filter (40Hz-300Hz) that allows only frequencies below the set point to pass to the subwoofer.
- BASS BOOST: Adjustable bass equalization (0dB, 6dB, 12dB) to enhance low-frequency output.
- PHASE: Selects the output phase (0° or 180°) to optimize bass response with other speakers in the vehicle.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your amplifier.
4.1 Mounting the Amplifier
- Choose a secure, dry location away from direct sunlight and heat sources.
- Ensure sufficient airflow around the amplifier's heat sink for proper cooling.
- Mount the amplifier firmly to a solid surface using appropriate hardware to prevent movement during vehicle operation.
4.2 Wiring Connections
Use high-quality wiring for all connections.
- Power Wiring: Run a power cable (e.g., 4-gauge) from the vehicle's positive battery terminal to the amplifier's +12V terminal. Install an inline fuse holder within 18 inches of the battery.
- Ground Wiring: Connect a ground cable of the same gauge from the amplifier's GND terminal to a clean, unpainted metal surface on the vehicle's chassis. Ensure a solid electrical connection.
- Remote Turn-On Wiring: Connect a smaller gauge wire (e.g., 18-gauge) from the head unit's remote output to the amplifier's REM terminal.
- Input Signal Wiring:
- RCA Input: Connect RCA cables from the head unit's subwoofer or full-range RCA outputs to the amplifier's CH1 and CH2 RCA inputs.
- High-Level Input: If your head unit lacks RCA outputs, connect the speaker wires from the head unit to the amplifier's HIGH LEVEL INPUT.
- Speaker Output Wiring: Connect your subwoofer(s) to the MONO OUTPUT terminals. Ensure the total impedance of the connected subwoofers is within the amplifier's specified operating range (2 ohms minimum). Observe correct polarity (+ to + and - to -).
5. Operating Instructions
After installation, adjust the amplifier settings for optimal sound performance.
- Set Gain (LEVEL): Turn the LEVEL control to its minimum position. Play a familiar music track with moderate volume on your head unit. Slowly increase the LEVEL control until you hear distortion, then back off slightly. This matches the amplifier's input sensitivity to your head unit's output.
- Adjust Low Pass Filter (LPF): Set the LPF to a frequency appropriate for your subwoofer and other speakers. A common starting point is 80Hz-100Hz. This ensures only low frequencies are sent to the subwoofer.
- Set Sub Sonic Filter: Adjust the SUB SONIC filter to a frequency just below your subwoofer's lowest usable frequency. This prevents the subwoofer from playing frequencies it cannot reproduce effectively, improving sound quality and protecting the subwoofer.
- Adjust Bass Boost: Use the BASS BOOST control sparingly. Start at 0dB and increase gradually if more bass is desired. Excessive bass boost can lead to distortion and potential damage.
- Set Phase: Experiment with the PHASE switch (0° or 180°) to find the setting that provides the most cohesive and impactful bass response with your vehicle's other speakers.
6. Maintenance
Regular maintenance helps ensure the longevity and performance of your amplifier.
- Cleaning: Periodically wipe the amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Connections: Periodically check all power, ground, remote, input, and speaker connections to ensure they are secure and free from corrosion.
- Fuses: If the amplifier fails to power on, check the fuses. Replace blown fuses only with the same type and rating (25A).
- Ventilation: Ensure that the amplifier's heat sink remains clear of obstructions to allow for proper heat dissipation.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Amplifier does not power on (PWR light off) | Blown fuse; Loose power, ground, or remote connection; No remote signal. | Check and replace fuses; Verify all power, ground, and remote wires are securely connected; Check head unit's remote output. |
| No sound output | No input signal; Speaker wires disconnected or shorted; Gain set too low; Amplifier in protection mode. | Check RCA or high-level input connections; Verify speaker wiring and connections; Increase LEVEL control; Check PRT light and troubleshoot protection mode. |
| Distorted sound | Gain set too high; Speaker impedance too low; Excessive bass boost; Poor ground connection. | Reduce LEVEL control; Verify speaker impedance is 2 ohms or higher; Reduce BASS BOOST; Ensure a solid ground connection. |
| Amplifier goes into protection mode (PRT light on) | Overheating; Speaker short circuit; Low voltage; DC offset. | Allow amplifier to cool; Check speaker wiring for shorts; Verify vehicle's charging system; Consult a professional for DC offset issues. |
8. Specifications
| Feature | Specification |
|---|---|
| Model | SA-1100.1 |
| Amplifier Class | Class AB Monoblock |
| Output Power (2 Ohms) | 195 Watts x 1 Channel |
| Output Power (4 Ohms) | 120 Watts x 1 Channel |
| Crossover Type | Variable Low Pass Filter (LPF) |
| Crossover Slope | 12 dB per Octave |
| Sub Sonic Filter | Adjustable (10Hz-40Hz) |
| Bass Boost | Adjustable (0dB, 6dB, 12dB) |
| Phase Control | 0° / 180° Selectable |
| Fuses | 2 x 25A |
| Approximate Dimensions (L x W x H) | 9 x 8 x 7 inches (Package Dimensions) |
| Approximate Weight | 10 pounds |
| Mounting Type | Surface Mount |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Crunch customer service directly. Keep your purchase receipt as proof of purchase.
