ZOIPPDMS T3-Tiger Arc Lighter J19-Tiger User Manual

Introduction

Thank you for choosing the ZOIPPDMS T3-Tiger Arc Lighter. This USB rechargeable, windproof, flameless plasma lighter is designed for convenience and reliability. It utilizes advanced plasma arc technology, eliminating the need for traditional fuel and providing a consistent ignition source in various conditions. This manual provides essential information for the safe and effective use of your new lighter.

Safety Information

Please read all safety warnings before using this product.

• Keep out of reach of children. This product is not a toy.
• Do not touch the electric arc. It can cause burns.
• Do not expose the lighter to temperatures above 50°C (122°F) or direct sunlight for extended periods.
• Do not expose to water or other liquids.
• Do not puncture or incinerate the lighter.
• Do not attempt to disassemble or modify the lighter.
• Avoid prolonged ignition. The lighter features a 7-second auto-shut-off to prevent overheating.
• Ensure the lighter is turned off and the lid is closed when not in use.

Product Overview

The ZOIPPDMS T3-Tiger Arc Lighter features a sleek design with intuitive controls and a clear power display.

Image: Front view of the T3-Tiger Arc Lighter, highlighting the touch sensor switch and LED power display.

• Dual Arc Electrodes: Generates a powerful, windproof plasma arc for quick ignition.
• Touch Sensor Switch: Activates the arc with a simple touch.
• LED Power Display: Four indicator lights show the remaining battery charge (10-30%, 30-50%, 60-80%, 80-100%).
• USB Charging Port: Located at the bottom for convenient recharging.
• Protective Lid: Covers the arc electrodes when not in use.

Setup: Initial Charging

Before first use, fully charge your arc lighter.

1. Locate the micro USB charging port at the bottom of the lighter.
2. Connect the provided USB charging cable to the lighter and to a compatible USB power source (e.g., computer, laptop, power bank, or USB wall adapter).
3. The LED power indicators will illuminate to show the charging status. All four lights will be solid when fully charged.
4. Once fully charged, disconnect the charging cable.

Image: The arc lighter being charged via a USB cable, illustrating compatible power sources.

Operating Instructions

Using your ZOIPPDMS T3-Tiger Arc Lighter is simple and safe.

1. Open the lighter's lid. The lighter will not activate if the lid is closed.
2. Gently touch the ignition sensor (usually indicated by a power symbol or a specific area). The dual plasma arcs will activate.
3. Bring the item you wish to ignite close to the plasma arcs.
4. The lighter features a 7-second auto-shut-off for safety and to prevent high-temperature damage. If you need to ignite for longer, release the touch sensor and touch it again.
5. Close the lid after use to protect the electrodes and prevent accidental activation.

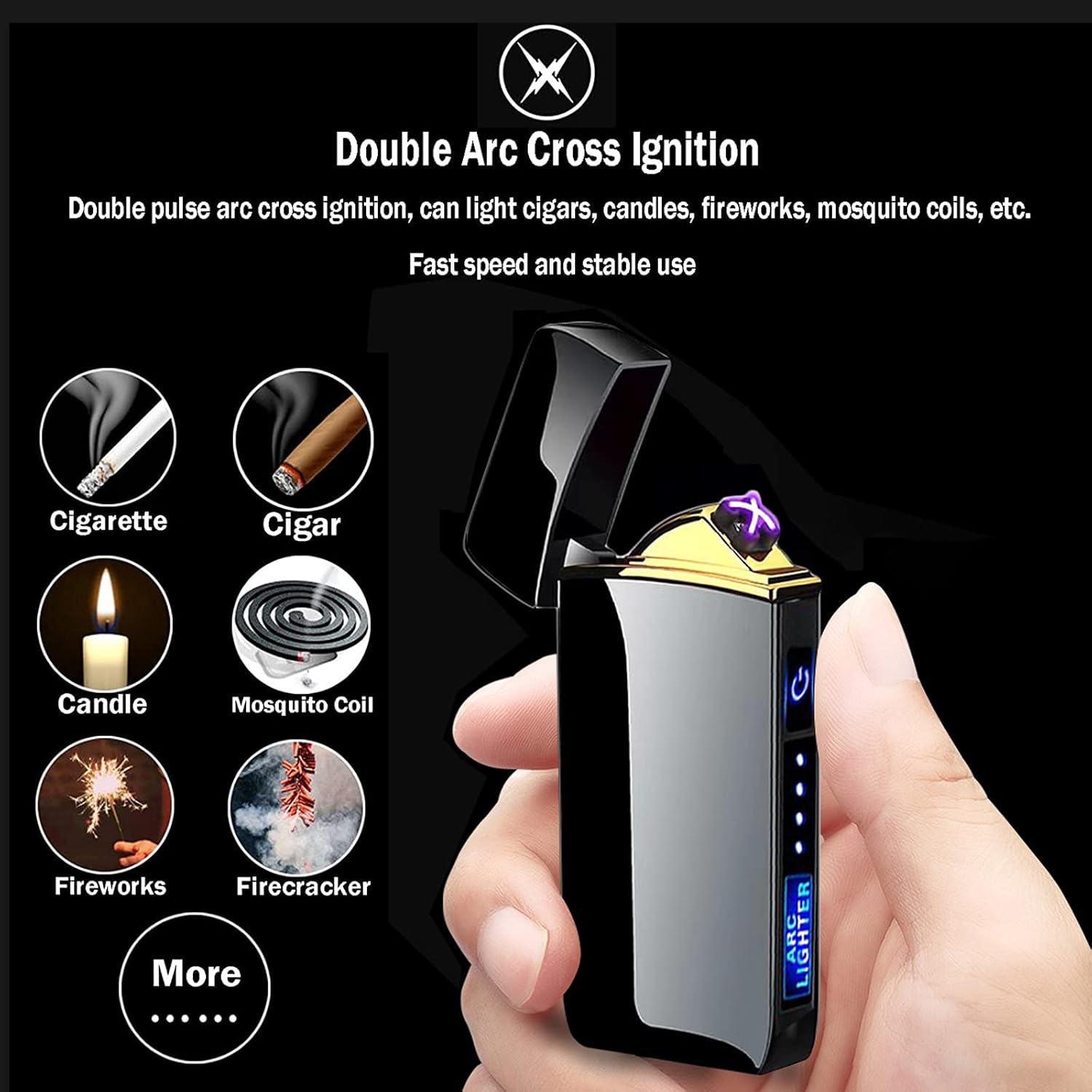

Image: The arc lighter in operation, demonstrating its ability to ignite various items with its dual arc cross ignition.

The windproof design ensures reliable ignition even in challenging conditions.

Image: The arc lighter operating in a windy environment, illustrating its windproof and flameless technology.

Charging Instructions

Your arc lighter is powered by a built-in lithium battery. Follow these guidelines for optimal charging:

• Use only the provided USB cable or a standard micro USB cable (5V=1A charger recommended).
• Charging time typically ranges from 1 to 2 hours for a full charge.
• The LED indicators will show the charging progress. When all four LEDs are solid, the lighter is fully charged.
• Avoid overcharging. The lighter has overcharge protection, but it's good practice to disconnect once fully charged.
• The battery is designed for 300-500 charge cycles.

Maintenance

Proper care will extend the life of your ZOIPPDMS T3-Tiger Arc Lighter.

• Cleaning: Use a soft, dry cloth to wipe the exterior of the lighter. Do not use abrasive cleaners or solvents.
• Electrode Care: Occasionally, gently clean the arc electrodes with a soft brush to remove any residue. Ensure the lighter is off and cool before cleaning.
• Storage: Store the lighter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid Drops: While durable, dropping the lighter can damage internal components or the exterior finish.

Troubleshooting

Specifications

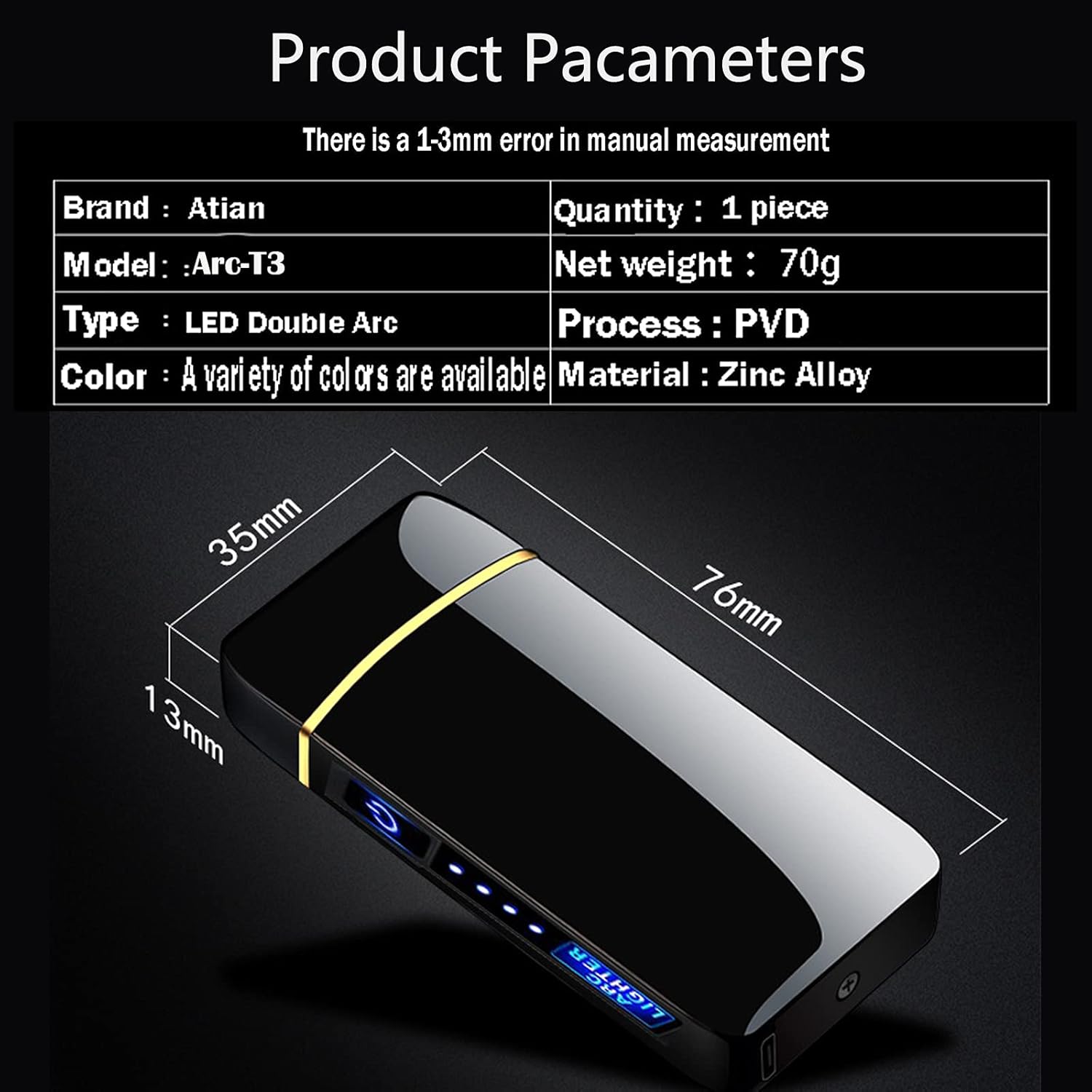

Image: Product dimensions diagram, showing length, width, and thickness.

Warranty and Support

For warranty information and customer support, please refer to the product packaging or contact the seller directly. You can also visit the official ZOIPPDMS store on Amazon for more details:
