HUTACT Dog Training Collar User Manual

Introduction

This user manual provides comprehensive instructions for the safe and effective operation of your HUTACT Dog Training Collar. This device is designed to assist in training dogs through various modes, promoting good behavior and correcting undesirable habits. Please read this manual thoroughly before use and retain it for future reference.

Safety Information

Important Safety Precautions:

• This training collar is intended for dogs only. Do not use on humans or other animals.
• Not suitable for puppies under 6 months old or dogs with health issues, aggression, or anxiety. Consult a veterinarian or professional trainer if unsure.
• Do not leave the collar on your dog for more than 12 hours per day. Prolonged wear can cause skin irritation.
• Regularly check your dog's neck for signs of irritation or sores. If found, discontinue use until the skin heals.
• Ensure the collar fits snugly but not too tightly. You should be able to fit two fingers comfortably between the collar and your dog's neck.
• The shock function should be used responsibly and only after other training methods have been attempted. Start with the lowest effective level.
• Keep out of reach of children.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.

Package Contents

Please verify that all items listed below are included in your package:

• 1 x Remote Control
• 1 x Receiver
• 1 x Adjustable Collar Strap
• 1 x USB Charging Cable
• 1 x User Manual (this document)
• 2 x Conductive Silicone Caps (for contact points)
• 1 x Test Bulb (for shock function testing)

Product Overview

Image Description: This image displays the main components of the HUTACT Dog Training Collar system. On the right is the black and blue remote control with a screen and various buttons. In the foreground, below the remote, is the black receiver unit attached to a collar strap. A small, light brown dog wearing the collar is visible in the background, looking towards the viewer.

Image Description: This graphic illustrates the three effective training modes of the collar: Beep, Vibration, and Shock. Each mode is represented by an icon, and a vertical bar indicates that the Vibration and Shock modes have adjustable intensity levels from 0 to 99. The remote control and collar receiver are also shown, with a dog wearing the collar in the background.

Key Features:

• 3 Training Modes: Beep, Vibration, and Static Shock.
• Adjustable Levels: Vibration and Static Shock modes offer 1-99 adjustable intensity levels.
• Long Range: Remote control effective up to 800 meters (2625 feet).
• Waterproof Receiver: IP67 rated, suitable for use in rain, bathing, or swimming.
• Rechargeable Batteries: Both remote and receiver are rechargeable, with up to 30 days battery life on a full charge.
• Adjustable Collar Size: Suitable for dogs weighing 15 to 120 pounds, with a collar length up to 70cm (28 inches) that can be trimmed.

Setup

1. Charging the Devices

Before first use, fully charge both the remote control and the receiver collar. Use the provided USB charging cable.

• Connect the USB cable to the charging port on the remote and receiver.
• Plug the other end into a USB power adapter (not included) or a computer USB port.
• The indicator light on both devices will show charging status (refer to device specific indicators for full charge).
• Charging typically takes 2-3 hours.

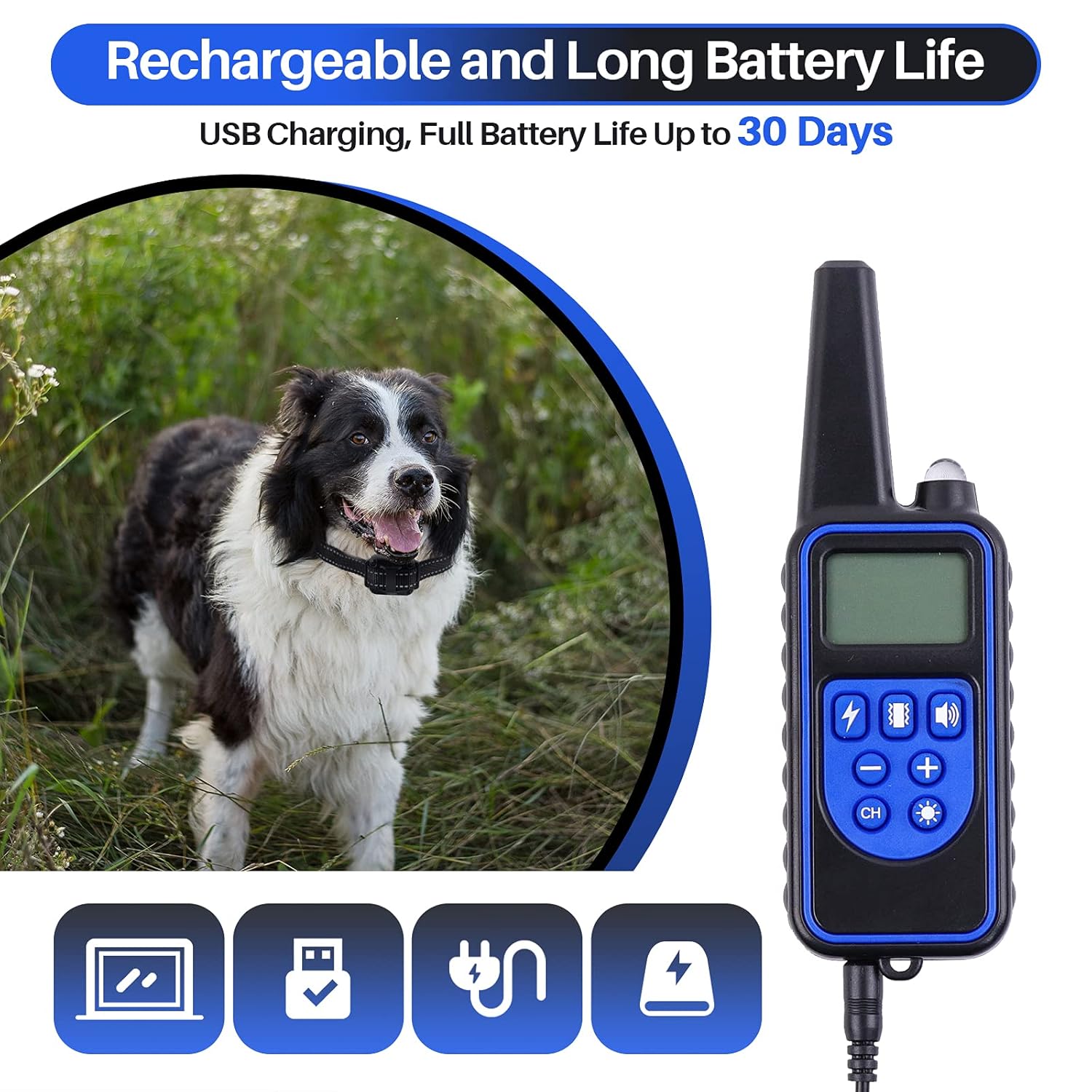

Image Description: This image illustrates the rechargeable feature of the training collar system. It shows the remote control and the receiver collar, emphasizing that both are rechargeable via USB. A graphic indicates a battery life of up to 30 days. A dog wearing the collar is visible in a grassy field in the background.

2. Fitting the Collar

Proper fit is crucial for effectiveness and comfort.

• Place the receiver unit on your dog's neck, ensuring the contact points touch the skin.
• The collar should be snug enough that two fingers can fit between the collar strap and your dog's neck.
• If your dog has long fur, you may need to trim the fur around the contact points to ensure proper skin contact.
• The collar strap is adjustable up to 70cm (28 inches) and can be cut to size if too long for smaller dogs.

Image Description: This image illustrates the versatility of the collar, showing a variety of dog breeds and sizes, from small to large, indicating its suitability for dogs weighing between 15 lbs and 100 lbs. Below the dogs, a measurement bar shows the collar length from 0 to 70cm (28 inches), with an icon indicating that the extra part of the collar can be cut off for a custom fit.

3. Pairing the Remote and Receiver

The remote and receiver are usually pre-paired. If they lose connection or you need to pair a new receiver:

• Turn on the remote control.
• Press and hold the power button on the receiver collar until the indicator light flashes rapidly.
• Within 10 seconds, press the "CH" button on the remote control.
• The receiver's indicator light will stop flashing and remain solid, indicating successful pairing.

Operating Instructions

Training Modes:

The collar offers three distinct training modes:

• Beep Mode (🔊): Emits an audible tone. Useful for attracting attention or as a warning before other corrections.
• Vibration Mode (📳): Delivers a gentle vibration. Adjustable from level 1-99. Effective for getting your dog's attention without discomfort.
• Static Shock Mode (⚡): Delivers a static pulse. Adjustable from level 1-99. Use with caution and only when necessary, starting at the lowest effective level.

Using the Remote Control:

• Power On/Off: Press and hold the power button on the remote to turn it on or off.
• Mode Selection: Use the dedicated buttons for Beep, Vibration, and Static Shock to activate the desired mode.
• Adjusting Intensity: For Vibration and Static Shock modes, use the '+' and '-' buttons to adjust the intensity level from 1 to 99. Start with the lowest level and increase gradually if needed.
• Channel Selection (CH): If you have multiple collars, use the 'CH' button to switch between different paired receivers.

Image Description: This image depicts a dog running freely in a natural outdoor setting, wearing the training collar. A hand holds the remote control in the foreground, with a graphic indicating a long remote control distance of up to 800 meters (2625 feet), emphasizing the range of the device for outdoor training.

Effective Training Tips:

• Consistency is Key: Use the collar consistently for specific behaviors you want to correct or reinforce.
• Positive Reinforcement: Always combine collar corrections with positive reinforcement (praise, treats) when your dog performs the desired action.
• Short Training Sessions: Keep training sessions short and positive to maintain your dog's engagement.
• Start Low: When using vibration or static shock, always start at the lowest level and increase only if your dog does not respond. The goal is to get their attention, not to cause pain.
• Observe Your Dog: Pay close attention to your dog's reactions to determine the appropriate intensity level.

Image Description: This image features four common undesirable dog behaviors: barking, digging, flapping (possibly referring to jumping or excessive movement), and fighting. Each behavior is depicted with a red 'X' over it, signifying that the training collar is designed to help correct these issues, promoting "Small Training, Big Growth" in behavior.

Maintenance

Cleaning:

• Wipe the receiver and remote with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Regularly clean the contact points on the receiver to ensure proper conductivity.
• The collar strap can be hand-washed with mild soap and water.

Battery Care:

• Charge the devices fully before long periods of inactivity.
• Avoid completely draining the battery frequently to prolong its lifespan.
• Store in a cool, dry place when not in use.

Image Description: This image features a dog happily splashing in water, demonstrating the collar's waterproof capabilities. Icons on the right side of the image highlight its IP67 waterproof rating, indicating it is suitable for swimming, bathing, and use in rainy conditions, allowing for better balance between play and training.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please contact HUTACT customer service through the retailer where you purchased the product or visit the official HUTACT website. Please have your product model and purchase date ready when contacting support.

Manufacturer: HUTACT
