Talentcell 12V 100Ah LiFePO4 Deep Cycle Battery Pack LF416C User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Talentcell 12V 100Ah Lithium Iron Phosphate (LiFePO4) Deep Cycle Battery Pack, model LF416C. Please read this manual thoroughly before using the product.

The Talentcell LF416C is a high-capacity, deep-cycle LiFePO4 battery designed for various applications requiring reliable 12V power. It features integrated USB-C, USB-A, and cigarette lighter outlets for versatile power delivery.

2. Safety Information and Warnings

Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the battery and other property.

• Do not use this battery as a jump starter battery. It is designed for deep cycle applications.
• Do not use the battery pack in environments with high humidity or where it may be exposed to water.
• Do not modify or disassemble the battery pack. Unauthorized modifications can lead to severe hazards.
• Do not throw the battery pack into fire or water.
• Do not reverse the polarity of the battery pack connections. Ensure positive (+) and negative (-) terminals are connected correctly.
• Keep the battery away from extreme temperatures. Do not store above 140°F (60°C).
• Ensure proper ventilation when charging or discharging the battery.
• If the battery is not used for an extended period, charge it periodically to maintain its health.

3. Product Overview

The Talentcell LF416C LiFePO4 battery pack offers a robust and long-lasting power solution. It integrates multiple output ports and a built-in Battery Management System (BMS) for enhanced safety and performance.

3.1 Key Features

• High Capacity: 12.8V 100Ah LiFePO4 cells.
• Long Cycle Life: Over 2000 cycles at 100% Depth of Discharge (DOD), up to 6500 cycles at 50% DOD.
• Integrated Outputs:
  • PD 18W USB-C port
  • 5V 3A Max. USB-A port
  • 12V 10A Cigarette Lighter Outlet
• Built-in BMS: Provides cell balance control, over-charge protection, over-discharge protection, and short-circuit protection.
• Voltage Indicator: LED display for monitoring battery voltage.

3.2 Product Components

Figure 1: Top view of the Talentcell 12V 100Ah LiFePO4 Battery Pack. Shows the main terminals and the integrated output panel.

Figure 2: Detailed view of the output panel. Labels indicate (1) 5V 3A Max. USB Output, (2) Voltmeter, (3) Type-C PD 18W Output, and the 12V 10A Cigarette Output. A power switch is also visible.

Figure 3: Illustration of the internal Cell Balance Control Module (BMS) providing multiple protections: cell balance control, over-charge protection, over-discharge protection, and short-circuit protection.

4. Setup

Before initial use, inspect the battery pack for any visible damage. Ensure all connections are clean and secure.

4.1 Initial Charging

The battery pack does not include a charger. A compatible 14.6V/15A LiFePO4 charger is required (sold separately). Connect the charger to the designated input port on the battery. The LED voltage indicator will show the charging progress. Charge the battery fully before its first use.

• Connect the positive (+) terminal of the charger to the positive (+) terminal of the battery.
• Connect the negative (-) terminal of the charger to the negative (-) terminal of the battery.
• Plug the charger into an appropriate power source.
• Monitor the charging process. Disconnect the charger once the battery is fully charged.

4.2 Installation

The physical dimensions of this LiFePO4 battery are similar to traditional lead-acid batteries, allowing for direct replacement in many applications. Ensure the installation location is dry, well-ventilated, and protected from extreme temperatures.

• Secure the battery in a stable position to prevent movement or vibration.
• Connect your devices or system to the battery's main terminals or integrated output ports, ensuring correct polarity.

5. Operating Instructions

The Talentcell LF416C battery provides power through its main terminals and integrated output ports.

5.1 Powering Devices

• Main Terminals: For high-current applications, connect your system directly to the positive (+) and negative (-) terminals. The maximum output current is 80A.
• USB-C Output: Use the PD 18W USB-C port for charging compatible devices.
• USB-A Output: Use the 5V 3A Max. USB-A port for charging standard USB devices.
• Cigarette Lighter Outlet: The 12V 10A cigarette lighter outlet is suitable for most car appliances.
• Activate the integrated output ports using the power switch located on the panel.

5.2 Voltage Monitoring

The integrated LED voltmeter displays the current battery voltage. The nominal voltage is 12.8V. During discharge, the output voltage typically ranges from 12V to 13V for over 90% of the discharge cycle.

5.3 Discharge Characteristics

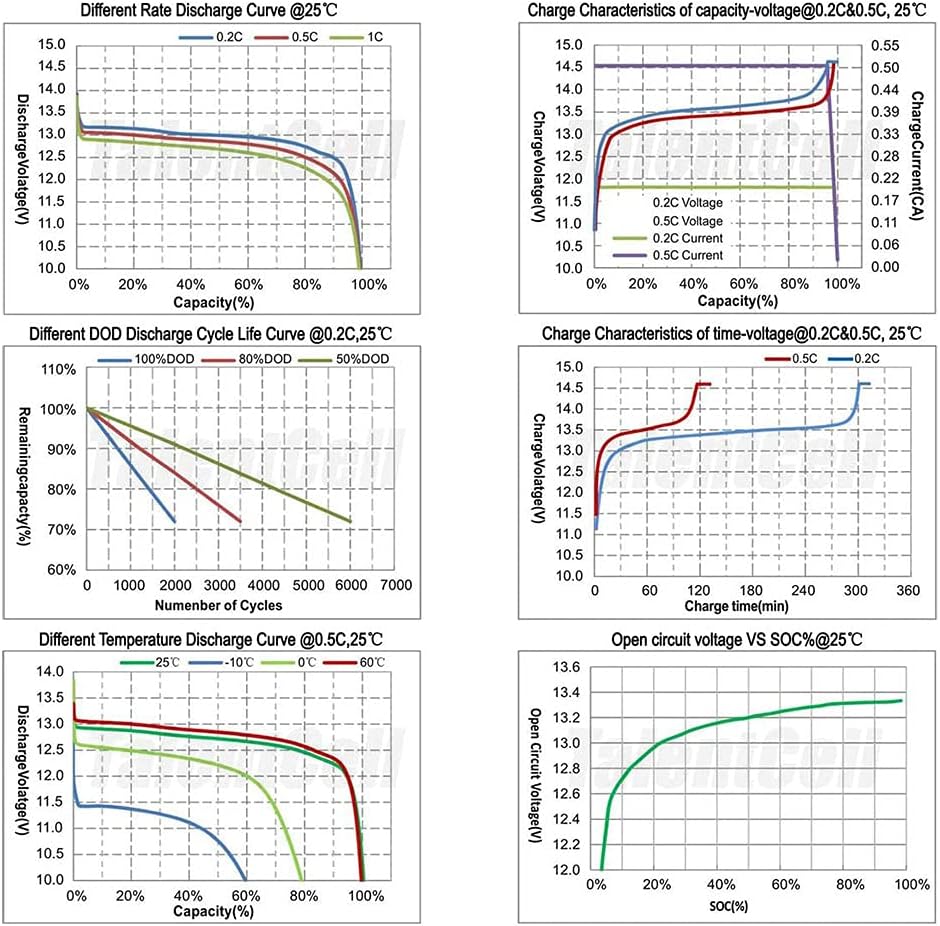

Figure 4: Performance graphs illustrating different rate discharge curves, charge characteristics, DOD cycle life, temperature discharge curves, and open circuit voltage vs. SOC. These graphs provide detailed insights into the battery's behavior under various conditions.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Talentcell LiFePO4 battery.

• Regular Charging: If the battery is not in use for an extended period, charge it periodically (e.g., every 3-6 months) to prevent deep discharge and maintain cell health.
• Cleaning: Keep the battery terminals and casing clean and free from dust and debris. Use a dry cloth for cleaning.
• Storage: Store the battery in a cool, dry, and well-ventilated area, away from direct sunlight and extreme temperatures. Ensure it is stored at a partial state of charge (e.g., 50-80%) for long-term storage.
• Inspection: Periodically inspect the battery for any signs of damage, swelling, or corrosion.

7. Troubleshooting

This section addresses common issues you might encounter with your battery pack.

If you encounter issues not covered here or if solutions do not resolve the problem, please contact Talentcell customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the official Talentcell website or contact your retailer. Keep your purchase receipt as proof of purchase.

For technical assistance or inquiries, please visit the Talentcell Store on Amazon or contact their customer service directly.
