Introduction
Thank you for choosing the Dripex 50cm Round LED Bathroom Mirror. This manual provides essential information for safe installation, operation, and maintenance of your new mirror. Please read it thoroughly before use and retain it for future reference.
Safety Instructions
- Ensure the power supply is disconnected before installation or maintenance.
- This mirror is designed for bathroom use with an IP44 waterproof rating. However, avoid direct water spray onto electrical components.
- The mirror features 4mm reinforced glass with an explosion-proof film to prevent shattering.
- Do not attempt to repair or modify the mirror yourself. Contact qualified personnel for any issues.
- Keep packaging materials away from children to prevent suffocation hazards.
Image: Illustration of the mirror's reinforced glass and explosion-proof film for enhanced safety.
Product Features
- Adjustable Color Temperature: Three color temperatures available: cool white (6500K), neutral white (5000K), and warm white (2500K).
- Dimmable Brightness: Brightness can be adjusted from 10% to 100%.
- Anti-Fog Function: Integrated defogger suitable for humid environments.
- Smart Touch Control: Independent touch switches for light and anti-fog functions, responsive even with wet hands.
- Durable Construction: Made with 4mm reinforced glass and an IP44 waterproof rating.

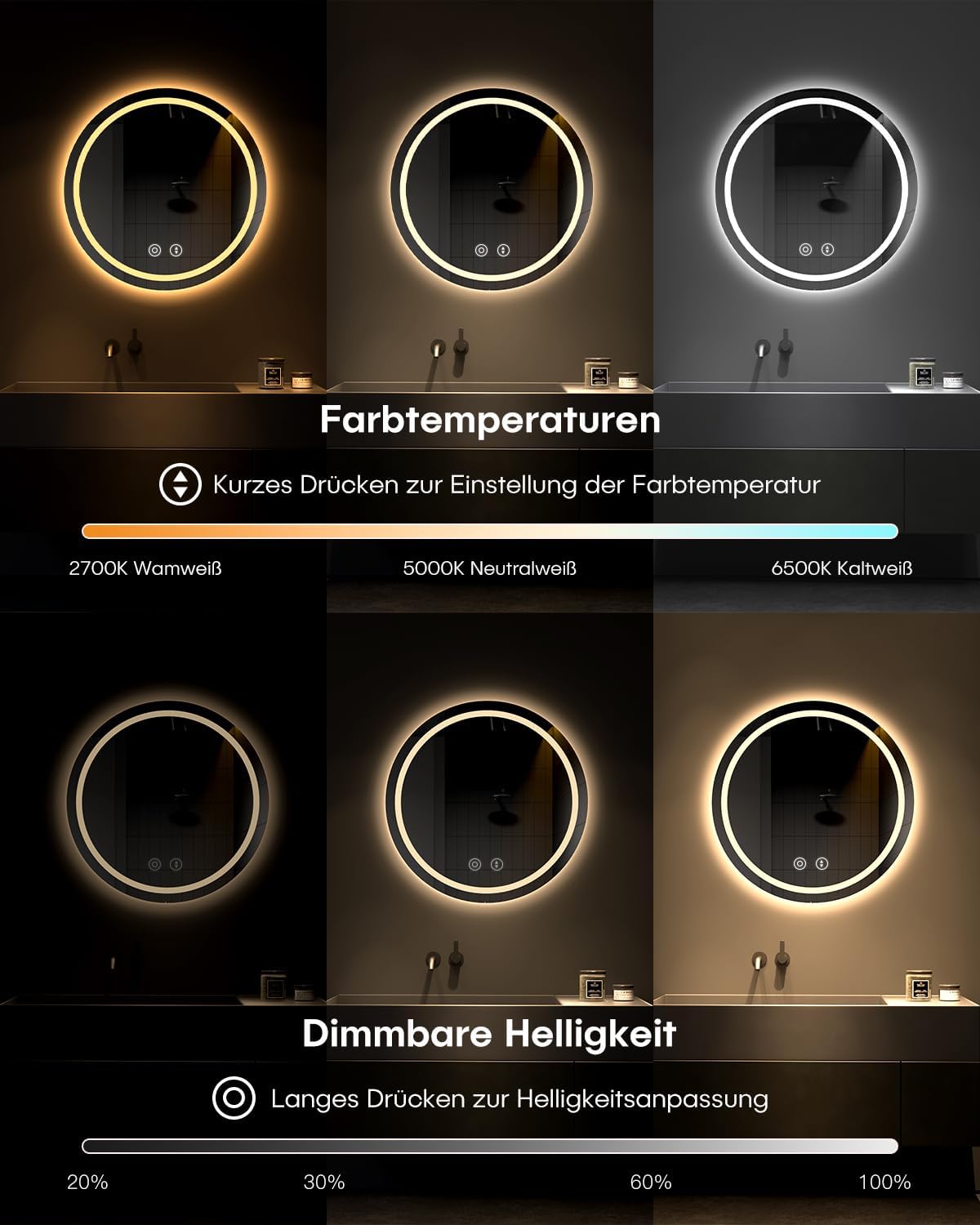

Image: Demonstrates the mirror's adjustable color temperatures and dimmable brightness.
Image: A user looking into the mirror while the anti-fog function keeps the surface clear of condensation.
Package Contents
Please check that all components are present and undamaged.
- 1 x Dripex Round LED Bathroom Mirror (50L x 50l cm)
- 4 x Screws
- 4 x Wall Plugs
- 1 x User Manual (this document)
Image: A diagram illustrating the mirror's dimensions (50cm diameter) and the included mounting hardware.
Installation
- Prepare the Wall: Choose a suitable location for the mirror. Ensure the wall can support the mirror's weight. Mark the positions for the four screws.
- Drill Holes: Drill holes at the marked positions and insert the wall plugs.
- Fix Screws: Insert the screws into the wall plugs, leaving a small gap for the mirror to hang.
- Power Connection: Connect the mirror to a power source. This can be done via a plug or by hardwiring it into your electrical system. If hardwiring, ensure it is done by a qualified electrician.
- Hang the Mirror: Carefully hang the mirror onto the fixed screws, ensuring it is secure and level.
Video: An instructional video demonstrating the installation process for the Dripex LED Bathroom Mirror, including fixing screws, connecting power, and hanging the mirror.
Operation
The mirror features smart touch controls located on the mirror surface.
Light Control
- Short Press: Briefly touch the light icon to cycle through the three color temperatures: cool white (6500K), neutral white (5000K), and warm white (2500K).
- Long Press: Press and hold the light icon to adjust the brightness level from 10% to 100%. Release when the desired brightness is reached.
Anti-Fog Function
- Short Press: Briefly touch the anti-fog icon to activate or deactivate the anti-fog function. The defogger will heat the mirror surface to prevent condensation.
Image: A detailed view of the touch controls for adjusting light color, brightness, and activating the anti-fog feature.
Maintenance
- Clean the mirror surface with a soft, damp cloth and a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals.
- Do not spray cleaning solutions directly onto the mirror's edges or electrical components.
- Regularly check the electrical connections for any signs of wear or damage.
- Ensure the mirror is dry after cleaning, especially around the touch controls.
Image: A person cleaning the mirror, illustrating the recommended method for maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; loose connection; faulty switch. | Check power outlet/hardwiring. Ensure connections are secure. Contact support if switch is faulty. |
| Anti-fog not working | Function not activated; electrical issue. | Press the anti-fog touch button. Check power supply. |
| Light flickers | Unstable power supply; loose wiring. | Ensure stable power. Check wiring connections. |
| Touch controls unresponsive | Excessive moisture on hands or mirror; temporary glitch. | Ensure hands and mirror surface are not excessively wet. Try restarting power to the mirror. |
Specifications
- Brand: Dripex
- Model: Round LED Bathroom Mirror
- Dimensions: 50L x 50l cm
- Material: 4mm Reinforced Glass
- Light Source: LED
- Color Temperatures: 2500K (Warm White), 5000K (Neutral White), 6500K (Cool White)
- Dimmable: Yes (10% - 100%)
- Features: Anti-Fog, Smart Touch Control
- Waterproof Rating: IP44
- Room Type: Bathroom
Image: The Dripex 50cm Round LED Bathroom Mirror, highlighting its overall design and features.
Warranty and Support
This product is shipped with multiple layers of tight packaging to ensure it arrives undamaged.
In the unfortunate event that you receive a broken mirror, please provide photographic proof. Our customer support team will contact you within 24 hours to assist with a replacement or refund.
For further assistance or inquiries, please refer to the seller's contact information on the purchase platform.
