Introduction
Thank you for choosing the Bonsenkitchen Air Fryer. This appliance is designed to provide a healthier alternative to traditional deep frying, allowing you to enjoy your favorite foods with significantly less oil. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air fryer. Please read it thoroughly before first use and keep it for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the frying basket is properly inserted before operating.
- Do not block any ventilation openings.
Product Overview
Components
- Main Unit (Housing)
- Removable Frying Basket
- Non-stick Pan (inside basket)
- Digital Touch Screen Control Panel
- Air Outlet Vent (rear)
- Power Cord
Control Panel and Features
Image: Bonsenkitchen 4 QT Air Fryer with the frying basket pulled out, showcasing the digital display and a batch of crispy french fries.
The Bonsenkitchen Air Fryer features an intuitive LCD digital touch screen for easy operation. The display shows temperature, time, and selected presets.
Image: Close-up view of the air fryer's LED touch screen, highlighting the 8 pre-programmed cooking icons for various food types.
- Power Button: Turns the unit on/off and starts/pauses cooking.
- Temperature Control (+/-): Adjusts cooking temperature (120°F to 400°F).
- Time Control (+/-): Adjusts cooking time (1 to 60 minutes).
- Preset Icons: Eight customizable cooking programs for common dishes.
Initial Setup
- Unpack: Remove all packaging materials, stickers, and labels from the appliance.
- Clean: Wash the frying basket and pan thoroughly with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth.
- Placement: Place the air fryer on a stable, horizontal, and heat-resistant surface. Ensure there is at least 4 inches (10 cm) of free space on the back and sides, and 4 inches (10 cm) above the appliance to allow for proper air circulation.
- First Use Odor: During the first few uses, a slight odor may be detected. This is normal and will dissipate. Ensure good ventilation.
Operating Instructions
Basic Operation
- Plug In: Connect the power cord to a grounded wall outlet. The air fryer will beep, and the power button will illuminate.
- Preheat (Optional): For best results, preheat the air fryer. Press the power button, then set your desired temperature and time (e.g., 370°F for 3-5 minutes). Press the power button again to start preheating.
- Load Food: Carefully pull out the frying basket. Place your ingredients into the basket. Do not overfill the basket to ensure even cooking.
- Insert Basket: Slide the frying basket back into the air fryer until it clicks into place.
- Set Time & Temperature: Use the temperature and time control buttons to set your desired cooking parameters. The adjustable temperature range is 120°F to 400°F, and the time range is 1 to 60 minutes.
- Start Cooking: Press the power button to begin the cooking cycle. The fan and heating element will activate.
- Shake/Flip (Optional): For some foods, shaking or flipping ingredients halfway through cooking ensures even browning. Pull out the basket, shake/flip, and reinsert. The air fryer will resume cooking automatically.
- Finish Cooking: The air fryer will beep when the set time has elapsed. Carefully pull out the basket and transfer the cooked food to a plate using tongs.
Using Presets
The Bonsenkitchen Air Fryer comes with 8 pre-programmed cooking settings for convenience. To use a preset:
- Turn on the air fryer by pressing the power button.
- Press the menu/preset button to cycle through the 8 preset icons.
- Once you select the desired preset (e.g., French Fries, Chicken Legs), the air fryer will automatically set the recommended time and temperature.
- You can adjust the time and temperature manually even after selecting a preset if needed.
- Press the power button to start cooking.
The 8 presets include:
- French Fries
- Skewers
- Chicken Legs
- Shrimp
- Steak
- Cake
- Vegetables
- Fish
Image: Visual representation of the 360° hot air circulation technology used by the air fryer to cook food evenly and efficiently without oil.
Cooking Guide
The following table provides general guidelines for cooking various foods in your air fryer. Cooking times and temperatures may vary based on food quantity, size, and desired crispiness. Always ensure food is cooked thoroughly to safe internal temperatures.
| Food Item | Temperature | Time | Notes |
|---|---|---|---|
| French Fries (frozen) | 380°F (195°C) | 15-20 min | Shake halfway |
| Chicken Wings | 375°F (190°C) | 20-25 min | Flip halfway |
| Shrimp | 350°F (175°C) | 8-12 min | Shake halfway |
| Steak (1 inch thick) | 400°F (200°C) | 10-15 min | Flip halfway for even cooking |
| Vegetables (broccoli, bell peppers) | 370°F (188°C) | 10-15 min | Toss with a little oil |
Maintenance and Cleaning
Cleaning the Air Fryer
Clean the air fryer after every use. The non-stick surface of the frying basket and pan makes cleaning easy.
- Unplug and Cool: Always unplug the appliance and allow it to cool completely before cleaning.
- Wash Basket and Pan: The frying basket and pan can be washed by hand with hot water, dish soap, and a non-abrasive sponge. They are also dishwasher safe.
- Clean Main Unit: Wipe the exterior of the air fryer with a damp cloth. Never immerse the main unit in water or any other liquid.
- Clean Heating Element: Use a cleaning brush to remove any food residue from the heating element inside the air fryer.
- Dry Thoroughly: Ensure all parts are completely dry before storing or next use.

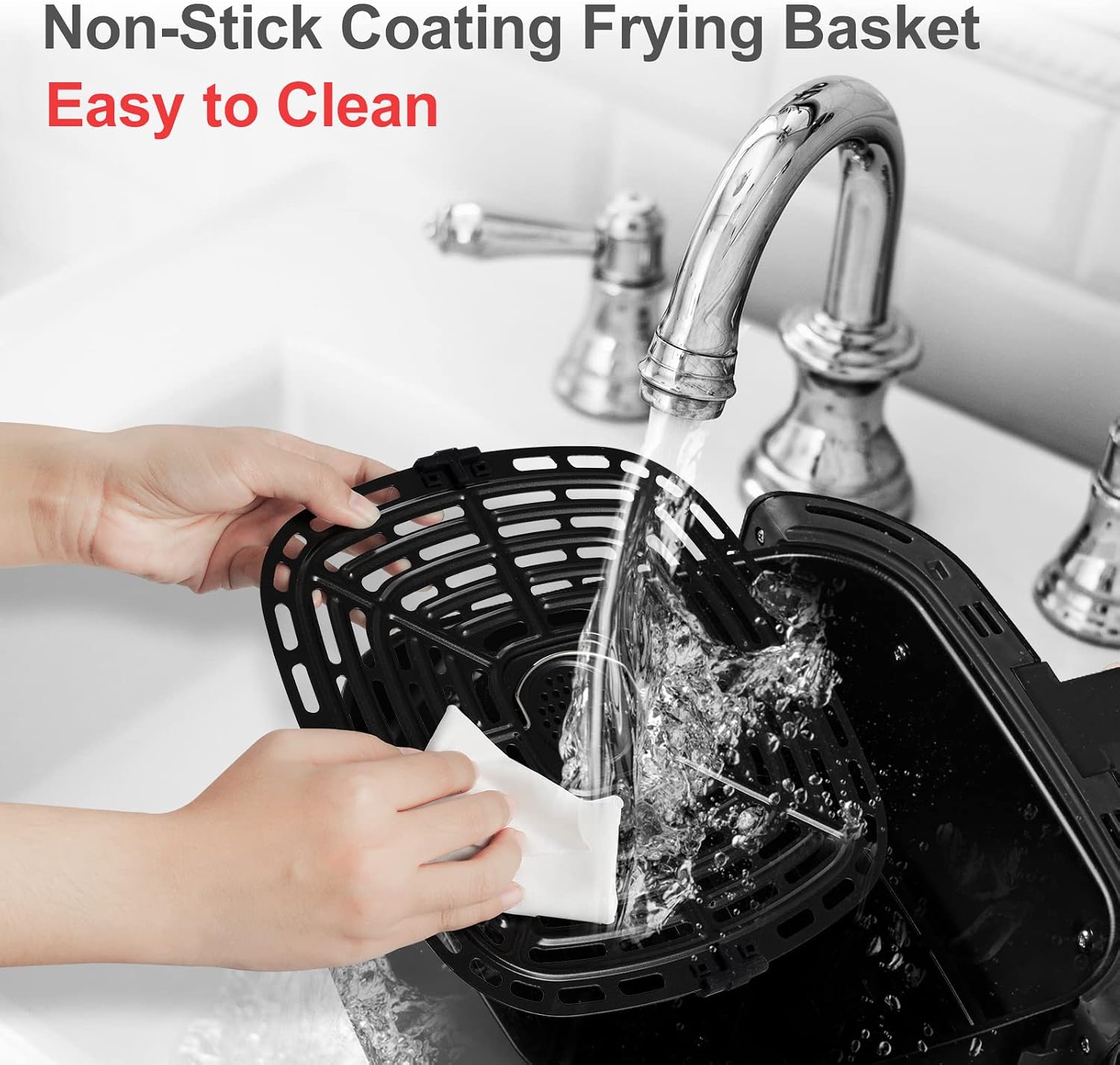

Image: A person cleaning the non-stick frying basket of the Bonsenkitchen Air Fryer under running water, demonstrating its easy-to-clean design.
Storage
Store the air fryer in a cool, dry place. Ensure the basket is fully inserted and the power cord is neatly wrapped.
Troubleshooting
If you encounter any issues with your Bonsenkitchen Air Fryer, please refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in. | Ensure the power cord is securely plugged into a grounded outlet. |
| Food is not cooked evenly. | Basket is overfilled; food not shaken/flipped. | Do not overfill the basket. Shake or flip ingredients halfway through cooking. |
| White smoke coming from the appliance. | Grease residue from previous use; fatty ingredients. | Clean the basket and pan thoroughly after each use. For fatty foods, add a tablespoon of water to the pan to prevent smoke. |
| Food is not crispy. | Too much moisture; insufficient cooking time/temperature. | Pat food dry before air frying. Increase cooking time or temperature slightly. Ensure a thin layer of oil is applied if desired. |
| Appliance smells during first use. | Normal manufacturing residue. | This is normal and will dissipate after a few uses. Ensure good ventilation. |
Product Specifications
| Feature | Specification |
|---|---|
| Model | AF8101 |
| Capacity | 4 QT |
| Wattage | 1400 Watts |
| Voltage | 120 Volts |
| Temperature Range | 120°F - 400°F |
| Timer Range | 1 - 60 minutes |
| Control Type | Digital Touch Screen |
| Non-stick Coating | Yes |
| Certifications | UL Certified, ETL Approved, BPA-free |
| Item Weight | 10.38 pounds |
| Package Dimensions | 13.9 x 13 x 13 inches |
Warranty and Customer Support
Bonsenkitchen provides a 1-year manufacturer's warranty for this product, covering defects in materials and workmanship under normal use. Additionally, lifetime technical support is available to assist you with any questions or issues you may encounter.
For warranty claims, technical assistance, or any other inquiries, please contact Bonsenkitchen customer support through the official website or your point of purchase. Please have your model number (AF8101) and purchase information ready when contacting support.
